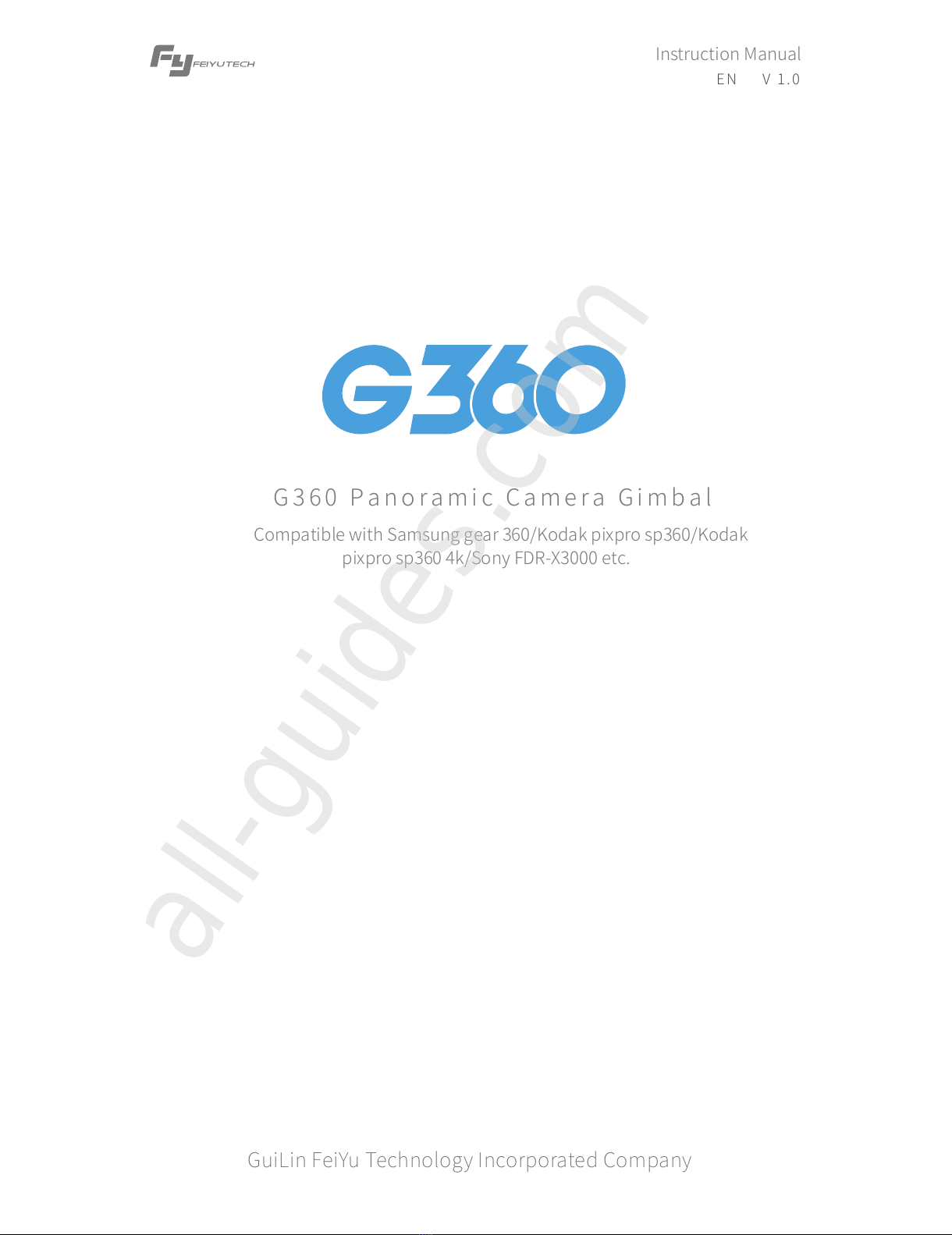

FeiYu Tech G360 Manual de usuario

Compatible with Samsung gear 360/Kodak pixpro sp360/Kodak

pixpro sp360 4k/Sony FDR-X3000 etc.

G360 Panoramic Camera Gimbal

Instruction Manual

V 1.0EN

GuiLin FeiYu Technology Incorporated Company

All manuals and user guides at all-guides.com

all-guides.com

Product Overview

Indicator

Status

Handle

Function

button

1/4 inch

screw hole

Panning

axis

Counter

weight

Tilting axis

Rolling

axis

Upper slider

Lower slider

Adapter

Adjusting

screw

* G360 camera shown in the picture

is only for reference.

Thumb screw

USB cable X1 Batteries

(Type:22650)X1

Life Right Joystick

20g counter

weight

30g counter

weight

40g counter

weight

100g counter

weight

Indicator Status Mode / Status

Blue light ﬂashes once

Blue light ﬂashes three times

Panning mode

Standby

Lock mode / Initializing

Blue light is always on

Blue light keeps ﬂashing Initialization failure /

Malfunction

Low battery

Red light ﬂashes three times

Red light keeps ﬂashing

Function button

You can use the function button to switch

the working mode, power on or power oﬀ

the gimbal.

Please refer to chapter“ Modes / Functions”.

Parts List

Screw cap

Switching to standby

mode/ Gimbal will

power oﬀ

Long press the selﬁe button, the lens will horizontally

rotate 360°, release for positioning

Self-timer button

All manuals and user guides at all-guides.com

User Guide

Install the battery

Install the Camera

(1) Align the camera mounting hole with the upper slider

center slot and tighten the screw to secure it.

(2) Hold the pin ﬁrst，then place the upper slider with the

camera on the lower slider and tighten screw.

(1) (2)

Camera balance adjustment

（1） Adjust the horizontal center of gravity with the counterweight

a.Place a counterweight of a similar weight to the camera on the gimbal and tighten the

counterweight in the opposite direction .

b.Ajust as follows to get the best balance.

（1） Best Balance

Adjust to B1 direction Adjust to A1 direction

Charging Download APP

(1) Please install the camera before powering on the gimbal

(2) When not in use, turn oﬀ the gimbal and then remove the camera

Attention !

App Store

Google play

Feiyu ON

Download

GuiLin FeiYu Technology Incorporated Company

Feiyu ON

（1） iOS version:

（2）Android version:

Option 1: Charge with micro USB cable.

micro USB

Option 2: remove the battery and charge the

battery with charger (equipped by user).

（equipped by user）

Please make sure the battery is fully charged before you

use the gimbal for the ﬁrst time.

Remove the handle and insert

one 22650 battery into it.

Download "Feiyu ON" and install it.

All manuals and user guides at all-guides.com

Modes / Functions

6 7 Connect to APP

（2） Adjust the vertical center of gravity by the upper and lower sliders

Best Balance

（2）b

（2）a

Lean forward Lean backward

Lean to the right

Lean to the left

Tip: Loosen the screw to adjust, please don't take out the screws from the sliders.

Power on / oﬀ

Power On： Press and hold function button

until the green light is on.

Power Oﬀ： Press and hold function button

until the red light changes from quick ﬂashing

to always on.

Attention: Make sure the

camera is secure before

powering on the Gimbal.

!In case of low battery, the red LED indicator

ﬂashes for three times for every 5 seconds.

Please charge G360 or replace the battery.

Start the app on your smartphone,follow the instructions

to connect the smartphone with gimbal via Bluetooth.

Working Modes

Reset

Stand-by

Other Functions

Motor stops working.

The orientation of the camera is ﬁxed.

Panning Mode

Tilting and rolling direction are ﬁxed, and the camera

lens moves according to the hand movement of the user.

Panning and Tilting Mode

The rolling direction is ﬁxed, and the camera lens moves

according to the hand movement of the user.

Lock Mode

* The gimbal will work in panning mode after powering on.

Reset to initial status.

G360

Gimbals Update Settings

Panning Pan&Tilt Lock

Standby Reverse Reset

360°

Choose a device

FY_G360_XX

D7:58:42:2D:DD：xx

Searching...

Rssi=xx

cancel

All manuals and user guides at all-guides.com

Firmware Upgrade

Gimbal initialization

Function Button

Single tap

Function Explanation

Panning Mode / Lock Mode Single tap to switch between panning mode and lock mode

Reset the tilting axis of the gimbal to initial orientation and initial

mode

Quadruple tap Reset

Long press until

the red light

ﬂashes quickly

Single tap again to awake the gimbal, or triple tap to initialize the

gimbal

Standby

Mode / Function Operation Instructions

Please visit the oﬃcial website www.feiyu-tech.com to download the relevant programs for

upgrading, including USB driver, ﬁrmware upgrade software and product ﬁrmware,and install the

relevant software, decompress the ﬁrmware ﬁles for standby application.

Option 1: connect the gimbal with PC via micro USB cable, and then upgrade the ﬁrmware.

Option 2: connect the gimbal with Smarphone via bluetooth, and then upgrade the ﬁrmware.

(1)

(2)

Upgrade........

micro USB

Feiyu ON

new ﬁrmware is available,

do you want to upgrade?

Firmware upgrade

Yes No

You can initialize your gimbal when:

（1） camera is not level

（2） if not used for a long period of time

（3） in case of extreme temperature variations

Red light

ﬂashes

press and hold press and hold

Adjusting steps:

Triple tapTriple tap

Blue light

is on Stands on table

Blue light ﬂash

three times

quickly

Initialization

successful

All manuals and user guides at all-guides.com

189mm

165mm

217.5mm

114.5mm

Parameters

360°

100°

360°

Counter weight 20g, 30g, 40g, 100g

Camera with 1/4 inch screw hole, weight 100~300g.

360g （Not including battery, camera or counter weight ）

61.5mm

Unit: mm

Titling Angle

Rolling Angle

Panning Angle

Adaption

Weight

DISCLAIMER

Attention

Please correctly assemble the gimbal in accordance with the diagram

When the gimbal is not in use or placed on the table, please ensure it is powered oﬀ

Please install the camera before powering on the gimbal

Prohibit any user for any illegal purpose. Users will be responsible for all behaviors of

purchase and use products.

The Company assumes no liability for any risks related to or resulting from the debug and

use of this product (including the direct, indirect or third-party losses).

For any unknown sources of using, we will not be at any services.

The updating and changes of product ﬁrmware and program may cause changes in function

descriptions in this user manual, please read the instructions carefully before upgrading the

ﬁrmware and use the corresponding user manual.

You can get the latest user manual from the oﬃcial website: www.feiyu-tech.com

Feiyu Tech reserves the right to amend this manual and the terms and conditions of use the

product at any time.

min 2°/s max 75°/s

min 3°/s max 150°/s

Titling Increments

Panning Increments

Usage time 6 Hours

All manuals and user guides at all-guides.com

all-guides.com

www.feiyu-tech.com

Create More Possibilities

For more information, please visit our oﬃcial website:

www.feiyu-tech.com

Support Email: service@feiyu-tech.com

Due to software and hardware improvements, your actual product might

diﬀer from the descriptions and pictures in this user manual. You can get

the latest user manual from the oﬃcial website.

All manuals and user guides at all-guides.com
