Introduction
AK2000C is a professional 3-axis stabilized handheld gimbal for DSLR and
mirrorless camera, which can be held in one hand and installed on tripods,
versatile arms or other devices.
AK2000C is equipped with function buttons and a touch screen so that userscan
switch the working modes, control the rotating orientation, and set parameters
by one hand. The gimbal can directly control the camera shooting and focusing
through connecting camera control cable.
Suggestion
AK2000C is designed with function button and LCD touch screen, which can
switch the gimbal working mode, control the rotation and the parameters
setting by one hand. The camera shutter cable is equipped for controlling the
photography, video recording and focus following directly at handle.
Tutorial
Feiyu AK2000C includes below information, please read the
information before using the gimbal:
1. Quick start guide
2. Online instruction
3. Tutorial
The tutorial videos can be watched at FeiyuTech official
website or scan the QR code.
https://www.feiyu-tech.com/play/
Feiyu ON App
Feiyu ON App is needed while using the gimbal. Please download Feiyu ON at
your smartphone App Store or scan the QR code as below. See P23 for more.
www.feiyu-tech.com 2
1. Product Overview
1. Arca quick release plate
2. Quick release plate
3. Fixed plate
4. 1/4 inch thread hole
5. Tilt axis
6. Tilt axis position lock
7. Vertical arm lock screw
8. Power button
9. USB-C port
10. Function button
11. 1/4 inch thread hole
3/8 inch thread hole
12. Touch screen
13. Joystick
14. Mode button
15. Shutter button
16. Sliding arm
17. Sliding arm lock screw
18. Thumb screw
19. Lens holder
20. Pan axis position lock
21. Trigger button
22. Cross arm
23. Arca quick release plate
safety lock
24. Cross arm lock screw
25. Roll axis
26. Roll axis position lock
27. Quick release plate safety
lock
28. Vertical arm
29. Pan axis
30. Handle (built in battery)
* This product does not include the camera.
www.feiyu-tech.com 32
Standard accessories
USB2.0 to Type-C×1 Type-C to Type-C (C02)×1 Type-C to TRS2.5 (T02)×1 Type-C to Micro（A03）×1
Type-C to Multi (Sony
shutter cable)×1
DC2.5mm (TYPE C to
2.5mm)(Panasonic shutter
cable)×1
Anti-slip metal tripod×1 Wrench×1
Optional accessories
Hyperlink remote
controller×1 Extension rod×1 Multifunctional bracket for
tilt axis×1
Versatile arm
( for AK2000S and
AK2000C)×1
Wireless MIC Kit
Wireless MIC×1 Wireless receiver×1 L-shaped quick release
plate×1
2. Start to Use
2.1 Charging
TIP:
• Please fully charge the battery before power on the gimbal for the rst time.
• When the battery is low, please charge the gimbal.
Open the USB rubber cover. Connect the USB 2.0 AM to Type-C MALE cable to
charge. Quick charge is available.
www.feiyu-tech.com 4

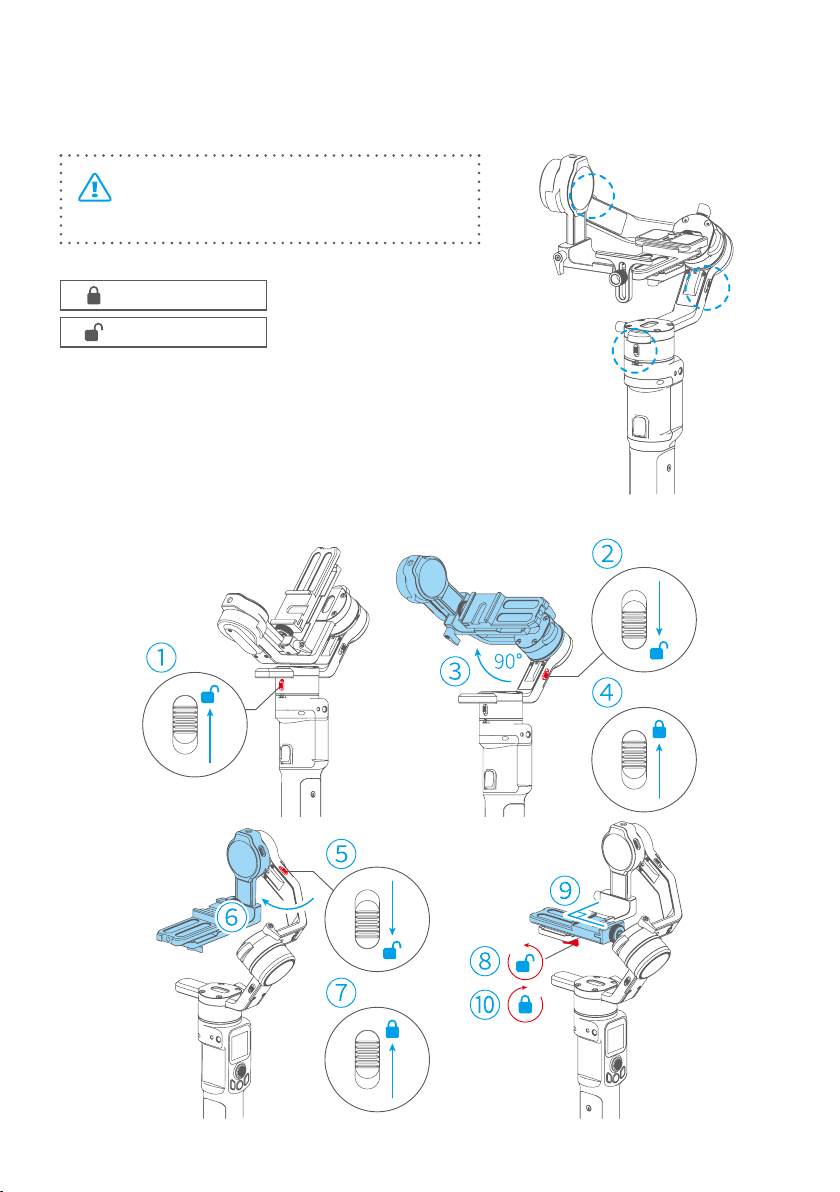

2.2 Unlock and Lock
Each rotating axes has a position lock for convenient balancing and storage.
Be sure to unlock the position locks
before using the gimbal.
Lock
Unlock
Step:
Stored lock satus
Balanced lock satus
www.feiyu-tech.com 54
2.3 Camera Installation
TIP: Camera is ready to shoot. (The lens cover should be removed from the camera
and the memory card and battery needs to be inserted to the camera to complete all the
connections.)
①
2.4 Gimbal Balancing
For ideal shooting effects, balancing the gimbal is necessary, and accurate
balance will oer longer battery life.
TIP:
• Before balancing the gimbal, please lock the gimbal at the balanced lock status,
and the lens cover should be removed from the camera and the memory card
needs to be inserted to the camera to complete all the connections to ensure
that the camera is ready for shooting.
• The camera is ready for shooting and has mounted on the gimbal.
• During balancing the gimbal, make sure the camera and gimbal are all powered
o.
• If it is needed to add accessories after the balance is completed, gimbal needs
to be re-balanced again.
Balanced standard: the camera can stay stably at any angles.
www.feiyu-tech.com 6
2.4.1 Balance tilt axis
Step (a)
· Turn the camera lens upwards.
· Let it go, observe the dropping direction of the camera.
· Loosen the lock screw(red).
· Move the camera.
Status A: Tip: Slide the xed plate slightly in the
direction of the arrow.
Status B: Tip: Slide the xed plate slightly in the
direction of the arrow.
·Move the camera until it can keep upwards, then
tighten the screw.
www.feiyu-tech.com 76
Step (b)
· Turn the camera lens forward.
· Let it go, observe the dropping direction of the camera.
· Unlock the safety lock(red).
· Move the camera.
Status A: Tip: Slide the quick release plate
slightly in the direction of the arrow.
Status B: Tip: Slide the quick release plate
slightly in the direction of the arrow.
·Move the camera until it can keep forward, then
tighten the safety lock.
www.feiyu-tech.com 8
2.4.2 Balance roll axis
· Unlock the safety lock(red).
· Let it go, observe the dropping direction of the camera.
· Loosen the lock screw(red).
· Move the camera.
Status A: Tip: Slide the cross arm slightly in the
direction of the arrow.
Status B: Tip: Slide the cross arm slightly in the
direction of the arrow.
·Move the camera until it can stay horizontally, then
tighten the screw.
