Extron electronics FOX3 T 301 Manual de usuario

IMPORTANT:

Go to www.extron.com for the

complete user guide, installation

instructions, and specifications.

FOX3 T 301 PC, FOX3 T 311 PC,

and FOX3 T 201 PC • Setup Guide

The Extron FOX3 PowerCage Fiber Optic Transmitters are modular, compact single slot boards for the Extron PowerCage 411

that transmit lossless 4K @ 60 Hz video, audio, RS-232 control, and USB HID and USB 2.0 over ber. This guide provides

instructions for an experienced installer to install and operate the devices.

WARNING: The FOX3 PC transmitters output continuous invisible light (Class 1 rated), which may be harmful to the

eyes; use with caution. Plug the attached dust caps into the optical transceivers when the fiber cable is unplugged.

CLASS 1 LASER PRODUCT, see the PowerCage411Series User Guide, at www.extron.com.

AVERTISSEMENT : Le FOX3 PC émetteur émet une lumière invisible en continu (conforme à la classe1) qui peut

être dangereux pour les yeux, à utiliser avec précaution. Branchez les protections contre la poussière dans l’ensemble

émetteur/récepteur lorsque le câble fibre optique est débranché.

Produit laser de classe1, voir le PowerCage411Series User Guide sur www.extron.com (en anglais).

Installation

Board Installation

Install the transmitter into a PowerCage 411 enclosure as

required.

ATTENTION:

• Use ESD precautions when installing a board to

avoid damaging it. Keep the board in the anti-static

bag until it is needed. Use proper grounding

techniques during installation.

• Prenez les précautions ESD lorsque vous installez

une carte afin d’éviter de l’endommager. Gardez la

carte dans le sachet dépoussiérant jusqu’à ce que

vous en ayez besoin. Utilisez des techniques de mise

à la terre correctes pendant l’installation.

PC FOX3 T 301

RS-232

Rx G

AUDIO IN

HDMIINPUT LOOPOUT

OUT IN OUT IN

USB HID USB 2.0

RS-232

LAN

Rx GTx

REMOTE

PC FOX3 T 301

RS-232

Rx G

AUDIO IN

HDMIINPUT LOOPOUT

OUT IN OUT IN

USB HID USB 2.0

PC FOX3 T 301

RS-232

Rx G

AUDIO IN

HDMIINPUT LOOPOUT

OUT IN OUT IN

USB HID USB 2.0

PC FOX3 T 301

RS-232

HDMIINPUT LOOPOUT

OUT IN OUT IN

USB 2.0

Screws

(2 per board)

Align board and

slide into slot.

NOTES:

• FOX3 endpoints are not backwards compatible with FOX or FOX II endpoints.

• A FOX3 endpoint with a LinkLicense cannot pass uncompressed 4K @ 60 Hz video signal to a FOX3 endpoint without

the LinkLicense.

• PowerCage boards are hot-swappable.

• Ensure the boards are flush with the rear of the enclosure and the screws are tightened securely before applying power.

• Each slot is independent from other slots. The type of board installed in a slot or the order of slots filled does not impact

boards installed in other slots.

1. If applicable, remove any blank plates or previously installed boards from the PowerCage 411 enclosure to fit the board.

2. With the ports facing away from the PowerCage 411 enclosure and the screws positioned at the top, align the bottom board

edges with the posts of the desired slots on the PowerCage 411 enclosure.

3. Carefully slide the board into the slot and push it firmly into place.

4. Tighten the screws with a tool to secure the board to the enclosure.

FOX3 T 301, 311, and 201 PC • Setup Guide (Continued)

Device Connection

NOTE: The front panel for the FOX3 T 301 PC is shown in this guide. Some of the features on the FOX3 T 301 PC

transmitter are not available on the FOX3 T 311 PC and FOX3 T 201 PC (see the PowerCage411Series User Guide at

www.extron.com to see all the panels).

PC FOX3 T 301

RS-232

Rx G

AUDIO IN

HDMI INPUT LOOP OUT

OUT IN OUT IN

USB HID USB 2.0

OUT

BBBCCCAAABBBCCCCCCDDDAAACCCDDD

AAA

FFEE

DDDBBB

BBB

FFFF

Figure 1. FOX3 T 301 PC Panel

AAudio In

BRS-232 port

CHDMI Input

DHDMI Loop Out

ESFP module

FUSB HID port (PowerCage FOX3 T 301 and 311 only)

GUSB 2.0 port (PowerCage FOX3 T 301)

Input and Output Connections

The FOX3 PC transmitters includes one HDMI video input, one audio input, and one HDMI Loop Out.

NOTE: Use Extron LockIt™Lacing Bracket to secure HDMI cables to the HDMI ports (see the included Extron LockItLacing

Bracket Installation Card).

1. Connect video inputs or outputs as follows:

• Connect a digital video source to the HDMI input (see figure1, C).

• Connect a digital display to the HDMI Loop Out port (D).

2. Connect an audio source to the 3.5 mm mini stereo port (A), for unbalanced, stereo audio input.

Tip (+)

Sleeve ( )

Ring (

)

Tip (+)

Audio Plugs.eps

RCA Connector

3.5 mm Stereo Plug Connector

(balanced)

Sleeve ( )

Ring (R)

Tip (L)

3.5 mm Stereo Plug Connector

(unbalanced)

3. Connect peripheral devices to the USB ports (see figure2).

NOTES:

• The USB 2.0 port is only available on the FOX3 T 301 PC device.

• The USB HID port is used only for a mouse or keyboard.

• The USB 2.0 port is used for thumb drives, cameras, keyboards, a mouse, CAC reader, and such devices.

60-60 Hz

100-240V ~0.7A MAX

RS-232

Tx Rx Tx RxG

OUT

OUTPUTS

AUDIO

RETURN

INPUTS

CONTROL

OUTIN

USB 2.0

AUDIO

FOX3 R 301

LAN

HDMI

DEVICES

USB HID

100 mA 500 mA

REMOTE

RS-232

Tx Rx S5VG

SYNC

USB

Keyboard

Mouse

Receiver

USB

Thumb Drive

RS-232

LAN

Rx GTx

REMOTE

100-240V ~ --A MAX100-240V ~ --A MAX

50-60 Hz 50-60 Hz

FOX3 T 301 PC

RS-232

Rx G

AUDIO IN

HDMI INPUTLOOP OUT

OUT IN OUT IN

USB HID USB 2.0

OUT I

FOX3 T 301 PC

RS-232

Rx G

AUDIO IN

HDMI INPUTLOOP OUT

OUT IN OUT IN

USB HID USB 2.0

OUT I

FOX3 T 301 PC

RS-232

Rx G

AUDIO IN

HDMI INPUTLOOP OUT

OUT IN OUT IN

USB HID USB 2.0

OUT I

FOX3 T 301 PC

RS-232

Rx G

AUDIO IN

HDMI INPUTLOOP OUT

OUT IN OUT IN

USB HID USB 2.0

OUT I

USB

Laptop

SM or MM cable

Transmitter A

Figure 2. Peripheral USB Connections Diagram

• USB Host port (A) — Connect a USB type A to B cable between this USB type B port and the USB port of a host.

• USB Hub port (B) — Connect a USB type A cable between the USB type A port and peripherals.

Control Connection

To pass serial data between a control device and a controlled device (such as control of a projector), connect the desired type of

device to the RS-232 port on the transmitter (B). To congure the RS-232 protocol, see the PowerCage411Series User Guide at

www.extron.com. The default RS-232 protocol is as follows:

• 9600 baud • No parity • 8 data bits

• 1 stop bit • No flow control

Throughput Connections

NOTE: See figure3 for fiber cable connections. Connect the transmitter to a receiver

in one of three ways:

• One way (transmitter to receiver) only, perform step 1.

• Two way (transmitter to receiver and return), perform steps 1 and 2.

• Output B is available to transmit 4K @ 60 Hz uncompressed signal when the

FOX3 Uncompressed Video LinkLicense is purchased.

1. Connect the fiber between the transmitter A Out port and the receiver A In port (1).

NOTE: Ensure that the transmitter and connected receiver are in the same

transmission mode, singlemode (SM) or multimode (MM) and use the correct

SM or MM ber cable to connect the devices.

2. To return serial data from the receiver (such as responses from a controlled device)

connect a cable between the receiver A Out port and the transmitter A In port (2).

NOTE: On the FOX3 T 301 PC and FOX3 T 311 PC, this connection is needed

for USB signal communication.

3. To transmit an uncompressed 4K @ 60 Hz signal, using the Uncompressed Video

LinkLicense, repeat step 1 on the SFP B port on the transmitter and receiver.

Receiver

ransmitter

OUTIN

INPUTS

OUTIN

Figure 3. SFP Connection

Operation

After all transmitters, receivers, and their related devices are connected and powered, the system is fully operational. If any

problems are encountered, verify the cables are routed and connected properly and that all display devices have identical

resolutions and refresh rates. If problems persist, call the Extron S3 Sales & Technical Support Hotline.

To congure and control the PowerCage FOX3 transmitter, use the Extron Product Conguration Software (PCS), Extron Simple

Instruction Set (SIS™) commands, or the internal web page with the PowerCage 411 enclosure.

NOTE: An Extron Insider account is required to download and use PCS. Contact an Extron support representative, to obtain

an Insider Account.

68-2640-52 Rev. A

12 22

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the

Extron Safety and Regulatory Compliance Guide on the Extron website.

All trademarks mentioned are the property of their respective owners.

Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876

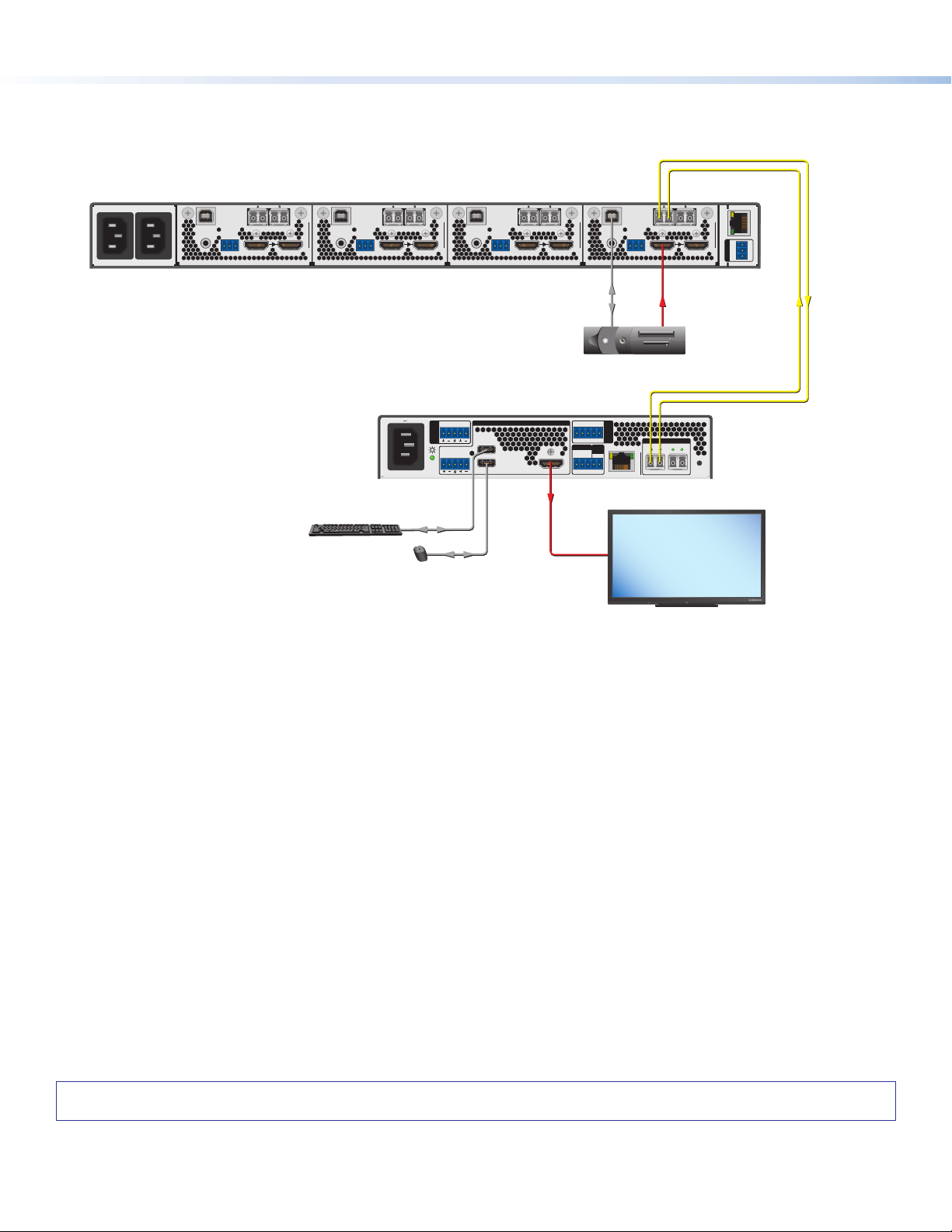

Application Diagram

100-240V 0.7AMAX

50-60 Hz

FOX3 SR 311

LAN

OUT

IN OUT IN

INPUTS

CONTROL

AUDIO

RETURN

REMOTE

OUTPUTS

SYNC

AUDIO

RS-232

Rx Tx RxG

Tx Rx G S 5V

100mA

HDMI

USB HID

DEVICES

100-240V ~ --A MAX

50-60Hz

100-240V ~ --A MAX

50-60Hz

RS-232

Tx Rx G

REMOTE LAN

USB HID

AUDIO IN RS-232

USB 2.0 OUT IN OUT IN

HDMI INPUT LOOP OUT

Tx Rx G

PC FOX3 T 301

USB HID

AUDIO IN RS-232

USB 2.0 OUT IN OUT IN

HDMI INPUT LOOP OUT

Tx Rx G

PC FOX3 T 301

USB HID

AUDIO IN RS-232

USB 2.0 OUT IN OUT IN

HDMI INPUT LOOP OUT

Tx Rx G

PC FOX3 T 301

USB HID

AUDIO IN RS-232

USB 2.0 OUT IN OUT IN

HDMI INPUT LOOP OUT

Tx Rx G

PC FOX3 T 301

USB HID

AUDIO IN RS-232

OUT IN OUT IN

HDMI INPUTLOOP OUT

Tx Rx G

FOX3 T 311 PC

USB HID

AUDIO IN RS-232

OUT IN OUT IN

HDMI INPUTLOOP OUT

Tx Rx G

FOX3 T 311 PC

USB HID

AUDIO IN RS-232

OUT IN OUT IN

HDMI INPUTLOOP OUT

Tx Rx G

FOX3 T 311 PC

USB HID

AUDIO IN RS-232

OUT IN OUT IN

HDMI INPUTLOOP OUT

Tx Rx G

FOX3 T 311 PC

MODEL80

FLATPANEL

Extron

PowerCage 411

Modular Power Enclosure for

Fiber Optic Extender

Extron

FOX3 SR 311

Fiber Optic Scaling

Receiver for HDMI,

Audio, USB HID,

and RS-232

4K Display

HDMI

USB HID

HDMI

Fiber

Extron

FOX3 T 311 PC

Fiber Optic Transmitter for

HDMI, Audio, and RS-232

Keyboard

Mouse

Otros manuales para FOX3 T 301

Este manual sirve para los siguientes modelos

Otros manuales de Transmisor de Extron electronics

Extron electronics

Extron electronics DTP T HD2 4K 230 Manual de usuario

Extron electronics

Extron electronics TP T 15HD AV Manual de usuario

Extron electronics

Extron electronics DVI 201xi TX Manual de usuario

Extron electronics

Extron electronics A/V Receiver MTP 4T 15HD RS Manual de usuario

Extron electronics

Extron electronics DTP T FB 232 Manual de usuario

Extron electronics

Extron electronics PVT RGB D Plus Manual de usuario

Extron electronics

Extron electronics XTP T UWP 202 Manual de usuario

Extron electronics

Extron electronics DTP3 T 101 D Manual de usuario

Extron electronics

Extron electronics TP T 15HD 45 Manual de usuario

Extron electronics

Extron electronics FOX II T HD 4K Manual de usuario

Extron electronics

Extron electronics USB Extender Plus Series Manual de usuario

Extron electronics

Extron electronics XTP T FB 202 4K Manual de usuario

Extron electronics

Extron electronics DTP DVI 230 Manual de usuario

Extron electronics

Extron electronics DVI 201xi TX Manual de usuario

Extron electronics

Extron electronics ExSens Manual de usuario

Extron electronics

Extron electronics A/V Receiver MTP 4T 15HD RS Manual de usuario

Extron electronics

Extron electronics XTP T FB 202 Manual de usuario

Extron electronics

Extron electronics FOX3 T 201 Manual de usuario

Extron electronics

Extron electronics FOXBOX T HD-SDI Manual de usuario

Extron electronics

Extron electronics DTP T EU 4K 331 Manual de usuario

Extron electronics

Extron electronics CAT 5 Manual de usuario

Extron electronics

Extron electronics A/V Receiver MTP 4T 15HD RS Manual de usuario

Extron electronics

Extron electronics UCS FT 901 Manual de usuario

Extron electronics

Extron electronics XTP T VGA Manual de usuario

Manuales populares de Transmisor de otras marcas

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manual del propietario

Honeywell

Honeywell 5816WMBR Manual de usuario

Kamstrup

Kamstrup READy MTU Instrucciones de funcionamiento

Omega

Omega ZW Series Manual de usuario

ABB

ABB Field 264H Guía

Alinco

Alinco DJ-V17T Manual de usuario

Dejero

Dejero EnGo 3x Manual de usuario

Rosemount

Rosemount 4600 Manual de usuario

Speaka Professional

Speaka Professional 2342740 Manual de usuario

trubomat

trubomat GAB 1000 Manual de usuario

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manual de usuario

Rondish

Rondish UT-11 Manual de usuario

MG 10JRE Manual de usuario

Burkert

Burkert 8177 Manual de usuario

Firetide

Firetide HotPort 3203 Manual

Tele Radio

Tele Radio T9-02 Manual de usuario

Rotronic

Rotronic HygroFlex HF3 Series Manual de usuario

Jamara

Jamara FCX6 Pro Tel Manual de usuario
