Extron electronics TP Series Manual de usuario

Setup Guide — TP Transmitters

This guide provides quick start instructions for

an experienced installer to set up and operate

the TP Transmitter Series products. Refer to

www.extron.com for the complete user’s manual.

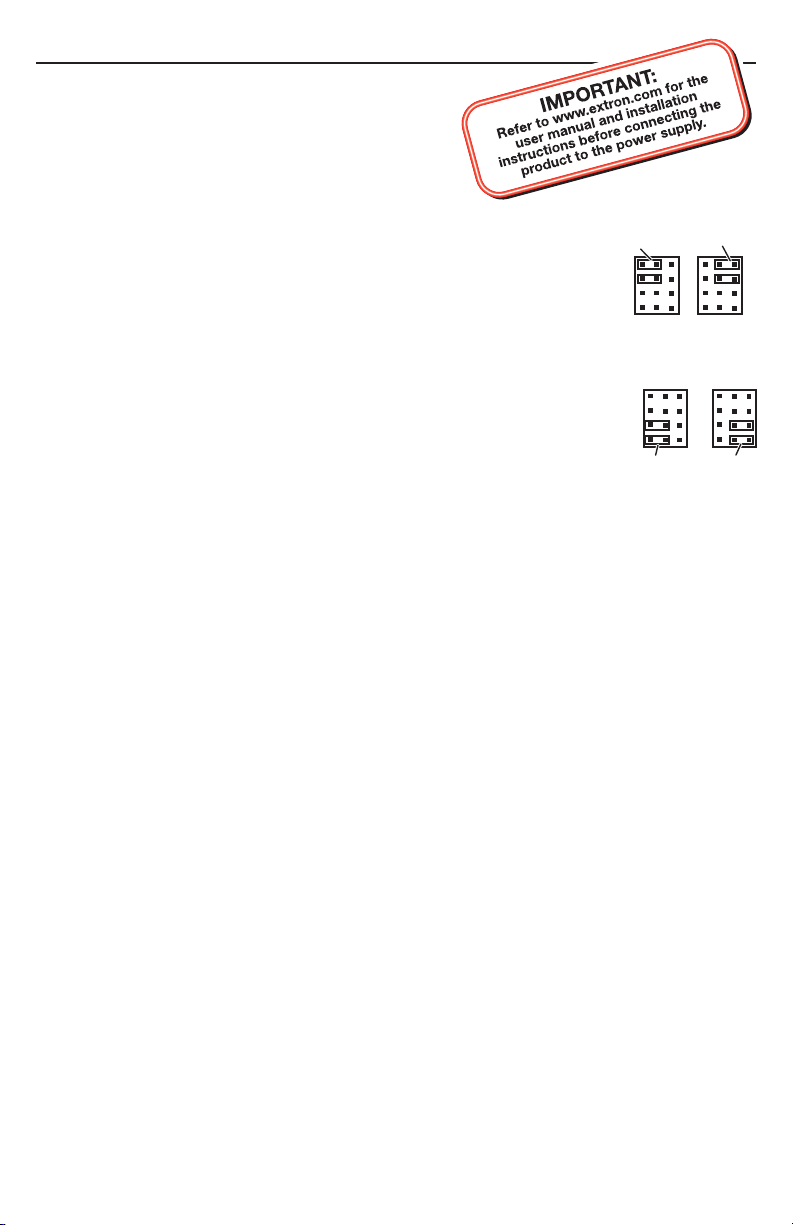

Pre-installation — Jumper settings

The TP T 15HD A, TP T 15HD AV, and the TP T BNC DA4 are factory

conﬁgured to transmit RGB video. You can reconﬁgure them to transmit

component, S-video, or composite video by using a jumper to connect the

following pins on the main board:

• TPT15HDAandTPT15HDAV — Use a jumper to connect pins 1

and 2 at locations J1 and J2 (see the illustration at upper right).

• TPTBNCDA4 — Use a jumper to connect pins 1 and 2 at locations J11

and J12 (see the illustration at lower right).

NIf using the TP T 15HD AV with a TPX 88X transmitter or with

an older, unmodiﬁed receiver, refer to the TP Transmitters User’s

Manual, “Audio jumpers”, for information on audio jumper

placement for compatibility.

Installation

Step 1 — Mount the unit

Turn off or disconnect power to all equipment, and mount the transmitter as desired.

Step 2 — Connect inputs

Attach input cables to the audio and video connectors as applicable for your TP T model.

• Compositevideo — Connect a composite video source device to the Video RCA jack

(TP T 15 HD AV), the G pin of the Computer Input HD connector (TP T 15HD A), or the

G BNC connector (TP T BNC DA4). For three separate genlocked video signals on the

TP T BNC DA4, connect the input device to the R, G, and B BNC connectors.

• S-video — Connect an S-video source device to pins R (chroma) and G (luma) of the

Computer Input HD connector (TP T 15 HD A and TP T 15 HD AV), or to the R (C-chroma)

and G (Y-luma) BNC connectors (TP T BNC DA4).

• Componentvideo — Connect a source device to pins R (R-Y), G (Y), and B (B-Y) of the

Computer Input HD connector (TP T 15 HD A and TP T 15 HD AV), or to the R (R-Y), G (Y)

and B (B-Y) BNC connectors (TP T BNC DA4).

• RGBHVcomputervideo — Connect an RGB source device to the female Computer Input

HD connector (TP T 15 HD A and TP T 15 HD AV) or to the R, G, B, H/HV, and V female

BNC connectors (TP T BNC DA4).

• RGBScomputervideo — Connect an RGB source device to the female Computer Input

HD connector (TP T 15 HD A and TP T 15 HD AV) or to the R, G, B, and H/HV female BNC

connectors (TP T BNC DA4).

• Audioinput — Connect PC audio to the 3.5 mm stereo jack (TP T 15HD A and

TP T 15HD AV).

• AudioinputLandRpair — Connect left and right stereo audio to the RCA connector pair

(TP T 15HD AV only).

N Input only analog line level audio signals on these connectors.

Component,

S-video,

Composite

RGB

TP T 15HD A

TP T 15HD AV

Component,

S-video,

Composite

RGB

TP T BNC DA4

(Continued on reverse side)

Setup Guide — TP Transmitters

Extron USA - West

Headquarters

+800.633.9876

Inside USA / Canada Only

+1.714.491.1500

+1.714.491.1517FAX

Extron USA - East

+800.633.9876

Inside USA / Canada Only

+1.919.863.1794

+1.919.863.1797FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400

+65.6383.4664FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656FAX

Extron China

+400.883.1568

Inside China Only

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800

+971.4.2991880 FAX

Step 3 — Connect outputs

• Connect the RJ-45 cable from a TP receiver to an RJ-45 port on the TP transmitter. Terminate

the cable’s ends according to the TIA/EIA T 568A wiring standard (see the table below).

• If desired, connect a local monitor video cable to the Buffered Local Monitor port

(TP T 15HD A and TP T 15HD AV only).

Step 4 — Connect power

Plug the included external 15 VDC power

supply into the 3-pole captive screw connector.

Wire the connector as shown at right.

NThe TP T 15HD A and TP T 15HD AV

can be powered via the attached receiver

(except the TP R 15HD A) for cable runs

of 300 feet (91.4 m) or less.

Step 5 — Set DIP switches (TP T 15HD A and TP T 15HD AV only)

• IDPin4andIDPin11 (front panel)—Set these switches to Off

(down) if a local monitor is connected, or to On (up) if not.

• DDSP (back panel) — Set this switch to On (up), if needed, to turn

on Digital Display Sync Processing. Set the switch to Off (down) for

displays that cannot handle processed sync.

Step 6 — Adjust horizontal shift (TP T 15HD A and TP T 15HD AV)

While viewing the display, use a small screwdriver to turn the H. Shift potentiometer on the

front panel to adjust the side-to-side image placement.

ID PIN 4 ID PIN 11

DDSP

SPARE

SECTION A–A

Power Supply

Output Cord

Ridges

Smooth

A A

3/16” (5 mm)

Max.

N/C N/C

Pin Wire color

RGB video and audio AV video and audio

Signal Level Signal Level

1White-green Red/V. sync+ ±0.35V Video+ +0.35V

2Green Red/V. sync– ±0.35V Video– –0.35V

3 White-orange Audio and power +15V with ±0.5 V +15V

4Blue Green+ +0.35V Reserved None

5White-blue Green– –0.35V Reserved None

6 Orange Audio and power

Audio+* & power+

Audio–* & power–

±0.5 V0V

7White-brown Blue/H. sync+ ±0.35V Reserved None

8Brown

*Audio can be connected to wire pair 7 and 8 with a jumper.

Blue/H. sync– ±0.35V Reserved None

12345678

RJ-45 Connector

Insert Twisted

Pair Wires

Pins:

68-546-50

Rev. A

02 09

TP T 15HD A

H-SHIFT

BUFFEREDCOMPUTER

INPUT

AUDIO

IDPIN 4

IDPIN 11

LOCALMONITOR

Extron

TP R BNC A

Twisted Pair Receiver

Extron

TP T 15HD A

Twisted Pair

Transmitter

RGBINPUT RGBOUTPUT

RGBH/HV V

AUDIO

SOG

CSYNC

POWER

15V.5A DC

L R

Computer

Extron

Enhanced

Skew-Free™ A /V

UTP Cable

Audio

Sound System

LCD Projector
