Extron electronics DTP3 T 202 Manual de usuario

User Guide

DTP3T 202/DTP3 R201

DTP Systems

HDMI Twisted Pair Transmitters and Receivers

68‑3445‑01 Rev. C

09 21

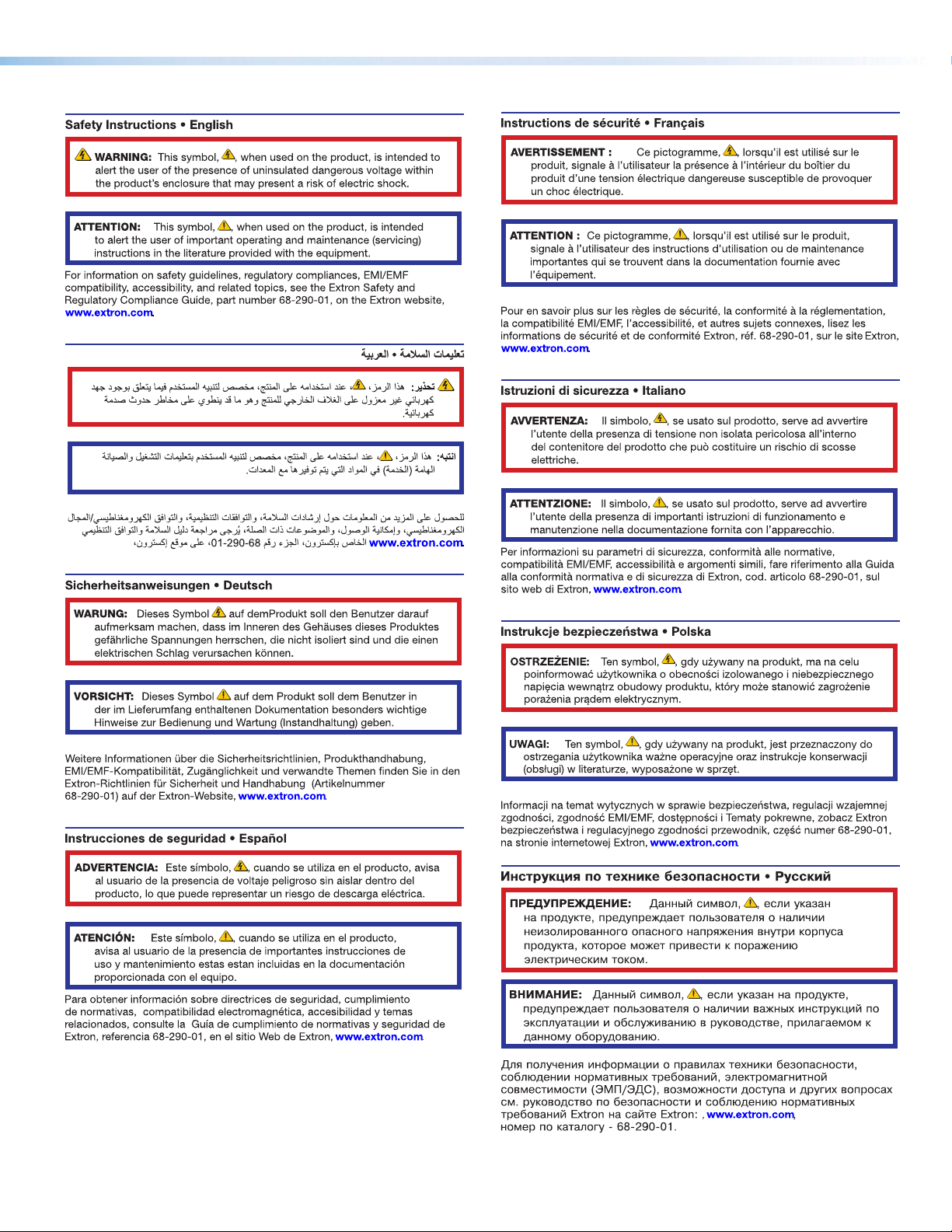

Safety Instructions



Trademarks

All trademarks mentioned in this guide are the properties of their respective owners.

The following registered trademarks (®), registered service marks (SM), and trademarks (TM) are the property of RGBSystems, Inc. or Extron (see the

current list of trademarks on the Terms of Use page at www.extron.com):

Registered Trademarks (®)

Extron, Cable Cubby, ControlScript, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, eLink, Flat Field, FlexOS, Glitch Free, GlobalConfigurator,

GlobalScripter, GlobalViewer, Hideaway, HyperLane, IPIntercom, IPLink, KeyMinder, LinkLicense, LockIt, MediaLink, MediaPort, NAV,

NetPA, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, ShareLink, Show Me, SoundField, SpeedMount, SpeedSwitch, StudioStation,

SystemINTEGRATOR, TeamWork, TouchLink, V‑Lock, VN‑Matrix, VoiceLift, WallVault, WindoWall, XPA, XTP, XTPSystems, and ZipClip

Registered Service Mark(SM) : S3 Service Support Solutions

Trademarks (™)

AAP, AFL (Accu‑RATEFrameLock), ADSP(Advanced Digital Sync Processing), AVEdge, CableCover, CDRS(ClassD Ripple Suppression),

CodecConnect, DDSP(Digital Display Sync Processing), DMI (DynamicMotionInterpolation), DriverConfigurator, DSPConfigurator, DSVP(Digital

Sync Validation Processing), EQIP, Everlast, FastBite, Flex55, FOX, FOXBOX, IP Intercom HelpDesk, MAAP, MicroDigital, Opti‑Torque,

PendantConnect, ProDSP, QS‑FPC(QuickSwitch Front Panel Controller), RoomAgent, Scope‑Trigger, SIS, SimpleInstructionSet, Skew‑Free,

SpeedNav, Triple‑Action Switching, True4K, True8K, Vector™ 4K, WebShare, XTRA, and ZipCaddy

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part15 of the FCC rules. The ClassA limits provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and,

if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause interference; correcting the interference is at the expense of the user.

ATTENTION:

• The Twisted Pair Extension technology works with unshielded twisted pair (UTP)

or shielded twisted pair (STP) cables; but to ensure FCC Class A and CE

compliance, STP cables and STP Connectors are required.

• La technologie extension paires torsadées fonctionne avec les câbles paires

torsadées blindées(UTP) ou non blindées(STP). Afin de s’assurer de la

compatibilité entre FCC ClasseA et CE, les câbles STP et les connecteurs STP

sont nécessaires.

NOTES:

• This unit was tested with shielded I/O cables on the peripheral devices. Shielded

cables must be used to ensure compliance with FCC emissions limits.

• For more information on safety guidelines, regulatory compliances, EMI/EMF

compatibility, accessibility, and related topics, see the Extron Safety and

Regulatory Compliance Guide on the Extron website.

Battery Notice

This product contains a battery. Do not open the unit to replace the battery. If the

battery needs replacing, return the entire unit to Extron (for the correct address, see the

Extron Warranty section on the last page of this guide).

CAUTION: Risk of explosion. Do not replace the battery with an incorrect type. Dispose

of used batteries according to the instructions.

ATTENTION: Risque d’explosion. Ne pas remplacer la pile par le mauvais type de pile.

Débarrassez-vous des piles usagées selon le mode d’emploi.

Conventions Used in this Guide

Notifications

The following notifications are used in this guide:

WARNING: Potential risk of severe injury or death.

AVERTISSEMENT : Risque potentiel de blessure grave ou de mort.

CAUTION: Risk of minor personal injury.

ATTENTION : Risque de blessuremineure.

ATTENTION:

• Risk of property damage.

• Risque de dommages matériels.

NOTE: A note draws attention to important information.

TIP: A tip provides a suggestion to make working with the application easier.

Software Commands

Commands are written in the fonts shown here:

^AR Merge Scene,,0p1 scene 1,1 ^B 51 ^W^C.0

[01] R 0004 00300 00400 00800 00600 [02] 35 [17] [03]

EX! *X1&*

X2)*

X2#*

X2! CE}

NOTE: For commands and examples of computer or device responses

mentioned in this guide, the character “0” is used for the number zero and “O”

is the capital letter “o.”

Computer responses and directory paths that do not have variables are written in the font

shown here:

Reply from 208.132.180.48: bytes=32 times=2ms TTL=32

C:\Program Files\Extron

Variables are written in slanted form as shown here:

ping xxx.xxx.xxx.xxx —t

SOH R Data STX Command ETB ETX

Selectable items, such as menu names, menu options, buttons, tabs, and field names are

written in the font shown here:

From the File menu, select New.

Click the OK button.

Specifications Availability

Product specifications are available on the Extron website, www.extron.com.

Extron Glossary of Terms

A glossary of terms is available at https://www.extron.com/technology/glossary.aspx

viiDTP3 T 202 / DTP3 R 201 • Table of Contents

Contents

Introduction ................................................ 1

About this Guide.................................................. 1

About the DTP3T202 Transmitter and

DTP3R201 Receiver ......................................... 1

Control Communications ................................. 1

TP Cable Advantages ...................................... 2

Application Diagram ............................................ 2

Features .............................................................. 2

Installation and Operation............................ 4

Installation Overview ............................................ 4

Connections........................................................ 5

Transmitter Rear Panel Connections ................ 5

Receiver Rear Panel Connections.................... 6

Securing the HDMI Connector......................... 8

TP Cable Termination and Recommendations.. 8

Power Supply Wiring ....................................... 9

RS-232 Connector Wiring.............................. 11

Operations......................................................... 11

Front Panel Features...................................... 11

Connecting to the Front Panel USB Port........ 13

Resetting ....................................................... 15

SIS Conﬁguration and Control ................... 16

Host Control Port ............................................. 16

Establishing a Connection.............................. 16

Simple Instruction Set Control .......................... 17

Host-to Unit Instructions ............................... 17

Error Message .............................................. 17

Timeout ........................................................ 17

Using the Command and Response Table ......... 17

Symbol Definitions ........................................ 17

Command and Response Table for SIS

Commands ...................................................... 19

Product Conﬁguration Software................. 22

Software/Firmware Installation .......................... 22

Connecting to PCS ........................................... 24

Device Discovery Panel.................................. 24

TCP/IP Panel................................................. 25

Software Overview ............................................ 26

Software Menu .............................................. 26

Device Menu ................................................. 28

Equipment Mounting ................................. 30

Mounting the Devices ....................................... 30

Tabletop Use ................................................. 30

Mounting Kits ............................................... 30

Extron Warranty ........................................ 31

DTP3 T 202 / DTP3 R 201 • Table of Contents viii

DTP3 T 202 / DTP3 R 201 • Introduction 1

Introduction

• About this Guide

• About the DTP3T202 Transmitter and DTP3R201 Receiver

• Application Diagram

• Features

About this Guide

This guide describes the Extron DTP3T202 and DTP3R201 long distance High Definition

Multimedia Interface (HDMI) Twisted Pair Extenders, which consists of a transmitter and

receiver:

• DTP3T202 — 330feet (100meters) transmitter

• DTP3R201 — 330feet (100meters) receiver

This guide describes how to install, operate, and configure the transmitter and receiver.

In this guide, the DTP3T202 is commonly referred to as a transmitter (Tx) and the

DTP3R201 as a receiver (Rx). They are also referred to as devices or units.

About the DTP3T202 Transmitter and DTP3R201 Receiver

The DTP3 transmitter and receiver pair (see figure1 on page2) extends the usable

distance of HDMI digital video with resolutions up to 4K@60Hz (4:4:4), remote power, and

bidirectional RS-232 control signals over one Extron XTPDTP22 shielded twisted pair (STP)

cable (recommended), up to 330feet (100meters).

The devices extend the digital signal to DTP3 inputs 330feet (100meters) with a maximum

resolution of up to 4K @ 60Hz, 4:4:4, supporting data rates up to 18Gbps.

Both units are HDMI(2.0b and 1.4) and HDCP(2.3 and 1.x) compliant. HDCP, and CEC

transmission is negotiated from source to sink. The DTP3 T 202 has EDID Minder®.

The DTP3 R 201 receiver features digital audio de-embedding which de-embeds 2-ch

LPCM digital audio from the HDMI input signal and outputs it through the Audio Out

connector on the rear panel.

The DTP3 transmitter and receiver are housed in 1 inch tall, quarter rack width, 6inch deep

metal enclosures. They can be set on a tabletop, mounted in a rack, or under or through

furniture. The receiver can also be mounted on a projector bracket.

Control Communications

The RS-232 communications are passive pass-through only. The transmitter and receiver

do not generate or respond to the RS-232 communication signals.

DTP3 T 202 / DTP3 R 201 • Introduction 2

TP Cable Advantages

Twisted pair cable is much smaller, lighter, more flexible, and less expensive than coaxial

or HDMI cable. These transmitter and receiver twisted pair (TP) products make cable runs

simpler and less cumbersome. Termination of the cable with RJ-45 connectors is simple,

quick, and economical.

ATTENTION:

• Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201

cable to link the transmitter and receiver. The DTP3 T/R do not work properly with

these cables.

• N’utilisez pas le câble audiovisuel Skew Free UTP version améliorée UTP23SF-4

Extron ou le câble STP201 pour relier l’émetteur et le récepteur/sélecteur. Le

DTP3T/R ne fonctionne pas correctement avec ces câbles.

Application Diagram

DTP3 R 201

CONFIG

SEND

PWR

OFF

SIGNAL

HDCP

INPUT

POWER

12V

1.5A MAX

OVER

DTP3

RS-232

RxTx

LINK

DTP3 IN

SIG

HDMI

AUDIO OUT

OUTPUT

DTP3 T 202

CONFIG

INPUT

HDBT

DTP

SIGNAL

HDCP

SEND

PWR

OFF

POWER

12V

1.5A MAX

OVER

RS-232

RxTx

LINK

OUT

SIG

HDMI

LOOP OUT

HDMI

INPUT

POWER

12V

0.3A MAX

IPL PRO S3

Tx Rx RTSCTS G

Tx Rx RTS CTS G

Tx Rx RTSCTS

COM 1COM 2COM 3

LAN / PoE

RS-232 RS-232

HDMI

CATx Cable up to 330' (100 m)

4K HDR DisplayPC with Local 4K Monitor

Extron

DTP3 T 202

Transmitter

Extron

IPL Pro S3

IP Link Pro

Control Processor

Extron

DTP3 R 201

Receiver

Figure 1. Typical DTP3 Transmitter and Receiver Application

Features

• Transmits HDMI plus control up to 330’ (100m) over a shielded twisted pair

cable— The devices provide high reliability and maximum performance on an

economical and easily installed cable infrastructure.

• Supports computer and video resolutions up to 4K/60 @ 4:4:4— Support of

4K/60 at 4:4:4 color sampling requires connection to matching DTP3 products.

• Stereo audio de-embedding(DTP3 R 201)— The captive screw stereo output is

selectable for de-embedded or pass-through analog audio.

• Buffered HDMI input loop-through (DTP3 T 202)— Features an active HDMI

loop-through for local monitor support or system expansion.

• EDID Minder automatically manages EDID communication between connected

devices (DTP3 T 202)— EDIDMinder ensures that the source powers up properly

and reliably outputs content for display.

• HDCP 2.3 compliant— Ensures display of content-protected 4K video media and

maintains interoperability with earlier versions of HDCP.

Otros manuales para DTP3 T 202

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Receptor de Extron electronics

Extron electronics

Extron electronics FOX3 SR 301 Manual de usuario

Extron electronics

Extron electronics FOX II T DP 4K Manual de usuario

Extron electronics

Extron electronics MTP T AV Manual de usuario

Extron electronics

Extron electronics MTP U R A Manual de usuario

Extron electronics

Extron electronics MTP/HDMI U R Manual de usuario

Extron electronics

Extron electronics TP R BNC A Manual de usuario

Extron electronics

Extron electronics Receivers TP Series Manual de usuario

Extron electronics

Extron electronics Digital Video Transmitter and Receiver DVI 201... Manual de usuario

Extron electronics

Extron electronics XTP FT HD 4K Manual de usuario

Extron electronics

Extron electronics Twisted Pair Transmitter TP T 15HD A Manual de usuario

Extron electronics

Extron electronics TP R BNC A Manual de usuario

Extron electronics

Extron electronics MTP 15HD A Series Manual de usuario

Extron electronics

Extron electronics FOXBOX SR HDMI Manual de usuario

Extron electronics

Extron electronics MTP 1500RL 15HD A SEQ Manual de usuario

Extron electronics

Extron electronics TP Receivers Family Manual de usuario

Extron electronics

Extron electronics FOXBOX DVI Plus Manual de usuario

Extron electronics

Extron electronics FOX3 T 301 Manual de usuario

Extron electronics

Extron electronics Twisted Pair Transmitter VTT001 Manual de usuario

Extron electronics

Extron electronics Fiber Optic Transmitters-Receivers FOX 2G Rx... Manual de usuario

Extron electronics

Extron electronics MTP 1500RL 15HD A SEQ Manual de usuario

Extron electronics

Extron electronics HDMI 201 Rx Manual de usuario

Extron electronics

Extron electronics MTP C7 T 15HD RS Manual de usuario

Extron electronics

Extron electronics MTP C7 RL 15HD A SEQ Manual de usuario

Extron electronics

Extron electronics Dual Link DVI Transmitter and Receiver DVI DL 201... Manual de usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
