FOX3T/R301 and FOX3T/R311 • Setup Guide

This guide provides quick start instructions for an experienced installer to set up and operate the Extron FOX3T/R301 and

FOX3T/R311 Fiber Optic transmitters and receivers.

WARNING: The FOX3T/R301 and FOX3T/R311 outputs continuous invisible light (Class 1 rated), which may be harmful to

the eyes; use with caution. Plug the attached dust caps into the optical transceivers when the fiber cable is unplugged.

CLASS 1 LASER PRODUCT, see the FOX3T/R301 and FOX3T/R311 User Guide, at www.extron.com.

AVERTISSEMENT : Le FOX3T/R301 and FOX3T/R311 émet une lumière invisible en continu (conforme à la classe1)

qui peut être dangereux pour les yeux, à utiliser avec précaution. Branchez les protections contre la poussière dans

l’ensemble émetteur/récepteur lorsque le câble fibre optique est débranché.

Produit laser de classe1, voir le FOX3T/R301 and FOX3T/R311 User Guide sur www.extron.com (en anglais).

NOTE: The front and rear panels for the FOX3 T 301 and FOX3 R 301 are shown in this guide. Some of the features on the

FOX3 301 transmitter and receiver are not available on the FOX3 311 transmitter and receiver. See the FOX3T/R301 and

FOX3T/R311 User Guide at www.extron.com to see the front and rear panels for the FOX3 T 311 and FOX3 R 311.

Installation

Step 1 — Mounting

Turn off or disconnect all equipment power sources and

mount the transmitter as required. For mounting details and

considerations, see the FOX3T/R301 and FOX3T/R311

User Guide at www.extron.com.

Step 2 — Input and Output Connections

a. Connect an HDMI video source to the HDMI input (see

figure1, H) on the transmitter.

b. If desired, connect an HDMI video display to the

LoopOut port (I) for a local display.

c. Connect an HDMI display to the HDMI output (J) on

the receiver.

d. Connect an audio input device to the Audio 5-pole

captive screw port (D) on the transmitter (see figure2

to wire the captive screw connector).

e. Connect an audio output device to the Audio 5-pole

captive screw port (E) on the receiver (see figure2 to

wire the captive screw connector).

f. For optional returned audio (C) (see gure2 to wire

the captive screw connector):

• Connect an audio output device to the Audio

Return 5-pole captive screw port on the transmitter.

• Connect an audio input device to the Audio Return

5-pole captive screw port on the receiver.

ATTENTION:

• For unbalanced audio, connect the sleeves

to the ground contact. DO NOT connect the

sleeves to the negative (–) contacts.

• Pour l’audio asymétrique, connectez les

manchons au contact au sol. Ne PAS

connecter les manchons aux contacts négatifs

(–).

60-60 Hz

100-240V ~0.7A MAX

RS-232

Tx Rx Tx RxG

OUT

OUTPUTS

AUDIO

RETURN

INPUTS

CONTROL

OUTIN

USB 2.0

AUDIO

FOX3 R 301

LAN

HDMI

DEVICES

USB HID

100 mA 500 mA

REMOTE

RS-232

Tx Rx S5VG

SYNC

60-60 Hz

100-240V ~0.7A MAX

RS-232

Tx Rx Tx RxG

OUT

INPUTS

AUDIO

RETURN

OUTPUTS

CONTROL

OUTIN

HDMI

LOOP OUT

USB HID USB 2.0

AUDIO

FOX3 T 301

LAN

HOST HOST

REMOTE

RS-232

Tx Rx S5VG

SYNC

APower Inlet IHDMI Loop Out

BPower LED JHDMI output (receiver)

CAudio Return KRemote RS-232/3D Sync port

DAudio input (transmitter) LControl RS-232/IR port

EAudio output (receiver) MLAN Ethernet port

FUSB Host ports NSFP module and LEDs

GUSB Hub ports OReset button

HHDMI input (transmitter)

Figure 1. FOX3 T/R 301 Rear Panels

Unbalanced Stereo Output Balanced Stereo Output

Unbalanced Stereo Input Balanced Stereo Input

Do not tin the wires!

Tip

No Ground Here

Tip

Sleeves

Tip

Ring

Tip

Ring

Sleeves

Tip

Ring

Tip

Ring

Sleeves

Tip

Sleeve

Tip

Figure 2. Audio Wiring Diagrams

FOX3 T/R 301 and FOX3 T/R 311 • Setup Guide (Continued)

g. Connect peripheral devices to the USB ports (see figure3).

NOTES:

• The FOX3 matrix switches the USB HID and USB 2.0 inputs and outputs independently of the video and each USB

connection.

• The USB 2.0 port is only available on the FOX3 T/R 301 devices.

• The USB HID ports are used only for a mouse or keyboard.

• The USB 2.0 ports are used for thumb drives, cameras, keyboards, a mouse, CAC reader, and such devices.

Transmitter Receiver

60-60 Hz

100-240V ~0.7A MAX

RS-232

Tx Rx Tx RxG

OUT

OUTPUTS

AUDIO

RETURN

INPUTS

CONTROL

OUTIN

USB 2.0

AUDIO

FOX3 R 301

LAN

HDMI

DEVICES

USB HID

100 mA 500 mA

REMOTE

RS-232

Tx Rx S5VG

SYNC

60-60 Hz

100-240V ~0.7A MAX

RS-232

Tx Rx Tx RxG

OUT

INPUTS

AUDIO

RETURN

OUTPUTS

CONTROL

OUTIN

HDMI

LOOP OUT

USB HID USB 2.0

AUDIO

FOX3 T 301

LAN

HOST HOST

REMOTE

RS-232

Tx Rx S5VG

SYNC

SM or MM cable

USB

Laptop

Keyboard

Mouse

Thumb Drive

AABB

Figure 3. Peripheral USB Connections Diagram

• USB Host ports (A) — Connect a USB type A to B cable between this USB type B port and the USB port of a host.

• USB Hub ports (B) — Connect a USB type A cable between the USB type A port and peripherals.

Step 3 — Control Connections

a. To pass serial, IR data, or control signals, such as for serial control of a projector,

connect the master device to the transmitter and the controlled device to the

receiver via the CONTROL 5-pole captive screw connector (see figure4 for

wiring).

NOTE: For returned RS-232 and IR responses (from the receiver to the

transmitter) install the receiver-Tx-to-transmitter-Rx cable in step 4b.

b. For stereoscopic 3D sync such as an external IR emitter for glasses, connect a PC

to the two right poles of the REMOTE RS-232/3D Sync 5-pole captive screw port

on the transmitter (see figure1, Kon page1).

TxRx

RxTx

Gnd

IR Device

RS-232 Device

RxTx RxTxG

RS-232 IR

CONTROL

Figure 4. RS-232 and IR Wiring

Connect a display or projector to the two right poles of the REMOTE RS-232/3D Sync 5-pole captive screw port on the

receiver (K).

c. For remote control of a unit and loading firmware (LAN or USB only), connect a host device, such as a computer or control

system, to one of the following ports (see the FOX3T/R301 and FOX3T/R311 User Guide, available at www.extron.com,

for details):

• Remote RS-232 port — Connect the 3 left poles of this 5-pole captive screw connector to this port (K).

The protocol for the Remote port is as follows:

• 9600 baud • no parity • 8 data bits

• 1 stop bit • no flow control

• LAN Ethernet port — Connect an RJ-45 connector to this port (M).

• USB Configuration port — Connect a USB mini-B connector to this port (see figure6, Bon page3).

Step 4 — Throughput Connections

NOTE: See figure5 for fiber cable connections. Connect the transmitter to a receiver in one of

three ways:

• One way (transmitter to receiver) only, perform step 4a.

• Two way (transmitter to receiver and return), perform steps 4a and 4b.

• Output B is available to transmit 4K @ 60 Hz uncompressed signal when the FOX3

Uncompressed Video LinkLicense is purchased.

a. Connect the fiber between the transmitter A Out port and the receiver A In port (1).

NOTE: Ensure that the transmitter and connected receiver are in the same transmission

mode, singlemode (SM) or multimode (MM) and use the correct SM or MM fiber cable to

connect the devices.

b. To return serial data from the receiver (such as responses from a controlled device), IR data,

or returned audio to the transmitter, connect a cable between the receiver A Out port and the

transmitter AIn port (2).

c. To transmit an uncompressed 4K @ 60 Hz signal, using the Uncompressed Video LinkLicense,

repeat step 4a on the SFP B port on the transmitter and receiver

Receiver

ransmitter

OUTIN

OUTPUTS

OUTIN

INPUTS

OUTIN

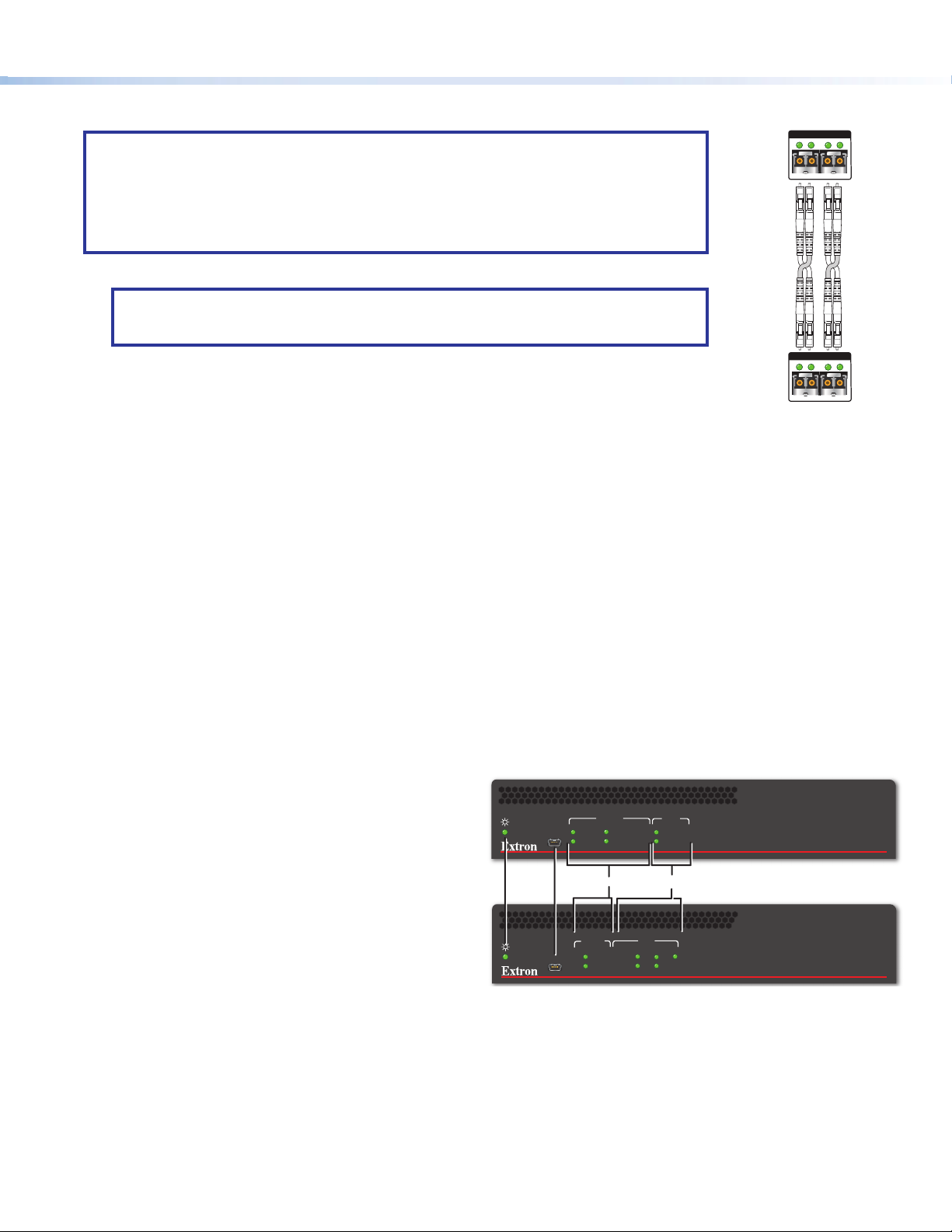

Figure 5.

Fiber Cable Connection

SFP Link LEDs —

• Transmit Optical OUT LED lights solid green when powered and lights off when there is no power on the endpoint.

• Receive Optical IN LED lights solid green when light is present and lights off when there is no power or light present.

Step 5 — Power Connection

Connect the IEC power connector to the power inlet (see ﬁgure1, Aon page1). The power LED lights (B) when the unit is

receiving power.

Operation

After the receiver, transmitter, and their connected devices are powered up, the system is fully operational. If any problems occur,

verify that the cables are routed and connected properly and the display device has a compatible resolution and refresh rate. If

problems persist, call the Extron S3 Sales & Technical Support Hotline (see the contact number on page 4).

Indications

APower LED — Indicates power is applied to the unit.

BUSB Config port — Connect a USB mini-B cable to

a computer to configure the device and update the

firmware via PCS or internal web pages.

CInputs LEDs —

• Signal LED — Lights when the unit detects an input

video signal.

• HDCP LED — Lights when the input signal is HDCP

encrypted.

• Digital Audio LED — Lights when digital audio is

selected on the transmitter.

• Analog Audio LED — Lights when analog audio is

selected on the transmitter.

FOX3 T 301

CONFIG

INPUTS

SIGNAL

HDCP

HID HOST

2.0 HOST

USB

DIGITAL AUDIO

ANALOG AUDIO

FOX3 R 301

CONFIG

INPUT

SIGNAL

HDCP

USB HID

USB 2.0

USB

1 2

HOST

Figure 6. FOX3 T/R 301 Front Panels

DUSB LEDs —

• Transmitter — The HID Host LED and 2.0 Host LED light when the unit is connected to the host device.

• Receiver —

• USB HID Host LED — When the transmitter and receiver are connected through the SFP port and a host device is

connected to the transmitter, the LED remains lit to indicate an active connected device.

• USB HID 1 and 2 LEDs —When an active USB peripheral device is connected to the HUB ports on the receiver,

the LED remains lit to indicate an active connected device.

step 4b

68-2711-50 Rev. B

03 20

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the

Extron Safety and Regulatory Compliance Guide on the Extron website.

All trademarks mentioned are the property of their respective owners.

Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876

contact number

• USB 2.0 Host LED — When the transmitter and receiver are connected through the SFP port and a USB 2.0 Host

device is connected to the transmitter, the LED remains lit to indicate an active connected device.

• USB 2.0 1 LED — When the transmitter and receiver are connected through the SFP port and a USB 2.0 Host

device is connected to the transmitter, the LED remains lit to indicate an active connected device.

Reset

Press the rear panel recessed reset button (see ﬁgure1, on page1) if the FOX3 transmitter or receiver rmware is corrupted

or the unit gets disconnected during the update process. The reset allows the product to revert to the factory loaded rmware

(see the FOX3T/R301 and FOX3T/R311 User Guide, available at www.extron.com, for details on the reset modes).

Conﬁguration and Control

See the FOX3T/R301 and FOX3T/R311 User Guide for details on operating and monitoring the transmitter and receiver using

SIS commands, Extron Product Conguration Software, or the internal web pages.

Application Diagram

STANDBY

CLASS2 WIRING

XPA1002

LEVEL

1212

LIMITER/

PROTECT

SIGNAL

INPUTS OUTPUT

REMOTE

VOL/MUTE

10V 50mA

100-240V 1.3A,50-60Hz

60-60Hz

100-240V

0.7AMAX

RS-232

Tx Rx Tx RxG

OUT

OUTPUTS

AUDIO

RETURN

INPUTS

CONTROL

OUT IN

USB 2.0

AUDIO

FOX3 R 301

LAN

HDMI

DEVICES

USB HID

100 mA 500mA

REMOTE

RS-232

Tx Rx S5VG

SYNC

60-60Hz

100-240V

0.7AMAX

RS-232

Tx Rx Tx RxG

OUT

INPUTS

AUDIO

RETURN

OUTPUTS

CONTROL

OUT IN

HDMI

LOOP OUT

USB 2.0

AUDIO

FOX3 T 301

LAN

HOST HOST

REMOTE

RS-232

Tx Rx S 5VG

SYNC

USB HID

Ethernet

HDMI

Loop out

HDMI

Output

HDMI Input

Extron

SI 28

Surface-mount

Speakers

Extron

XPA 1002

Power Amplier

4K Display

4K Media Player

Local

Monitor

Up to 20 km (12.43 miles)

Singlemode Fiber

SM Model

Audio

Output

RS-232

Extron

FOX3 T 301

Fiber Optic Transmitter

Extron

FOX3 R 301

Fiber Optic Receiver

LAN

MODEL80

POWER

SDCARD USB

PLAY STATUS

Otros manuales para FOX3 T 301

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Receptor de Extron electronics

Extron electronics

Extron electronics MTP 1500RL 15HD A SEQ Manual de usuario

Extron electronics

Extron electronics MTP 1500RL 15HD A SEQ Manual de usuario

Extron electronics

Extron electronics DTP DVI 230 Manual de usuario

Extron electronics

Extron electronics XTP SR HDMI Manual de usuario

Extron electronics

Extron electronics MTP 15HD A Series Manual de usuario

Extron electronics

Extron electronics TP R BNC A Manual de usuario

Extron electronics

Extron electronics FOXBOX DVI Plus Manual de usuario

Extron electronics

Extron electronics DTP2 R 212 Series Manual de usuario

Extron electronics

Extron electronics FOX3 SR 301 Manual de usuario

Extron electronics

Extron electronics MTP T SV A Manual de usuario

Extron electronics

Extron electronics XTP FT HD 4K Manual de usuario

Extron electronics

Extron electronics Twisted Pair Receiver VTR001 Manual de usuario

Extron electronics

Extron electronics MTP R 15HD RSA D Manual de usuario

Extron electronics

Extron electronics PowerCage FOX SR HDMI Manual de usuario

Extron electronics

Extron electronics FOX 2G Tx AV Manual de usuario

Extron electronics

Extron electronics FOX3 T 301 Manual de usuario

Extron electronics

Extron electronics FOXBOX Tx HDMI Manual de usuario

Extron electronics

Extron electronics XTP R HDMI Manual de usuario

Extron electronics

Extron electronics HDMI 201 Rx Manual de usuario

Extron electronics

Extron electronics Dual Link DVI Transmitter and Receiver DVI DL 201... Manual de usuario

Extron electronics

Extron electronics Dual Link DVI Transmitter and Receiver DVI DL 201... Manual de usuario

Extron electronics

Extron electronics MTP R 15HD RSA D Manual de usuario

Extron electronics

Extron electronics MTP 1500RL 15HD A SEQ Manual de usuario

Extron electronics

Extron electronics FOX3 T 201 Manual de usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
