Extron electronics DFX 100 Tx Manual de usuario

DFX 100 Series • Setup Guide

The Extron DFX 100 Series consists of a transmitter (DFX 100 Tx) and receiver (DFX 100 Rx)

that use one multimode fiber optic cable to extend a DVI-D signal up to 984 feet (300 m).

This guide provides basic instructions for an experienced installer to set up and operate the

DFX 100 (for full instructions see the DFX 100 Series User Guide, at www.extron.com).

Installation

Step 1 — Mounting

Mount the DFX 100 Tx close to the DVI source and the DFX 100 Rx close to the DVI display

device. See the DFX 100 Series User Guide for all mounting options. Follow the instructions

provided with the appropriate installation kit.

Step 2 — Cable Connections

Extron

POWER

12V

- - A MAX

OUTPUT

INPUT

DFX 100 Tx

POWER

12V

- - A MAX

OUTPUT

INPUT

DFX 100 Tx POWER

12V

- - A MAX

INPUT

OUTPUT

DFX 100 Rx

POWER

12V

- - A MAX

INPUT

OUTPUT

DFX 100 Rx b

DFX 100 Series Front Panel DFX 100 Tx Rear Panel DFX 100 Rx Rear Panel

1. Connect one of the provided 12VDC power supplies to the rear panel captive screw

connectors of the transimtter and the other to the receiver (b).

ATTENTION: Before connecting power to the DFX 100 Tx or Rx, see the attention

box in the “Power Supply” section of the DFX 100 Series User Guide for important

information about power supplies.

NOTES:

• When the units receive power but no input signals, the front panel LED (a) lights

amber.

• When the transmitter receives power and a DVI input signal, the front panel LED lights

green

• When the receiver receives power and a ber optic input signal, the front panel LED

lights green.

2. Connect the DFX 100 Tx output (d) to the DFX 100 Rx input (f) using one multimode

cable (not provided).

WARNING: Possible Damage to Eyesight. The DFX 100 outputs continuous

invisible light (Class 1 rated), which may be harmful and dangerous to the eyes; use

with caution. Do not look into the rear panel ber optic cable connector or into the

ber optic cable itself. Plug the attached dust cap into the optical transceiver when

the ber optic cable is unplugged.

3. Connect the DVI display to the DVI output connector of the DFX 100 Rx (e). Power on the

display.

Extron Headquarters

+800.633.9876 Inside USA/Canada Only

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

FAX:

+1.714.491.1517 +1.919.850.1001

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

FAX:

+31.33.453.4050

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400

FAX:

+65.6383.4664

Extron Japan

+81.3.3511.7655

FAX:

+81.3.3511.7656

Extron Middle East

+971.4.299.1800

FAX:

+971.4.299.1880

Extron China

+4000.EXTRON

+4000.398766

Inside China Only

+86.21.3760.1568

FAX:

+86.21.3760.1566

Extron India

1800.3070.3777

Inside India Only

+91.80.3055.3777

FAX:

+91.80.3055.3737

Extron Korea

+82.2.3444.1571

FAX: +82.2.3444.1575

DFX 100 Series • Setup Guide (Continued)

4. Connect the DVI source to the DVI input connector of the DFX 100 Tx (c). Power on the

source.

NOTE: Although the transmitter and receiver have DVI-I connectors, both devices are

compatible only with a single link DVI-D signal.

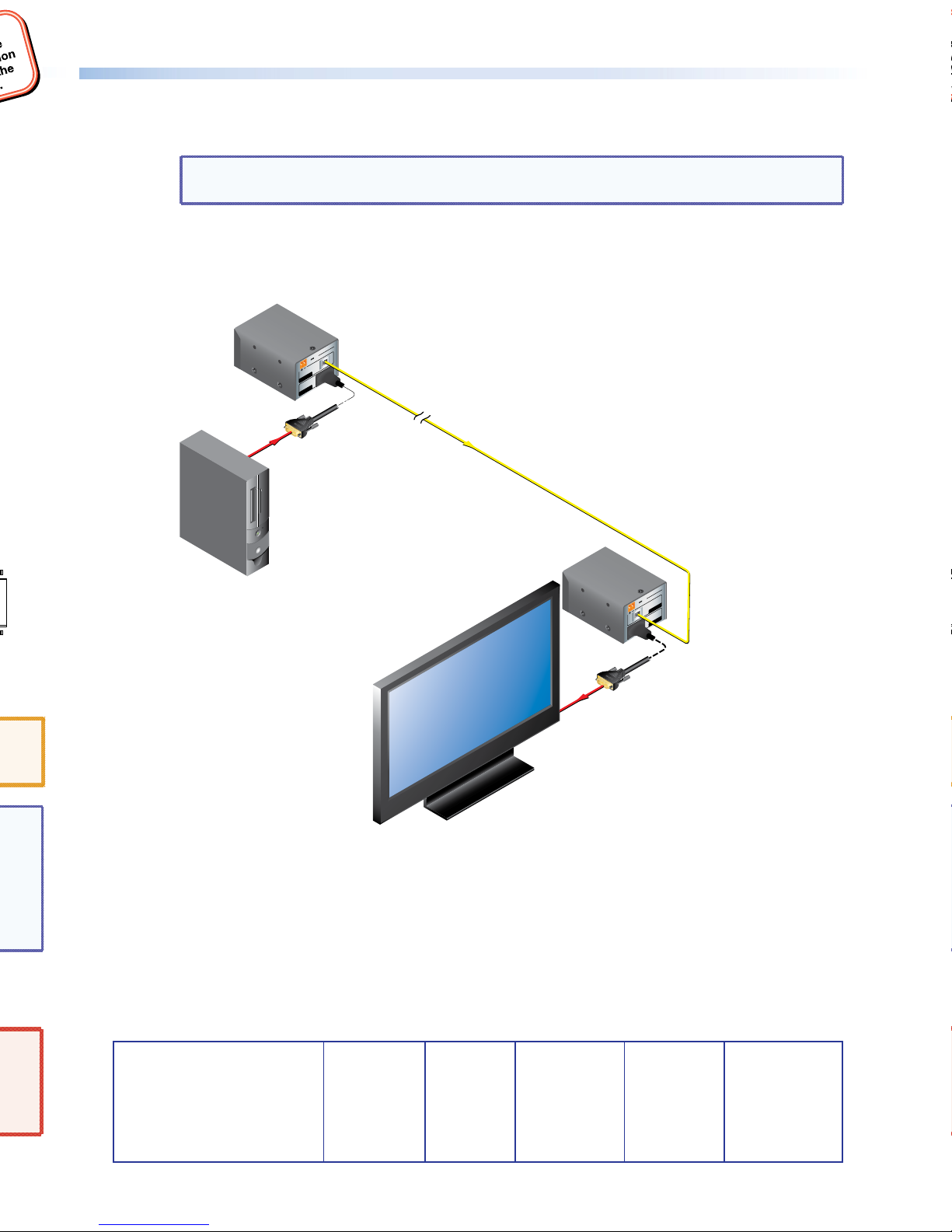

Application Diagram

POWER

12V

- - A MAX

OUTPUT

INPUT

DFX 100 Tx

POWER

12V

- - A MAX

DFX 100 Rx

INPUT

OUTPUT

Extron

DFX 100 Tx

Transmitter

Extron

DFX 100 Rx

Receiver

DVI

Fiber

Flat Panel Display

Up to 300m ( 984 ft )

on Multimode Fiber

DFX 100 Series • Setup Guide

The Extron DFX 100 Series consists of a transmitter (DFX 100 Tx) and receiver (DFX 100 Rx)

that use one multimode fiber optic cable to extend a DVI-D signal up to 984 feet (300 m).

This guide provides basic instructions for an experienced installer to set up and operate the

DFX 100 (for full instructions see the DFX 100 Series User Guide, at www.extron.com).

Installation

Step 1 — Mounting

Mount the DFX 100 Tx close to the DVI source and the DFX 100 Rx close to the DVI display

device. See the DFX 100 Series User Guide for all mounting options. Follow the instructions

provided with the appropriate installation kit.

Step 2 — Cable Connections

Extron

POWER

12V

- - A MAX

OUTPUT

INPUT

DFX 100 Tx

POWER

12V

- - A MAX

OUTPUT

INPUT

DFX 100 Tx POWER

12V

- - A MAX

INPUT

OUTPUT

DFX 100 Rx

POWER

12V

- - A MAX

INPUT

OUTPUT

DFX 100 Rx b

DFX 100 Series Front Panel DFX 100 Tx Rear Panel DFX 100 Rx Rear Panel

1. Connect one of the provided 12VDC power supplies to the rear panel captive screw

connectors of the transimtter and the other to the receiver (b).

ATTENTION: Before connecting power to the DFX 100 Tx or Rx, see the attention

box in the “Power Supply” section of the DFX 100 Series User Guide for important

information about power supplies.

NOTES:

• When the units receive power but no input signals, the front panel LED (a) lights

amber.

• When the transmitter receives power and a DVI input signal, the front panel LED lights

green

• When the receiver receives power and a ber optic input signal, the front panel LED

lights green.

2. Connect the DFX 100 Tx output (d) to the DFX 100 Rx input (f) using one multimode

cable (not provided).

WARNING: Possible Damage to Eyesight. The DFX 100 outputs continuous

invisible light (Class 1 rated), which may be harmful and dangerous to the eyes; use

with caution. Do not look into the rear panel ber optic cable connector or into the

ber optic cable itself. Plug the attached dust cap into the optical transceiver when

the ber optic cable is unplugged.

3. Connect the DVI display to the DVI output connector of the DFX 100 Rx (e). Power on the

display.

Extron Headquarters

+800.633.9876 Inside USA/Canada Only

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

FAX:

+1.714.491.1517 +1.919.850.1001

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

FAX:

+31.33.453.4050

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400

FAX:

+65.6383.4664

Extron Japan

+81.3.3511.7655

FAX:

+81.3.3511.7656

Extron Middle East

+971.4.299.1800

FAX:

+971.4.299.1880

Extron China

+4000.EXTRON

+4000.398766

Inside China Only

+86.21.3760.1568

FAX:

+86.21.3760.1566

Extron India

1800.3070.3777

Inside India Only

+91.80.3055.3777

FAX:

+91.80.3055.3737

Extron Korea

+82.2.3444.1571

FAX: +82.2.3444.1575

DFX 100 Series • Setup Guide (Continued)

4. Connect the DVI source to the DVI input connector of the DFX 100 Tx (c). Power on the

source.

NOTE: Although the transmitter and receiver have DVI-I connectors, both devices are

compatible only with a single link DVI-D signal.

Application Diagram

POWER

12V

- - A MAX

OUTPUT

INPUT

DFX 100 Tx

POWER

12V

- - A MAX

DFX 100 Rx

INPUT

OUTPUT

Extron

DFX 100 Tx

Transmitter

Extron

DFX 100 Rx

Receiver

DVI

Fiber

Flat Panel Display

Up to 300m ( 984 ft )

on Multimode Fiber
