User Manual

Wide Range InfraRed (IR) Thermometer

with Type K input and Laser Pointer

MODEL 42515

Shop for Extech products at: 1.877.766.5412

ShopExtech.com

42515-EU V4.1 2/09

Introduction

Congratulations on your purchase of the Model 42515 IR Thermometer. The Model 42515

IR thermometer measures and displays non-contact (infrared) temperature readings up to

1472oF (800oC). The built-in laser pointer increases target accuracy while the backlit LCD

and handy push-buttons combine for convenient, ergonomic operation. The Type K

thermocouple input provides contact measurements up to 1370oC (2498oF)*. The

adjustable emissivity feature allows the IR thermometer to measure the temperature of

virtually any surface. Proper use and care of this meter will provide years of reliable

service.

* The supplied thermocouple is rated for 250oC (482oF).

Safety

•Use extreme caution when the laser pointer is on

•Do not point the beam toward anyone's eye or allow

the beam to strike the eye from a reflective surface

•Do not use the laser near explosive gases or in other

potentially explosive areas

Shop for Extech products at: 1.877.766.5412

ShopExtech.com

42515-EU V4.1 2/09

Meter Description

1. Laser pointer

2. IR Sensor

3. Measurement Trigger

4. Battery and Switch compartment

5. LCD Display

6. Function Buttons

7. Type-K thermocouple

8. Temperature units (oC or oF) switch

9. Test lock ON / OFF switch

10. Alarm ON / OFF switch

Note that switches are located in the battery compartment behind the battery.

Shop for Extech products at: 1.877.766.5412

ShopExtech.com

42515-EU V4.1 2/09

Operating Instructions

IR (non-contact) Measurements

1. Hold the meter by its handle and point it toward the surface to be measured.

2. Pull and hold the trigger to turn the meter on and begin testing. The temperature

reading, the flashing ‘SCAN’ icon, the emissivity, and the unit of measure will appear.

Note: Replace the 9V battery if the display does not switch on.

3. Release the Trigger and the reading will hold for approximately 7 seconds (HOLD will

appear on the LCD) after which the meter will automatically shut off. The only

exception to this is if the TEST LOCK switch is set to ON.

Note: Select the temperature units (ºF/ºC) using the top switch inside the battery

compartment

Backlight/Laser Pointer

1. While pulling the Trigger, push the backlight/laser button once to turn on the

backlight.

2. Press it again to turn on the laser pointer. When the laser is ON the laser icon will

appear in the LCD.

3. Press the laser button to turn the backlight off.

4. Pressing it again turns the laser off.

Note: Backlight and Laser settings will be retained after the meter powers down.

Type-K (contact) Measurements

1. Plug the Type-K thermocouple sensor into the jacks at the bottom of the instrument.

The jack accepts a standard sub-miniature connector. Note that one plug spade is

wider than the other and the plug can only be inserted into the meter in one direction.

2. Pull the trigger to turn the instrument ON.

3. In order to keep the instrument’s power on while testing, the user can a:) hold the

trigger or b:) lock the instrument on by setting the center dip switch to the ON position

(switches are located inside of the battery compartment).

4. Repeatedly press the MODE button until the bottom display line of the LCD reads ‘T k’.

The temperature shown to the right of the ‘T k’ symbol is the temperature that the

Type-K thermocouple is sensing.

5. Hold the thermocouple in air or touch the tip of the sensor to the device that is to be

tested. The LCD’s bottom temperature display will provide the measurement value.

6. The supplied thermocouple is rated for 250oC (482oF).

Shop for Extech products at: 1.877.766.5412

ShopExtech.com

42515-EU V4.1 2/09

The MODE button options

The MODE button is used to access the programming functions of the instrument. The

selected function is displayed on the bottom line of the LCD. Each parameter is listed

below with a detailed account of its use. Press the MODE button to step from one

parameter to the next.

EMS (Emissivity Value)

To change the emissivity value, use the UP and DOWN arrows (the range is 0.10 to

1.00). The current emissivity setting is always shown at the top of the LCD display. A

setting of 0.95 covers about 90% of all applications. Emissivity is discussed in a

dedicated section of this manual.

MAX (Maximum function)

In the MAX mode, only the highest reading encountered in the current measurement

session is displayed

MIN (Minimum function)

In the MIN mode, only the lowest reading is displayed

DIF (Max minus Min value)

In the DIF mode, the MAX less the MIN is displayed.

AVG (Average value)

In the AVG mode, all of the readings in the current measurement session are

averaged and the value is displayed.

HAL (High Alarm setting)

The temperature that, when exceeded, causes the audible/visual alarm to trip.

LAL (Low Alarm setting)

The temperature that, when exceeded high to low, causes the audible/visual alarm to

trip.

T k (Type-K contact thermocouple sensor function)

The temperature reading of the Type-K contact probe is shown next to the ‘T k’ icon display.

If the sensor is not correctly inserted to the meter the display will show all dashes ‘-----‘.

Automatic Emissivity Adjustment

The 42515 has the ability to automatically calibrate the emissivity setting. However, in

order to do so, the temperature of the measured surface must be above 100ºC (212ºF).

Follow the steps below to use the automatic emissivity adjustment feature:

1. Press the MODE button until the EMS (Emissivity) icon appears on the lower LCD line.

2. Press and hold the Laser/Backlight button until the EMS icon begins to blink and the

emissivity value is displayed as “___”.

3. The IR temperature will be displayed on the middle line of the LCD and the Type-K

temperature will be displayed on the lower LCD line.

4. Touch the Type-K sensor to the surface and, at the same time, take an IR reading.

5. When both the IR and the Type-K measurements stabilize, press the UP or DOWN

arrow button. The new emissivity value will now be displayed.

6. Proceed to take measurements.

Shop for Extech products at: 1.877.766.5412

ShopExtech.com

42515-EU V4.1 2/09

Over-range Indicator

If the temperature measurement exceeds the specified temperature range, the thermometer

will display dashes in place of a temperature reading.

High and Low Alarm Feature

The Model 42515 has an alarm feature whereas a High Alarm setting and a Low Alarm

setting can be programmed by the user. When either Alarm point is reached the meter will

alert the user via an audible beep and LCD display icon. Follow the steps below:

1. Press the MODE button until the HAL (High Alarm) parameter is displayed. Use the

UP and DOWN arrow keys to set the desired High Alarm setting.

2. Press the MODE button until the LAL (Low Alarm) parameter is displayed. Use the

UP and DOWN arrow keys to set the desired Low Alarm setting.

3. When an alarm limit is reached, the audible alarm will sound and the display icon

HIGH or LOW will appear in the lower right hand corner of the LCD.

4. Note that if the bottom dip switch (located in the battery compartment) is set to OFF,

the audible alarm will be disabled.

Battery Replacement

When the low battery symbol appears on the lower left side of the

display, replace the meter’s battery (9V). The battery compartment is

located behind the light green panel that surrounds the meter’s trigger

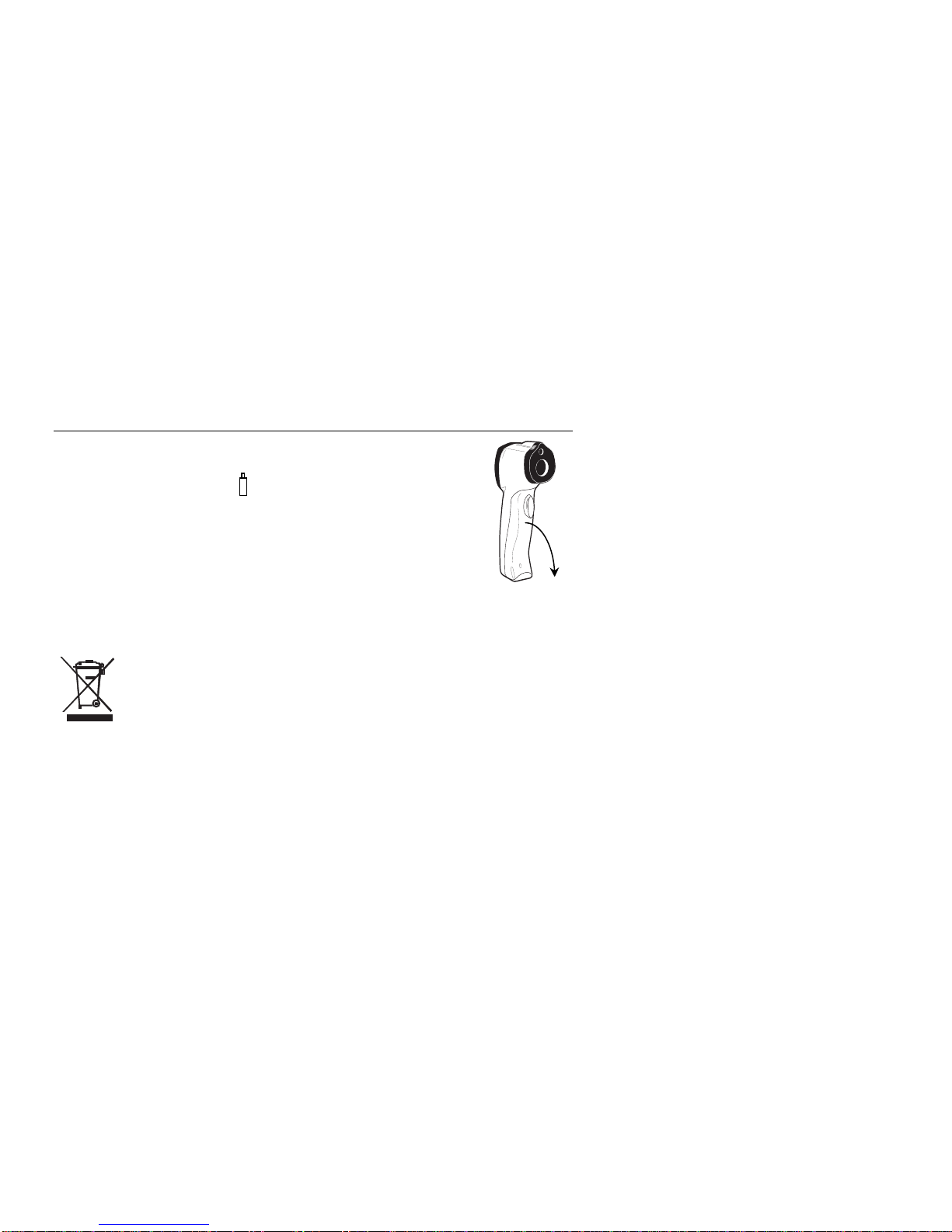

(see diagram). Open the compartment by pulling the light green panel

down from the trigger area. Replace the 9V battery and close the battery

compartment cover.

You, as the end user, are legally bound (Battery ordinance) to return all used

batteries and accumulators; disposal in the household garbage is prohibited!

You can hand over your used batteries / accumulators at collection points in your

community or wherever batteries / accumulators are sold!

Disposal: Follow the valid legal stipulations in respect of the disposal of the

device at the end of its lifecycle

Shop for Extech products at: 1.877.766.5412

ShopExtech.com

42515-EU V4.1 2/09

IR Measurement Notes

1. The object under test should be larger than the spot (target) size calculated by the field

of view diagram (printed on the side of the meter and in this guide).

2. Before measuring, be sure to clean surfaces that are covered with frost, oil, grime, etc.

3. If an object's surface is highly reflective, apply masking tape or flat black paint to the

surface before measuring. Allow time for the paint or tape to adjust to the temperature

of the surface it is covering.

4. Measurements through transparent surfaces such as glass may not be accurate.

5. Steam, dust, smoke, etc. can obscure measurements.

6. The meter automatically compensates for deviations in ambient temperature. However,

it can take up to 30 minutes for the meter to adjust to extremely wide changes.

7. To find a hot spot, aim the meter outside the area of interest then scan across (in an up

and down motion) until the hot spot is located.

Field of View

The meter’s field of view is 13:1. For example, if the meter is 13 inches from the target

(spot), the diameter of the target must be at least 1 inch. Other distances are shown in the

field of view diagram. Note that measurements should normally be made as close as

possible to the device under test. The meter can measure from moderate distances but the

measurement may be affected by external sources of light. In addition, the spot size may

be so large that it encompasses surface areas not intended to be measured.

2cm 4cm 8cm 16cm

26cm

104cm

52cm

208cm

Diameter of Spot

Distance to Spot

Shop for Extech products at: 1.877.766.5412

ShopExtech.com

42515-EU V4.1 2/09

Emissivity and IR Measurement Theory

IR Thermometers measure the surface temperature of an object. The thermometer’s optics

sense emitted, reflected, and transmitted energy. The thermometer’s electronics translate

the information into a temperature reading which is then displayed on the LCD.

The amount of IR energy emitted by an object is proportional to an object's temperature

and its ability to emit energy. This ability is known as emissivity and is based upon the

material of the object and its surface finish. Emissivity values range from 0.1 for a very

reflective object to 1.00 for a flat black finish. For the Model 42515, the emissivity is

adjustable from 0.1 to 1.00. Most organic materials and painted or oxidized surfaces have

an emissivity factor of 0.95. When in doubt, set the emissivity to 0.95.

Emissivity Factors for Common Materials

Material under test Emissivity Material under test Emissivity

Asphalt 0.90 to 0.98 Cloth (black) 0.98

Concrete 0.94 Skin (human) 0.98

Cement 0.96 Leather 0.75 to 0.80

Sand 0.90 Charcoal (powder) 0.96

Soil 0.92 to 0.96 Lacquer 0.80 to 0.95

Water 0.92 to 0.96 Lacquer (matt) 0.97

Ice 0.96 to 0.98 Rubber (black) 0.94

Snow 0.83 Plastic 0.85 to 0.95

Glass 0.90 to 0.95 Timber 0.90

Ceramic 0.90 to 0.94 Paper 0.70 to 0.94

Marble 0.94 Chromium Oxides 0.81

Plaster 0.80 to 0.90 Copper Oxides 0.78

Mortar 0.89 to 0.91 Iron Oxides 0.78 to 0.82

Brick 0.93 to 0.96 Textiles 0.90

Shop for Extech products at: 1.877.766.5412

ShopExtech.com

42515-EU V4.1 2/09

Specifications

Infrared Thermometer (Non-contact) Specifications

Range / Resolution -50.0 to 800.0oC (-58.0 to 1472.0oF) Resolution: 0.1o

Accuracy -50 to -1°C (-58 to 30°F) ± 2.0%rdg or ±3°C/6°F

whichever is greater

-0.5 to 65°C (31°F to 150°F ) ± 2.0%rdg or ±2.5°C/4.5°F

whichever is greater

66 to 315°C (151°F to 600°F) ± 2.0%rdg or ±2°C/4°F

whichever is greater

316 to 800°C (600F to 1472°F) ± (2.5%rdg + 2.5°C/5°F)

Note: Accuracy is specified for the following ambient temperature

range: 23 to 25°C (73 to77°F)

Emissivity 0.10 to 1.00 adjustable (Automatic adjust above 212oF or 100oC)

Field of View D/S = Approx. 13:1 ratio (D = distance; S = spot or target)

Laser pointer Class 2 laser < 1mW power; Wavelength is 630 to 670nm

IR Spectral response 8 to 14 μm (wavelength)

Type K Thermocouple (Contact) Specifications

Range / Resolution -50.0 to 1370.0oC (-58.0 to 1999.9oF)

2000°F to 2498°F* 0.1o

1°

Accuracy ± (1.5% of rdg + 1ºC/2ºF

Note: Accuracy is specified for the following ambient temperature

range: 18 to 28ºC (64 to 82ºF)

* The supplied thermocouple is rated for 250oC (482oF).

General Specifications

Display Backlit LCD display with function indicators

Display update rate 1 second approx.

Operating Temperature 0oC to 50oC (32oF to 122oF)

Operating Humidity 80% Relative Humidity max.

Power Supply 9V battery

Automatic Power Off Meter shuts off automatically after 7 seconds

Weight 180g /6.4 oz.

Dimensions 82 x 42 x 160mm (3.2 x 1.6 x 6.3”)

Shop for Extech products at: 1.877.766.5412

ShopExtech.com

Otros manuales para 42515

Tabla de contenidos

Otros manuales de Termómetro de Extech Instruments

Extech Instruments

Extech Instruments 42511 Manual de usuario

Extech Instruments

Extech Instruments MO295 Manual de usuario

Extech Instruments

Extech Instruments 42530 Manual de usuario

Extech Instruments

Extech Instruments IR301 Manual de usuario

Extech Instruments

Extech Instruments EasyView EA20 Manual de usuario

Extech Instruments

Extech Instruments 401014A Manual de usuario

Extech Instruments

Extech Instruments EA11 Manual de usuario

Extech Instruments

Extech Instruments RH200W Manual de usuario

Extech Instruments

Extech Instruments RHM15 Manual de usuario

Extech Instruments

Extech Instruments 421502 Manual de usuario

Extech Instruments

Extech Instruments RH35 Manual de usuario

Extech Instruments

Extech Instruments 407907 Manual de usuario

Extech Instruments

Extech Instruments 42570 Manual de usuario

Extech Instruments

Extech Instruments EA15 Manual de usuario

Extech Instruments

Extech Instruments 42509 Manual de usuario

Extech Instruments

Extech Instruments 42545 Manual de usuario

Extech Instruments

Extech Instruments IR200 Manual de usuario

Extech Instruments

Extech Instruments VIR50-NISTL Manual de usuario

Extech Instruments

Extech Instruments IRC130 Manual de usuario

Extech Instruments

Extech Instruments EA15 Manual de usuario

Extech Instruments

Extech Instruments MD13628 Manual de usuario

Extech Instruments

Extech Instruments RHT510-NIST Manual de usuario

Extech Instruments

Extech Instruments RH250W Manual de usuario

Extech Instruments

Extech Instruments RH200W Manual de usuario

Manuales populares de Termómetro de otras marcas

Delton

Delton 981A Manual de usuario

Baker

Baker MM2P Manual de usuario

Tarmo

Tarmo 320281 Manual de usuario

Citizen

Citizen CTD 504 Manual de usuario

TFA

TFA 14.1500 Manual de usuario

Vive

Vive DMD1010 Manual de usuario

Gotemp

Gotemp THB4002 Manual de usuario

GREISINGER

GREISINGER G 1202 Manual de usuario

Amprobe

Amprobe TMD-53W Manual de usuario

Trotec

Trotec BP10 Manual de usuario

Radiance instruments

Radiance instruments RT616 Series Manual de usuario

Eurolec

Eurolec IR151 Manual de usuario

Scaneo

Scaneo TS42B Manual de usuario

Sper scientific

Sper scientific 800043 Manual de usuario

Microlife

Microlife NC 200 Manual de instrucciones

Motorola

Motorola MBP69SN Guía de configuración

The MeatStick

The MeatStick The MeatStick Manual de usuario

Hama

Hama TH35-A Manual de usuario
