EtherWAN EX45000 Series Manual de usuario
Hardened PoE Ethernet Switch
1
Quick Start Guide
This quick start guide describes how to install and use the
Hardened PoE Ethernet Switch. This is the switch of choice
for harsh environments constrained by space.
Physical Description

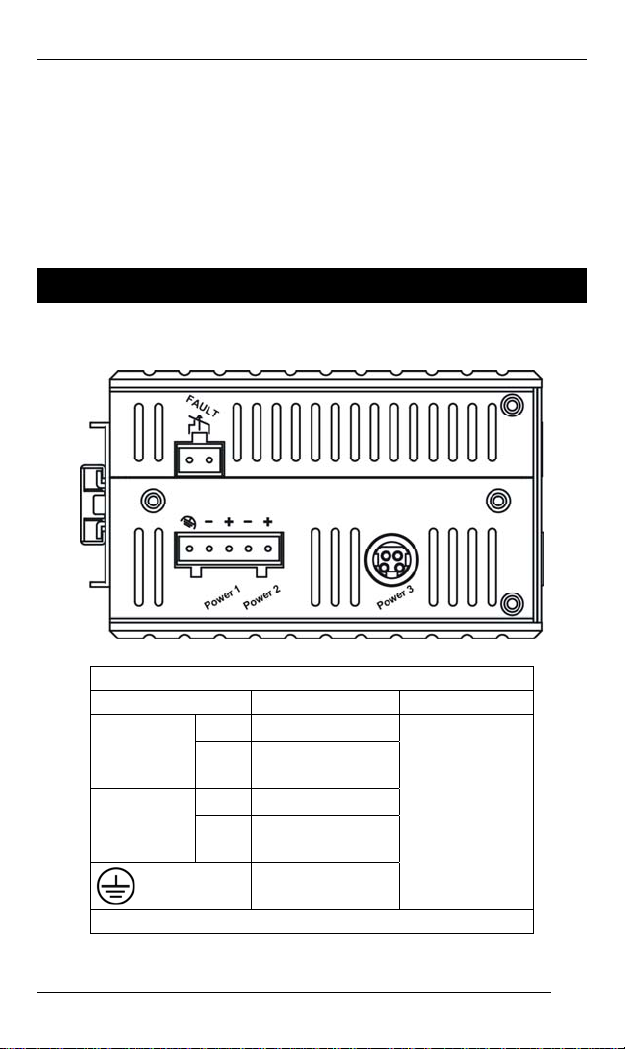

The Terminal Block and Power inputs
Power Input Assignment
Power3 48VDC DC Jack
＋48VDC
Power2 －Power
Ground
＋48VDC
Power1 －Power
Ground
Earth
Ground
Terminal
Block
Relay Alarm Assignment
Hardened PoE Ethernet Switch
2
FAULT
*Relay warning signal disable for
following:
The relay contact closes if Power1
and Power2 are both failed but
Power3 on.
The relay contact closes if Power3
is failed but Power1 and Power2
are both on.
DC Terminal Block Power Inputs: There are two pairs of
power inputs can be used to power up this switch. Redundant
power supplies function is supported.
The 10/100Base-TX and 100Base-FX Connectors
1. The 10/100Base-TX Connections
The following lists the pinouts of 10/100Base-TX ports.
Pin Regular Ports Uplink port
1 Output Transmit Data + Input Receive Data +
2 Output Transmit Data - Input Receive Data -
3 Input Receive Data + Output Transmit Data +
4 NC NC
5 NC NC
6 Input Receive Data - Output Transmit Data -
7 NC NC
8 NC NC
2. The 100Base-FX Connections
The fiber port pinouts: The Tx (transmit) port of device I is
connected to the Rx (receive) port of device II, and the Rx
(receive) port of device I to the Tx (transmit) port of device II.
Hardened PoE Ethernet Switch
3
3. The WDM 100Base-FX Connections
The fiber port pinouts: Only one single-mode optical fiber is
required to transmit and receive data.
The Port Status LEDs
Hardened PoE Ethernet Switch
4
LED State Indication
10/100Base-TX, 100Base-FX
Steady A valid network connection established.
Link/ACT
(Green) Flashing Transmitting or receiving data.
ACT stands for ACTIVITY.
Hardened PoE Ethernet Switch
5
Functional Description
•Meets IEC61000-6-2 EMC Generic Standard Immunity
for industrial environment.
•Supports IEEE802.3af Power over Ethernet (PoE)
Power Sourcing Equipment (PSE).
•Supports IEEE802.3/802.3u/802.3x. Auto-negotiation:
10/100Mbps, Full/Half-duplex, Auto-Negotiation, Auto
MDI/MDIX.
•100Base-FX: Multi/Single mode SC or ST type, WDM
Single mode SC type.
•Supports 1024 MAC addresses. Provides 1M bits buffer
memory.
•Alarms for power and port link failure by relay output.
•Power Supplies: Redundant 48VDC Terminal Block
power inputs and 48VDC DC JACK with 100-240VAC
external power supply.
•Operating voltage and Max. current consumption: 1.5A
@ 48VDC. Power consumption: 72W Max.
•-40 to 75 (℃℃-40℉to 167℉) operating temperature
range. Tested for functional operation @ -40 to 85℃℃
(-40℉to 185℉).
•Supports DIN-Rail, Panel, or Rack Mounting
installation.
Assembly, Startup, and Dismantling
•Assembly: Place the switch on the DIN rail from above
using the slot. Push the front of the switch toward the
mounting surface until it audibly snaps into place.
•Startup: Connect the supply voltage to start up the
switch via the terminal block (or DC JACK).
•Dismantling: Pull out the lower edge and then remove
the switch from the DIN rail.
Hardened PoE Ethernet Switch
6
Hardened PoE Ethernet Switch
7
Preface
A member of the growing family of rugged switches, this
Hardened PoE Ethernet Switch addresses a need for a
smaller switch. This switch provides an affordable solution
for rugged and outdoor environment, transportation
road-side cabinet, industrial floor shop, multitenant
dwellings or Fiber To The Home (FTTH) applications.
Capable of operating at temperature extremes of -40°C to
+75°C, this is the switch of choice for harsh environments
constrained by space.
Port 1 to port 4 on this Switch supports IEEE802.3af Power
over Ethernet (PoE) Power Sourcing Equipment (PSE) and
can detect an IEEE802.3af compliant Powered Device
(PD). Using external 48VDC power inputs through
Terminal Block or Power Jack, data and power can be
transmitted to a Powered Device (PD) over the same
twisted-pair Ethernet cable through port 1 to port 4 on the
Switch.
This manual describes how to install and use the hardened
Ethernet Switch. This switch integrates full wire speed
switching technology. This switch brings the answer to
complicated hardened networking environments.
To get the most out of this manual, you should have an
understanding of Ethernet networking concepts.
In this manual, you will find:
•Features on the switch
•Illustrative LED functions
•Installation instructions
•Specifications
Hardened PoE Ethernet Switch
8
Table of Contents
QUICK START GUIDE 1
PHYSICAL DESCRIPTION 1
The Terminal Block and Power inputs 1
The 10/100Base-TX and 100Base-FX Connectors 2
The Port Status LEDs 3
FUNCTIONAL DESCRIPTION 5
ASSEMBLY,STARTUP,AND DISMANTLING 5
PREFACE 7
TABLE OF CONTENTS 8
PRODUCT OVERVIEW 9
HARDENED POEETHERNET SWITCH 9
PACKAGE CONTENTS 9
PRODUCT HIGHLIGHTS 10
Basic Features 10
FRONT PANEL DISPLAY 11
PHYSICAL PORTS 12
INSTALLATION 13
SELECTING A SITE FOR THE SWITCH 13
DIN RAIL MOUNTING 14
CONNECTING TO POWER 15
Redundant DC Terminal Block Power Inputs 15
48VDC DC Jack 15
Alarms for Power and Port Link Failure 16
CONNECTING TO YOUR NETWORK 17
Cable Type & Length 17
Cabling 18
SPECIFICATIONS 19
Hardened PoE Ethernet Switch
9
Product Overview
Hardened PoE Ethernet Switch
Package Contents
When you unpack the product package, you shall find the
items listed below. Please inspect the contents, and report
any apparent damage or missing items immediately to your
authorized reseller.
3This Switch
3User’s Manual
3External power adapter & Power Cord
(Optional)
Hardened PoE Ethernet Switch
10
Product Highlights
Basic Features
•Meets NEMA TS1 & TS2 Environmental requirements
such as temperature, shock, and vibration for traffic
control equipment.
•Meets IEC61000-6-2 EMC Generic Standard Immunity
for industrial environment.
•Supports IEEE802.3af Power over Ethernet (PoE)
Power Sourcing Equipment (PSE).
•Support 802.3/802.3u/802.3X.
•Auto-negotiation: 10/100Mbps, Full/Half-duplex; Auto
MDI/MDIX.
•Support 1024 MAC addresses.
•Provides 1M bits memory buffer.
•Alarms for power and port link failure by relay output.
•Operating voltage and Max. current consumption: 1.5A
@ 48VDC. Power consumption: 72W Max.
•Power Supplies: Redundant 48VDC Terminal Block
power inputs and 48VDC DC JACK with 100-240VAC
external power supply.
•-40℃to 75℃(-40℉to 167℉) operating temperature
range. Tested for functional operation @ -40℃to 85℃
(-40℉to 185℉).
•Supports DIN-Rail, Panel, or Rack Mounting
installation.
