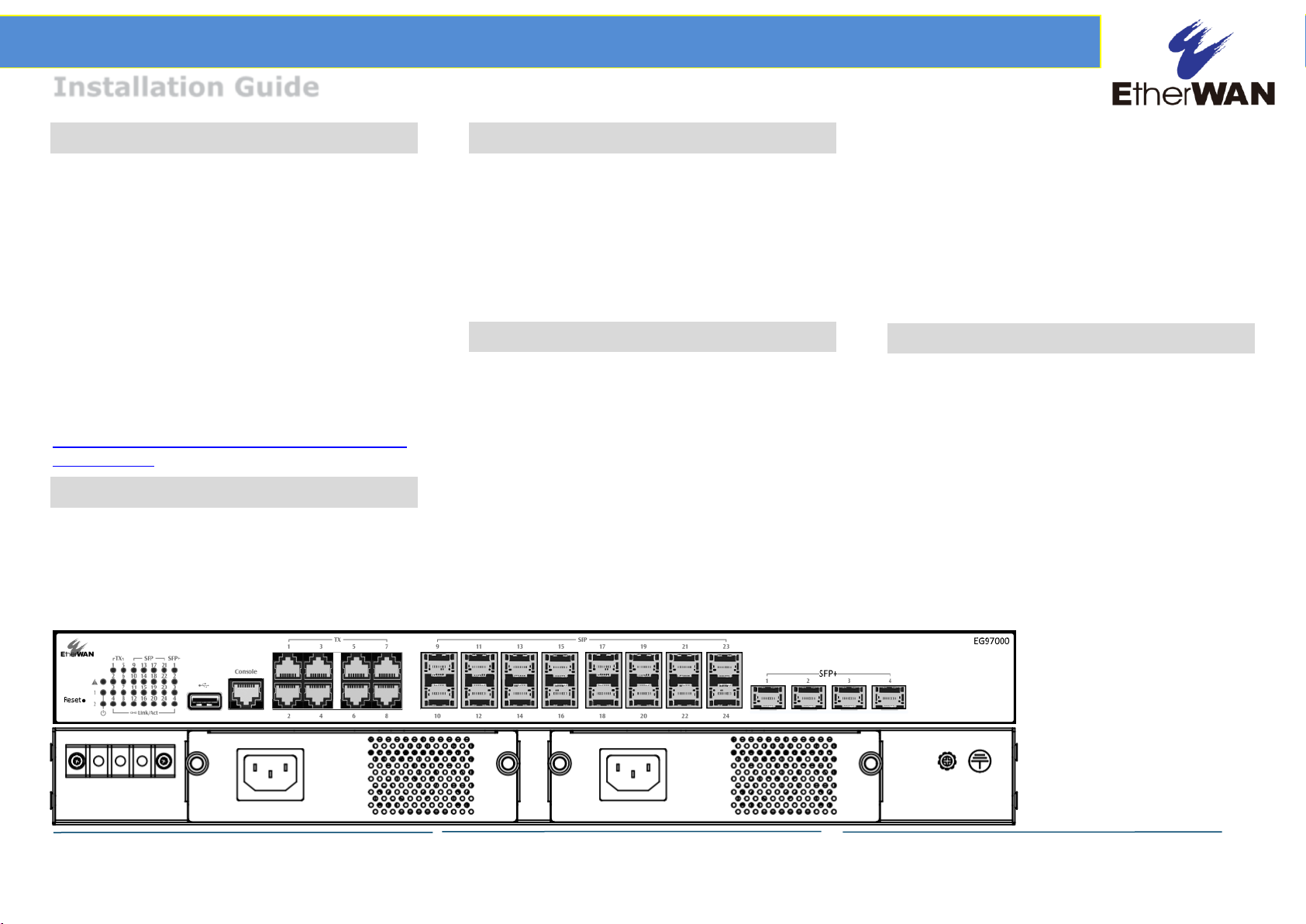

EtherWAN EG97000 Series Manual de usuario

EG97000

12/18/2018

W70G-EG97000Q1

1 Unpacking

Open the carton and unpack the items. Your

package should include:

EG97000 Ethernet switch

2 Mounting brackets

12 Mounting screws

1 Console cable

1 AC Power Cord (optional)

Quick install guide

If any items are missing or damaged, notify your

EtherWAN representative. If possible, save the

carton and packing material in case you need to

ship or store the switch in the future. The full

product manual can be downloaded from:

https://www.etherwan.com/support/product/E

G97000-series

2 What Else You Need

Shielded twisted pair cables and corresponding

shielded RJ45 connectors

Appropriate SFP cable and SFP modules for SFP

ports

3 Select a Location

Installation: Rack-mount. Use the enclosed screws

and brackets to mount the switch in an open or

enclosed rack.

Select a power source within 6 feet (1.8 meters).

Choose a dry area with ambient temperature

between -40 and 75ºC (-40 and 167ºF).

Be sure there is adequate airflow.

4 Connect to the Data Ports

The EG97000 has the following ports:

8 x 10/100/1000 Mbps copper ports

16 x 100/1000 SFP slots

4 x 1/10G SFP+ slots

1 x RJ-45 Management port

1 x USB port

100/1000BASE-TX Ports

Ports 1 to 8 are gigabit copper ports and can be

connected to routers, other switches, or end

devices.

1 Gbps SFP Slots

Ports 9 –24 are 1 Gbps SFP slots, for connection

with stackable switches to form multiple fiber

interconnections. Use appropriate SFP tranceivers.

1/10 Gbps SFP+ Slots

SFP+ ports 1 –4 are for uplink connection to core

networks. Ensure that the same type of transceiver

is used at both ends of the link and that the correct

type of fiber cable is used.

5 Connect Power

Terminal Block

If your EG97000 comes with AC power cables,

connect the cables into the power modules at the

back of the switch. If your switch comes with a DC

or AC terminal block (no cable), then connect the

switch to a suitable power supply using 12 to 24

AWG wire. Redundant power supply is supported.

However, only one power input is required to

operate the switch. Input voltage is 48 VDC or 100 –

240 VAC, depending on model.

EG97000 Series Layer 3 Hardened Managed Ethernet Switch

Installation Guide

EG97000 Layer 3 Hardened Managed Ethernet Switch

EG97000

12/18/2018

W70G-EG97000Q1

Relay Output Alarm

The switch provides one dry contact for signaling of

a user-defined power or port failure. The alarm

relay default is “open” and forms a closed circuit

when the event occurs. The relay output can be

connected to an alarm signaling device. Relay

output current is 30VDC / 0.6A.

NOTE: The initial normal state of the relay is open,

and if switch loses *all* power, then this state will

come into effect. This is important to remember

when using the relay to indicate a power failure.

The relay will close in an alarm state when there is

redundant power input and an alarmed input fails.

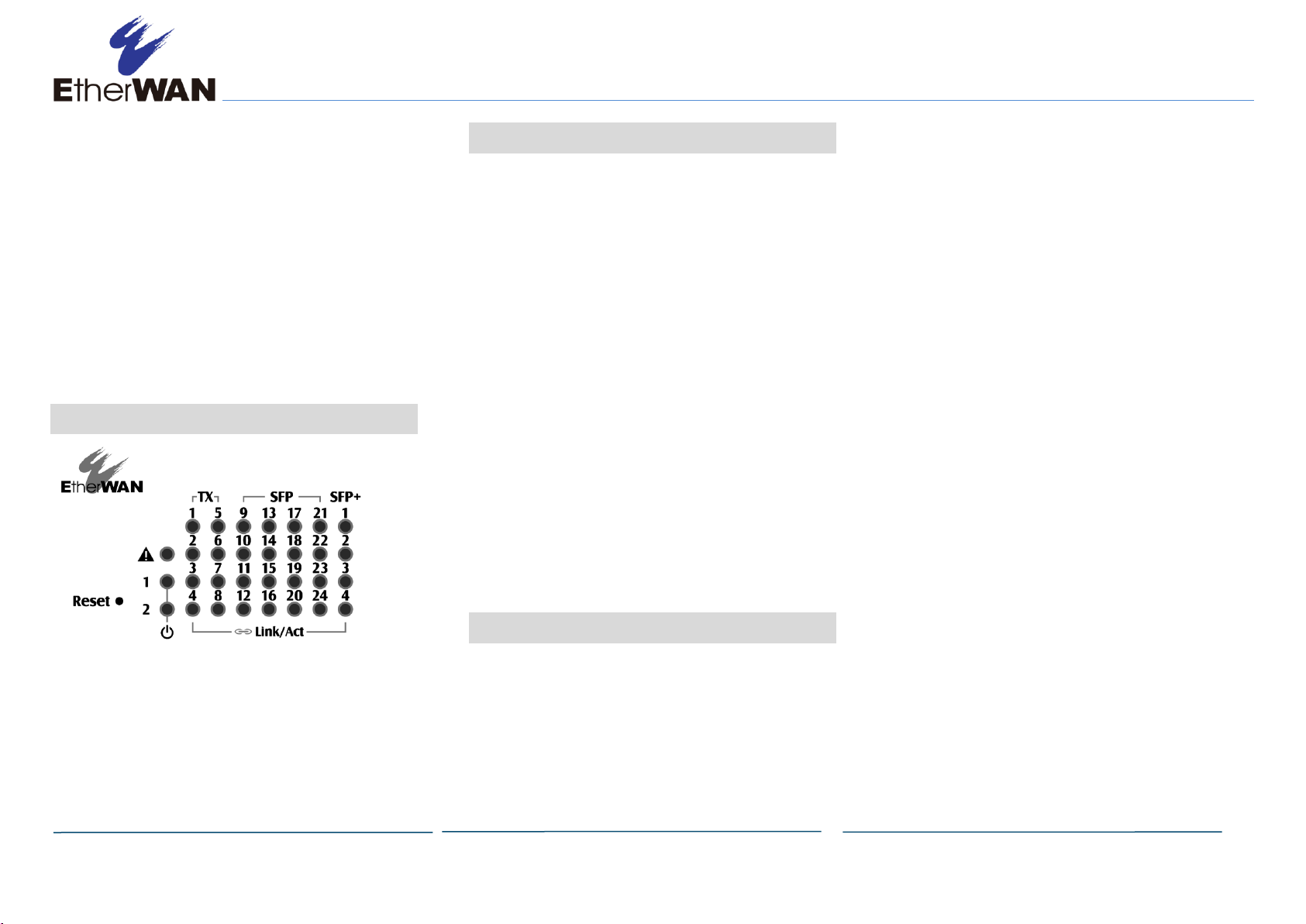

6 Front Panel LEDs

Link/Act

Green: Network connection established

Flashing: Port sending or receiving data

Red: Link down or power down

Reset Button: Press and hold for less than 10

seconds to reboot the switch. Press and hold for

more than 10 seconds to reset the switch to the

default password.

7 Initial Configuration

Connect to the switch using the enclosed Ethernet

cable to connect a serial port on a PC to the RJ-45

Management port located on the front panel next

to the USB port. You can also use regular Ethernet

cable to connect the RJ-45 port on the PC to any of

the TX ports 1 - 8. The IP address of VLAN 1 is

192.168.1.10.

Configuration via CLI

If using a terminal-emulation program such as Putty,

configuration settings are: Baud rate: 115,200bps,

Data bits: 8, Parity: none, Stop bit: 1, Flow control:

none.

The default login name is “root,” no password.

Configuration via Web Browser

and entering 192.168.1.10 in the address bar.

Enter the default login ID: root (no password) and

click “Login.” The system information screen will

display.

8 Copy Configuration to USB

The USB port can be used to save the running

switch configuration to a (FAT32) USB storage

device. Plug the device into the USB port, and use

the “Save Configuration” command in the web

interface, or “copy running-config startup-config”

in the CLI.
