EtherWAN EX32908 series Manual de usuario

EX32908 series www.etherwan.com

Quick Start Guide

This quick start guide describes how to install and use the

Industrial Gigabit Ethernet Switch. Capable of operating at

temperature extremes of -10°C to +60°C, this is the switch of

choice for harsh environments constrained by space.

Physical Description

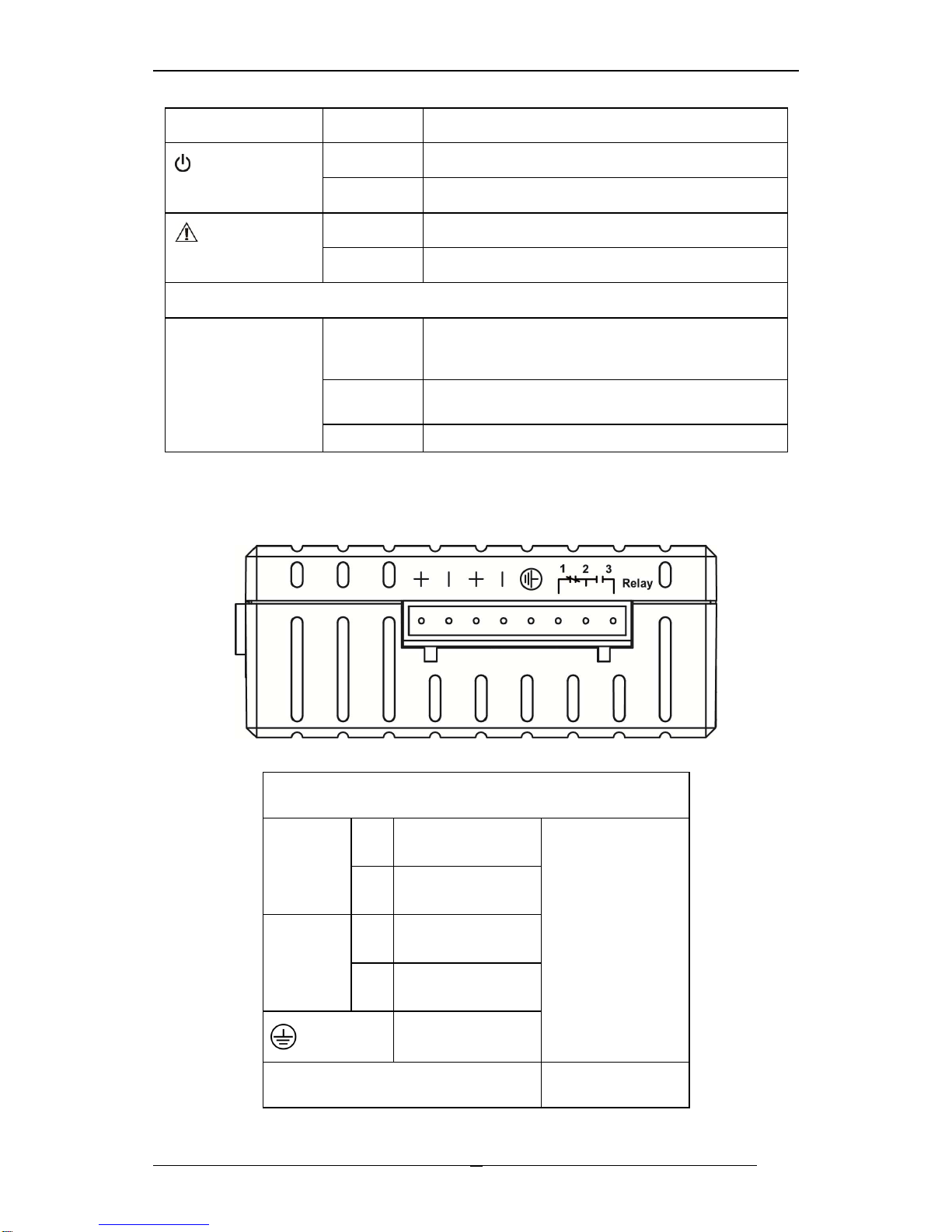

The Port Status LEDs

EX32908 series www.etherwan.com

LED State Indication

Steady Power on.

Power (Green) Off Power off.

Steady Relay Starts alarm.

Fault (Red) Off Relay non-alarm.

Gigabit Ports

Steady A valid network connection established.

10/100Mbps: Green, 1000Mbps: Amber.

Blinking Transmitting or receiving data.

Act stands for Activity.

Link/Act

Off No link.

The Terminal Block and Power Inputs

Power Input Assignment

＋12~48VDC

Power1

－Power Ground

＋12~48VDC

Power2

－Power Ground

Earth Ground

Terminal Block

Relay Output Rating 1A @ 250VAC

EX32908 series www.etherwan.com

DC Terminal Block Power Input: The DC Terminal Block

power input can be used to power up this Switch.

DIP Switch Settings

DIP No. On Off

1 Port 1 Alarm Enable. Port 1 Alarm Disable.

2 Port 2 Alarm Enable. Port 2 Alarm Disable.

3 Port 3 Alarm Enable. Port 3 Alarm Disable.

4 Port 4 Alarm Enable. Port 4 Alarm Disable.

5 Port 5 Alarm Enable. Port 5 Alarm Disable.

6 Port 6 Alarm Enable. Port 6 Alarm Disable.

7 Port 7 Alarm Enable. Port 7 Alarm Disable.

8 Port 8 Alarm Enable. Port 8 Alarm Disable.

The Gigabit Ethernet Connectors

The 10/100/1000Base-TX Connections

The following lists the pinouts of 10/100/1000Base-TX

ports.

EX32908 series www.etherwan.com

Pin Signal Name Signal Definition

1 TP0＋Transmit and Receive Data 0 ＋

2 TP0－Transmit and Receive Data 0 －

3 TP1＋Transmit and Receive Data 1 ＋

4 TP2＋Transmit and Receive Data 2 ＋

5 TP2－Transmit and Receive Data 2 －

6 TP1－Transmit and Receive Data 1 －

7 TP3＋Transmit and Receive Data 3 ＋

8 TP3－Transmit and Receive Data 3 －

The 1000Base-SX/LX Connections

The fiber port pinouts: The Tx (transmit) port of device I is

connected to the Rx (receive) port of device II, and the Rx

(receive) port of device I to the Tx (transmit) port of device II.

The WDM 1000Base-BX Connections

The fiber port pinouts: Only one optical fiber is required to

transmit and receive data.

EX32908 series www.etherwan.com

Functional Description

Complies with EN61000-6-2 & EN61000-6-4 EMC

Generic standard immunity for industrial environment.

Supports 802.3/802.3u/802.3ab/802.3z/802.3x.

Auto-negotiation: 10/100/1000Mbps, Full/Half-duplex.

Auto MDI/MDIX.

1000Base-SX/LX: Multi mode SC or ST type, Single

mode SC type. 1000Base-BX: WDM Single mode SC

type.

Supports 4096 MAC addresses, 192K Bytes buffer

memory.

Supports IEEE802.3az Energy Efficient Ethernet (EEE).

High speed, non-blocking four traffic class QoS switch

fabric.

Supports Jumbo frame up to 9720 Bytes.

Power Supply: Redundant 12~48VDC Terminal Block

power inputs.

Power consumption: 6.5W Max.

Provides reverse polarity protection.

Provides overload current protection.

Operating temperature ranges from -10°C to 60°C

(14°F to 140°F).

Slim design with DIN-Rail mount installation.

EX32908 series www.etherwan.com

Assembly, Startup, and Dismantling

Assembly: Place the switch on the DIN rail from above

using the slot. Push the front of the switch toward the

mounting surface until it audibly snaps into place.

Startup: Connect the supply voltage to start up the

switch via the terminal block.

Dismantling: Pull out the lower edge and then remove

the switch from the DIN rail.

EX32908 series www.etherwan.com

Preface

A member of the growing family of rugged switches, this

switch addresses a need for a smaller switch. This switch

provides an affordable solution for rugged and outdoor

environment, transportation road-side cabinet, industrial floor

shop, multitenant dwellings or Fiber To The Home (FTTH)

applications. Capable of operating at temperature extremes of

-10°C to +60°C, this is the switch of choice for harsh

environments constrained by space.

Plug-and-Play Solution:

The switch is a plug-and-play Industrial Gigabit Ethernet

Switch in compact size. It doesn't have any complicated

software to set up.

This manual describes how to install and use the Industrial

Gigabit Ethernet Switch. This switch integrates full wire speed

switching technology. This switch brings the answer to

complicated hardened networking environments.

To get the most out of this manual, you should have an

understanding of Ethernet networking concepts.

In this manual, you will find:

Features on the switch

Illustrative LED functions

Installation instructions

Specifications

EX32908 series www.etherwan.com

Table of Contents

QUICK START GUIDE 1

PHYSICAL DESCRIPTION 1

The Port Status LEDs 1

The Terminal Block and Power Inputs 2

DIP Switch Settings 3

The Gigabit Ethernet Connectors 3

FUNCTIONAL DESCRIPTION 5

ASSEMBLY,STARTUP,AND DISMANTLING 6

PREFACE 7

TABLE OF CONTENTS 8

PRODUCT OVERVIEW 9

INDUSTRIAL GIGABIT ETHERNET SWITCH 9

PACKAGE CONTENTS 9

PRODUCT HIGHLIGHTS 10

Basic Features 10

FRONT PANEL DISPLAY 11

PHYSICAL PORTS 12

INSTALLATION 13

SELECTING A SITE FOR THE SWITCH 13

DIN RAIL MOUNTING 14

CONNECTING TO POWER 15

DC Terminal Block Power Inputs 15

CONNECTING TO YOUR NETWORK 17

Cable Type & Length 17

Cabling 18

SPECIFICATIONS 19

EX32908 series www.etherwan.com

Product Overview

Industrial Gigabit Ethernet Switch

Package Contents

When you unpack the product package, you shall find the

items listed below. Please inspect the contents, and report

any apparent damage or missing items immediately to your

authorized reseller.

This Switch

User’s Manual

EX32908 series www.etherwan.com

Product Highlights

Basic Features

Complies with EN61000-6-2 & EN61000-6-4 EMC

Generic standard immunity for industrial environment.

Supports 802.3/802.3u/802.3ab/802.3z/802.3x.

Auto-negotiation: 10/100/1000Mbps, Full/Half-duplex.

Auto MDI/MDIX.

1000Base-SX/LX: Multi mode SC or ST type, Single

mode SC type. 1000Base-BX: WDM Single mode SC

type.

Supports 4096 MAC addresses, 192K Bytes buffer

memory.

Supports IEEE802.3az Energy Efficient Ethernet (EEE).

High speed, non-blocking four traffic class QoS switch

fabric.

802.1Q VLAN Tag Based Priority, Class of

Service.

Output Queue Schedule Mode: Weighted Round

Robin (WRR) with 4 priority queues.

The configurations of QoS are as below:

CoS Field Value Packet Count Priority

0 or 1 1 Lowest

2 or 3 2 Low

4 or 5 4 High

6 or 7 8 Highest

Supports Jumbo frame up to 9720 Bytes.

Power Supply: Redundant 12~48VDC Terminal Block

power inputs.

Power consumption: 6.5W Max.

Provides reverse polarity protection.

Provides overload current protection.

Operating temperature ranges from -10°C to 60°C

(14°F to 140°F).
