EtherWAN EX16908 Manual de usuario

EX16908 www.etherwan.com

Quick Start Guide

This quick start guide describes how to install and use the

Gigabit Ethernet Switch. Capable of operating at temperature

0°C to +45°C, this is the switch of choice for environments

constrained by space.

Physical Description

The Port Status LEDs

EX16908 www.etherwan.com

LED State Indication

Steady Power on.

Power

(Green) Off Power off.

10/100/1000Base-TX

Steady A valid network connection established at

10/100Mbps.

Flashing Transmitting or receiving data.

Act stands for Activity.

Link/Act

(Green)

Off No Link.

Steady A valid network connection established at

1000Mbps.

Flashing Transmitting or receiving data.

Act stands for Activity.

Link/Act

(Amber)

Off No Link.

1000Base Fiber

Steady A valid network connection established.

Flashing Transmitting or receiving data.

Act stands for Activity.

Link/Act

(Amber)

Off No link.

The 10/100/1000Base-TX and 1000Base Fiber

Connectors

1. The 10/100/1000Base-TX Connections

The following lists the pinouts of 10/100/1000Base-TX port.

EX16908 www.etherwan.com

2. The 1000Base-SX/LX Connections

The fiber port pinouts: The Tx (transmit) port of device I is

connected to the Rx (receive) port of device II, and the Rx

(receive) port of device I to the Tx (transmit) port of device II.

3. The SFP Connections

The SFP socket for 1000Base fiber optic expansion.

Supports duplex LC connector on SFP with

1000Base-SX/LX/BX.

For SFP expansion

Functional Description

Supports IEEE802.3/802.3u/802.3ab/802.3z. Auto-negotiation:

10/100/1000Mbps, Full/Half-duplex. Auto MDI/MDIX.

1000Base-SX/LX: Multi mode and Single mode SC and ST type.

SFP socket for Gigabit fiber optic expansion. Supports duplex LC

connector on SFP with 1000Base-SX/LX/BX.

Supports IEEE802.3x Flow Control for Full-duplex & Back Pressure for

Half-duplex.

None-blocking architecture and full wire-speed forwarding rate.

Supports 4096 MAC addresses. Provides 192K Bytes packet buffer

memory.

Supports IEEE802.1p Quality of Service (QoS). High speed,

non-blocking four traffic class QoS switch fabric.

IEEE802.3az EEE (Energy Efficient Ethernet) supported on copper

ports.

Supports jumbo frame up to 9720 Bytes.

5VDC DC Jack power input, external AC to DC power adapter.

Operating voltage and Max. current consumption: 0.8A @ 5VDC. Power

consumption: 4W Max.

EX16908 www.etherwan.com

Operating temperature ranges from 0°C to 45°C (32°F to 113°F).

EX16908 www.etherwan.com

Preface

This switch addresses a need for a smaller switch.

Capable of operating at temperature extremes of 0°C to

45°C, this is the switch of choice for environments

constrained by space.

Plug-and-Play Solution:

The switch is a plug-and-play Gigabit Ethernet Switch in

compact size. It doesn't have any complicated software to

set up.

This manual describes how to install and use the Gigabit

Ethernet Switch. This switch integrates full wire speed

switching technology. This switch brings the answer to

complicated networking environments.

To get the most out of this manual, you should have an

understanding of Ethernet networking concepts.

In this manual, you will find:

Features on the switch

Illustrative LED functions

Installation instructions

Specifications

EX16908 www.etherwan.com

Table of Contents

QUICK START GUIDE 1

PHYSICAL DESCRIPTION 1

The Port Status LEDs 1

The 10/100/1000Base-TX and 1000Base Fiber Connectors 2

FUNCTIONAL DESCRIPTION 3

PREFACE 5

TABLE OF CONTENTS 6

PRODUCT OVERVIEW 7

GIGABIT ETHERNET SWITCH 7

PACKAGE CONTENTS 7

PRODUCT HIGHLIGHTS 8

Basic Features 8

FRONT PANEL DISPLAY 9

PHYSICAL PORTS 10

INSTALLATION 11

SELECTING A SITE FOR THE SWITCH 11

CONNECTING TO POWER 12

CONNECTING TO YOUR NETWORK 13

Cable Type & Length 13

Cabling 14

SPECIFICATIONS 15

APPENDIX A–CONNECTOR PINOUTS 17

EX16908 www.etherwan.com

Product Overview

Gigabit Ethernet Switch

Package Contents

When you unpack the product package, you shall find the

items listed below. Please inspect the contents, and report

any apparent damage or missing items immediately to your

authorized reseller.

This Switch

User’s Manual

External power adapter

EX16908 www.etherwan.com

Product Highlights

Basic Features

Supports IEEE802.3/802.3u/802.3ab/802.3z. Auto-negotiation:

10/100/1000Mbps, Full/Half-duplex. Auto MDI/MDIX.

1000Base-SX/LX: Multi mode and Single mode SC and ST type.

SFP socket for Gigabit fiber optic expansion. Supports duplex LC

connector on SFP with 1000Base-SX/LX/BX.

Supports IEEE802.3x Flow Control for Full-duplex & Back Pressure for

Half-duplex.

None-blocking architecture and full wire-speed forwarding rate.

Supports 4096 MAC addresses. Provides 192K Bytes packet buffer

memory.

Supports IEEE802.1p Quality of Service (QoS). High speed,

non-blocking four traffic class QoS switch fabric.

802.1Q VLAN Tag Based Priority, Class of Service.

Output Queue Schedule Mode: Weighted Round Robin (WRR)

with 4 priority queues.

The configurations of QoS are as below:

CoS Field Value Packet Count Priority

0 or 1 1 Lowest

2 or 3 2 Low

4 or 5 4 High

6 or 7 8 Highest

IEEE802.3az EEE (Energy Efficient Ethernet) supported on copper

ports.

Supports jumbo frame up to 9720 Bytes.

5VDC DC Jack power input, external AC to DC power adapter.

Operating voltage and Max. current consumption: 0.8A @ 5VDC. Power

consumption: 4W Max.

Operating temperature ranges from 0°C to 45°C (32°F to 113°F).

EX16908 www.etherwan.com

Front Panel Display

Power Status

This LED comes on when the switch is properly connected to power and

turned on.

Port Status LEDs

The LEDs display status for each respective port.

EX16908 www.etherwan.com

LED State Indication

Steady Power on.

Power

(Green) Off Power off.

10/100/1000Base-TX

Steady A valid network connection established at 10/100Mbps.

Flashing Transmitting or receiving data.

Act stands for Activity.

Link/Act

(Green)

Off No Link.

Steady A valid network connection established at 1000Mbps.

Flashing Transmitting or receiving data.

Act stands for Activity.

Link/Act

(Amber)

Off No Link.

1000Base Fiber

Steady A valid network connection established.

Flashing Transmitting or receiving data.

Act stands for Activity.

Link/Act

(Amber)

Off No link.

Physical Ports

This switch provides:

Eight 10/100/1000Base-TX ports

Seven 10/100/1000Base-TX ports + one

1000Base-SX/LX fiber port

Seven 10/100/1000Base-TX ports + one Gigabit SFP

socket

CONNECTIVITY

RJ-45 connectors

SC or ST connector on 1000Base-SX/LX fiber port

Duplex LC connector on SFP 1000Base-SX/LX/BX fiber

transceiver

Tabla de contenidos

Otros manuales de Cambiar de EtherWAN

EtherWAN

EtherWAN EX34000 Manual de usuario

EtherWAN

EtherWAN EX62000 Manual de usuario

EtherWAN

EtherWAN EX77000 Series Manual de usuario

EtherWAN

EtherWAN EX89000 Manual de usuario

EtherWAN

EtherWAN EG97000 Series Manual de usuario

EtherWAN

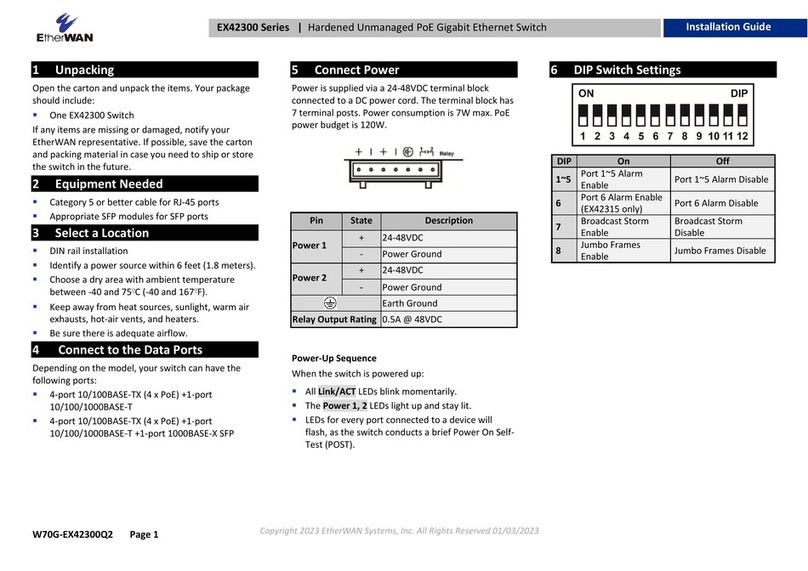

EtherWAN EX42300 series Manual de usuario

EtherWAN

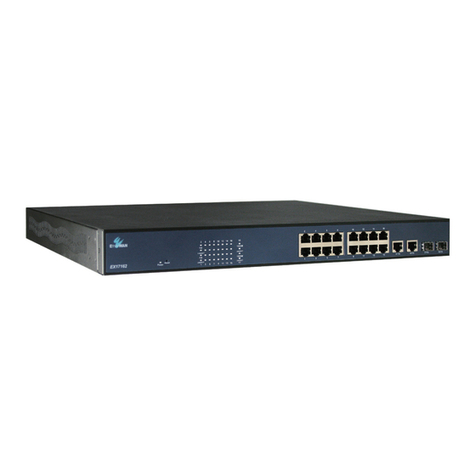

EtherWAN EX17082 Manual de usuario

EtherWAN

EtherWAN EX26484 Series Manual de usuario

EtherWAN

EtherWAN EX78900X Series Manual de usuario

EtherWAN

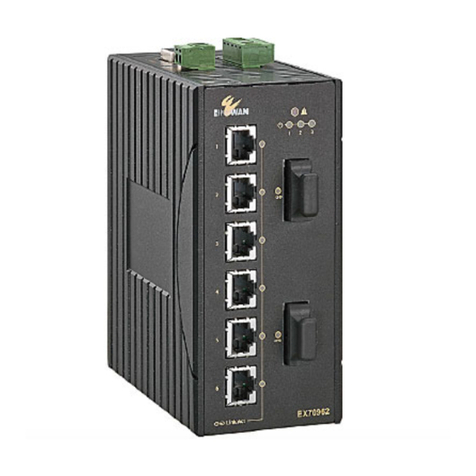

EtherWAN EX70900 Manual de usuario

EtherWAN

EtherWAN EX75900 Series Manual de usuario

EtherWAN

EtherWAN EX83304 Series Manual de usuario

EtherWAN

EtherWAN EX19082 Manual de usuario

EtherWAN

EtherWAN EX78900X Series Manual de usuario

EtherWAN

EtherWAN EG97023 Series Manual de usuario

EtherWAN

EtherWAN EX17016 Manual de usuario

EtherWAN

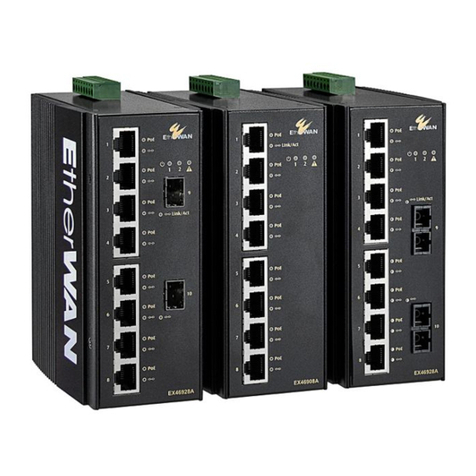

EtherWAN EX46900A Series Manual de usuario
