EtherWAN EX46900A Series Manual de usuario

W70G-EX469V2Q1 Page 1

Installation Guide

EX46900A Series | Hardened Unmanaged PoE Gigabit Ethernet Switch

1Unpacking

Open the carton and unpack the items. Your package

should include:

▪One EX46900A Switch

If any items are missing or damaged, notify your

EtherWAN representative. If possible, save the carton

and packing material in case you need to ship or store

the switch in the future.

2Equipment Needed

▪Category 5 or better cable for RJ-45 ports

▪Appropriate SFP modules for SFP ports

3Select a Location

▪Installation: DIN rail. Place the device on the DIN

rail from above using the slot. Push the front of

the device toward the mounting surface until it

audibly snaps into place.

▪Choose a dry area with ambient temperature

between -40°C to 75°C (-40°F to 167°F).

▪Keep away from heat sources, sunlight, warm air

exhausts, hot-air vents, and heaters.

▪Be sure there is adequate airflow.

4Connect to the Data Ports

Depending on the model, your switch can have the

following ports:

▪10/100/1000BASE-T: 8 PoE ports

▪1000BASE Fiber: 2 ports (Optional)

5Connect Power

Connect the supply voltage to start up the device via

the terminal block. Power consumption is 11.2 watts

without PoE. PoE budget is 120 watts, 30 watts per

port.

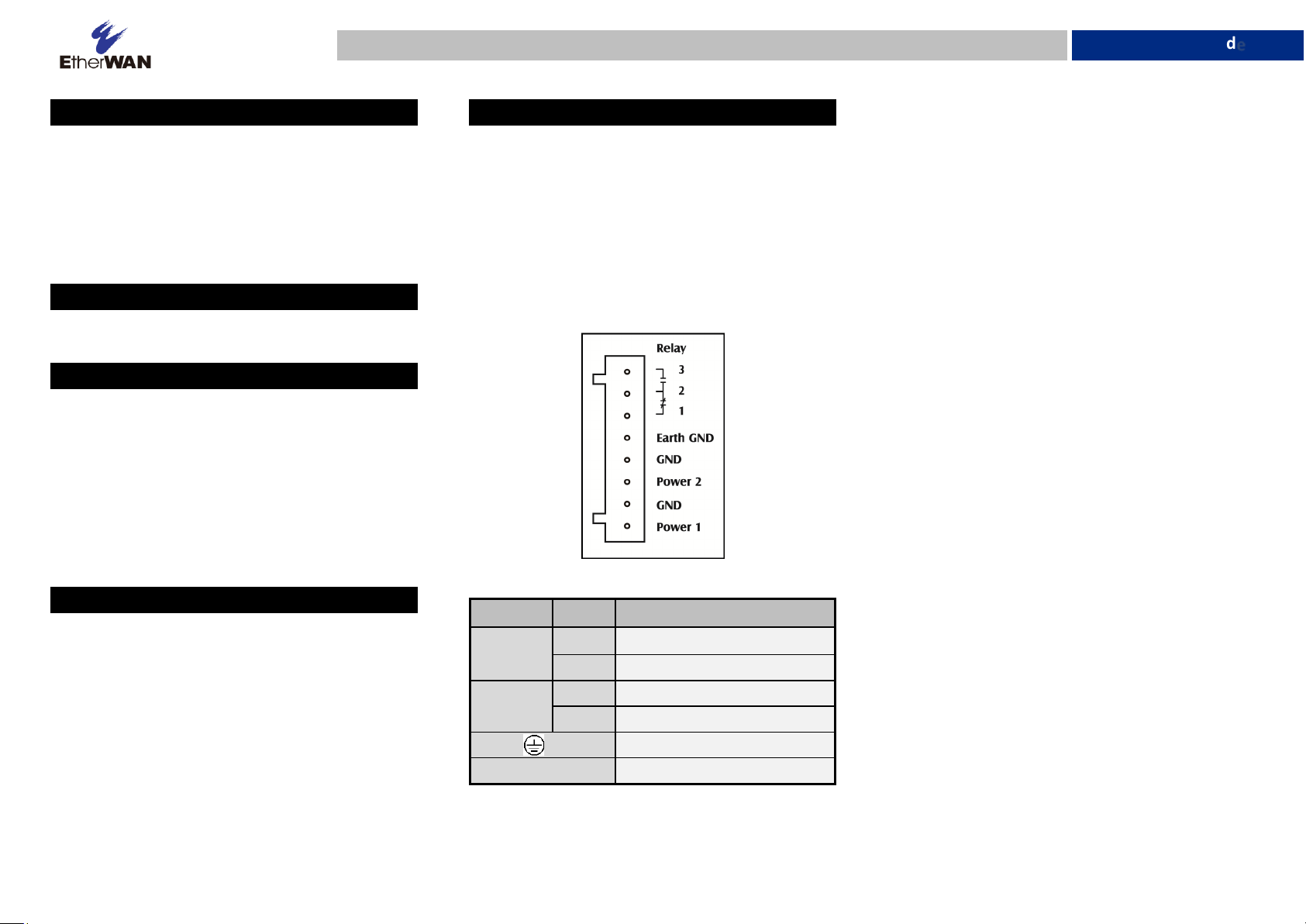

Terminal Block

The switch provides two power inputs on an 18-57VDC

terminal block. Only one power input is required to

operate the switch.

State

Description

Power 1

18-57VDC

Power Ground

Power 2

18-57VDC

Power Ground

Earth Terminal

Relay Output Rating

0.5A @ 48VDC

Relay Output

The relay output can be connected to an alarm

signaling device. Current is 0.5A @48VAC.

W70G-EX469V2Q1 Page 2

Installation Guide

EX46900A Series | Hardened Unmanaged PoE Gigabit Ethernet Switch

6LED Indicators

LED

State

Description

Power 1, 2

(Green)

Switch is powered ON

correctly

Off

Switch is not receiving power

Alarm (Red)

Relay alarm on

Off

Relay alarm off

Link/Act

10/100(Green)

1000 (Amber)

Valid network connection

established

Off

No link

Blinking

Transmitting or receiving

data

PoE (Amber)

Powered Device is

connected

Off

Powered Device is

disconnected

Blinking

Device powered at 30 Watts

Power-Up Sequence

When the switch is powered up:

▪All Link/ACT LEDs blink momentarily.

▪The Power 1, 2 LEDs light up and stay lit.

▪LEDs for every port connected to a device will

flash, as the switch conducts a brief Power On Self-

Test (POST).

7DIP Switch Settings

Manufacturer information:

EtherWAN Systems, Inc.

33F, No. 93, Sec. 1, Xintai 5th Rd., Xizhi Dist., New

Taipei City, 221 Taiwan

DIP No.

Off

1~10

Port 1~10 Alarm

Enable

Port 1~10 Alarm

Disable

11~12

N/A

The full product manual can be downloaded from:

www.etherwan.com
