EtherWAN EX17908A Manual de usuario

EX17908A

02/25/2020

W70G-E17908AQ2

1 Unpacking

Unpack the items. Your package should include:

One EX17908A unmanaged switch

One external power adapter

One CD containing this user’s guide

If items are missing or damaged, notify your

EtherWAN representative. Keep the carton and

packing material.

2 What Else You Need

Category 5 or better Ethernet cables

3 Select a Location

Desktop installations: Mount on a flat table

or shelf surface.

Rack installations: Use a 19-inch (48.3-

centimeter) EIA standard equipment rack

that is grounded and physically secure.

Identify a power source within 6 feet (1.8

meters).

Choose a dry area with ambient temperature

between 0 and 40ºC (32 and 104ºF).

Do not cover fans on the rear and side.

Keep away from heat sources, sunlight, warm

air exhausts, hot-air vents, and heaters.

Be sure there is adequate airflow.

Keep the switch at least 6 ft (1.83 m) away

from the nearest source of electromagnetic

noise, such as a photocopy machine.

4 Connect to the Data Ports

The switch provides eight 10/100/1000 Mbps RJ-

45 ports that can connect to Power over

Ethernet (PoE) devices, such as an IP surveillance

camera or a Voice Over Internet Protocol (VoIP)

phone.

A. Insert one end of a Category 5 or better

Ethernet cable into a switch port.

B. Connect the other end into the Ethernet port

of the device.

C. Repeat steps A and B for each additional

device you want to connect to the switch.

5 Apply AC Power

A. Connect the female end of the supplied AC

power adapter cable to the power receptacle

on the switch rear panel. Connect the other

end to a grounded 3-pronged AC outlet.

B. On the switch rear panel, move the ON/OFF

switch to the ON position.

When you apply AC power:

All green PoE and Link/ACT LEDs blink

momentarily.

The fans start.

The yellow Power LED goes ON.

The Link/ACT LEDs for every port connected

to a device flash, as the switch conducts a

brief Power On Self-Test (POST).

6 Front Panel LEDs

LED

Color

Status

Power

Yellow

ON = switch is receiving power.

PoE

(port number)

Green

ON = Power Device (PD) is connected.

OFF = PD is disconnected.

Link/ACT

(port number)

Green

ON = valid network connection.

OFF = no data transmission on port.

Flashing = port is sending or receiving

data.

Congratulations! You have successfully

installed your switch.

EX17908A Unmanaged Switch Installation Guide

EX17908A

02/25/2020

W70G-E17908AQ2

Notes:

Otros manuales de Cambiar de EtherWAN

EtherWAN

EtherWAN EX70900 Manual de usuario

EtherWAN

EtherWAN EX17016 Manual de usuario

EtherWAN

EtherWAN EG97000 Series Manual de usuario

EtherWAN

EtherWAN EX75900 Series Manual de usuario

EtherWAN

EtherWAN EX19082 Manual de usuario

EtherWAN

EtherWAN EX43000 series Manual de usuario

EtherWAN

EtherWAN EX17242 Manual de usuario

EtherWAN

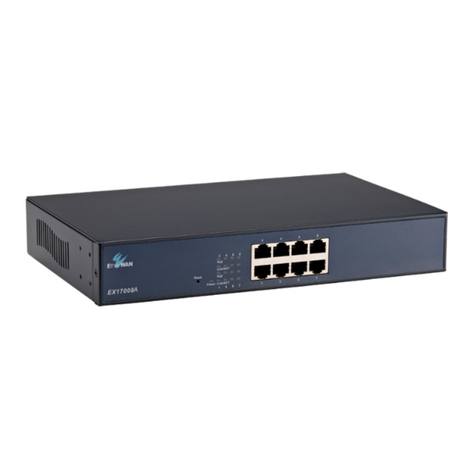

EtherWAN EX17008A Manual de usuario
