Brief operating instructions

iTEMP TMT82

Dual-input temperature transmitter

These instructions are brief operating instructions; they are

not a substitute for the operating instructions pertaining to

the device.

For detailed information, refer to the operating instructions

and other documentation.

Available for all device versions via:

• Internet: www.endress.com/deviceviewer

• Smartphone/Tablet: Endress+Hauser Operations App

KA01095T/09/EN/16.14

71273629

iTEMP TMT82

2 Endress+Hauser

TAG No.: XXX000

Ser. No.: X000X000000

Order code 00X00-XXXX0XX0XXX

www.endress.com/deviceviewer Endress+Hauser Operations App

Serial number

A0023555

iTEMP TMT82 Table of contents

Endress+Hauser 3

Table of contents

1 Important document information ................................................ 3

1.1 Function of document and how to use ...................................................... 3

1.2 Symbols ............................................................................ 4

1.3 Tool symbols ......................................................................... 5

1.4 Registered trademarks .................................................................. 5

2 Basic safety instructions ......................................................... 5

2.1 Requirements for the personnel ........................................................... 5

2.2 Designated use ....................................................................... 6

2.3 Operational safety ..................................................................... 6

3 Identification .................................................................... 6

3.1 Device designation ..................................................................... 6

3.2 Scope of delivery ...................................................................... 8

3.3 Certificates and approvals ............................................................... 8

4 Installation instructions .......................................................... 9

4.1 Incoming acceptance, transport, storage ..................................................... 9

4.2 Installation conditions ................................................................. 10

4.3 Installation instructions ................................................................ 11

4.4 Post-installation check ................................................................. 15

5 Wiring .......................................................................... 16

5.1 Quick wiring guide .................................................................... 16

5.2 Connecting the sensor cables ............................................................ 17

5.3 Connecting the power supply and signal cables .............................................. 19

5.4 Shielding and grounding ............................................................... 20

5.5 Post-connection check ................................................................. 21

6 Operating options .............................................................. 22

6.1 Measured value display and operating elements .............................................. 22

6.2 Configuration of transmitter and HART® protocol ............................................. 24

7 Commissioning ................................................................. 25

7.1 Post-installation check ................................................................. 25

7.2 Switching on the transmitter ............................................................ 25

7.3 Enabling configuration ................................................................ 26

1 Important document information

1.1 Function of document and how to use

1.1.1 Document function

These instructions contain all the essential information from incoming acceptance to initial

commissioning.

1.1.2 Safety Instructions (XA)

When using in hazardous areas, compliance with national regulations is mandatory. Separate

Ex-specific documentation is provided for measuring systems that are used in hazardous

Important document information iTEMP TMT82

4 Endress+Hauser

areas. This documentation is an integral part of these Operating Instructions. The installation

specifications, connection data and safety instructions it contains must be strictly observed!

Make sure that you use the right Ex-specific documentation for the right device with approval

for use in hazardous areas! The number of the specific Ex documentation (XA...) is provided

on the nameplate. If the two numbers (on the Ex documentation and the nameplate) are

identical, then you may use this Ex-specific documentation.

1.1.3 Functional safety

Please refer to Safety Manual SD01172T/09 for the use of approved devices in protective

systems according to IEC 61508.

1.2 Symbols

1.2.1 Safety symbols

Symbol Meaning

DANGER

A0011189-EN

DANGER!

This symbol alerts you to a dangerous situation. Failure to avoid this situation will

result in serious or fatal injury.

CAUTION

A0011191-EN

CAUTION!

This symbol alerts you to a dangerous situation. Failure to avoid this situation can

result in minor or medium injury.

NOTICE

A0011192-EN

NOTE!

This symbol contains information on procedures and other facts which do not result

in personal injury.

1.2.2 Symbols and notation for certain types of information

Symbol Meaning

A0011193

Tip

Indicates additional information.

A0011194

Reference to documentation

Refers to the corresponding device documentation.

A0011195

Reference to page

Refers to the corresponding page number.

A0011196

Reference to graphic

Refers to the corresponding graphic number and page number.

1., 2., 3. Series of steps

iTEMP TMT82 Basic safety instructions

Endress+Hauser 5

1.3 Tool symbols

Symbol Meaning

A0011220

Flat blade screwdriver

A0011219

Crosstip screwdriver

A0011221

Allen key

A0011222

Open-ended wrench

A0013442

Torx screwdriver

1.4 Registered trademarks

HART®

Registered trademark of the HART® Communication Foundation

2 Basic safety instructions

2.1 Requirements for the personnel

The personnel for installation, commissioning, diagnostics and maintenance must fulfill the

following requirements:

‣Trained, qualified specialists must have a relevant qualification for this specific function

and task

‣Are authorized by the plant owner/operator

‣Are familiar with federal/national regulations

‣Before beginning work, the specialist staff must have read and understood the instructions

in the Operating Instructions and supplementary documentation as well as in the

certificates (depending on the application)

‣Following instructions and basic conditions

The operating personnel must fulfill the following requirements:

‣Being instructed and authorized according to the requirements of the task by the facility's

owner-operator

‣Following the instructions in these Operating Instructions

Identification iTEMP TMT82

6 Endress+Hauser

2.2 Designated use

The device is a universal and user-configurable temperature transmitter with either one or

two sensor inputs for a resistance thermometer (RTD), thermocouples (TC), resistance and

voltage transmitters. The head transmitter version of the device is intended for mounting in a

flat-face terminal head as per DIN EN 50446. It is also possible to mount the device on a DIN

rail using the optional DIN rail clip.

The device is also optionally available in a version suitable for DIN rail mounting as per IEC

60715 (TH35).

The manufacturer is not liable for damage caused by improper or non-designated use.

2.3 Operational safety

‣Operate the device in proper technical condition and fail-safe condition only.

‣The operator is responsible for interference-free operation of the device.

Hazardous area

To eliminate a danger for persons or for the facility when the device is used in the hazardous

area (e.g. explosion protection or safety equipment):

‣Based on the technical data on the nameplate, check whether the ordered device is

permitted for the intended use in the hazardous area. The nameplate can be found on the

side of the transmitter housing.

‣Observe the specifications in the separate supplementary documentation that is an integral

part of these Instructions.

Electromagnetic compatibility

The measuring system complies with the general safety requirements in accordance with EN

61010-1, the EMC requirements of IEC/EN 61326 and NAMUR Recommendation NE 21 and

NE 89.

NOTICE

‣The unit must only be powered by a power supply that operates using an energy-limited

electric circuit that is compliant with IEC 61010-1, "SELV or Class 2 circuit".

3 Identification

3.1 Device designation

The following options are available for identification of the device:

• Nameplate specifications

• Enter the serial number from the nameplate in W@M Device Viewer (www.endress.com/

deviceviewer): All data relating to the device and an overview of the technical

documentation supplied with the device are displayed.

iTEMP TMT82 Identification

Endress+Hauser 7

3.1.1 Nameplate

The right device?

Compare and check the data on the nameplate of the device against the requirements of the

measuring point:

12 3

11-42V 012345678910

xx.yy.zz

TMT82- XXXXX/XX

iTEMP®

Made in Germany 2011

D-87484 Nesselwang

Ser.no.:

FW:

Input:

12345678ABCDEFGH

Current consum.: 23,6 mA Dev.Rev: x

Ext. ord. cd.:

XXXXXXXXXXXXX#

II3G Ex nA II T6/T5/T4 Ta= -40 ...+ 55/70/85°C

II3G Ex nL IIC T6/T5/T4 Ta= -40 ... +55/70/85°C

EH 08.001X

Install per XA00102R/09/a3/xx.xx

0044

A0014561

 1 Nameplate of the head transmitter (example, Ex version)

1 Power supply, current consumption and extended order code

2 Serial number, device revision and firmware version

3 Approvals with symbols

4 2 lines for the TAG name

5 Approval in hazardous area with number of the relevant Ex documentation (XA...)

6 Order code and manufacturer ID

Identification iTEMP TMT82

8 Endress+Hauser

0044

iTEMP®TMT82

Made in Germany 2012 D-87484 Nesselwang

TAGXXXXXXXXXXX

FW: XX.XX.XX Dev. Rev.: X

Order code: TMT82-xxx/xx

Ext. ord. cd.: XXXXXXXXXXX

Ser. no.: XXXXXXXXX

Input: 12-42 V

Current cunsum.: 23,0 mA

II3G Ex nA II T6/T5/T4 Ta= -40 ...+ 55/70/85°C

II3G Ex nL IIC T6/T5/T4 Ta= -40 ... +55/70/85°C

EH 08.001X

Install per XA0xxxxT/09/a3/xx.xx

A0017924

 2 Nameplate of DIN rail transmitter (example, Ex version)

1 Product description and manufacturer ID

2 Order code, extended order code and serial number

3 Power supply and current consumption

4 Approval in hazardous area with number of the relevant Ex documentation (XA...)

5 Firmware version and device version

6 Approval logos

7 2 lines for the TAG name

3.2 Scope of delivery

The scope of delivery of the device comprises:

• Temperature transmitter

• Mounting material (head transmitter)

• Hard copy of multi-language Brief Operating Instructions

• Functional Safety Manual (SIL mode)

•Additional documentation for devices which are suitable for use in hazardous areas (0

1), such as Safety Instructions (XA), Control or Installation Drawings (ZD).

3.3 Certificates and approvals

The device left the factory in a safe operating condition. The device complies with the

standards EN 61 010-1 "Protection Measures for Electrical Equipment for Measurement,

Control, Regulation and Laboratory Procedures" and with the EMC requirements of IEC/EN

61326.

3.3.1 CE mark, Declaration of Conformity

The device therefore meets the legal requirements of the EC guidelines. The manufacturer

confirms that the device is compliant with the relevant guidelines by applying the CE mark.

iTEMP TMT82 Installation instructions

Endress+Hauser 9

3.3.2 HART® protocol certification

The temperature transmitter is registered by HART® Communication. The device meets the

requirements of the HART Communication Protocol Specifications.

3.3.3 Functional safety

The two device versions (head transmitter/DIN rail device) are optionally available for use in

safety systems as per IEC 61508.

• SIL 2: Hardware version

• SIL 3: Software version

4 Installation instructions

4.1 Incoming acceptance, transport, storage

4.1.1 Incoming acceptance

• Is the packaging or content damaged?

• Is the delivery complete? Compare the scope of delivery against the information on your

order form.

4.1.2 Transport and storage

• Pack the device in such a way as to protect it reliably against impact for storage (and

transportation). The original packaging provides optimum protection.

• Permitted storage temperature:

– Head transmitter: –50 to +100 °C (–58 to +212 °F)

– DIN rail transmitter: –40 to +100 °C (–40 to +212 °F)

Installation instructions iTEMP TMT82

10 Endress+Hauser

4.2 Installation conditions

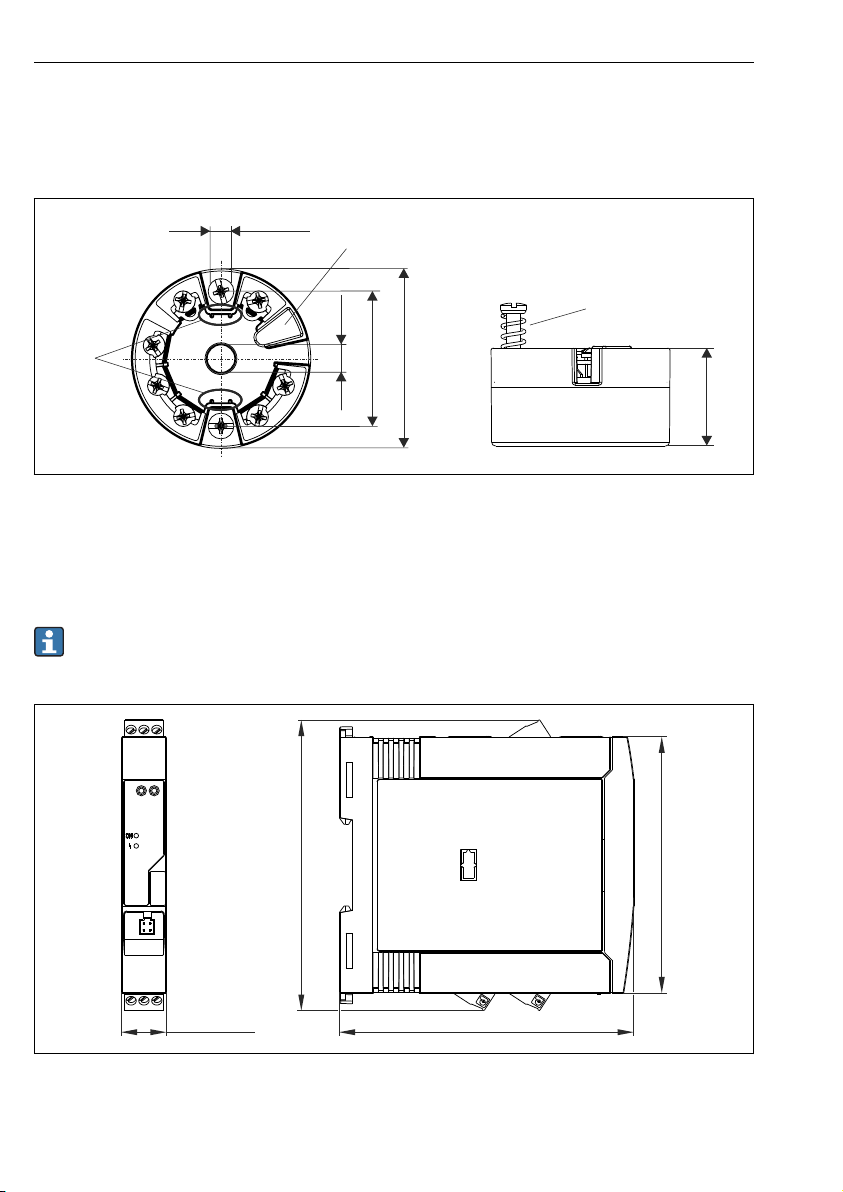

4.2.1 Dimensions

24.1 (0.95)

33 (1.3)

!44 (1.73)

!7 (0.28)

!5 (0.2)

A0007301

 3 Head transmitter version with screw terminals. Dimensions in mm (in)

A Spring travel L ≥ 5 mm (not for US - M4 securing screws)

B Mounting elements for attachable measured value display

C Interface for contacting measured value display

The same dimensions apply to the version with spring terminals. Exception: Height of

housing H = 28.1 mm (1.11 in).

17.5 (0.69) 114.9 (4.52)

100 (3.94)

112.8 (4.44)

A0017808

 4 DIN rail transmitter version. Dimensions in mm (in)

Otros manuales para iTEMP TMT82

Tabla de contenidos

Otros manuales de Transmisor de Endress+Hauser

Endress+Hauser

Endress+Hauser Levelflex M FMP45 Manual de usuario

Endress+Hauser

Endress+Hauser Cerabar S PMP71 Manual de usuario

Endress+Hauser

Endress+Hauser Omnigrad TMT146 Manual de usuario

Endress+Hauser

Endress+Hauser Levelflex FMP 232 Hoja de especificaciones

Endress+Hauser

Endress+Hauser CM14 Manual de usuario

Endress+Hauser

Endress+Hauser TMT122 Manual de usuario

Endress+Hauser

Endress+Hauser Proline 500 PROFINET Especificaciones técnicas

Endress+Hauser

Endress+Hauser Liquisys M CLM 223 Manual de usuario

Endress+Hauser

Endress+Hauser Proline 300 Especificaciones técnicas

Endress+Hauser

Endress+Hauser AT1000 AT1 Manual de usuario

Endress+Hauser

Endress+Hauser FHX50 Manual de usuario

Endress+Hauser

Endress+Hauser Liquisys M COM 223 Manual de usuario

Endress+Hauser

Endress+Hauser Cerabar S PMC71 Manual de usuario

Endress+Hauser

Endress+Hauser iTEMP Pt TMT180 Manual de usuario

Endress+Hauser

Endress+Hauser Cerabar S PMC71 Manual de usuario

Endress+Hauser

Endress+Hauser iTEMP TMT162 Especificaciones técnicas

Endress+Hauser

Endress+Hauser iTEMP TMT162 Manual de usuario

Endress+Hauser

Endress+Hauser HART iTEMP TMT142B Manual de usuario

Endress+Hauser

Endress+Hauser cerabar S Manual de usuario

Endress+Hauser

Endress+Hauser Proline 500 PROFIBUS PA Especificaciones técnicas

Endress+Hauser

Endress+Hauser Proline Promass O 100HART Especificaciones técnicas

Endress+Hauser

Endress+Hauser iTEMP TMT111 Manual de usuario

Endress+Hauser

Endress+Hauser iTEMP TMT71 Manual de usuario

Endress+Hauser

Endress+Hauser CM14 Manual de usuario

Manuales populares de Transmisor de otras marcas

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manual del propietario

Honeywell

Honeywell 5816WMBR Manual de usuario

Kamstrup

Kamstrup READy MTU Instrucciones de funcionamiento

Omega

Omega ZW Series Manual de usuario

ABB

ABB Field 264H Guía

Alinco

Alinco DJ-V17T Manual de usuario

Dejero

Dejero EnGo 3x Manual de usuario

Rosemount

Rosemount 4600 Manual de usuario

Speaka Professional

Speaka Professional 2342740 Manual de usuario

trubomat

trubomat GAB 1000 Manual de usuario

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manual de usuario

Rondish

Rondish UT-11 Manual de usuario

MG 10JRE Manual de usuario

Burkert

Burkert 8177 Manual de usuario

Firetide

Firetide HotPort 3203 Manual

Tele Radio

Tele Radio T9-02 Manual de usuario

Rotronic

Rotronic HygroFlex HF3 Series Manual de usuario

Jamara

Jamara FCX6 Pro Tel Manual de usuario

Endress+Hauser iTEMP TMT82 Especificaciones técnicas

Manuales populares de Transmisor de otras marcas
