Operating Instructions

IP4001, Rev CA

March 2018

Mobrey™Series VLS

Vibrating Level Switch

Operating Manual

IP4001, Rev CA

Mobrey Series VLS

March 2018

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3

Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8

1.0 Introduction

1.1 Overview

Mobrey vibrating rod level switches are suitable for low and high level indication of granules and

powders with a minimum 0.05 kg/dm3density such as cement, lime, sand, grain, feed, sugar, etc.

Dust Ex versions are available for using the instrument in an explosion-proof environment.

The vibrating rod is a mechanical resonant system, excited and kept in resonance by an electronic unit.

The medium to be measured, when reaching the vibration rod end, will damp the vibration. The change

in vibration intensity is sensed by an electronic unit, which, upon the elapse of the delay time, actuates

the output circuit.

1.2 Accessories

User manual (IP4001)

2 off 3-pole terminal blocks

1½-in, sealing, for BSP only

2 off M20x1.5 cable glands

1.3 Order code

K Standard model with 1 x SPDT alarm relay

H(1) High temperature model with 1 x SPDT relay (not available with Extended Cable option)

B R 1½-in. BSPT mounting

N 1½-in. NPT mounting

1 Standard length rod, 207 mm insertion length

3 Extended rod, 300-3000 mm insertion length

4 Cable extended, 1000-20000 mm insertion length

3 Aluminum Alloy housing, powder coated

9 As code 3, but with Remote Electronics

1Z 20-255 Vac / Vdc, no hazardous area approval

5A 20-250 Vac / 20-50 Vdc, ATEX Dust Certification II 1/2 D

/**** State rod or cable extension length in mm

1. Only for standard and rod extended versions.

Operating Instructions

IP4001, Rev CA

Mobrey Series VLS

March 2018

1.4 Dimensions

Figure 1-1. Mobrey Series VLS Dimensions

A. 2 off M20x1.5 conduit entries

B. 2 off NPT 1/2-in. conduit entries

C. 11/2-in. BSP or NPT threaded process connection

Dimensions are in mm.

2.0 Installation

When installed in a potentially explosive atmosphere, reference should be made to IP4001/SI.

Prior to installation, it is advisable to check the switching function for proper adjustment on a sample

quantity of material (see “Adjustments” on page 6). The unit may not work with mediums that are within

the specified density range, but have very large granules or have too little friction.

Handle the device with great care, especially the sensing probe. Any impact on

the sensing probe may ruin its resonance system. A protective shield should be

installed (see inset, right) if the probe is exposed to falling material or an

excessive mechanical load.

Standard version Extended rod version Cable extended version

~90

116

L=207

133

S=46

~90

S=46

116

133

L=300-3000 L=1000-2000

133

~90

S=46

116

Operating Manual

IP4001, Rev CA

Mobrey Series VLS

March 2018

Screw in the device by its hexagon neck. After screwing tight the process connection, the housing can be

rotated (up to maximum of 300°), to adjust the cable gland to the required position.

It might be necessary to install the device at an offset level position relative to the switching level actually

required, taking into account caving or arching of the material in the silo (see Figure 1-2).

Figure 1-2. Examples of Correct and Incorrect Installations

Incorrect

Correct

Incorrect

Correct

Operating Instructions

IP4001, Rev CA

Mobrey Series VLS

March 2018

With powder level detection, the device should be installed at an inclination exceeding the angle of

repose (or vertically in case of high level detection), to prevent powder deposition on the vibrating rod

that might substantially reduce the self-cleaning effect. Avoid mounting the rod in a recess (Figure 1-3)

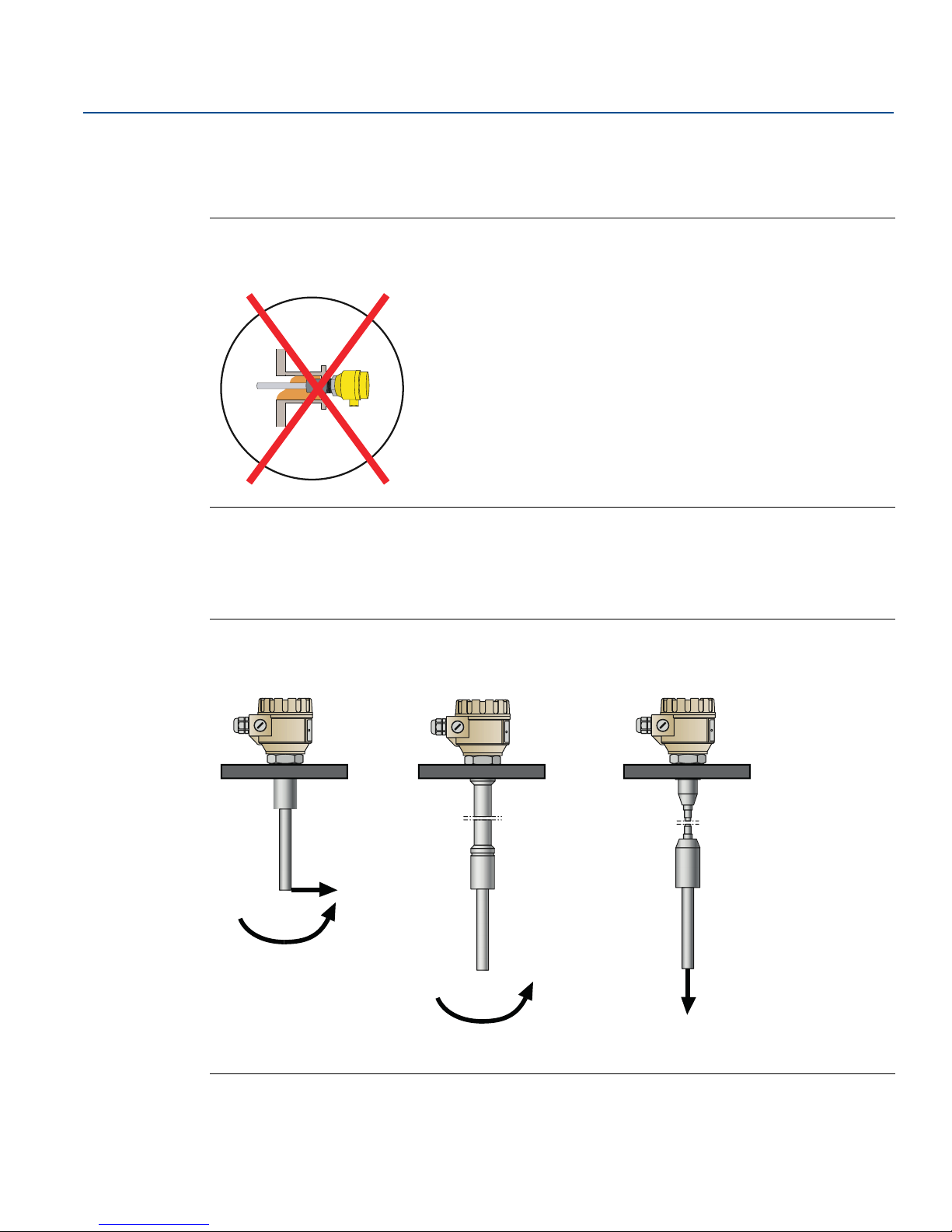

Figure 1-3. Avoid Mounting Rod in Recess

In the case of tanks that are likely to be exposed to intense vibrations, necessary provisions shall be made

for damping the vibrations acting on the device (e.g. vibration damping inserts made of rubber have to

be applied).

Figure 1-4. Maximum Torque and Force

Incorrect

F = 500 N.

M = 100 Nm.

M = 100 Nm. F = 45 kN.

Standard version

VLS**1

Extended rod version

VLS**3

Cable extended version

VLS**4

Operating Manual

IP4001, Rev CA

Mobrey Series VLS

March 2018

3.0 Adjustments

Remove the top cover of the housing to access the connection terminals and adjusting switches.

In case of Dust Ex instruments, the housing cover can only be opened after the removal of the cover

securing clamp.

Do not remove the wire from terminal pin 1 (Figure 1-5 on page 7) as it is an internal connection.

For grounding the unit, use the PE grounding screw terminal PE.

After correct installation, the electrical connections established, the housing cover fitted and secured,

the device is ready for operation. The switched-on state is indicated by the lighting of the LED.

The DENSITY setting (switch A) is to be set in accordance with the material density:

LOW position

–Recommended for loose and light materials with density below 0.1 kg/dm3.

–Represents small energy and amplitude of vibration as well as great sensitivity of detection.

HIGH position

–Recommended for (thick and heavy) materials with density over 0.1 kg/dm3.

–Represents vibration with great energy and amplitude, and small sensitivity of detection.

The instrument may not switch correctly in mediums with a density of less than 0.05 kg/dm3or with very

small internal friction.

To obtain FAIL SAFE alarm (switch C), use the de-energized state of the output as an alarm. A power

breakdown will then also be considered to be an alarm (see Table 1-1 on page 7).

The delay (switch B) is to be selected to comply with requirements of the process control technology the

unit is used for. Standard (switching delay is ~5 seconds) or fast response (switching delay is ~2 seconds)

can be selected.

Note

When operating the switches, standard electrostatic discharge precautions should be taken to avoid

damaging the instrument.

The enclosure must not be opened when the equipment is electrically energized.

Operating Instructions

IP4001, Rev CA

Mobrey Series VLS

March 2018

Figure 1-5. Electrical Connections

Table 1-1. Operation

Power Probe

Fail-safe

mode LED Relay

Not vibrating

(covered)

Low Green

Energized

High Red

De-energized

Vibrating

(free)

Low Red

De-energized

High Green

Energized

Fails Low or

high

Not lit

De-energized

NL1

123 456

250VAC

8A/AC1

A B CStatus LED

Operating Manual

IP4001, Rev CA

Mobrey Series VLS

March 2018

4.0 Maintenance

Mobrey Series VLS devices do not require maintenance on a regular basis. In some instances, however,

the vibrating section may need a cleaning from deposited material. This must be carried out gently,

without harming the vibrating section of the vibrating rod.

Repairs during or after the guarantee period are affected by Emerson. Equipment sent back for repairs

must always be cleaned or neutralized (disinfected) by the user.

5.0 Specifications

Table 1-2. Specifications for Standard, Rod Extended, and Cable Extended Versions

Category Standard Rod extended Cable extended

Probe length 207 mm 0.3 to 3 m 1 to 20 m

Wetted-parts materials 1.4571 Probe: 1.4571

Cable: PE coated

Housing material Aluminum: Powder paint coated

Process connection 1½-in. BSP or 1½-in. NPT

Operating temperature ranges See Figure 1-6 and Table 1-3

Maximum pressure (absolute) 25 bar (2.5 MPa) 6 bar (0.6 MPa)

Minimum medium density(1)

1. May depend on friction and granular size of the medium.

0.05 kg/dm(maximum granular size: 10 mm)

Response time (selectable) Not vibrating (covered): < 1.8 seconds or 5±1.5 seconds

Vibrating (free): < 2 seconds or 5±1.5 seconds

Supply voltage (universal) Normal type: 20…255 Vac/Vdc

Ex type: 20…250 Vac (50/60 Hz) or 20…50 Vdc

Power consumption 2.5 VA, 2 W

Electrical connections

2 pcs. M20x1.5 cable glands with ta lIIC protection type or

for normal types M20x1.5 plastic glands for cable Ø 6 to 12 mm,

2 pcs. plug-in type terminal blocks for 0.25 to 1.5 mm2 wire cross section

internal thread for 2x ½-in NPT cable protection pipe

Output SPDT (potential free), 250 Vac, 8 A, ac 1

Ingress protection IP67 (NEMA6) EN 60529:2001

Electrical protection Class I. (to be grounded)

Ex protection mark ATEX: II 1/2 D Ex ta/tb IIIC T90 °C… T170 °C Da/Db

Weight (with extension) 1.88 kg 1.88 kg (+1.4 kg/m) 1.88 kg (+ 0.6 kg/m)

Storage conditions Ambient temperature range: -35°C to +60 °C

Relative humidity: 98% (maximum)

Operating Instructions

IP4001, Rev CA

Mobrey Series VLS

March 2018

Figure 1-6. Ambient (TA) Versus Process (TP) Temperatures

Table 1-3. Thermal Data

Minimum ambient air temperature (Ta) = –30 °C

Minimum process temperature (Tp) = –30 °C

VLS**435A VLSK*(1/3)35A VLSH**35A

Process temperature (Tp)

(EPL Da – category 1D)

+60 °C +70 °C +80 °C...

+95 °C (1)

1. The process temperature can reach +95 °C for a maximum period of one hour.

+60 °C +70 °C +95°C +110 °C +160 °C

Ambient air temperature (Ta)

(EPL Db – category 2D)

+60 °C +50 °C +60 °C +60 °C +50 °C +60 °C +50 °C +35 °C

Maximum surface

temperature (process

connection)

+85 °C +85 °C +95 °C +85 °C +85 °C +95 °C +95 °C +135 °C

Maximum surface

temperature (T)

+85 °C +85 °C +95 °C +85 °C +85 °C +95 °C +110 °C +160 °C

T Class T90°C T100°C T90°C T100°C T115°C T170°C

TA (°C)

(°C)

-30

50 75 110 160

Operating Manual

IP4001, Rev CA

Mobrey Series VLS

March 2018
