Quick Start Guide
00825-0100-4029, Rev CC
March 2022
Rosemount™ 2110 Level Switch
Vibrating Fork
Contents
About this guide...........................................................................................................................3
Installation................................................................................................................................... 5
Prepare the electrical connections..............................................................................................10
Connect wiring and power up.....................................................................................................18
Product certifications................................................................................................................. 21
Quick Start Guide March 2022
2 Rosemount 2110 Level Switch
1 About this guide
This Quick Start Guide provides basic guidelines for the Rosemount 2110.
Refer to the Rosemount 2110 Reference Manual for more instructions. The
manual and this guide are also available electronically at
Emerson.com/Rosemount.
1.1 Safety messages
WARNING
Failure to follow safe installation and servicing guidelines could result in
death or serious injury.
Ensure the level switch is installed by qualified personnel and in accordance
with applicable code of practice.
Use the level switch only as specified in this manual. Failure to do so may
impair the protection provided by the level switch.
Repair, e.g. substitution of components, etc. may jeopardize safety and is
under no circumstances allowed.
WARNING
Explosions could result in death or serious injury.
The level switch must only be installed and operated in non-hazardous
(ordinary) locations.
WARNING
Electrical shock could cause death or serious injury.
Ensure the power to the level switch is off, and the lines to any other external
power source are disconnected or not powered while wiring the level switch.
Avoid contact with the leads and terminals. High voltage that may be
present on leads can cause electrical shock.
Ensure the wiring is suitable for the electrical current and the insulation is
suitable for the voltage, temperature, and environment.
March 2022 Quick Start Guide
Quick Start Guide 3
WARNING
Process leaks could result in death or serious injury.
Ensure the level switch is handled carefully. If the process seal is damaged,
gas might escape from the vessel (tank) or pipe.
WARNING
Physical access
Unauthorized personnel may potentially cause significant damage to and/or
misconfiguration of end users’ equipment. This could be intentional or
unintentional and needs to be protected against.
Physical security is an important part of any security program and
fundamental to protecting your system. Restrict physical access by
unauthorized personnel to protect end users’ assets. This is true for all
systems used within the facility.
CAUTION
Hot surfaces
The flange and process seal may be hot at high process temperatures. Allow
to cool before servicing.
Quick Start Guide March 2022
4 Rosemount 2110 Level Switch
2 Installation
2.1 Fork alignment in a pipe installation
The fork is correctly aligned by positioning the groove or notch as indicated
(Figure 2-1).
Figure 2-1: Correct Fork Alignment for Pipe Installation
OK
A
B
A. Tri Clamp process connections have a circular notch
B. Threaded process connections have a groove
2.2 Fork alignment in a vessel (tank) installation
The fork is correctly aligned by positioning the groove or notch as indicated
(Figure 2-2).
Figure 2-2: Correct Fork Alignment for Vessel (Tank) Installation
OKOK
OK
OK OK
A
B
A. Tri Clamp process connections have a circular notch
B. Threaded process connections have a groove
March 2022 Quick Start Guide
Quick Start Guide 5

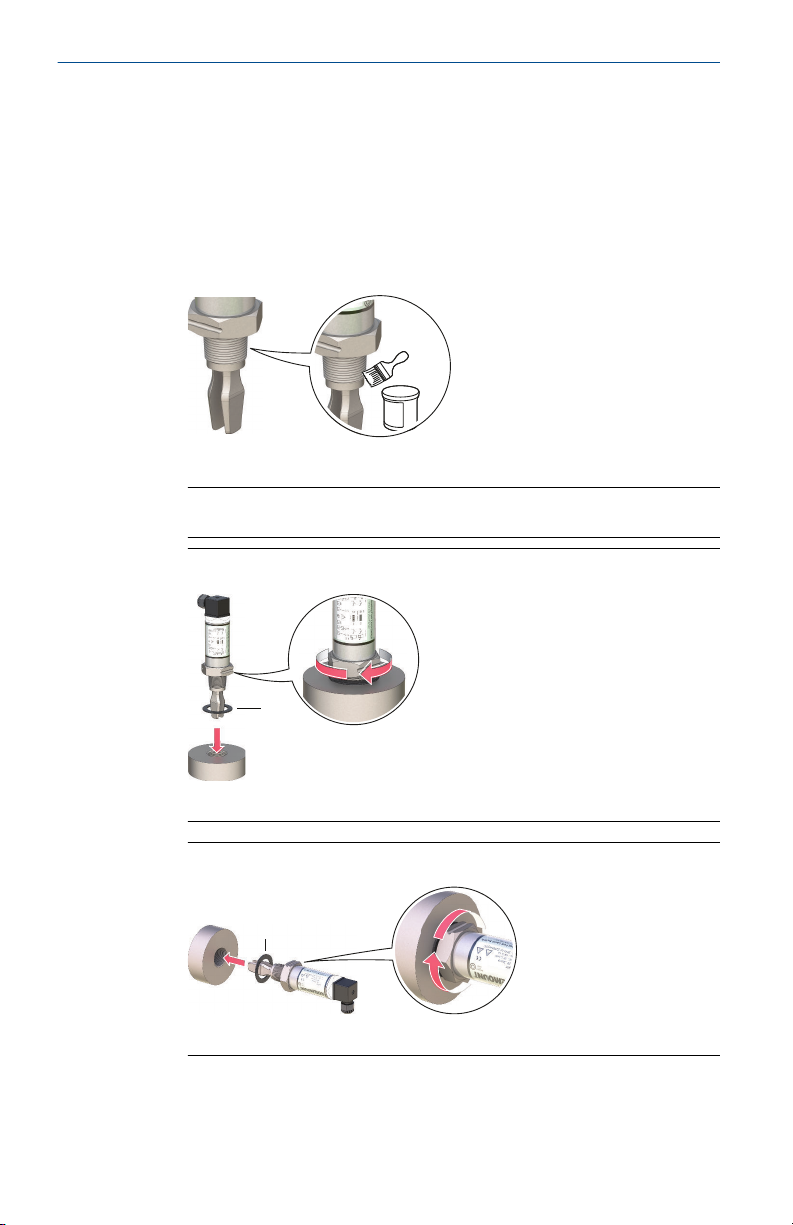

2.3 Mounting the threaded version
2.3.1 Threaded vessel (tank) or pipework connection
Procedure
1. Seal and protect the threads. Use anti-seize paste or PTFE tape
according to site procedures.
A gasket may be used as a sealant for BSPP (G) threaded connections.
2. Screw the level switch into the process connection.
Note
Tighten using the hexagon nut only.
Figure 2-3: Vertical Installation
A
A. Gasket for BSPP (G) threaded connection
Figure 2-4: Horizontal Installation
A
A. Gasket for BSPP (G) threaded connection
Quick Start Guide March 2022
6 Rosemount 2110 Level Switch
2.3.2 Threaded flange connection
Procedure
1. Place the customer-supplied flange and gasket on the vessel (tank)
nozzle.
A
A. Gasket (customer supplied)
2. Tighten the bolts and nuts with sufficient torque for the flange and
gasket.
3. Seal and protect the threads. Use anti-seize paste or PTFE tape
according to site procedures.
A gasket may be used as a sealant for BSPP (G) threaded connections.
March 2022 Quick Start Guide
Quick Start Guide 7
4. Screw the level switch into the flange thread.
Note
Tighten using the hexagon nut only.
A
A. Gasket for BSPP (G) threaded connection
Quick Start Guide March 2022
8 Rosemount 2110 Level Switch
2.4 Mounting the Tri Clamp version
Procedure
1. Lower the level switch into the flange face.
A
A. Seal (supplied with Tri Clamp)
2. Fit the Tri Clamp.
Note
The Tri Clamp and seal are supplied in an accessory kit that has to be
ordered separately. See the Rosemount 2110 Product Data Sheet for
ordering information.
March 2022 Quick Start Guide
Quick Start Guide 9
3 Prepare the electrical connections
3.1 Cable selection
Twisted-pairs and shielded wiring is recommended for environments with
high EMI (electromagnetic interference). Two wires can be safely connected
to each terminal screw. Maximum wire size is 15 AWG.
3.2 Cable glands/conduits
The cable gland is integrated in the four-position plug of the level switch. Do
not make any modifications to the level switch.
3.3 Electronics options
Figure 3-1: Direct Load Switching – Electronics Option Code 0
0V/N
+V/L
PE
Load
Table 3-1: Electrical Parameters – Electronics Option Code 0
Parameter Value
Load switching ac/dc
Direct load switching ac/dc
Maximum switched load 500 mA
Maximum peak load 5 A for 40 ms maximum
Minimum switched load 20 mA continuous
Voltage drop 6.5 V @ 24 Vdc or 5 V @ 240 Vac
Current draw (load off) < 3 mA continuous
Quick Start Guide March 2022
10 Rosemount 2110 Level Switch
