Fisher™6060 WhisperTube Modal Attenuator

Contents

Introduction 1.................................

Scope of Manual 1.............................

Description 1.................................

Specifications 3...............................

Educational Services 3.........................

Installation 4..................................

Maintenance 5.................................

Disassembly 5................................

Assembly 5...................................

Parts Ordering 7................................

Parts List 7....................................

Introduction

Scope of Manual

This instruction manual provides installation,

maintenance, and parts ordering information for the

NPS 2 through 12 Fisher WhisperTube modal

attenuator.

Description

The WhisperTube is a passive reactive silencer

designed for installation downstream of the control

valve or other equipment contributing to system

noise. Requiring negligible pressure drop across the

device, the WhisperTube achieves system noise

reduction across a wide range of fluid flow rates,

pressures and temperatures.

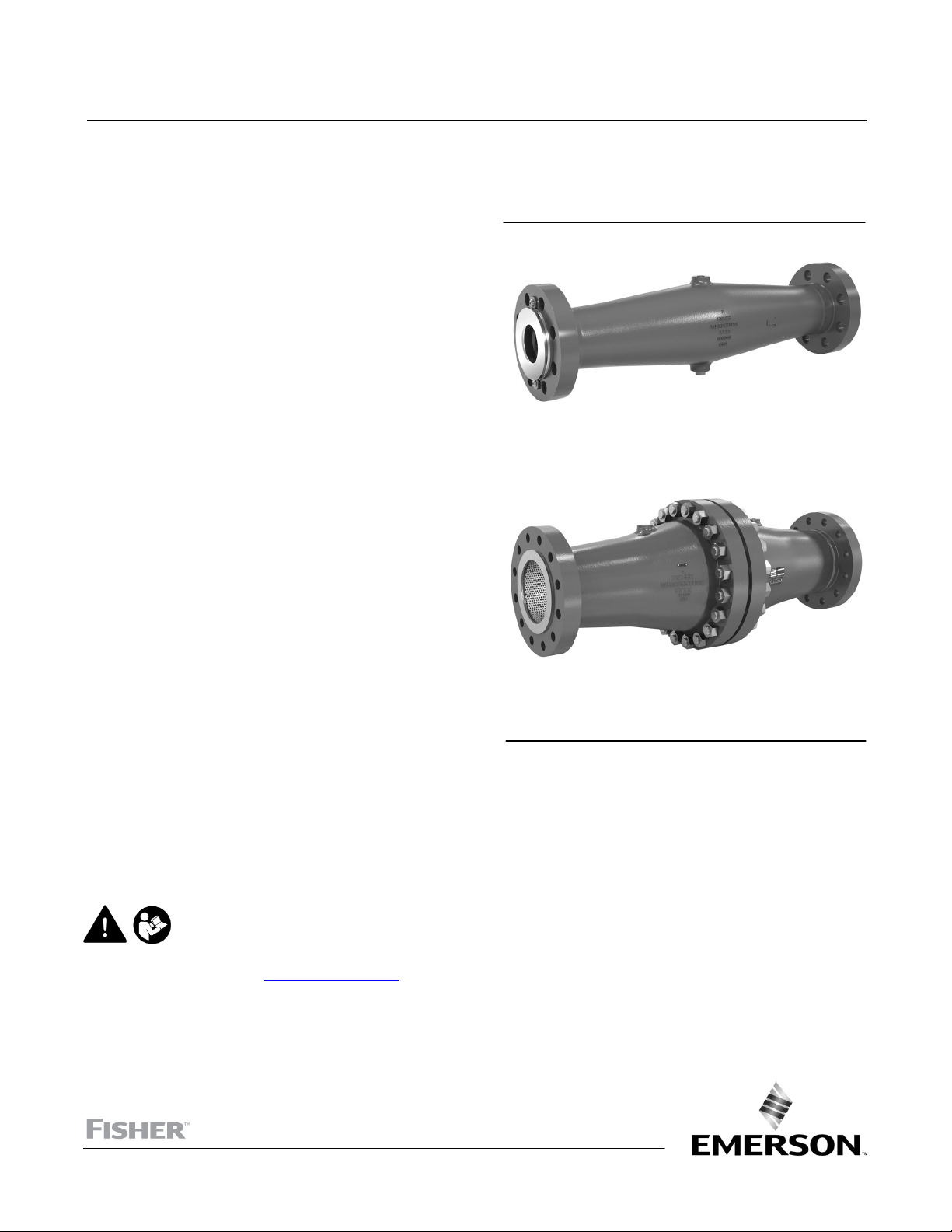

Figure 1. Fisher 6060 WhisperTube

X1815

Fisher NPS2 CL600 WHISPERTUBE

X1820

Fisher NPS8 CL600 WHISPERTUBE

Do not install, operate, or maintain a 6060 WhisperTube without being fully trained and qualified in

valve, actuator, and accessory installation, operation, and maintenance. To avoid personal injury or

property damage, it is important to carefully read, understand, and follow all the contents of this

manual, including all safety cautions and warnings. If you have any questions about these instructions,

contact your Emerson sales office before proceeding.

Instruction Manual

D104707X012

WhisperTube

August 2021

Instruction Manual

D104707X012

WhisperTube

August 2021

Table 1. Specifications

Valve Sizes and End Connection Style

JNPS 2, J3, J4, J6, J8, and J12 with CL150,

CL300, or CL600 raised‐face flanges compatible with

ASME B16.5

Maximum Inlet Pressure(1)

Consistent with CL150, CL300, or CL600

pressure-temperature ratings per ASME B16.34

Construction Materials

See table 2

Temperature Capability

-46 to 371°C (-50 to 700°F)

Weights and Threaded Lifting Provision Size

See table 3

Design Standards

The WhisperTube pressure boundary is designed in

accordance with ASME Boiler and Pressure Vessel

Code, Section VIII, Division 2

1. The pressure/temperature limits in this manual and any applicable standard limitations should not be exceeded.

Table 2. Construction Materials

PART MATERIAL TEMPERATURE LIMITS

_C_F

Body WCC / LCC(1) -46 to 427 -50 to 800

Retainer(2) LF2 -46 to 427 -50 to 800

Retainer Gasket(2) Laminated Graphite -254 to 427 -425 to 800

Screen S30400 -254 to 427 -425 to 800

Wave Spring N07750 -254 to 371 -425 to 700

Studs(3) B7M -48 to 427 -55 to 800

Nuts(3) 2HM -48 to 427 -55 to 800

Spiral Wound Gasket(3) N06600/Graphite -254 to 454 -425 to 850

1. WCC and LCC dual certified.

2. NPS 2 through NPS 6 constructions only.

3 NPS 8 through NPS 12 constructions only.

Instruction Manual

D104707X012

WhisperTube

August 2021

Table 3. Assembly Weight and Threaded Lifting Provision Size

VALVE SIZE, NPS PRESSURE CLASS WEIGHT THREADED LIFTING PROVISION

kg lbs Size Quantity

150 30 67

3/8-16 UNC 1

300 32 70

600 33 73

150 48 105

3/8-16 UNC 1

300 52 115

600 55 120

150 102 224

3/8-16 UNC 2

300 109 239

600 118 259

150 205 452

1/2-13 UNC 2

300 224 492

600 246 542

150 464 1020

1/2-13 UNC 2

300 500 1100

600 614 1350

150 750 1650

5/8-11 UNC 2

300 811 1785

600 966 2125

150 1025 2255

3/4-10 UNC 2

300 1109 2440

600 1264 2780

Specifications

Specifications for the WhisperTube Model Attenuator are listed in tables 1, 2, and 3.

Educational Services

For information on available courses for Fisher WhisperTube, as well as a variety of other products, contact:

Emerson Automation Solutions

Educational Services - Registration

Phone: 1-641-754-3771 or 1-800-338-8158

E-mail: [email protected]

emerson.com/fishervalvetraining

Instruction Manual

D104707X012

WhisperTube

August 2021

Installation

WARNING

Always wear protective gloves, clothing, and eyewear when performing any installation operations to avoid personal

injury.

To avoid personal injury or property damage resulting from the sudden release of pressure, do not install the WhisperTube

assembly where service conditions could exceed the limits given on the 6060 nameplate. Use pressure‐relieving devices as

required by accepted industry, local, state, or federal codes, and good engineering practices.

Check with your process or safety engineer for any additional measures that must be taken to protect against process

media.

If installing into an existing application, also refer to the WARNING at the beginning of the Maintenance section in this

instruction manual.

Use proper lifting and rigging practices while moving the WhisperTube. Failure to utilize safe lifting practices may result in

equipment damage and/or personal injury.

Avoid personal injury or property damage caused by uncontrolled movement or dropping of the WhisperTube assembly.

The threaded lifting provisions are for installation of hoist rings or lifting eye bolts and are sized for lifting the 6060 only. Do

not use lifting provisions to lift the WhisperTube if piping or other equipment is attached.

1. If the WhisperTube will be placed in storage prior to installation, protect the flanges and keep the inside of the body

dry and clear of foreign material.

2. Install a three‐valve bypass around the 6060 assembly if continuous operation will be necessary during inspection

and maintenance.

3. Inspect the WhisperTube body for damage and be certain the body internal cavities are free of foreign material.

4. Be certain that adjacent pipelines are free of any foreign material, such as pipe scale or welding slag, that could

damage the WhisperTube.

5. The standard flow direction is with the wave spring (key 4) facing upstream.

6. The WhisperTube may be installed in any orientation and achieve system noise reduction. The recommended

orientation for a horizontal pipeline is with the pipe plug and drain port facing down to allow removal of any

potential process liquid buildup.

7. Install suitable line flange gaskets and insert the 6060 assembly between the pipeline flanges.

8. Center the WhisperTube by making sure the mating flanges are aligned. Insert flange studs and tighten nuts in a

star pattern to ensure the flange gaskets are compressed evenly.

Instruction Manual

D104707X012

WhisperTube

August 2021

Maintenance

WARNING

Avoid personal injury or damage to property from sudden release of pressure or uncontrolled process fluid. Before starting

disassembly:

D Always wear protective gloves, clothing, and eyewear when performing any maintenance operations to avoid personal

injury.

D Use bypass valves or completely shut off the process to isolate the WhisperTube from process pressure.

D Remove process pressure and drain the WhisperTube if necessary.

D Use lock‐out procedures to be sure that the above measures stay in effect while you work on the equipment.

D Check with your process or safety engineer for any additional measures that must be taken to protect against process

media.

Disassembly

1. Isolate the WhisperTube from the process pressure, relieve all process pressure, and drain any internal liquid

buildup if necessary.

2. Remove the WhisperTube from the pipeline.

Follow steps 3-5 for a single piece body construction (NPS 2-6)

3. Remove the screen retainer (key 8) by loosening the two retainer screws (key 11).

4. Remove the wave spring (key 4) and perforated screen tube (key 2).

5. Inspect the perforated screen tube, wave spring, and internal surfaces of the WhisperTube body (key 1) and replace

damaged components as necessary. Visually inspect the flange serrated surfaces for any damage that may prevent

proper sealing.

Follow steps 6-9 for the two-piece body construction (NPS 8-12)

6. Set the WhisperTube in a vertical position with one flange resting on a clean soft surface. Use caution to protect the

flange serrated surfaces. Separate the two body halves by removing the body flange studs and nuts (keys 13 and

14).

7. Remove the spiral wound gasket (key 12) and perforated screen tube (key 3).

8. The wave spring (key 4) may be accessed and removed from the inlet flange end of the WhisperTube body.

9. Inspect the perforated screen tube, wave spring, and internal surfaces of the WhisperTube body (key 1) and replace

damaged components as necessary. Visually inspect the flange serrated surfaces for any damage that may prevent

proper sealing.

Assembly

Follow steps 10-13 for a single piece body construction (NPS 2-6)

10. Ensure the old flat sheet gasket (Key 9) is removed.

11. Re-insert the perforated screen tube into the body bore until the end of the tube seats against an internal ledge in

the body at the outlet flange end.

12. Re-install the wave spring.

13. Center a new flat sheet gasket (key 9) on the screen retainer sealing surface and install on the body. Secure the

retainer with washers (key 10) and retainer screws (key 11).

Instruction Manual

D104707X012

WhisperTube

August 2021

Follow steps 14-20 for the two-piece body construction (NPS 8-12)

14. Install the wave spring (key 4) in the groove at the flange end of the inlet body half.

15. Assembly is easiest if the parts are oriented vertically. Place the inlet body half flange end down on a clean soft

surface. Use caution to protect the flange end serrated surfaces.

16. Install the perforated screen tube in the inlet body half until it contacts the wave spring.

17. Center the spiral wound gasket (key 12) on the inlet body flange serrated surface.

18. Lower the outlet body half over the screen. Ensure the drain pipe plugs and the threaded lifting lugs are aligned and

located on the same side of the body in both the inlet and outlet halves.

19. Apply anti-seize lubricant compound to the face and threads of the hex nuts and to the threads of the studs. Install

the nuts and studs. Use an appropriate torque device to apply the final torque specification (see table 4). Tighten

nuts in a star pattern to ensure the spiral wound gasket is compressed evenly.

Table 4. Body Flange Torque Specifications

VALVE SIZE, NPS PRESSURE CLASS STUD MATERIAL STUD SIZE TORQUE

(ft•lbs)

8150, 300

B7M

1 1/8” – 8 x 6.75” 525

600 1 1/4” – 8 x 8.75” 695

10 150, 300 1 1/4” – 8 x 7.50” 695

600 1 1/2” – 8 x 10.00” 1220

12 150, 300 1 1/4” – 8 x 7.70” 695

600 1 5/8” – 8 x 10.75” 1570

Instruction Manual

D104707X012

WhisperTube

August 2021

Parts Ordering

Always mention the WhisperTube serial number when corresponding with your Emerson sales office regarding this

equipment.

WARNING

Use only genuine Fisher replacement parts. Components that are not supplied by Emerson should not, under any

circumstances, be used in any Fisher valve, because they may void your warranty, might adversely affect the performance

of the valve, and could cause personal injury and property damage.

Parts List

Note

Contact your Emerson sales office for Part Ordering information.

Key Description

1 Body

If a WhisperTube body is needed as a replacement part,

order by size, pressure class, serial number,

and desired material.

2 Pipe Plug

3 Screen

4 Wave Spring

5 Nameplate (not shown)

6 Drive Screw (not shown)

7 NACE Tag (not shown)

8 Retainer

9* Retainer Gasket

10 Washer

11 Socket Head Cap Screw

12* Spiral Wound Gasket

13 Stud

14 Heavy Hex Nut

15 Anti-seize Lubricant

16 Thread Protector Plug

17 Flow Arrow (not shown)

*Recommended spare parts

Instruction Manual

D104707X012

WhisperTube

August 2021

Figure 2. Fisher WhisperTube Cross Sectional View, NPS 2 through 6

GH13406

KEY NUMBERS NOT SHOWN ARE 5, 6, AND 7

Figure 3. Fisher WhisperTube Exploded View, NPS 2 through 6

GG75242

KEY NUMBERS NOT SHOWN ARE 5, 6, AND 7

Instruction Manual

D104707X012

WhisperTube

August 2021

Figure 4. Fisher WhisperTube Cross Sectional View, NPS 8 through 12

GH12856

KEY NUMBERS NOT SHOWN ARE 5, 6, 7, AND 17

APPLY LUB

Figure 5. Fisher WhisperTube Exploded View, NPS 8 through 12

GG75270

APPLY LUB

KEY NUMBERS NOT SHOWN ARE 5, 6, 7, AND 17

Instruction Manual

D104707X012

WhisperTube

August 2021

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de Emerson

Emerson

Emerson ALCO CONTROLS FSE-0 Manual de usuario

Emerson

Emerson Alco Controls TIH Series Manual de usuario

Emerson

Emerson Fisher 377 Manual de usuario

Emerson

Emerson Vanessa 30000 Series Manual de usuario

Emerson

Emerson Keystone Figure 320 Manual de usuario

Emerson

Emerson Baumann 24000 Little Scotty Manual de usuario

Emerson

Emerson CROSBY STYLE HC ISOFLEX Guía

Emerson

Emerson Fisher H200 Series Manual de usuario

Emerson

Emerson YARWA 151 Series Manual de usuario

Emerson

Emerson Fisher D3 Manual de usuario

Emerson

Emerson Raimondi HPA 150 Instrucciones de instalación y funcionamiento

Emerson

Emerson VAREC 3600B Series Manual de operación y mantenimiento

Emerson

Emerson Fisher OS2 Manual de usuario

Emerson

Emerson ANDERSON GREENWOOD 5910C Manual de usuario

Emerson

Emerson KEYSTONE F580 Guía de configuración

Emerson

Emerson Fisher A11 Manual de usuario

Emerson

Emerson Fisher V250 Manual de usuario

Emerson

Emerson Fisher 63EGLP Series Manual de usuario

Emerson

Emerson Clarkson series Manual de usuario

Emerson

Emerson Fisher EZ easy-e Manual de usuario

Emerson

Emerson Keystone Figure 221 Series Manual de usuario

Emerson

Emerson Fisher 8580 Manual de usuario

Emerson

Emerson Fisher Snappy Joe N550 Manual de usuario

Emerson

Emerson Heated Flame Ionization Detector Module Model NGA 2000... Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
