PACSystemsTM VersaMax

PROFIBUS NETWORK SLAVE MODULE

(IC200BEM002)

GFK-1538H Nov 2019

Warning Notes as Used in this Publication

Warning

Warning notices are used in this publication to emphasize that hazardous voltages, currents,

temperatures, or other conditions that could cause personal injury exist in this equipment or

may be associated with its use.

In situations where inattention could cause either personal injury or damage to equipment, a

Warning notice is used.

Notes: Notes merely call attention to information that is especially significant to understanding and operating the equipment.

These instructions do not purport to cover all details or variations in equipment, nor to provide for every possible

contingency to be met during installation, operation, and maintenance. The information is supplied for informational

purposes only, and Emerson makes no warranty as to the accuracy of the information included herein. Changes,

modifications, and/or improvements to equipment and specifications are made periodically and these changes may or

may not be reflected herein. It is understood that Emerson may make changes, modifications, or improvements to the

equipment referenced herein or to the document itself at any time. This document is intended for trained personnel

familiar with the Emerson products referenced herein.

Emerson may have patents or pending patent applications covering subject matter in this document. The furnishing of

this document does not provide any license whatsoever to any of these patents.

Emerson provides the following document and the information included therein as-is and without warranty of any kind,

expressed or implied, including but not limited to any implied statutory warranty of merchantability or fitness for

particular purpose.

GFK-1538H Nov 2019

Product Description

Product Version

IC200BEM002-PA

Firmware version:

1.00

Firmware upgrades:

The Network Slave Module (NSM) firmware resides in FLASH memory. This firmware may be upgraded

with future versions via serial download from an appropriate personal computer connected to the

serial port of the headend device.

Specifications

Profibus network address

1 to 125. Software-configurable

Profibus network data rate

9.6Kbaud to 12Mbaud, auto-detected

I/O data

384 bytes maximum. Up to 244 bytes of inputs or 244 bytes of outputs.

Indicators (2)

OK LED indicates health of the NSM

Com LED indicates communications status.

Power Consumption

+5V@350mA

Preinstallation Check

Carefully inspect all shipping containers for damage. If any equipment is damaged, notify the delivery service

immediately. Save the damaged shipping container for inspection by the delivery service. After unpacking the

equipment, record all serial numbers. Save the shipping containers and packing material in case it is necessary to

transport or ship any part of the system.

Installation in Hazardous Locations

•This equipment is suitable for use in CLASS I, DIVISION 2, GROUPS A, B, C, D or non-hazardous locations only.

WARNING

•EXPLOSION HAZARD - substitution of components may impair suitability for CLASS I, DIVISION 2;

•EXPLOSION HAZARD - when in hazardous locations, turn off power before replacing or wiring modules; and

•EXPLOSION HAZARD - Do not connect or disconnect equipment unless power has been switched off or the area is

known to be non-hazardous.

Quick Start Guide

1. Install the Communications Carrier on the DIN Rail by simply clicking it into place.

Note: Connecting carriers must be installed on the same section of 35mm x 7.5mm DIN rail.

The DIN rail must have a conductive (unpainted) finish for proper grounding.

(Refer to the heading Module Installation for information about space requirements or module

orientation, or if you are installing the NSM in an area of excessive vibration).

2. Install the Module on the Communications Carrier.

The latch on the module must be in the unlocked position.

Align the connectors and the latch post and press the NSM down until the two tabs on the bottom of

the NSM click into place.

Turn the latch to the locked position to secure the NSM to the top of the carrier.

GFK-1538H Nov 2019

3. Connect the communications bus to the connector on the front of the Network Slave Module. (Refer to the

heading Bus Installation Guidelines for detailed bus installation instructions.)

4. Remove the connector cover on the right-hand side of the Communications Carrier. Do not discard this cover;

you will need to install it on the last carrier. It protects the connector pins from damage and ESD during handling

and use. Do not remove the connector cover on the left-hand side.

Connector Cover

5. Install additional modules by mounting modules on their carriers and sliding them along the DIN rail to fully

engage the connectors in the sides of the carriers.

6. Power up the System, and Observe the Module LEDs. The LEDs indicate the presence of power and show the

operating mode and status of the NSM.

COM

OK Green indicates the NSM has completed powerup diagnostics and is successfully communicating over the

PLC backplane.

Blinking green indicates that the NSM is in boot mode or its firmware is being updated.

Amber when the NSM has detected a fault, is not communicating over the PLC backplane, or has received

an invalid configuration.

Blinking amber means the NSM has either detected a fault, is not communicating over the PLC backplane,

or has received an invalid configuration.

OFF when the NSM is not receiving power.

COM Green indicates the NSM is online and in network data transfer state.

Blinking green indicates that the NSM is in network data transfer state but not exchanging

communications with the CPU (CPU is stopped).

Amber when the NSM is communicating on the Profibus network but its configuration does not match the

Profibus master.

Blinking amber means the NSM has rejected the configuration from the CPU, or the configuration contains

no network I/O specifications (eg. the default configuration).

OFF when the NSM is offline and has not yet received its configuration from the CPU.

GFK-1538H Nov 2019

Bus Installation Guidelines

The proper cable for a Profibus network is a shielded twisted pair cable. Profibus cable is sold as "Profibus Network

Cable". The twisted pair cable consists of a Green and a Red wire. Below are some of the cable characteristics of Profibus

cable.

Network Topology

Linear bus, terminated at both ends. Stubs possible.

Medium

Shielded twisted pair cable. Shielding may be omitted, depending on the environment.

Number of Stations

32 stations in every segment without repeaters. With repeaters, extendible up to 127.

Transmission Speed

9.6, 19.2, 93.75, 187.5, 500, 1500 Kbits, 3 Mbits, 6 Mbits, 12 Mbits.

Connector

9-pin D-sub connector

Cable Type

Profibus DP

Impedance

135 to 165 Ohms (3 to 20 MHz)

Capacity

< 30 pF per meter

Resistance

< 110 Ohms per Kilometer

Wire Gauge

> 0.64 mm

Conductor Area

> 0.34 mm2

Bus Length

The maximum bus length using shielded, twisted-pair cable for a single network segment is 1200 meters. Total network

length may be increased with the use of repeaters, up to a maximum of 3 repeaters per network. Other cable types may

be restricted to shorter bus lengths. The maximum bus length also depends on the data rate, as shown in the following

table.

Maximum Bus Length in Meters

Kbits per Second

1,200

9.6

1,200

19.2

1,200

93.75

600

187.5

400

500

200

1,500

100

3,000; 6,000; 12,000

Often, it is the required bus length that determines the data rate.

For data rates up to 500 kbits/second, follow the stub recommendations of Profibus Part 1. At 1500 kbits/second the

overall drop capacity should be less than 0.2nF. The maximum length of the stub at 1500 kbits/second is 6.6 meters.

Cable shielding is recommended at higher baud rates, to maintain communications integrity in the industrial

environment.

GFK-1538H Nov 2019

Bus Connectors and Termination

The Network Slave Module provides the Profibus standard female 9-pin D subminiature connectors. Cable connectors

are available from most fieldbus parts distributors as "Profibus 9-pin D connectors". These connectors provide

termination resistors and a switch on the connector to enable/disable termination. Connectors with and without

termination are also available. The connectors label the connections for the twisted pair as cable A and cable B. The

following table illustrates the proper assignment of wire to connector to pin to signal.

Wire Color

Connector

Signal

Red

RxD/TxD-P

DGND

Green

RxD/TxD-N

Termination resistors are needed, as defined in Profibus Specification DIN 19245 Part 1 section 3.1.2.5.

Master

Slave

Termination Required

(Segment 1)

One terminator must be applied at each end of a network segment.

Master

Slave

Repeater

Termination Required

(Segment 1)

Termination Required

(Segment 2)

Important:For proper network termination, the terminating devices must provide and maintain power. Power is

provided by the device on Pin 6 and Ground is provided on Pin 5. If power is lost to either terminating device, the network

may not operate correctly. Generally, the network master device is one of the terminating devices. The other

terminating device may be a critical slave device or a separately powered, stand-alone terminator.

VP (6)

RxD/TxD-P (3)

RxD/TxD-N (8)

DGND (5)

Ru = 390 Ohms

Rt = 220 Ohms

Rd = 390 Ohms

In addition to the termination shown above, the following compensation should be added for 12 Mbit bus technology:

To/from

another

node

110nH

To/from

another

node

110nH

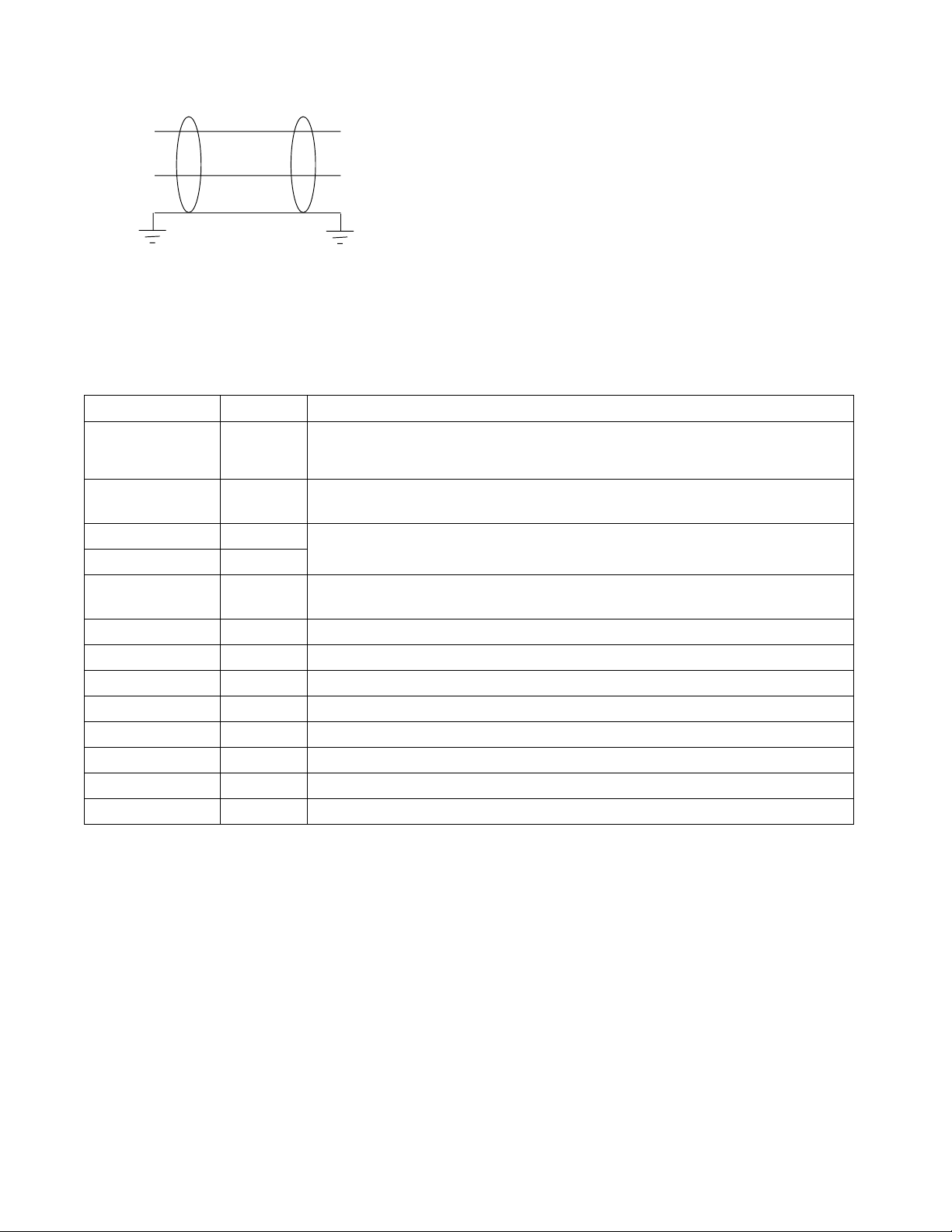

Bus Grounding

Generally, it is only necessary to ensure that the cable shields are attached to ground. In most cable connectors, the

shield is attached to the metal housing of the conductor on the cable side and this is brought to ground by the metal

connector on the NIU.

In some installations with large networks or higher data rates, large ground potentials (greater than ±7V) may arise. In

these cases, it may be necessary to ensure all Profibus devices are attached to the same Protective Earth ground.

GFK-1538H Nov 2019

RxD/TxD-P (3)

DGND (5)

VP (6)

RxD/TxD-N (8)

RxD/TxD-P (3)

DGND (5)

VP (6)

RxD/TxD-N (8)

Red (B)

Green (A)

Operating Notes/Restrictions

This module may not be hot-inserted into a system or I/O station.

Product Revision History

Revision

Date

Description

IC200BEM002-PA

NOV 2019

Following Emerson’s acquisition of this product, changes have been made to apply

appropriate branding and registration of the product with required certification agencies.

No changes to material, process, form, fit or functionality.

IC200BEM002-NA

Oct 2016

EU RoHS compliant module per directive 2011/65/EU dated 8-June-2011. No changes to

features, performance or compatibility.

IC200BEM002-MA

Feb 2012

Label change. No changes to features, performance or compatibility.

IC200BEM002-LA

Mar 2011

IC200BEM002-KA

Mar 2010

Changed manufacturing location. No changes to compatibility, functionality or

performance.

IC200BEM002-JA

Oct 2008

Updated Power Supply OK signal circuitry.

IC200BEM002-HA

Apr 2005

Plastic change on locking mechanism

IC200BEM002-FA

Apr 2004

Changed to V0 plastic for module housing.

IC200BEM002-EA

Jan 2004

Increased noise immunity.

IC200BEM002-DA

Jan 2004

ATEX approval for Group 2 Category 3 applications.

IC200BEM002-CA

Oct 2001

Hardware change to improve powerup with certain masters.

IC200BEM002-BA

Dec 1999

Additional agency approvals.

IC200BEM002-AA

Mar 1999

Initial product release

IMPORTANT PRODUCT INFORMATION

GFK-1538H

Nov 2019

Technical Support & Contact Information:

Home link: http://www.Emerson.com/Industrial-Automation-Controls

Knowledge Base: https://www.emerson.com/Industrial-Automation-Controls/support

Note: If the product is purchased through an Authorized Channel Partner, please contact the seller directly for any support.

Emerson reserves the right to modify or improve the designs or specifications of the products mentioned in this manual at any time without notice.

Emerson does not assume responsibility for the selection, use or maintenance of any product. Responsibility for proper selection, use and

maintenance of any Emerson product remains solely with the purchaser.

Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. All

other marks are the property of their respective owners.

Tabla de contenidos

Otros manuales de Unidad de control de Emerson

Emerson

Emerson ALCO Thermo TX6 Manual de usuario

Emerson

Emerson PACSystems RX3i IEC 61850 Manual de usuario

Emerson

Emerson EX4 Manual de usuario

Emerson

Emerson CV4-7 Series Manual de usuario

Emerson

Emerson Rosemount Ultrasonic 3410 Series Manual de usuario

Emerson

Emerson ANDERSON GREENWOOD 4020HP Manual

Emerson

Emerson Anderson Greenwood 81P Especificaciones técnicas

Emerson

Emerson SAPAG CLASAR Series Manual de lista de piezas

Emerson

Emerson Fisher MR98LD Manual de usuario

Emerson

Emerson Keystone PED Guía rápida

Emerson

Emerson Anderson Greenwood 727 Series Manual de usuario

Emerson

Emerson Fisher Vee-Ball V150 Manual de usuario

Emerson

Emerson FISHER LR128 Series Manual de usuario

Emerson

Emerson Fisher DSV1000 Manual de usuario

Emerson

Emerson 47D01U-843 Manual de usuario

Emerson

Emerson Micro Motion Manual de usuario

Emerson

Emerson Anderson Greenwood 93 Series Manual de usuario

Emerson

Emerson Fisher FLOBOSS 407 Manual de usuario

Emerson

Emerson Keystone Figure 320 Manual de usuario

Emerson

Emerson Fisher Vee-Ball V200 Manual de usuario

Emerson

Emerson K-BALL F110 Guía rápida

Emerson

Emerson Yarway Manual

Emerson

Emerson PACSystems IC695ACC302 Manual de usuario

Emerson

Emerson EIM 2000 Series Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
