Elo TouchSystems

2243L, 2244L Touchmonitor

User Manual

User Manual – 2243L, 2244L

SW601560 Rev C - Page 1 of 20

User Manual – 2243L, 2244L

SW601560 Rev C - Page 2 of 20

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or

translated into any language or computer language, in any form or by any means, including, but not

limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission

of Tyco Electronics.

Disclaimer

The information in this document is subject to change without notice. Tyco Electronics Corporation and

its Affiliates in the TE Touch Solutions business unit in the TE Connectivity Ltd. family of companies

(collectively "TE") makes no representations or warranties with respect to the contents herein, and

specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. TE

reserves the right to revise this publication and to make changes from time to time in the content

hereof without obligation of TE to notify any person of such revisions or changes.

Trademark Acknowledgments

Elo TouchSystems, IntelliTouch, TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks

of the TE Connectivity Ltd. family of companies. Windows is a trademark of the Microsoft group of

companies. Other product names mentioned herein may be trademarks or registered trademarks of

their respective companies. Tyco Electronics claims no interest in trademarks other than its own.

User Manual – 2243L, 2244L

SW601560 Rev C - Page 3 of 20

Table of Contents

Chapter 1 - Introduction ........................................................................... 4

Chapter 2 – Installation............................................................................. 5

Chapter 3 – Mounting................................................................................ 9

Chapter 4 – Operation............................................................................... 10

Chapter 5 – Technical Support............................................................... 14

Chapter 6 – Safety & Maintenance........................................................ 15

Chapter 7 – Regulatory Information..................................................... 16

Chapter 8 – Warranty Information......................................................... 19

User Manual – 2243L, 2244L

SW601560 Rev C - Page 4 of 20

Chapter 1 - Introduction

Product Description

Your new touchmonitor combines Elo TouchSystems’ reliable performance with the latest

developments in touch technology and display design. This combination of features creates a

natural flow of information between a user and the touchmonitor.

This touchmonitor incorporates a 24-bit color, active matrix thin-film-transistor LCD panel to

provide high quality display performance. Its Full HD resolution of 1920x1080 is suitable for

displaying graphics and images. Its LED backlight significantly reduces power consumption and

eliminates mercury (compared to CCFL-backlit panels). Other features that enhance this LCD

monitor’s performance are Plug & Play compatibility and on-screen display (OSD) controls.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user manual to

maximize the life of your unit and prevent risks to user safety. See the Safety & Maintenance

chapter for more information.

This manual contains information that is important for the proper setup and maintenance of the

unit. Before setting up and powering on your new touchmonitor, read through this manual,

especially the Installation, Mounting, and Operation chapters.

Chapter 2 –Installation

Unpacking the Touchmonitor

Open the carton and verify the following items are present:

Touchmonitor with protective sheet for its face

Elo TouchTools CD & User Manuals CD

Quick Install Guide

Japanese language regulatory information pamphlet

DVI cable

VGA cable

USB cable

Mounting brackets

Connector Panel & Interfaces

Touchmonitor Connections

1. Connect the DVI or VGA video cables between the monitor’s DVI/VGAinput connectors and

your DVI/VGA video source. Tighten the video cable’s screws for best performance.

2. Connect the USB touch cable between the monitor’s USB connector & your PC’s USB port.

3. Connect a 12VDC power supply to the monitor’s input power jack.

5. The touchmonitor ships in an ON state, video should be displayed on your monitor already.

User Manual – 2243L, 2244L

SW601560 Rev C - Page 5 of 20

Installing the Touch Technology Software Drivers

Some software installation is required for your touchmonitor to work with your computer.

The drivers for the Windows 7, XP, Vista, WePOS, and 32-bit Server 2003 and 2008 operating

systems are provided with your touchmonitor on a CD.

Visit the Elo TouchSystems website www.elotouch.com for:

The most up-to-date touch driver versions

Additional touch driver information

Detailed touch driver installation guides

Touch drivers for other operating systems

Insert the Elo TouchTools CD into your computer’s CD-ROM drive. The CD should

automatically run the Elo TouchTools application. Select “Install Driver for This computer”:

User Manual – 2243L, 2244L

SW601560 Rev C - Page 6 of 20

For Windows XP, Vista, Server 2003, Server 2008, and WEPOS installations, install the “USB

Touchscreen Drivers” when prompted:

For Windows 7 installations, check the “Install driver” box under “Elo USB Interfaces – Other

Touchscreens”

After accepting the end-user license agreement, the drivers will finish installing.

Reboot your computer after the install is complete.

User Manual – 2243L, 2244L

SW601560 Rev C - Page 7 of 20

Chapter 3 – Mounting

General Mounting Information

The OSD text can be rotated through the OSD menu to better suit your mounting orientation.

Side Bracket Mount

Threaded holes are provided on the sides of the monitor for mounting using the provided

brackets.

User Manual – 2243L, 2244L

SW601560 Rev C - Page 8 of 20

User Manual – 2243L, 2244L

SW601560 Rev C - Page 9 of 20

Chapter 4 – Operation

Power

To turn the touchmonitor on or off, press the touchmonitor power button once.

The Power Status LED on the OSD controller functions according to the following table:

TouchMonitor/Computer Module status LED status

OFF OFF

SLEEP PULSING

ON ON

The system consumes low power when in SLEEP and OFF modes. For detailed power

consumption specifications, refer to technical specifications on the Elo website

http://www.elotouch.com

Touching the screen will bring the attached host PC out of SLEEP mode (similar to moving the

mouse or pressing a keyboard key).

To improve reliability and reduce wasteful power consumption, disconnect the AC power cable

from the power adapter when long periods of disuse are planned.

APR Touch Technology

For full APR touch functionality, the input video image should be fully scaled to the display’s

native resolution.

Your APR Touchmonitor is factory-calibrated and will never need manual calibration.

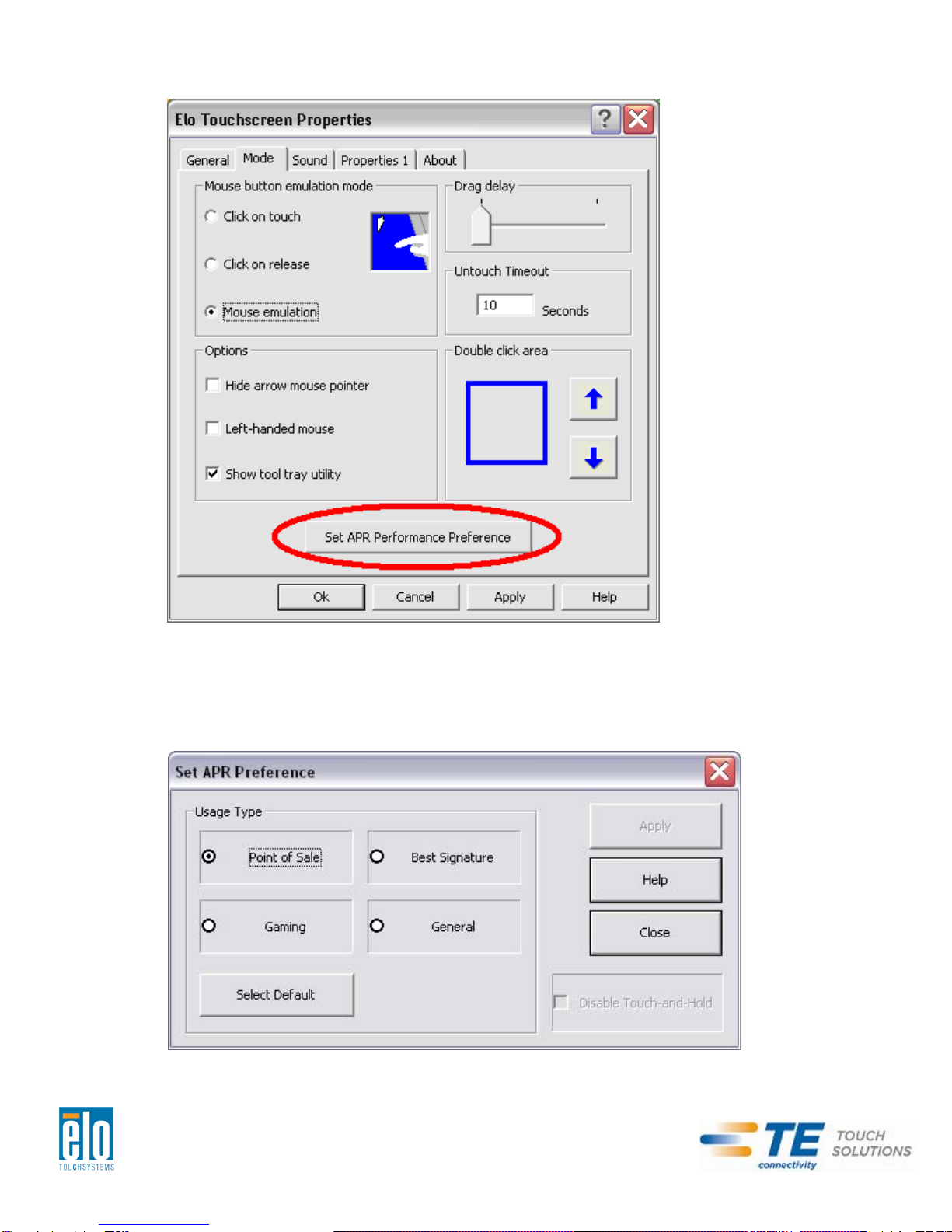

The APR performance can be customized to better suit your application. Access the “Set APR

Preference” window from the Mode tab of the Elo APR driver control panel:

Select the usage type best suited for your application, then press Apply.

General: No particular optimization (default)

Best Signature: APR performance optimized for signature capture applications

Point of Sale:APR performance optimized for Point-of-Sale applications

Gaming: APR performance optimized for gaming applications

User Manual – 2243L, 2244L

SW601560 Rev C - Page 10 of 20
