GVision Legacy Manual de usuario

════════════════════════════════════════════════

TouchScreen Controller

Installation Guide

VERSION : 2.5

DATE : 2005.12.09

════════════════════════════════════════════════

Table of Content

Chapter 1. TOUCH SCREEN CONTROLLER………………………………………….. 3

About this Document………………………………………………………………………………… 3

Touch Screen Controller Components…………………………………………………………….. 3

Hardware System Requirements…………………………………………………………………… 3

Chapter 2.CONTROLLER FEATURES…………………………………………………... 4

Serial Controller Features…………………………………………………………………………… 4

PS/2 Controller Features……………………………………………………………………………. 5

USB Controller Features……………………………………………………………………………. 6

Chapter 3. TOUCH SCREEN CONTROLLER HARDWARE INSTALLATION... 7

5 Wires Resistive USB Touch Screen Controller Hardware Installation………………………. 7

5 Wires Resistive Serial Touch Screen Controller Hardware Installation………………………. 9

5 Wires Resistive PS/2 Touch Screen Controller Hardware Installation……………………….. 11

4 Wires Resistive Serial Touch Screen Controller Hardware Installation………………………. 13

4 Wires Resistive PS/2 Touch Screen Controller Hardware Installation……………………….. 15

Chapter 4. SOFTWARE INSTALLATION………………………………………………… 17

Chapter 5. DRIVER INSTALLATION………………………………………………………. 19

Windows XP………………………………………………………………………………………….. 19

Windows XP Embedded…………………………………………………………………………….. 19

Windows 2000.……………………………………………………………………………………….. 20

Windows Server 2003……………………………………………………………………………….. 20

Windows NT 4.0.……………………………………………………………………………………... 21

Windows ME.…………………………………………………………………………………………. 21

Windows 98.………………………………………………………………………………………….. 22

Windows 95.………………………………………………………………………………………….. 22

Windows CE.…………………………………………………………………………………………. 22

Windows 3.1………………………………………………………………………………………….. 23

MS-DOS.……………………………………………………………………………………………… 23

Linux…..………………………………………………………………………………………………. 24

Chapter 6. UNINSTALL TOUCH SCREEN DRIVER…………………………….. 31

Chapter 7. TOUCH SCREEN DRIVER FUNCTION……………………………… 31

════════════════════════════════════════════════

Chapter 1. TOUCH SCREEN CONTROLLER

About this Document

The information in this document is subject to change without notice.

Touch Screen Controller Components

• Enhanced anti-noise SMD multi-layered controller board with 2 attached cables

• Serial controller with a keyboard power tap cable

• CD-ROM Drive Diskette

Hardware System Requirements

• Computer: IBM Pentium Compatible or above

• Hard Disk Drive: 5MB of free memory

• Drive: CD-ROM drive

• LCD or Monitor: SVGA color

• Video card: VESA Super VGA BIOS Ext. version 1.2 or newer SVGA

• Keyboard port: Output 4~6VDC (max. use<35ma)

• Connect port: RS-232 port or PS/2 port or USB port

• Mouse: Low power consumption model (2 buttons)

════════════════════════════════════════════════

Chapter 2. CONTROLLER FEATURES

Serial Controller Features

(a) Hardware Specifications

Power Requirements +5VDC ( Maximum 150mA, typical current depend on specified panel, 50mV

peak to peak maximum ripple )

Operating Temperature 0 to 60 ℃

Storage Tempeture -40 to 80 ℃

Relative Humidity 95% at 60 ℃

Protocol 38400 BPS baudrate, 1 Start bit, 8 Data bits, None parity, 1 Stop Bit.

Resolution Sample 4096X4096 (12Bits), Report 1024X1024(10Bits)

Report Rate Minimum 65 PPS (Point per Second)

Response Time Maximum 20 ms

Pin Out Definition 4 wire : YU, YD, XR, XL

5 wire : RT, RL, SG, LT, LL

Panel Resistance 4 wire : 150 to 1500 Ohm ( pin to pin on the same layer )

5 wire : 30 to 500 Ohm ( pin to pin on drive layer )

(b) Software Specifications

Serial Port Support

COM1 to COM9 for DOS , Windows 95/98/ME/2000/XP/NT4/2003

COM1 to COM4 for Windows 3.1

Virtual Button

1. Stream Mode

2. Touch Down Mode

3. Lift Off Mode

4. Drag Drop Mode

Support right button function

Feedback Sound

1. Silence ( No Sound )

2. Touch Down Only

3. Lift Off Only

4. Both Touch Down and Lift Off

Mouse Speed

1. Bypass

2. Acceleration ( Slow, Medium, Fast, Off )

3. Horizontal Speed ( 5% to 100% )

4. Vertical Speed ( 5% to 100% )

Power Save

1. Disable

2. Enable ( 10 sec. to 300 sec. )

Calibration Fast 4 point position

OS Support

1. MS-DOS

2. Windows 3.1/95/98/ME/NT4/2000/XP/2003

3. Redhat/Mandrake Linux (XOrg version 6.4.x / XFree86 version 4.1 or later )

4. Windows CE 3.1/.NET

════════════════════════════════════════════════

PS/2 Controller Features

(a) Hardware Specifications

Power Requirements +5VDC ( Maximum 30mA, typical 15mA, 50mV peak to peak maximum ripple )

Operating Temperature 0 to 60 ℃

Storage Tempeture -40 to 80 ℃

Relative Humidity 95% at 60 ℃

Protocol Standard 2 button PS/2 Mouse.

Resolution Sample 4096X4096 (12Bits), Report 1024X1024(10Bits)

Report Rate Minimum 60 PPS (Point per Second)

Response Time Maximum 20 ms

Pin Out Definition 4 wire : YU, YD, XR, XL

5 wire : RT, RL, SG, LT, LL

Panel Resistance 4 wire : 150 to 1500 Ohm ( pin to pin on the same layer )

5 wire : 30 to 500 Ohm ( pin to pin on drive layer )

Extend PS/2 Mouse Port Support standard 2 button PS/2 Mouse

(b) Software Specifications

PS/2 Port Support Auto detect function

Virtual Button

1. Stream Mode

2. Touch Down Mode

3. Lift Off Mode

4. Drag Drop Mode

Support right button function

Feedback Sound

1. Silence ( No Sound )

2. Touch Down Only

3. Lift Off Only

4. Both Touch Down and Lift Off

Mouse Speed

1. Bypass

2. Acceleration ( Slow, Medium, Fast, Off )

3. Horizontal Speed ( 5% to 100% )

4. Vertical Speed ( 5% to 100% )

Calibration Fast 4 point position

OS Support

1. MS-DOS

2. Windows 3.1/95/98/ME/NT4/2000/XP/2003

3. Redhat/Mandrake Linux (XOrg version 6.4.x / XFree86 version 4.1 or later )

4. Windows CE 3.1/.NET

════════════════════════════════════════════════

USB Controller Features

(a) Hardware Specifications

Power Requirements +5VDC ( Maximum 100mA )

Operating Temperature 0 to 60 ℃

Storage Tempeture -40 to 80 ℃

Relative Humidity 95% at 60 ℃

Protocol Standard USB Mouse.

Report Rate Minimum 160 PPS (Point per Second)

Response Time Maximum 35 ms

Pin Out Definition 5 wire : RT, RL, SG, LT, LL

Panel Resistance 5 wire : 30 to 500 Ohm ( pin to pin on drive layer )

(b) Software Specifications

USB Port Support Auto detect function

Virtual Button

1. Stream Mode

2. Touch Down Mode

3. Lift Off Mode

4. Drag Drop Mode

Support right button function

Feedback Sound

1. Silence ( No Sound )

2. Touch Down Only

3. Lift Off Only

4. Both Touch Down and Lift Off

Mouse Speed

1. Bypass

2. Acceleration ( Slow, Medium, Fast, Off )

3. Horizontal Speed ( 5% to 100% )

4. Vertical Speed ( 5% to 100% )

Calibration Fast 4 point position

OS Support

1. Windows 2000/XP

════════════════════════════════════════════════

Chapter 3. TOUCH SCREEN CONTROLLER HARDWARE INSTALLATION

5 Wires Resistive USB Touch Screen Controller Hardware Installation

This chapter discusses how to install your 5 wires resistive serial touch screen controller, follow the directions

starting on the next section to install the controller to your computer.

IMPORTANT:

Before connecting the touch screen controller to your computer system,

Be sure that the computer system is turned off.

1. Turning Off Your Computer System

Before you install the 5 wires resistive USB touch screen controller, turn off your computer system.

2. Connecting the Controller

The 5 wires resistive USB touch screen controller included a USB cable, which has 5-pin D connector.. Plug the

USB cable into a USB port on your computer directly .

3. Supplying Power to the Controller

The 5 wires resistive USB touch screen controller included a 5-pin USB cable, which using to provide power to

the controller.

To connect USB cable:

• Plug the USB cable into usb port.

4. Mounting the Touch Panel

There are several methods for mounting the touch panel (or sensor) depending on your application. The 5 wires

resistive serial touch screen controller included a 5-pin ( pitch 2.54mm) touch panel cable. The Pin Assignment of

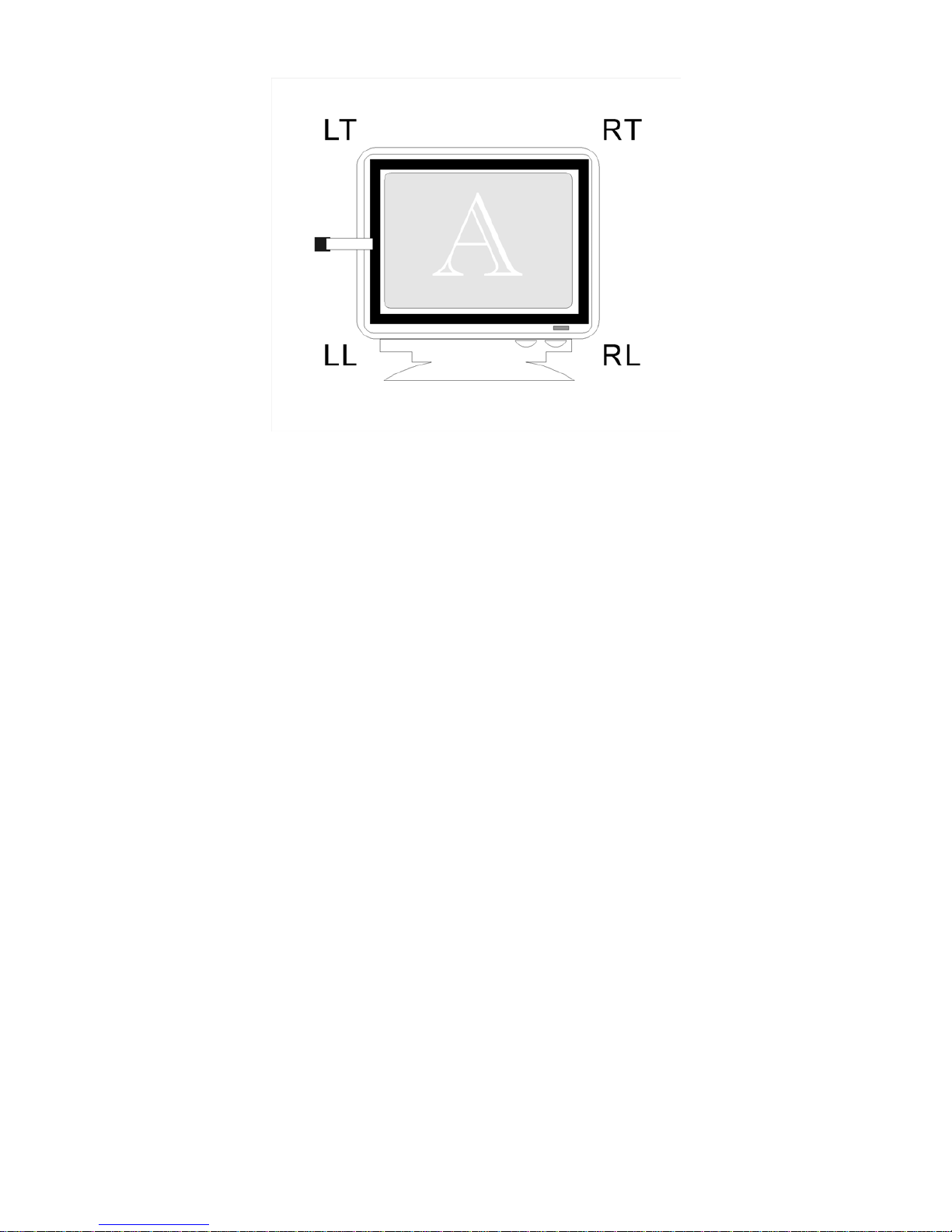

Touch Panel Cable listed in below, if your touch panel’s pin out does not match it, you may need jumping cable

Pin 1 Pin 2 Pin 3 Pin 4 Pin 5

RT RL SG LT LL

════════════════════════════════════════════════

5. Turning On Your Computer System

Before you turn on your computer system, ensure that all cables are connected properly and that the controller is

properly mounted. Be sure to tighten all cable connector screws.

To start up your system:

• Turn on your computer system.

• Adjust the horizontal and vertical position controls on the monitor to center the image on the screen.

6. Check the Status LED

The 5 wires resistive USB touch screen controller has a LED (light emitting diode) on the box that indicates the

status of the controller. When you power-up the unit, the LED is on after the controller start-up sequence is

completed. Following start-up, the LED goes on and remains on as long as you do not touch the sensor. After the

TouchScreen Driver is installed and startup, when you touch the sensor, the LED goes flashing (or blinking ) until

you lift off from the sensor.

7. Installing and Using TouchScreen Software

You have successfully installed the 5 wires USB touch screen controller and connected the touchscreen to your

computer. You are now ready to complete the following tasks:

• install the appropriate TouchScreen Driver software for the operating system you are using.

• Use the TouchScreen Control Panel software to calibrate the touchscreen.

Insert the TouchScreen Drivers CD-ROM in your computer’s CD-ROM drive and follow the directions starting on

the next page to install the driver software.

════════════════════════════════════════════════

5 Wires Resistive Serial Touch Screen Controller Hardware Installation

This chapter discusses how to install your 5 wires resistive serial touch screen controller, follow the directions

starting on the next section to install the controller to your computer.

IMPORTANT:

Before connecting the touch screen controller to your computer system,

Be sure that the computer system is turned off.

1. Turning Off Your Computer System

Before you install the 5 wires resistive serial touch screen controller, turn off your computer system.

2. Connecting the Controller

The 5 wires resistive serial touch screen controller included a RS-232 cable, which has 9-pin D connector. You

may need 9-pin to 25-pin adapter if the only available COM port on your computer has 25 pins. Plug the RS-232

cable into a COM port on your computer, directly or through the adapter.

3. Supplying Power to the Controller

The 5 wires resistive serial touch screen controller included a 6-pin IBM PS/2 compatible keyboard power tap

cable, which using to provide power to the controller. You may need 5-pin to 6-pin IBM PS/2 compatible keyboard

adapter if the only available keyboard socket on your computer has 5-pin.

To connect the keyboard power tap cable:

• Disconnect the keyboard cable from the back of your computer.

• Plug the keyboard cable into the power tap cable.

• Plug the power tap cable into the keyboard socket on the back of your computer.

• Connect the DC plug from the power tap cable to the jack built into the 9-pin D connector.

4. Mounting the Touch Panel

There are several methods for mounting the touch panel (or sensor) depending on your application. The 5 wires

resistive serial touch screen controller included a 5-pin ( pitch 2.54mm) touch panel cable. The Pin Assignment of

Touch Panel Cable listed in below, if your touch panel’s pin out does not match it, you may need jumping cable.

Pin 1 Pin 2 Pin 3 Pin 4 Pin 5

RT RL SG LT LL

════════════════════════════════════════════════

5. Turning On Your Computer System

Before you turn on your computer system, ensure that all cables are connected properly and that the controller is

properly mounted. Be sure to tighten all cable connector screws.

To start up your system:

• Turn on your computer system.

• Adjust the horizontal and vertical position controls on the monitor to center the image on the screen.

6. Check the Status LED

The 5 wires resistive serial touch screen controller has a LED (light emitting diode) on the box that indicates the

status of the controller. When you power-up the unit, the LED is on after the controller start-up sequence is

completed. Following start-up, the LED goes on and remains on as long as you do not touch the sensor. After the

TouchScreen Driver is installed and startup, when you touch the sensor, the LED goes flashing (or blinking ) until

you lift off from the sensor.

7. Installing and Using TouchScreen Software

You have successfully installed the 5 wires resistive serial touch screen controller and connected the touchscreen

to your computer. You are now ready to complete the following tasks:

• install the appropriate TouchScreen Driver software for the operating system you are using.

• Use the TouchScreen Control Panel software to calibrate the touchscreen.

Insert the TouchScreen Drivers CD-ROM in your computer’s CD-ROM drive and follow the directions starting on

the next page to install the driver software.

Tabla de contenidos

Otros manuales de Pantalla táctil de GVision

GVision

GVision P10PS Series Manual de usuario

GVision

GVision I32ZI-OD-45P0 Manual de usuario

GVision

GVision P Series Manual de usuario

Manuales populares de Pantalla táctil de otras marcas

Elecro Engineering

Elecro Engineering Poolsmart Plus Instrucciones de instalación

Johnson Controls

Johnson Controls IQ4 HUB Manual de usuario

Elo TouchSystems

Elo TouchSystems ET2270L Manual de usuario

Elo TouchSystems

Elo TouchSystems ET1002L Manual de usuario

Elo TouchSystems

Elo TouchSystems 3201L Manual de usuario

Duratec

Duratec S15 Manual de usuario

Crestron

Crestron TPMC-3SM Manual de usuario

Racelogic

Racelogic MFD Touch Manual de usuario

J2 580 Guía del usuario

HAI

HAI OmniTouch 10p Manual de usuario

panel

panel PC PSR108-FM Series Manual de usuario

Tipro

Tipro FREE+ Manual de usuario

Systemline

Systemline Commander Manual de usuario

Interactive Technologies

Interactive Technologies Insite Manual de usuario

BeiJer

BeiJer T21C-C24 Manual de usuario

Advantech

Advantech ITM-5117 Series Manual de usuario

Edge

Edge CS Manual de usuario

Elo TouchSystems

Elo TouchSystems WALLABY PRO Manual de usuario
