Elite Screens Sable Frame B2 Series Manual de usuario

JA12142021 www.elitescreens.com U-00199 1

Sable Frame B2 Series

Matte White Fixed Frame Screen

FeaturingCineWhite®UHD-B

USER’S GUIDE – M Type

V 2.1

__________________________________________________________________________________________

Congratulations on your new Sable Frame B2 purchase! The material included is our ISF Certified

CineWhite® UHD-B which produces accurate colors in a light controlled environment as the director intended.

In order for the CineWhite® UHD-B to maintain its projection qualities and optimum performance

please refer to the list below for proper maintenance and cleaning.

•Use a dry microfiber cloth to remove dust from the screen’s surface.

•When cleaning, use a damp microfiber cloth with warm water to remove anymarks.

•Never rub or apply pressure when cleaning the surface.

•Never attempt to use any solutions, chemicals, or abrasive cleaners on the screen surface.

•To avoid damaging the screen, avoid touching it directly with your fingers, pens/pencils or any other

sharp or abrasive objects.

JA12142021 www.elitescreens.com U-00199 2

Frame Parts List

A. Vertical Frame x 2pcs

B. ½ Horizontal Frame x2 pcs

C. ½ Horizontal Frame x 2 pcs

Hardware Parts List

a. M4*4

b. D5*4

c. M4*4

d. D5*4

Item

Parts List

92”

100”

110”

120”

135”

150”

165”

180”

200”

Center Joints- M4 (bottom position)

Center Joints-D5 (top position)

Elbow Joints M4 (bottom position)

Elbow Joints D5 (top position)

M4x7 Screws

Spring

100

106

116

Pull Hook

Wall brackets

Wall Screws M5x50

Hollow Wall anchors

Center Support Bar

White gloves

Φ3 mm Long Iron (sides) rod /

Short rod (top/bottom)

2/4

C+B

B+C

Red

Black

JA12142021 www.elitescreens.com U-00199 3

Frame Assembly

Step 1: Place the EPE sponge (foam) sheet on the ground of the area where the screen will be assembled.

Step 2: Position the pieces of the frame on the EPE sponge in the arrangement shown below.

Step 3: Insert center joint (a/b) connectors into one-half of the horizontal frame (B/C) and secure with the

M4x7 screws (g) as shown in the illustration below.

Tip: The center joint (b) with the larger diameter holes should be on top.

Step 4: Connect the elbow joints (c/d) to the top and bottom sections of the vertical frame. Once inserted,

connect the vertical sections to the horizontal frame sections. Make sure all holes are in alignment and the frame

pieces are flush (no gaps). They should form perfect right angles.

Tip: The elbow joint (d)with the larger diameter holes should be on top.

JA12142021 www.elitescreens.com U-00199 4

Step 5. Secure the elbow joints by fastening them with M4x7 screws (g), 4 at each corner.

Screen Material

Step 6: Put on the white gloves (p) and carefully unroll the screen material on a clean surface from the roller to

the other side as shown below. The back side of the screen material should be placed upwards. Then place a

bottom grommet (r) on the screen material’s eyelet and snap in the top grommet (s) as shown below.

Repeat the process for all eyelets.

Step7: Carefully place the screen on top of the assembled frame as shown below.Make sure that the angular

edges of the frame are not allowed to come into direct contact with the screen material to avoid puncturing.

Front

JA12142021 www.elitescreens.com U-00199 5

Step 8: Insert the rods (r) through the sleeves according to their corresponding lengths on each edge of the

screen as shown below. The short rods (top/bottom) will overlap to secure a firm grasp in the middle areas.

How to attach the springs

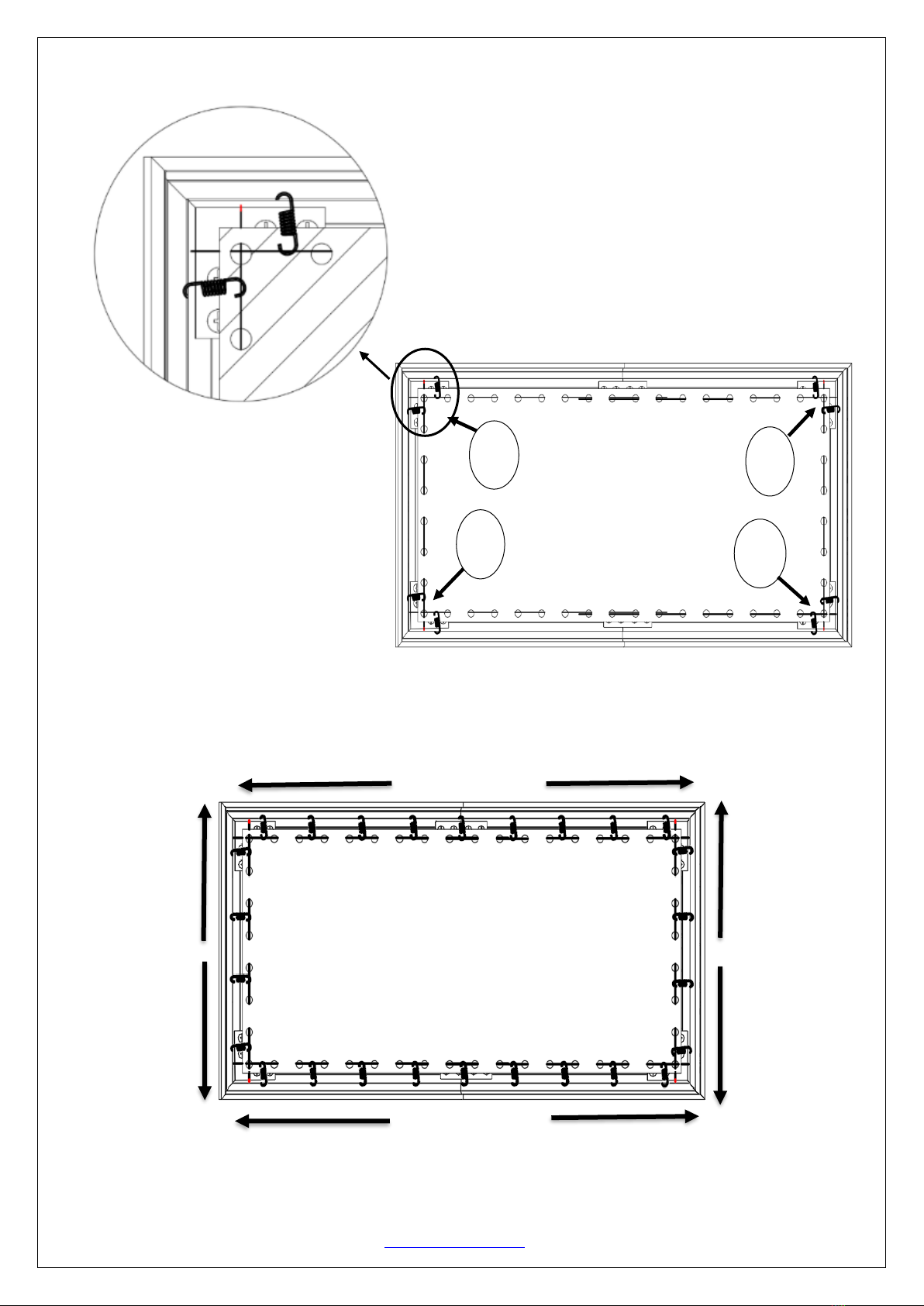

Step 9: Hook one end of the spring and secure inside the groove of the frame, use the spring hook (i)to attach

the spring to the hole located on the screen material’s outer edge in the following order.

Back Side

r. (Red tips)

Back Side

r. (Black tips)

Back Side

Back

Side

Go through the hole

from bottom to top

Spring must hook both

overlapping

short rods.

JA12142021 www.elitescreens.com U-00199 6

First connect on four corners, steps 1-4. make sure all four corners are fixed before proceeding with next spring.

Continue to attach the remaining springs to the material in steps 5-12 in the follow order.

JA12142021 www.elitescreens.com U-00199 7

Step 10: Insert the Center Support Bar (o) into the upper top groove on the back of the frame with the bottom end

near the approximate center point of the frame and rotate it in at an angle so that both ends of the bar are in

alignment with the groove.

Installation

Step 11: Measure the overall length and height of the frame and drill holes for the top brackets. Line up the wall

brackets with the drilled holes on the installation location and screw them in using a Phillips screwdriver. If not

installing into a structural wood stud, use a hollow wall anchor then screw in the M5x50 wood screws with a

screwdriver. Make sure the brackets are leveled.

Model/Size

X = Wall bracket distance

X1 = Bracket hole distance

Y = Top/Bottom Wall Bracket Height

92”

1100mm (43.30”)

30mm (1.18”)

1180mm (46.46”)

100”

1170mm (46.06”)

30mm (1.18”)

1280mm (50.39”)

110”

1280mm (50.39”)

30mm (1.18”)

1410mm (55.51”)

120”

1390mm (54.72”)

30mm (1.18”)

1530mm (60.24”)

135”

1550mm (61.02”)

30mm (1.18”)

1720mm (67.72”)

150”

1720mm (67.72”)

30mm (1.18”)

1900mm (74.80”)

Diagonal Models 150” and

below use 1 x Center Support

Bar

Diagonal Models above 150”

require 2 x Center Support Bars

Place a center support

bar 30 cm (11.8”) apart

from the center (red

line).

Don’t lock the screw to the bottom.

Diagonal Sizes of 150” and below use 4 x wall brackets

JA12142021 www.elitescreens.com U-00199 8

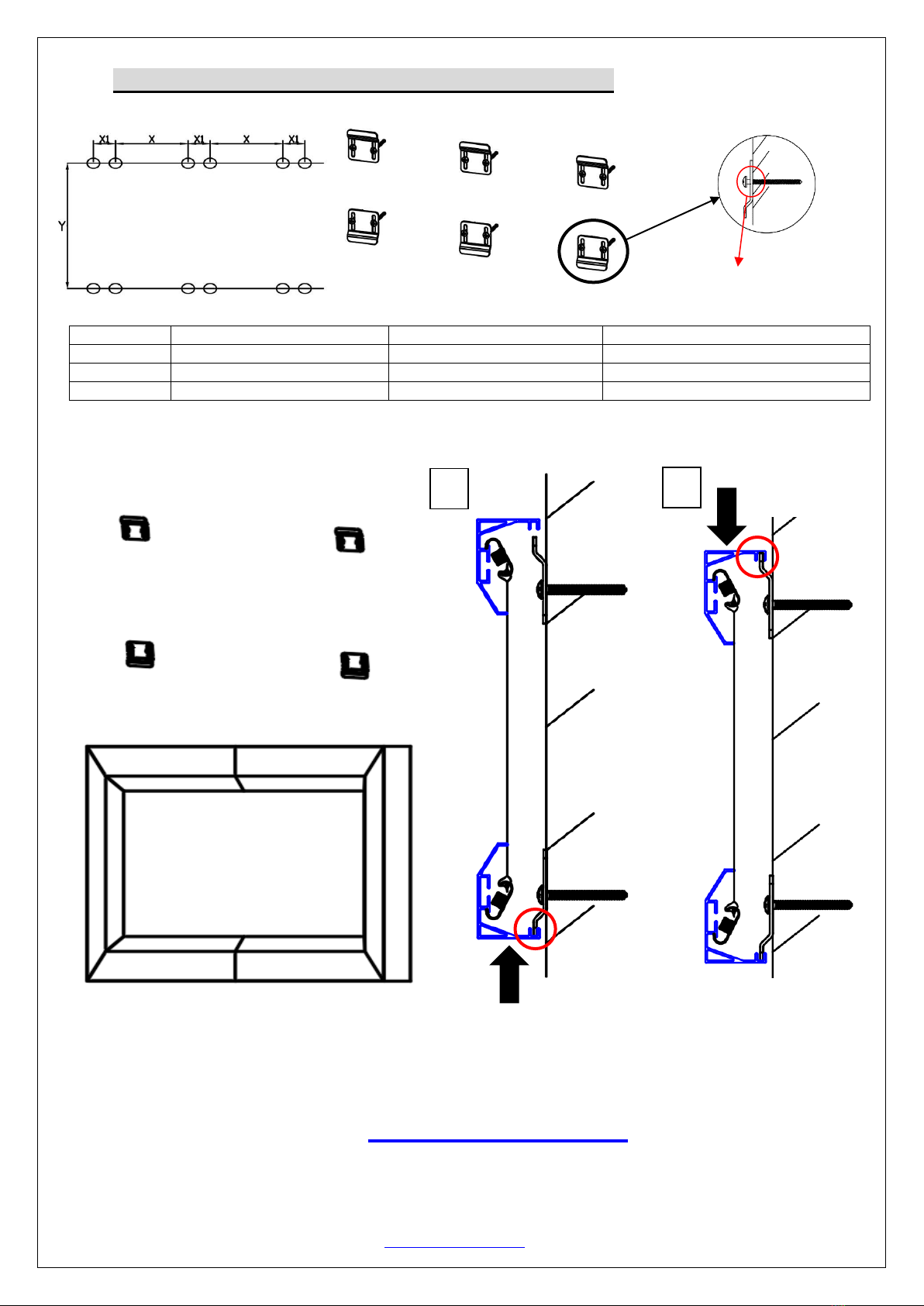

Step 12: Position the fixed frame screen onto the top wall brackets (fig 1) as shown below and push down at the

center of the top of the frame (fig 2) to secure.

For Technical Support or an Elite Screens contact in your area,

visit www.elitescreens.com

Model/Size

X = Wall bracket distance

X1 = Bracket hole distance

Y = Top/Bottom Wall Bracket Height

165”

940mm(37.01”)

30mm (1.18”)

2090mm(82.28”)

180”

1030mm (40.55”)

30mm (1.18”)

2280mm (89.76”)

200”

1140mm (44.88”)

30mm (1.18”)

2530mm (99.61”)

Don’t lock the screw to the bottom.

Diagonal Models above 150” require 6 x wall brackets
