Elite Screens WhiteBoardScreen Series Manual de usuario

Rev. 04/25/17 DR elitescreens.com

n™

Dry-Erase Ambient Light Rejecting Projection Screen

User’s Guide

Thank you for choosing the WhiteBoardScreen™ Series dry-erase whiteboard projection screen! Please

read through this user guide before utilizing the screen. Correct usage and maintenance will ensure a

long product life.

Precautionary Notes:

Before using the dry-erase function of your whiteboard screen, please make note of the following

instructions to properly maintain and clean your dry-erase surface projection screen. (These Whiteboard

cleaning tips are just as relevant with any dry-erase writing surface as they are with our Whiteboard-

Projection Screens.)

1.Only use a high density foam eraser when removing dry-erase markings from the Whiteboard screen.

2. Do not use abrasive erasers as these may scratch the surface of the screen.

3. Never spray the whiteboard cleaner solution onto the surface while marker writing is present and then

attempt to use a high density foam eraser to remove. This will only smear the dry-erase marker ink

making the surface more difficult to clean and will likely ruin the foam eraser.

4. If there are any dry-erase markings left behind even after attempting to remove them using our high

density erasers, spray our whiteboard cleaning solution directly onto the screen surface and use only a

soft microfiber cloth to wipe-down and clean the area.

For a video demonstration, please visit: http://www.elitescreens.com/whiteboardscreen-cleaning

If replacement cleaning accessories are needed, please visit the Whiteboard cleaning accessories section

of our website at http://www.elitescreens.com/clean-whiteboard

Rev. 04/25/17 DR 1 elitescreens.com

Hardware and Parts List

Please make sure all parts listed are included before proceeding with installation.

a b c

d e f

G and H are

not

Actual individual

parts included but

configurations only by

combining parts (d)

and (e) with the

butterfly screw.

g h

I j k

Note: The

WhiteBoardScreen™

Series

eraser should only be used for

the WhiteBoardScreen™.

Parts List

a. Qty 4–Butterfly screw

b. Qty 12–Wall screw

c. Qty 12–Hollow wall (or drywall) anchor

d. Qty 2–Top hanging wall brackets (to the wall)

e. Qty 2–Top hanging whiteboard brackets (to the whiteboard)

f. Qty 2–Bottom hanging bracket

g. For whiteboard diagonal size 60 (4:3) inches

h. For whiteboard diagonal 80(4:3), 96 (16:9) inches.

i. Qty 2–whiteboard eraser

j. Qty 2–Dry‐erase pens

k. Qty 1–WhiteBoardScreen™ cleaner

Rev. 04/25/17 DR 2 elitescreens.com

2Fig.6

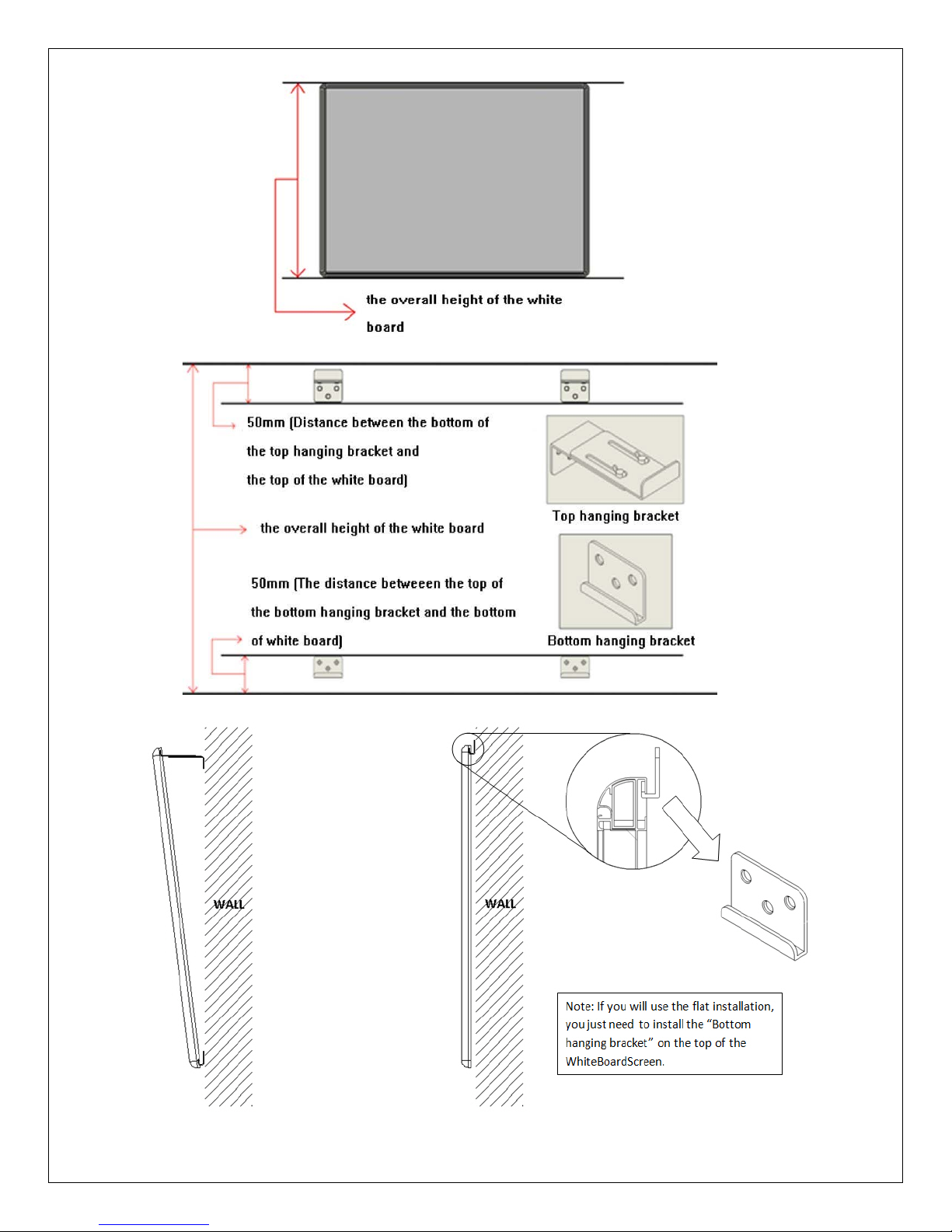

Installation

1. Mark the location the WhiteBoardScreen™ will be installed and drill your holes for all Top Hanging Wall

Brackets (fig.1) and Bottom Frame Hanging Brackets (fig.2).

2. Attach the Top Hanging WhiteBoardScreen™ Brackets (fig.3) to the Top Hanging Wall Brackets (fig.1) with the

Butterfly Screws according to the size of the WhiteBoardScreen™ as specified in fig.4 and 5

below.

3. Next, affix the Top Hanging Wall Brackets (fig.1) and the Bottom Frame Hanging Brackets (fig.2) to the drilled

locations and install the wall screws (fig.6).

4. Lastly, hang the WhiteBoardScreen™ on the brackets (fig.7).

Fig.1 Fig.2 Fig.3

Fig.4 Fig.5

Note:

Fig.4 Bracket configuration for whiteboard 60 inch diagonal (4:3) screens

Fig.5 Recommended Bracket configuration for whiteboard 80 inch (4:3) and 96 inch (16:9)

Cx 12

BX1 AX4

Fig.7

Rev. 04/25/17 DR 3 elitescreens.com

Desktop Projector Mode Overhead Projector Mode

Rev. 04/25/17 DR 4 elitescreens.com

Notice to Installer:

Please use the following installation instructions to obtain superior optical performance from the

StarBright 4 Angular Reflective ALR (Ambient Light Rejecting) Screen.

Make sure to follow these instructions in order for the StarBright 4 to perform correctly.

•Angular‐Reflective material is not compatible with ultra/short‐throw projectors

•Minimum lens throw ratio 1.5x image width

•Ambient light must not come from the same direction as the projector

Since angular-reflective means that the projected image will reflect at the mirror-opposite angle, it is

important to position the projector so that the viewer will get the best possible image.

Step 1: Establish the general “eye level” of the viewers

Step 2: Set the appropriate projection level

Step 3: Adjust the screen height level and projection angle

Input Angle (A) = Output Angle (B) aligns with the viewer’s angle

Rev. 04/25/17 DR 5 elitescreens.com

Recommended Installation Locations for desktop and overhead projector installations

The StarBright4 material used in this WhiteBoardScreen™ has a special high gain that is

angular reflective.In order to take full advantage of this special material, it is important

that the WhiteBoardScreen™ is installed properly so that the projected image is viewed

within the recommended viewing angle.

It is normal for some viewing areas to be less bright than the center due to the nature

of the screen material. It is not a defect and minor “hot spotting” will occur as a result.

The below charts will assist in determining several factors to consider to help you with your

installation. Please note that these are only recommendations.

Desktop projector installation

Model

Number

Overall

Width

(W)

Overall

Height

(H)

Installation

Height (A)

Suggested

Projection

Distance (B)

Sitting

View

Distance

(C1)

Standing

View

Distance

(C2)

Suggested

Projection

Height

(D)

Viewer

Distance

(E)

Sitting

View

Height

(F1)

Standing

View

Height

(F2)

Sitting

View

Angle

(01)

Standing

View

Angle

(02)

Unit: mm

WB60V 1190.0 930.0 1000‐1200 1950‐2950

160

114

800‐1000 1200 1200 1700

9°

6°

Unit: Inches

WB60V 46.9 36.6 39.4‐47.2 76.8‐116.1

6.3

4.5

31.5‐39.4 47.2 47.2 66.9

9°

6°

Standing

View

Sitting

View

Rev. 04/25/17 DR 6 elitescreens.com

Model

Number

Overall

Width

(W)

Overall

Height

(H)

Installation

Height (A)

Suggested

Projection

Distance (B)

Sitting

View

Distance

(C1)

tanding

View

Distance

(C2)

Suggested

Projection

Height

(D)

Viewer

Distance

(E)

Sitting

View

Height

(F1)

Standing

View

Height

(F2)

Sitting

View

ngle (01)

Standing

View

Angle (02)

Unit: mm

WB80V

1630.0 1230.0 1000‐1200 2750‐3750

228

145 800‐1000 1200 1200 1700

10°

6°

Unit: inches

WB80V

64.2 48.4 39.4‐47.2 108.3‐147.6

9.0

5.7

31.5‐39.4 47.2 47.2 66.9

10°

6°

Standing

View

Sitting

View

Desktop Installation explanation:

A= Installation Height (Floor to bracket drilling hole)

B= Suggested Projection Distance (Projector to screen)

C1= Sit View Distance (The brightest view when people are sitting down in relation to the angle setting in

F1) C2= Stand View Distance (The brightest view when people are standing in relation to the angle

setting in F2)

****User selectable average recommendations****

D= Suggested Projection Height (Floor to project center)

E= Viewer Distance (User to

projector) F1= Sit View Height

F2= Stand View Height

****The basis of height is from an average height****

θ1= Sit View Angle (Screen slope angle between screen and wall to achieve brightest view)

θ2= Stand View Angle (Screen slope angle between screen and wall to achieve brightest view)

(*****Relation between C1, F1 and θ1; Relation between C2, F2 and θ2*****)

W= Overall Width

H= Overall Height

Rev. 04/25/17 DR 8 elitescreens.com

Overhead Projector installation

Models

Overall

Width

(W)

Overall

Height

(H)

Installation

Height (A)

Suggested Projection

Distance (B)

Ceiling Height

(C)

Suggested Offset

(D)

Viewer

Distance (E)

Sitting View

Height (F1)

Standing View

Height (F2)

Unit: mm

WB60V 1190.0 930.0

2340

1950‐2950 2500

130

1200 1200 1700

Unit: inches

WB60V 46.9 36.6

92.1

76.8‐116.1 98.4

5.1

47.2 47.2 66.9

Standing

View

Sitting

View

Rev. 04/25/17 DR 11 elitescreens.com

Over head installation explanation:

A= Installation Height (Suggested from floor to top of screen)

B= Suggested Projection Distance (Projector

to screen) C= Ceiling Height

D= Suggested Off set (Distance between projection center and top

of screen) E= Viewer Distance (User to projector)

F1= Sit View Height

F2= Stand View Height

****The basis of height is from an average height****

W= Overall Width

H= Overall Height

Note: The data is for reference only. The installer should base the installation

according to the customer and the space provided.

For more information, technical support or your local Elite Screens contact,

please visit www.elitescreens.com

Models

Overall

Width (W)

Overall

Height (H)

Installation

Height (A)

Suggested

Projection Distance

(B)

Ceiling

Height (C)

Suggested

Offset (D)

Viewer

Distance (E)

Sitting View

Height (F1)

Standing View

Height (F2)

Unit: mm

WB80V 1630.0 1230.0 2340 2750‐3750 2500

1200 1200 1700

Unit: inches

WB80V 64.2 48.4

92.1

108.3‐147.6 98.4

47.2 47.2 66.9

Sitting View

Standing View
