Elite Screens CineTension2 Series Manual de usuario

www.elitescreens.co

/ eliteinfo

elitescreens.com

Electric Screen

CineTension2 Series

Ver.1.6

Users Guide

www.elitescreens.co

/ eliteinfo

elitescreens.com

Accessories for CineTension 2

① IR ② RF

③

Wall

Red

2V (+)

Green 0V (-)

④5/12V trig

ger ca

⑤

IR”eye” receiver

⑥

Batteries

Please always point to the eye

receiver when using the IR remote

⑦Bu

le level

ortant

Safety

and

arning Precautions

1. Be sure to read this manual

efore use andfollow the

rocedures s

ecified:

Please retain this manual for future reference.

To avoid any damage, do not use any accessories not recommended by the

manufacturer. Handle the device carefully during transportationto avoid impact.

Do not put the device on uneven or inclined surfaces.

Do not put heavy objects on the power cord; affix the power cord properly to avoid

someone tripping over it.

Never overload the power cord to prevent electrical shock or fire.

Guard the device from any liquid or foreign object to avoid electrical shock or fire due to

loose contact or shor

circuit.

2. If any accessories need to

e replaced,

e careful to avoid a shor

circuit.

3. There are no user serviceable parts in the device. Nobody except authorized technicians can

open this device. To prevent the risk of electrical shock or fire, protect this device against

moisture and rain.

Make sure tha

the power source this device is connected to has a continuous power flow.

The rating label on the product indicates the rated voltage.

Do not handle the power plug when your hands are wet or your feet are in contact with water.

4. Do not use this deviceunder the following circumstances:

Disconnect the power cord under the condition of heavy wind, rain, thunder or

lightning.

Avoid direct sunshine, rain shower or moisture.

Keep away from fire sources and high temperature to prevent this device from overheating.

Cu

off the

ower su

firs

efore trans

ortation or maintenance.

www.elitescreens.co

/ eliteinfo

elitescreens.com

arning

The

ower outle

ower to the unit should

e close to the unit and easil

accessi

Reorient or relocate the receiving antenna

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet using a circuit different from where the receiver is connected

 Consult the dealer or an experienced radio/TV technicianfor help

Individual modifications to this product are prohibited and will void the warranty. Please contact

our Service Department for any questions.

This equipmen

has

een tested and found to comply with the limits for a Class B digital device,

ursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

To ensure safe and reliable operation, direct connection to a properly grounded power source is advised.

www.elitescreens.co

/ eliteinfo

elitescreens.com

Bubble Level: Included with the installation package is a small bubble level that can be useful in

determining if the screen is perfectly level when installing.

NOTE :

①

Please use the Down sign side as the bottom.

②

The Bubble should be in the middle position to determine that it is level.

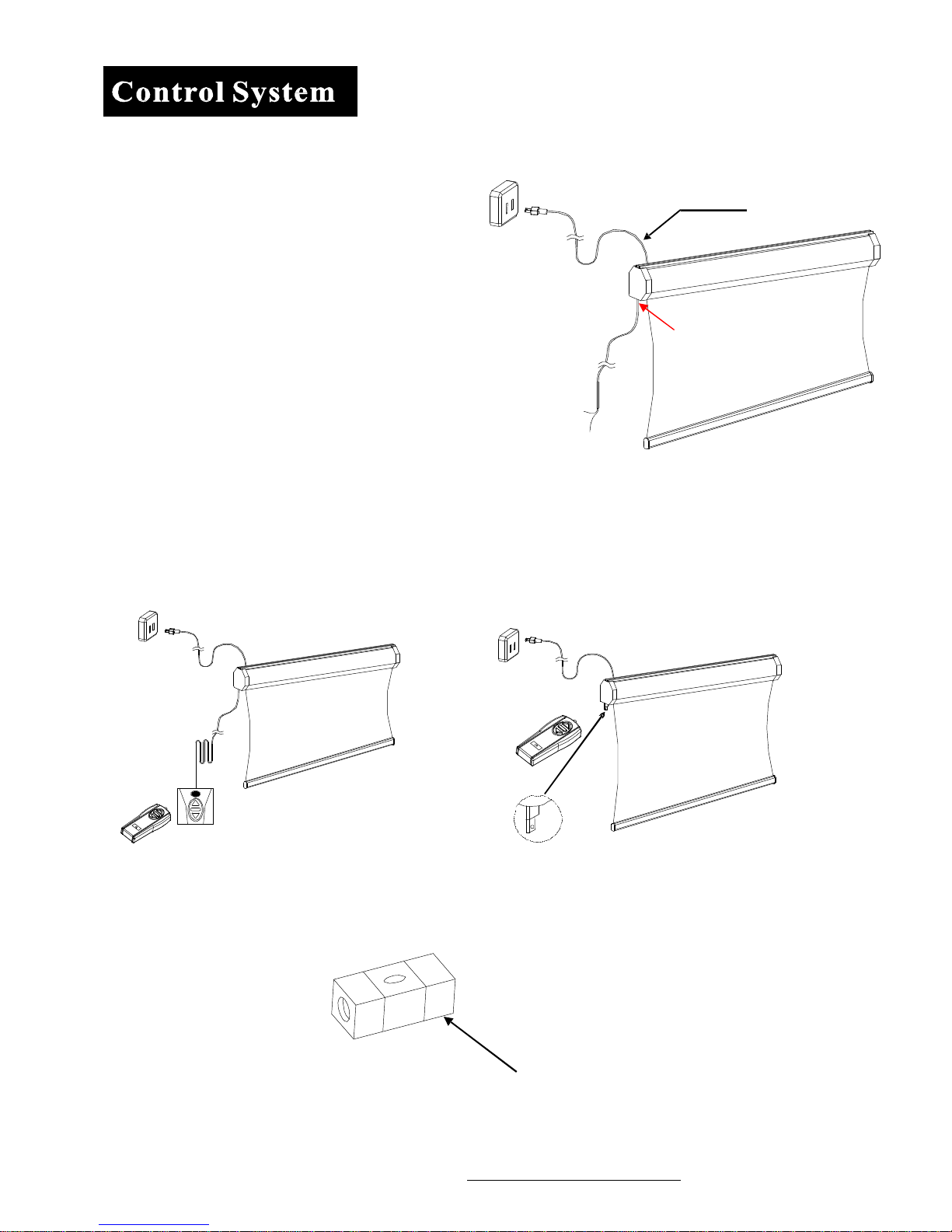

Sensor

3-way Wall box switch

Sensor

1. 5/12V Trigger: The built-in 5/12V trigger

input for your new CineTension2 allows your screen

to synchronize its drop and rise with the projector's power

cycle. The screen drops when the projector powers up and

retracts when the projector powers down. The 5/12 volt

adaptor connects to your projectors trigger output via a

separate cable that may or may not be provided by the

projector manufacture. The trigger feature will not work

without an output cable from the projector, but it can be

tested using a 9-volt battery by simply connecting the Red

(+) and Green (-) cable to the 9-volt battery.

2. Wall Box and IR (Infrared) Eye Receiver: The 3-way Wall Box switch enables the consumer to

manually operate the screen's drop/rise capabilities. The IR “eye” protrudes from the bottom of the casing to present a low

profile line-of-sight control option for your IR remote. It is a low-visibility alternative to using the wall box kit and its

ability to protrude from the bottom of the screen allows line-of-sight control even in a recessed ceiling installation.

3-prong power cable

Red: DC 12 +

Green: 0 V -

RJ-45 input connection for

5/12 volt trigger inside

case

lease read this

uide prior to installation.

●Make sure the current rating is equal to that of the appliance rating when an extension cord is used.

●Do not use any accessories not provided by the manufacturer with this screen. We will not be responsible for

any risks of fire, electric shock, or injuries resulting from the misuse of this product with accessories not

designed for use with this product.

●Make sure the screen is mounted in a horizontal level position. We suggest consulting with a professional if

you are unsure on how to perform a proper installation.

INSTALLATION

The CineTension 2 series screen is designed for installation on either a wall or ceiling. All hardware is included to

allow either installation method however we do strongly recommend a professional installation for safety purposes.

The extruded hanging brackets are designed to slide anywhere on the back of the screen to accommodate a

wall or ceiling installation and provide an easy alignment with wood studs and trusses.

Please follow the steps below for recommended installation instructions.

Mounting Hardware Kit – Please make sure all of the following items have been supplied before proceeding

installation.

Parts identification:

1. Begin by sliding the Bolts (B) thru the left and right slide channel located on the top back of the CineTension 2

screen’s casing as shown on picture.

Qty 2 –Extruded

Hanging Brackets

Qty 2 – Masonry screws

Qty 2

–

Masonry anchors

Qty 2 - Bolts

Qty 2 – Wood Screws

Qty 2 – DrywallAnchors

www.elitescreens.co

/ eliteinfo

elitescreens.com

2. Slide the Extruded Hanging Brackets (D) thru the rail located below the slide channel until it meets with the top part

of the bolts (B) and then slightly tighten the lug-nuts located on the top and bottom of the bolt with a wrench to secure

the extruded hanging brackets.

3. Mark the location of where the screen is to be installed and drill your hole. Insert the proper screw into the drilled

hole and finish tightening the bolts to the bracket.

Masonry Anchors and Bolts (C) are used on concrete/masonry wall/ceilings.

Plastic drywall anchors (A) are included for drywall mounting.

Wood screws (A) are to be used for wooden wall/ceiling studs on screen sizes less than or equal to 120” inches

(diagonal).

Masonry anchors (C) should be used for wall/ceiling installations of screen sizes greater than

120 inches (diagonal). We strongly advise to consult with a professional for such installation.

5. Examples of an installed CineTension 2 on a wall, ceiling and enclosed.

Flush mount

to wall Flush mount

to ceiling Enclosed

installation

*Allow 2” of spacing

between the front and

back of the screen casing.

Top hole for ceiling installation

Back hole for wall installation

www.elitescreens.co

/ eliteinfo

elitescreens.com

The IR receiver will be connected from the screen

IR “eye” sensor

11.65 mm. in width

Power cord

rox. 6 ft. len

th.

Although the IR remote requires a direct line of sight with the IR sensor to

function, the screen’s case can be hidden from sight and operated using the

RF remote. When depressing the directional buttons you should hear a faint

click signifying that the mechanism is working properly.

80mm in width

Stop

Down

IR RF

This is the IR (Infra-Red) remote with a

range of 15 Ft. Battery size AAA This is the RF (Radio Frequency) remote

with a range of 30 Ft. Battery size AAA

** Please remember to always point to the wall switch receiver when using the IR remote. The IR remote can also work

with a Universal Learning Remote Control usually by programming the Screens IR codes into your Universal Learning

Remote.

www.elitescreens.co

/ eliteinfo

elitescreens.com

REFEREN

ONLY:

(Attention: This adjustment is not required. The screens tension has been set to achieve its

best performance. Always contact an Elite Screen Technician for assistance to avoid

damaging the screen and voiding your warranty.)

Pulling the kno

and turning it Clockwise it will create more tension to the screen. By pulling the

knob Counter-clockwise it will start to release tension.

If the electric screen does not move,

lease check the followin

1. Check the power supply first. The screen will understandably not move without power.

2. Make sure the power cord is firmly plugged to the power outlet.

3. Make sure that all cable connections are secure.

4. If the screen works well with the line switch but not with the remote control, please make sure the

remote controls have fresh batteries or replace them with new ones. Change the battery every 6

Months to ensure proper operation of the remotes.

5. For all other

roblems,

lease contact Elite Screens at Techsu

ort

elitescreens.com

Or call 1-877-511-1211 Ext.202/234.

www.elitescreens.co

/ eliteinfo

elitescreens.com

ote: For more U

date FAQ,

lease visit www.elitescreens.com

1. Q: Wh

does m

screen no lon

er function?

A: There are a few

ossible thin

ou could check:

2. Q: How is the screen material cleaned?

A: The screen material can be cleaned with mild soap and water.

A.)Make sure your wall plug has power and that the screen is properly plugged in.

B.) Please check the fuse to y our screen. (Call Tech support for location of fuse)

C.) If screen works well with the line switch but not with the remote control, make sure the remote control has goo

batteries in it.

D.) Our electric screens with a tubular motor installed are equipped wit

a Thermal relay. This would

include all Home (2, 3), Tension (1, 2, 3) series, and VMAX screens with a diagonal size above 180". This

feature will automatically shut off screen in the event the motor becomes too hot, preventing overheating of

the motor. To correct this, let screen alone for 10-15 minutes and try again.

3. Q: What type of batteries do the remote controls require?

A: The IR and RF remote controls use AAA alkaline batteries

4. Q: Can you manually pull down the screen?

A: No, manually pulling down the screen will damage the electronic motor rolling system.

5. Q: How could I setup my Screens IR receiver to work with my learning remote control system? Do you have any IR

codes I can use to achieve this?

A: Our IR remote controls have been evaluated and entered in to the databases of some Universal remote control

manufacturers. Please contact the manufacturer of your remote to inquire about your remotes ability to function with

ours. If they have not evaluated our remote control then the following list of Binary codes will be used for most remote

setups.

For Spectrum, VMAX2 (Plus), Home2(3) and Tension2(3) Series

Up: 1111 0000 0001

Stop: 1111 0000 0010

Down: 1111 0000 0100

6. Q: What is the gain on the matte white screen material?

A: The matte white material has a gain of 1.1. For detailed specs, info please check our web-site for more detail

Otros manuales para CineTension2 Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Pantalla de proyección de Elite Screens

Elite Screens

Elite Screens F100NWH Manual del propietario

Elite Screens

Elite Screens CineTension2 Series Manual de usuario

Elite Screens

Elite Screens Evanesce B Series Guía

Elite Screens

Elite Screens F100XWH1 Manual de usuario

Elite Screens

Elite Screens GolfSim Bay Series Manual de usuario

Elite Screens

Elite Screens DIY Screen Series Manual de usuario

Elite Screens

Elite Screens QuickStand Drape Series Guía de referencia rápida

Elite Screens

Elite Screens Electric100H Manual de usuario

Elite Screens

Elite Screens Home100IWH2-A Manual

Elite Screens

Elite Screens SilverFrame 100GH1 Manual de usuario

Elite Screens

Elite Screens WB30VW Manual de usuario

Elite Screens

Elite Screens Kestrel Home Series Manual de usuario

Elite Screens

Elite Screens QuickFold Q100V Manual de usuario

Elite Screens

Elite Screens MicroFlip Screen Manual de usuario

Elite Screens

Elite Screens StarBright7 Manual de usuario

Elite Screens

Elite Screens VMAX180XWV Manual de usuario

Elite Screens

Elite Screens Insta-DE2 Series Manual de usuario

Elite Screens

Elite Screens Evanesce Tension Series Manual de usuario

Elite Screens

Elite Screens Yard Master Pro B Series Manual de usuario

Elite Screens

Elite Screens YARD MASTER MANUAL SERIES Manual de usuario

Elite Screens

Elite Screens Starling Tab-Tension CLR 3 Series Manual de usuario

Elite Screens

Elite Screens QuickFold Q100V Manual de usuario

Elite Screens

Elite Screens Aeon CineGrey 3D AT Series Manual de usuario

Elite Screens

Elite Screens Spectrum Tension Series Manual de usuario

Manuales populares de Pantalla de proyección de otras marcas

FART PRODUKT

FART PRODUKT Standard SCREEN Manual de usuario

Draper

Draper E Series Manual

Laarhoven

Laarhoven Companion II Manual de usuario

Renogy

Renogy RMS-LFPS-US Manual de usuario

Da-Lite

Da-Lite ExecutiveElectrol Manual de usuario

Samsung

Samsung S*H65* Manual de usuario

FONESTAR

FONESTAR PPTR-43100-FA Manual de usuario

Slide Clear

Slide Clear Varro XL Manual de usuario

OS РХ-090Н Manual de usuario

Niko

Niko 10-845 Manual de usuario

Speaka Professional

Speaka Professional 2357532 Manual de funcionamiento

Sima

Sima XL-72 Manual de usuario

Jasic

Jasic EVO 2.0 ET-200P Manual de usuario

InFocus

InFocus SC-WALL GRY-92H Manual

Barco

Barco OverView MVL-615 Manual de usuario

Draper

Draper Envoy Manual

SI Dynamic 2 XL Manual de usuario

Draper

Draper Nocturne+ E Instrucciones de instalación
