Elite Screens Edge Frame Manual de usuario

Edge Frame Projection Screen

User’s Guide

Rev.10252019MZ 1 www.elitescreens.eu

Thank you for your purchase of an Elite Screens edge frame projection screen.

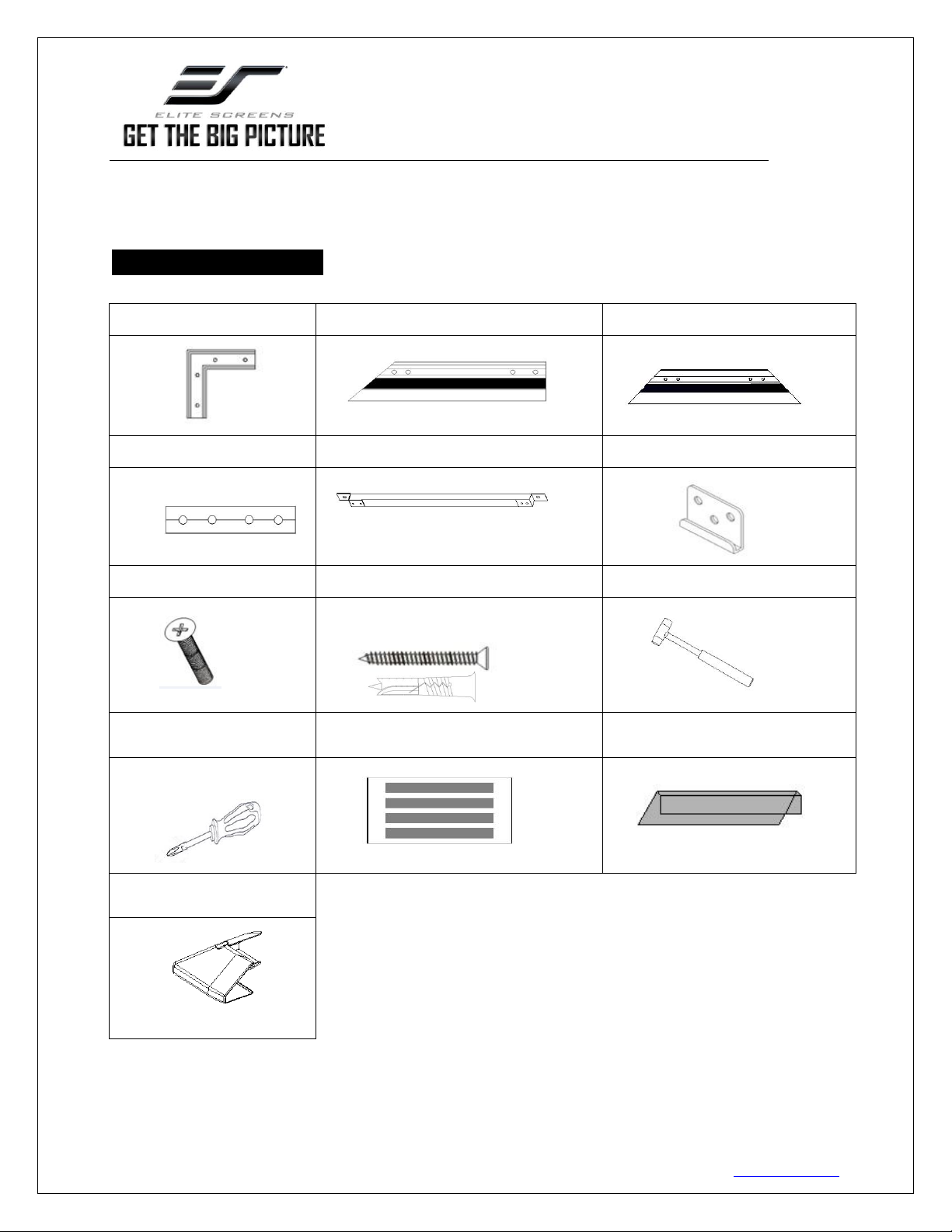

Hardware and Parts List

Please make sure all parts listed below are included before installation.

A. Elbow joint x4 pcs

B. Top/Bottom horizontal fame x4 pcs

C. Left/Right vertical frame x2 pcs

D. Center joints x2 pcs

E. Center Support bar x1-2 pcs

F. Wall brackets x2-3 pcs

(135”-150”x2pcs)

G. M5x15 screw x24 pcs

H. M5x50 screws and anchor x6 pcs

I. Rubber hammer x1 pc

J. Screwdriver x1 pc

K. Black Tape x1 bag

L. Bezel trim x6 pcs

M. Corner sleeve x4 pcs

Edge Frame Projection Screen

User’s Guide

Rev.10252019MZ 2 www.elitescreens.eu

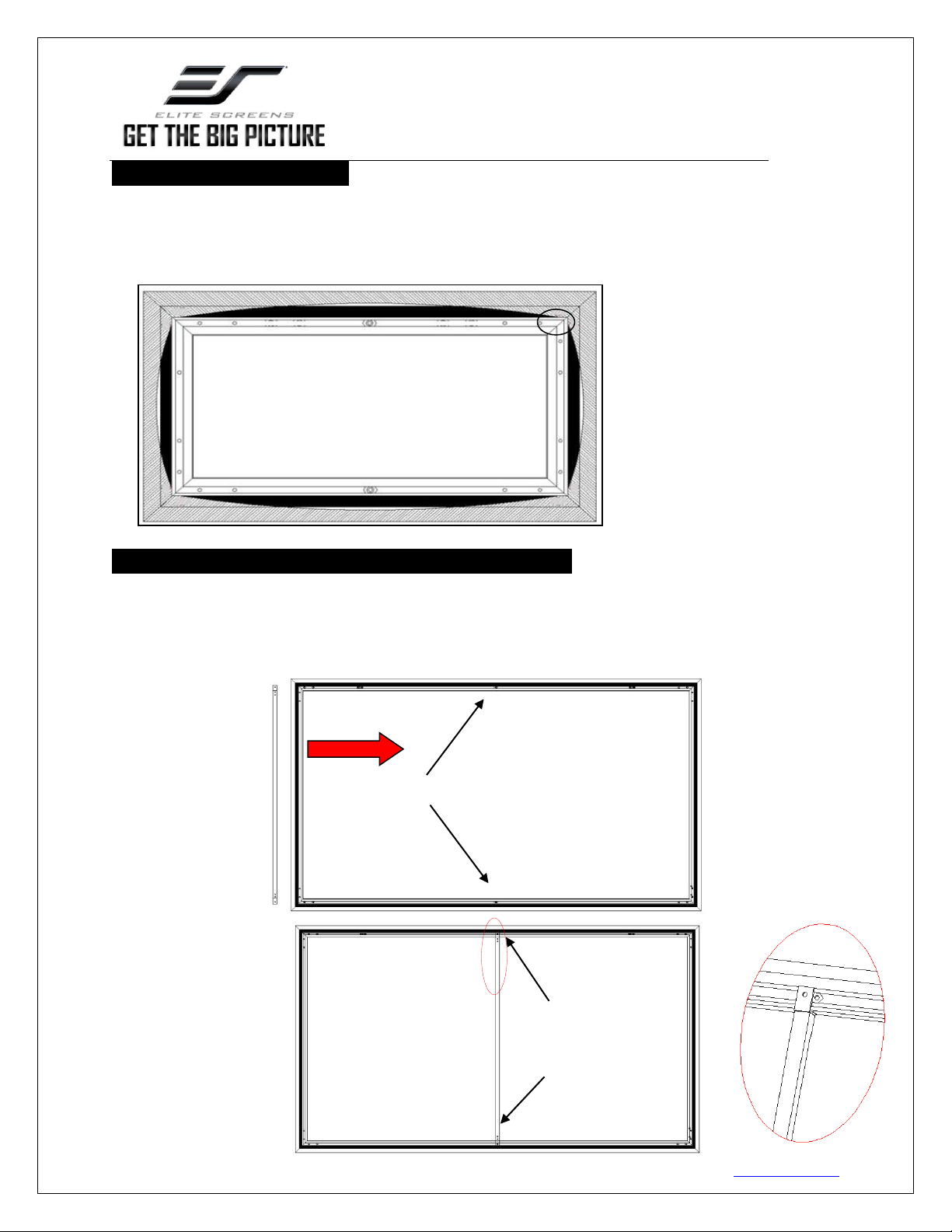

Frame Assembly

1. Insert the center joint into one of the ½ horizontal frames (B) and fasten it with the two M5x15

screws (G).

2. Insert the other ½ horizontal frame piece to the center joint and fasten also using two M5x15 screws.

3. Repeat steps 1 and 2 for assembling the second horizontal frame.

Push

4. Insert the elbow joint (A) into each end of the horizontal frames (B) as shown below.

5. Insert the two vertical short frames (C) into the elbow joint (A).

Horizontal long frame (B)

Elbow Joint (A)

Horizontal frame

Center Joints

Top right Frame

Top left Frame

Push

Edge Frame Projection Screen

User’s Guide

Rev.10252019MZ 3 www.elitescreens.eu

6. Join the remaining horizontal long frame (B) with the frame built in the previous steps as shown

below.

Horizontal long frame (B)

Vertical short frame (C)

Horizontal Long frame (B)

push

Edge Frame Projection Screen

User’s Guide

Rev.10252019MZ 4 www.elitescreens.eu

7. Make sure all four corners are properly in place to form a perfect square. Then fasten the four

angles with the M5x15 Screws (G).

Screen Material Installation

1. Lay the screen material completely flat with the front facing down on a clean surface in a horizontal

position. The back side of the screen material should be placed upwards.

Note: The back side of the material has the velcro borders all around the edges.

2. Carefully and gently place the assembled frame on top the screen material as shown below. Make sure

to not allow the angle edge of the frame to come in direct contact with the screen material to avoid

puncturing it.

Four corners join correctly to form a

perfect square. Use the included

screwdriver (J)to fasten the M5x15

screws (G) into each corner by aligning

the frame screw holes to the holes in the

elbow joint (A).

Screen material back facing up

Screen material comer

Edge Frame Projection Screen

User’s Guide

Rev.10252019MZ 5 www.elitescreens.eu

3. After all of the corners of the frame have been properly aligned, attach the material to the frame in the

following order A→B→C→D (see instructions below for details).

Attach the screen material to the corners as shown below.

4. After all four corners have been attached; please check whether the frame corners are wrapped by the

screen material. If not, please loosen the velcro connection and repeat the above steps so the frame is

not exposed.

Note: The black shaded part represents the velcro on the frame. That Velcro

end will ultimately attach with the other velcro end on the screen material.

Note:

Represents

the screen

material

2) Fold over and attach

material to the velcro

strip of the frame.

3) Fold over second side

and attach to frame

4) Repeat until all four

sides are done in the

order A, B, C, D

1) Stretch the screen

material in the direction

of the arrowhead.

Edge Frame Projection Screen

User’s Guide

Rev.10252019MZ 6 www.elitescreens.eu

5. Proceed to attach the rest of the material to the frame as described in the illustrations below.

6. If the material is too loose or tight after adjusting all four corner sides, then you will need to reattach the

material.

Please follow the steps below to properly remove the screen material from the frame. This procedure

will ensure prolonging the life of the screen material.

Lay the Velcro end on the screen

material over the Velcro end of the

frame and keep it within the edge.

Proceed in the following sequence

below ①②

The key is to attach within the

middle sections of 1 and 2. Then

continue attaching the remaining

unattached areas.

Repeat the same steps on

remaining three sides in the

sequence A, B, C, and then D as

show below.

Grasp the middle of the screen

material and attach it to the velcro

strip on the frame

Attach in the following sequence: a-b-c-d

Edge Frame Projection Screen

User’s Guide

Rev.10252019MZ 7 www.elitescreens.eu

Screen Material Removal

1. Detach the velcro from the frame.

2. Gently pull back the material to release it from the velcro connections on the corners

Support bar installation (for models under 135”):

1. Position the center support bar (E) in the middle of the frame and align the hole on each end of the

support bar with the M6 hex screws on the top and bottom frames. Then fasten with the M6x12

screws.

Move the M6 hex screw to the middle area of the

frames.

Align the M6 screws

with the two holes.

Pull back the screen material from

the velcro connection along the

edges of the frame to detach it.

Center Support bar

Edge Frame Projection Screen

User’s Guide

Rev.10252019MZ 8 www.elitescreens.eu

Support bar installation (for models 135”- 150"):

1. Position the center support bar (E) and M6 hex screws in the areas of the frame shown in fig 1. (Each

about one thirds the way in from the end of the frame.) Align the hole on each end of the support bar

with the M6 hex screws located at the top and bottom frame sections. Then fasten with the M6x12

screws.

Notice to Installer:

Please use the following installation instructions to obtain superior optical performance from the

Angular Reflective ALR (Ambient Light Rejecting) Screen.

Make sure to follow these instructions in order for the DayWalker screen fabric to perform correctly.

•Angular-Reflective material is not compatible with ultra/short-throw projectors

•Minimum lens throw ratio 1.5x image width

•Ambient light must not come from the same direction as the projector

Center Support Bar

Align the M6 Screws with

the two holes located on the

Center Support Bar.

Figure 1

Move the M6 hex screw to these areas of the frame.

Edge Frame Projection Screen

User’s Guide

Rev.10252019MZ 9 www.elitescreens.eu

Since angular-reflective means that the projected image will reflect at the mirror-

opposite angle, it is important to position the projector so that the viewer will get the best

possible image.

Step 1: Establish the general “eye level” of the viewers

Step 2: Set the appropriate projection level

Step 3: Adjust the screen height level and projection angle

Input Angle (A) = Output Angle (B) aligns with the viewer’s angle

Edge Frame Projection Screen

User’s Guide

Rev.10252019MZ 10 www.elitescreens.eu

Edge trim Installation

Included is an ultra-thin black edge trim that provides an elegant bezel finish

1. Place the assembled frame on a flat and clean surface. The projection screen surface should be facing

up.

a. As an option, Black Tape is supplied to cover any possible gaps between the pieces of the bezel

trim. Align the tape with the edge of the screen, as shown in Figure 1. Once properly aligned,

apply the black tape to the center of the top and bottom of the screen material.

Figure 1

2. Without removing the adhesive tape, place all the trim pieces along the edge of screen material. Adjust

the trim so that the top and bottom trim pieces are touching and show no gaps in the center. (Note: The

Elite logo should be positioned on the bottom right). Refer to Figure 2 below for a visual reference.

NOTE: Make sure the bottom edge trim with the Elite Screens logo is installed on the correct side. The

back of the material should be labeled with a DOWN sticker to indicate the material is facing in the down

position. The Elite Screens logo should be installed on the DOWN side

Edge trim x 6 pcs

Black tape x1pcs

Trim

strip

Screen Material

The black

tape

Front Side

Back Side

Plastic corner sleeve x4pcs

The black tape

Figure 2

TIP:

Align the trim

starting from the

center to reduce

gapping. Any gaps

left at the corners

will be covered by

the corner sleeves.

White area

signifies

corner gap.

Figure 1
