Elite Screens AEON series Manual de usuario

04242020-BR www.elitescreens.com 1

Aeon Series

EDGE FREE®Fixed Frame Screen

USER’S GUIDE

Version 2 (Spring type)

Thank you for choosing an Elite Screens fixed frame projection screen! Congratulations on your new Aeon

Series purchase! Please read through this user guide before utilizing the screen. Correct usage and maintenance

will ensure a long product life.

Care & Use Instructions

Dust, dirt and scratches on the projection surface will affect the picture quality, please take note of the

points below to prevent that from occurring:

1. Do not touch the projection surface with your hands

2. Do not write or draw on the projection surface

3. Do not use fingers or sharp objects to point on the projection surface; this will damage the screen

material.

4. Use a soft-damp cloth to clean the projection surface; do not use chemical cleaning agents or alcohol.

5. Use clean water when dampening the cleaning cloth and do not rub against the material to clean it.

B+C

C+B

Frame Parts List

A. Vertical Frame x 2pcs

B. ½ Horizontal Frame x 2pcs

C. ½ Horizontal Frame x 2pcs

04242020-BR www.elitescreens.com 2

Note: Additional spare parts may be included

Frame Assembly

Step 1. Place a soft-clean cloth on the ground or other flat surface of the area where the screen will be assembled.

Step 2. Position the pieces of the frame face-down on the soft-clean cloth in the arrangement shown below.

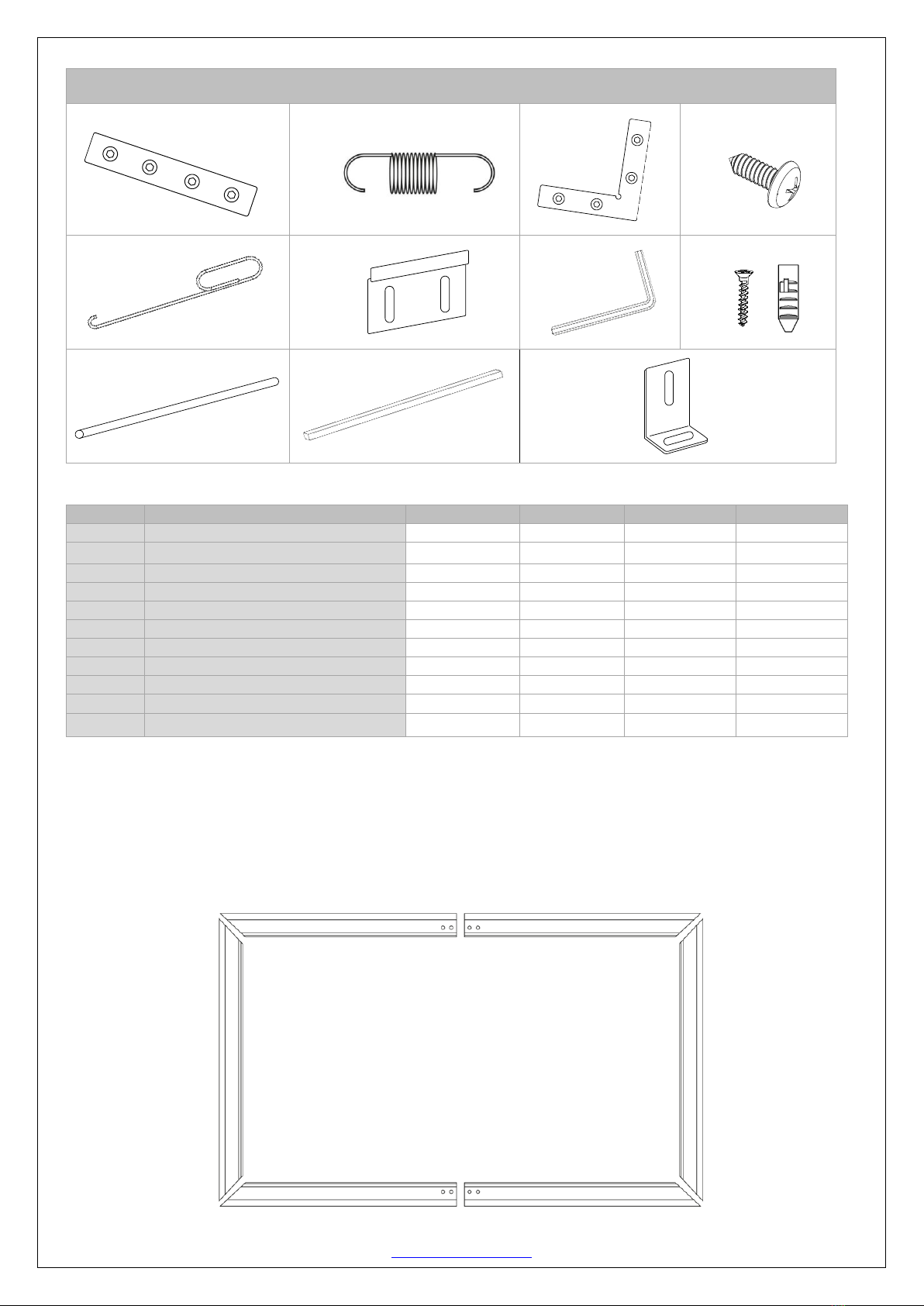

2. Hardware Parts List

Item

Parts List

AR100H

AR120H

AR135H

AR150H

Center Joints

Springs

100

105

120

Elbow Joints

M5*12 Screw

Pull Hook

Wall Bracket

Allen Key

Wood Screws/Anchors

6/6

Tension Rods

Center Support

Bottom Wall Bracket

Corner code

(with screws) 4 pcs

Name Image Quantity

Universal wall

mount 2 pcs

Universal pallet 2 pcs

M5*12 self tap-

-ping screw 12 pcs

6 pcs

Sping hook 2 pcs

Allen wrench 1 pcs

spring

90" 16:9 80 pcs

100"16:9 80 pcs

Name Image Quantity

M5*40 self tap-

-ping screw

110"16:9 100 pcs

120"16:9 100 pcs

M5Expanded

rubber stopper

center sup-

pot bar 1 pcs

04242020-BR www.elitescreens.com 3

Step 3. Using the Center Joint (A) connector, connect 2

horizontal frames and securely fasten with Allen key (G). Do

the same to the other set of horizontal frames.

Step 4. Insert the Elbow Joints (C) to top and bottom sections

of the vertical frame. Once inserted, secure the Elbow Joints

vertical sections to the horizontal frame. Make sure all

corner frame pieces are flush (no gaps). They should

form perfect right angles.

Do not tighten completely until all frame pieces are

assembled correctly.

Note: You may have to loosen and adjust the brackets

and frame pieces. It will help to leave the screws loose until perfect right angles are formed, then tighten the screws

securely.

To prevent permanent damage to the screen material, be sure your hands are clean for the next step.

Step 5. Place the assembled frame to the side and

carefully unroll the screen material face-down on

top of a soft-clean cloth.

Step 6. Insert the four horizontal and two vertical

Tension Rods (I) into the corresponding sides of the

screen material, while keeping the material lying

flat. Careful not to snag on the holes at the edge of the material during this process; forcing the rods may damage

the screen material.

Back side

04242020-BR www.elitescreens.com 4

Step 7. Carefully place the assembled frame on top of

the material and slowly fold the edges over the frame as

shown. Make sure to not allow the angle edge of the

frame to come in direct contact with the screen

material to avoid puncturing it.

Step 8. For this step, ONLY attach the four corners by

inserting the Springs (B) into the grooves of the frame

and attaching them to the material. Make sure the

springs are lined up with the corresponding holes on the

materials edge.

Center Support Bar

Step 9. Two people are suggested for this step. Place the Center Support Bar (J) into the top groove on the back of

the frame at the approximate center point. Carefully pull the bottom horizontal frame outward and place the Center

Support Bar (J) at the approximate center point of the frame. Carefully release the frame once the bar is centered.

(See illustration below)

Step 10. Once the corners and center support bar are secure, continue attaching the reminder of the Springs (B) to

the material. Connect the center of the vertical and horizontal portions of the material, then work your way around

the rest of the frame.

Attention: Do not proceed with the Edge Trim installation until making sure there are no

ripples in the material.

3 3

4 4

3 3

4 4

04242020-BR www.elitescreens.com 5

Edge Trim Installation

Step 11. Place the Edge Trim over each end of the frame and secure with M5x12 screws (D). Start with the center

points first, then the rest of the corners as shown below.

Installation

Step 11. Measure the overall length and height of the frame and drill holes for the Brackets (F). Line up the wall

brackets with the drilled holes on the installation location and screw them in using a Phillips screwdriver. If not

installing into a structural wood stud, use a hollow wall Anchor (H), then screw in the Wood Screws (H) with a

screwdriver. Make sure the brackets are leveled.

Step 12. Position the fixed frame screen onto the top wall brackets as shown below and push down at the center of

the top of the frame to secure.

Step 13. Repeat the same process for the Bottom Brackets (K) by marking the drill-hole area on the wall where

they will be installed. Make sure the brackets are flipped the opposite way mirroring the top brackets. Line up the

bottom wall brackets with the drilled holes on the installation location and screw them in using a Phillips

screwdriver as shown below.

04242020-BR www.elitescreens.com 6

Step 14. Once the fixed frame screen is secure on the wall, place a screw at the bottom connecting the screen to the

bottom bracket.

Caution

Please follow these instructions carefully to ensure proper maintenance and safety of your Fixed Frame Screen

1. When hanging the screen up, please make sure that no other objects such as power switches, outlets, furniture,

ladders, windows, etc. occupy the space designated for your Fixed-Frame screen.

2. Regardless if the screen is hung on or installed into the wall, make sure that the proper mounting anchors are

used and that the weight is supported appropriately by a strong and structurally sound surface just as any large and

heavy picture frame should.

3. (Please consult a home improvement specialist for the best advice on installation)

4. Frame parts are made of high-quality velour-surfaced aluminum and should be handled with care.

5. When not in use, cover over the screen with a furniture sheet to protect it from dirt, grime, paint or any other

impurities.

6. Spare Parts should be placed out of reach of small children in accordance with household safety guidelines.

For Technical Support or an Elite Screens contact in your area, please visit

www.elitescreens.com
