Elba EGC 533 LG Instrucciones de instalación y funcionamiento

Made in Italy

HOME APPLIANCES

100%

ELBA QUALITY

MADE IN ITALY

GAS COOKERS

Models:

EGC 533 WH, EGC 533 CM, EGC 533 LG

Instructions for the use - Installation advices

Dear Customer,

Thank you for having purchased and given your preference to

our product.

The safety precautions and recommendations reported below

are for your own safety and that of others. They will also provide

a means by which to make full use of the features offered by your

appliance.

Please preserve this booklet carefully. It may be useful in futu-

re, either to yourself or to others in the event that doubts should

arise relating to its operation.

This appliance must be used only for the task it has expli-

citly been designed for, that is for cooking foodstuffs. Any

other form of usage is to be considered as inappropriate and

therefore dangerous.

The manufacturer declines all responsibility in the event

of damage caused by improper, incorrect or illogical use of

the appliance.

IMPORTANT SAFETY PRECAUTIONSAND RECOMMENDATIONS

IMPORTANT: This appliance is designed and manufactured

solely for the cooking of domestic (household) food and is

not suitable for any non domestic application and therefore

should not be used in a commercial environment.

The appliance guarantee will be void if the appliance is used

within a non domestic environment i.e. a semi commercial,

commercial or communal environment.

Read the instructions carefully before installing and using

the appliance.

• After having unpacked the appliance, check to ensure that it is

not damaged and that the oven door closes correctly.

In case of doubt, do not use it and consult your supplier or a

professionally qualied technician.

• Packing elements (i.e. plastic bags, polystyrene foam, nails,

packing straps, etc.) should not be left around within easy reach

of children, as these may cause serious injuries.

• Some appliances are supplied with a protective lm on steel and

aluminium parts. Thislmmustberemovedbeforeusingthe

appliance.

• IMPORTANT: The use of suitable protective clothing/gloves is

recommended when handling or cleaning this appliance.

• Do not attempt to modify the technical characteristics of

the appliance as this may become dangerous to use. The

manufacturer declines all responsibility for any inconvenience

resulting from the inobservance of this condition.

• CAUTION: this appIiance must only be installed in a permanently

ventilated room in compliance with the applicable regulations.

• Do not use a steam cleaner because the moisture can get into

the appliance thus make it unsafe.

• If you should decide not to use this appliance any longer (or

decide to substitute another model), before disposing of it, it

is recommended that it be made inoperative in an appropriate

manner in accordance to health and environmental protection

regulations, ensuring in particular that all potentially hazardous

parts be made harmless, especially in relation to children who

could play with unused appliances.

• The various components of the appliance are recyclable.

Dispose of them in accordance with the regulations in force in

your country.

• After use, ensure that the knobs are in the off position.

• Children less than 8 years of age shall be kept away unless

continuously supervised.

• This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

• The manufacturer declines all liability for injury to persons or

damage to property caused by incorrect or improper use of the

appliance.

• WARNING: During use the appliance and its accessible parts

become hot; they remain hot for some time after use.

– Care should be taken to avoid touching heating elements (on

the hob and inside the oven).

– The door is hot, use the handle.

– To avoid burns and scalds, young children should be kept

away.

• Make sure that electrical cables connecting other appliances in

the proximity of the cooker cannot come into contact with the hob

or become entrapped in the oven door.

• WARNING: Unattended cooking on a hob with fat or oil can be

dangerous and may result in re. NEVER try to extinguish a re

with water, but switch off the appliance and then cover ame e.g.

with a lid or a re blanket.

• WARNING: Danger of re: do not store items on the cooking

surfaces.

• WARNING: When correctly installed, your product meets all

safety requirements laid down for this type of product category.

However special care should be taken around the rear or the

underneath of the appliance as these areas are not designed or

intended to be touched and may contain sharp or rough edges,

that may cause injury.

• FIRST USE OF THE OVEN - it is advised to follow these

instructions:

– Furnish the interior of the oven as described in the chapter

“CLEANING AND MAINTENANCE”.

– Switch on the empty oven on max to eliminate grease from the

heating element.

– Let the oven cool down and clean the interior of the oven with a

cloth soaked in water and neutral detergent; then dry carefully.

• CAUTION: Do not use harsh abrasive cleaners or sharp metal

scrapers to clean the oven door glass since they can scratch the

surface, which may result in shattering of the glass.

• Donotlinetheovenwallswithaluminiumfoil.Donotplacebaking

trays or the drip tray on the base of the oven chamber.

• FIRE RISK! Do not store ammable material in the oven.

• Always use oven gloves when removing the shelves and food

trays from the oven whilst hot.

• Do not hang towels, dishcloths or other items on the appliance or

its handle – as this could be a re hazard.

• Clean the oven regularly and do not allow fat or oils to build up in

the oven base or tray. Remove spillages as soon as they occur.

• Do not stand on the cooker or on the open oven door.

• Always stand back from the appliance when opening the oven

door to allow steam and hot air to escape before removing the

food.

• SAFE FOOD HANDLING: Leave food in the oven for as short

a time as possible before and after cooking. This is to avoid

contamination by organisms which may cause food poisoning.

Take particular care during warmer weather.

• WARNING: Take care NOT to lift the cooker by the door handle.

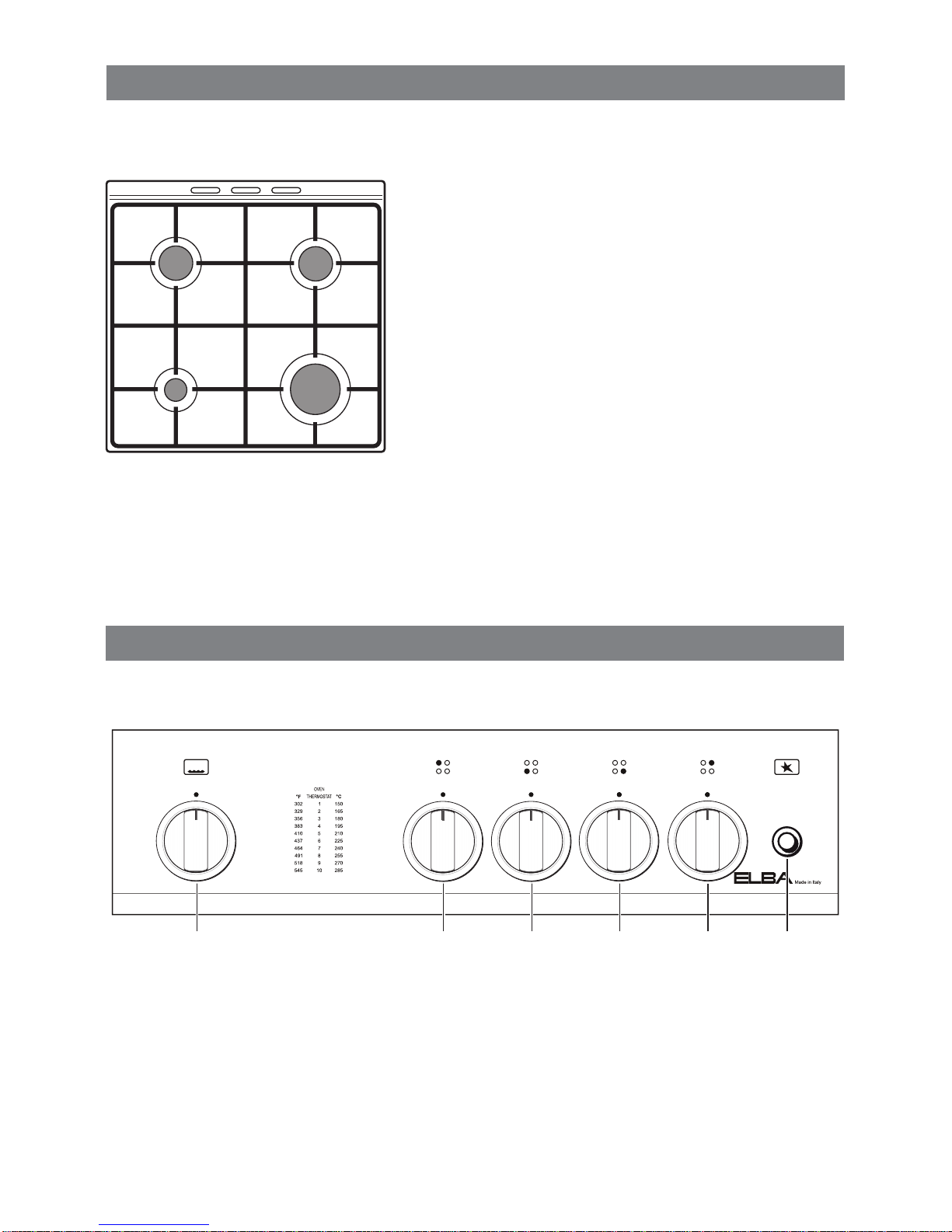

GAS BURNERS

1. Auxiliary burner (A) 1,00 kW

2. Rapid burner (R) 3,00 kW

3. Semi-rapid burner (SR) 1,75 kW

Fig. 1.1

Fig. 2.1

CONTROLS DESCRIPTION

1. Rear right burner control knob

2. Front right burner control knob

3. Front left burner control knob

4. Rear left burner control knob

5. Gas oven control knob

6. Gas burners electronic igniter pushbutton (cooktop burners only)

12345 6

COOKING HOB

CONTROL PANEL

Caution!

The cooking hob becomes very hot

during operation.

Keep children well out of reach.

N.B. When the cooker is not being

used, set the gas knobs to their closed

positions and also close the cock val-

ve on the gas bottle or the main gas

supply line.

Intheeventoftheburneramesbeing

accidentally extinguished, turn off the

burner control and do not attempt to

re-ignite the burner for at least 1 min.

Fig. 3.1

Fig. 3.2

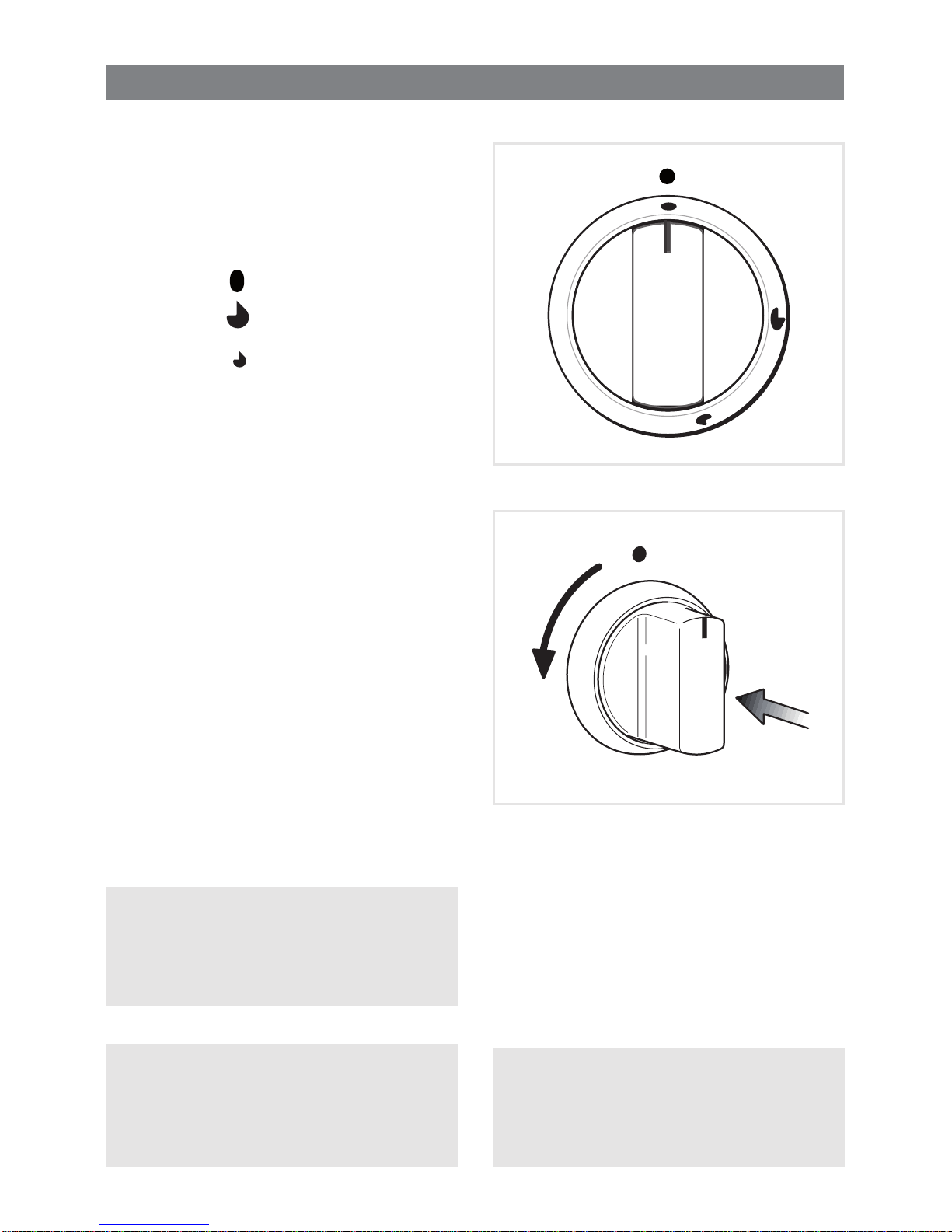

Each burner is controlled by a gas tap (g.

3.1) assuring the opening and the closing

of the gas supply.

Make the knob symbols match with the in-

dicator on the control panel to obtain:

• symbol : off

• symbol : full on (nominal rate)

• symbol : reduced rate

√The maximum aperture position per-

mits rapid boiling of liquids, whereas

the minimum aperture position allows

slower warming of food or maintaining

boiling conditions of liquids.

√To reduce the gas ow to minimum,

rotate the knob further anti-clockwise

to point the indicator towards the small

ame symbol.

√Other intermediate operating

adjustments can be achieved by posi-

tioning the indicator between the maxi-

mum and minimum aperture positions,

and never between the maximum

aperture and closed positions.

USE OF THE HOB BURNERS

CHOICE OF THE BURNER

On the control panel, near every knob, the-

re is a diagram that indicates which burner

is controlled by that knob.

The suitable burner must be chosen ac-

cording to the diameter and the capacity

used.

As an indication, the burners and the pots

must be used in the following way:

DIAMETERS OF PANS WHICH MAY

BE USED ON THE BURNERS

BURNERS MINIMUM MAXIMUM

Auxliliary 12 cm 14 cm

Semi-rapid 16 cm 24 cm

Rapid 24 cm 26 cm

Wok pan Max 36 cm

do not use pans with concave or con-

vex bases

It is important that the diameter of the pot

be suitable to the potentiality of the burner

so as not to compromise the high output

of the burners and therefore energy waste.

Asmall pot on a large burner does not give

you a boiling point in a shorten amount of

time since the capacity of heat absorption

of a liquid mass depends on the volume

and the surface of the pot.

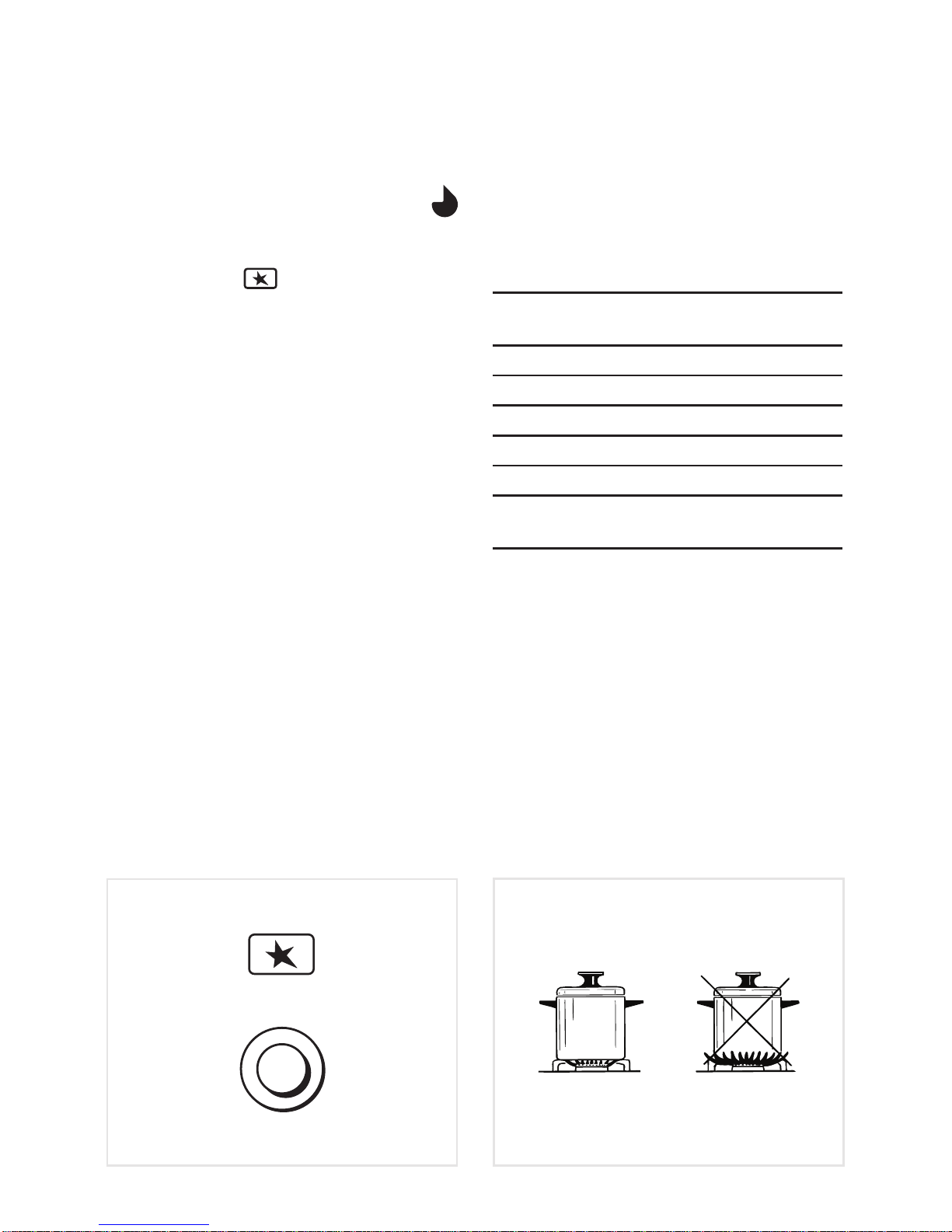

Fig. 3.4

Fig. 3.3

BATTERY IGNITION

If the electronic ignition does not work

make sure that the battery, installed on the

back of the cooker, is not at and has been

installed correctly (see the chapter “Battery

installation”, page 26).

LIGHTING THE BURNERS

To ignite the burner, the following instruc-

tions are to be followed:

1. Press in the corresponding knob and

urn counter-clockwise (g. 3.2 )

to the

full ame position marked by the

(full on) symbol (g. 3.1).

2. Press the ignition button marked by

the symbol (g. 3.3).

The sparks produced by the electro-

des situated next to the burner will

light the selected burner.

In the case of a mains failure light the

burner with a match or lighted taper.

3. Adjust the gas valve to the desired po-

sition.

To turn it off, turn the knob towards the

right, up to the safety click.

If your local gas supply makes it difcult to

light the burner with the knob set to maxi-

mum, set the knob to minimum and repeat

the operation.

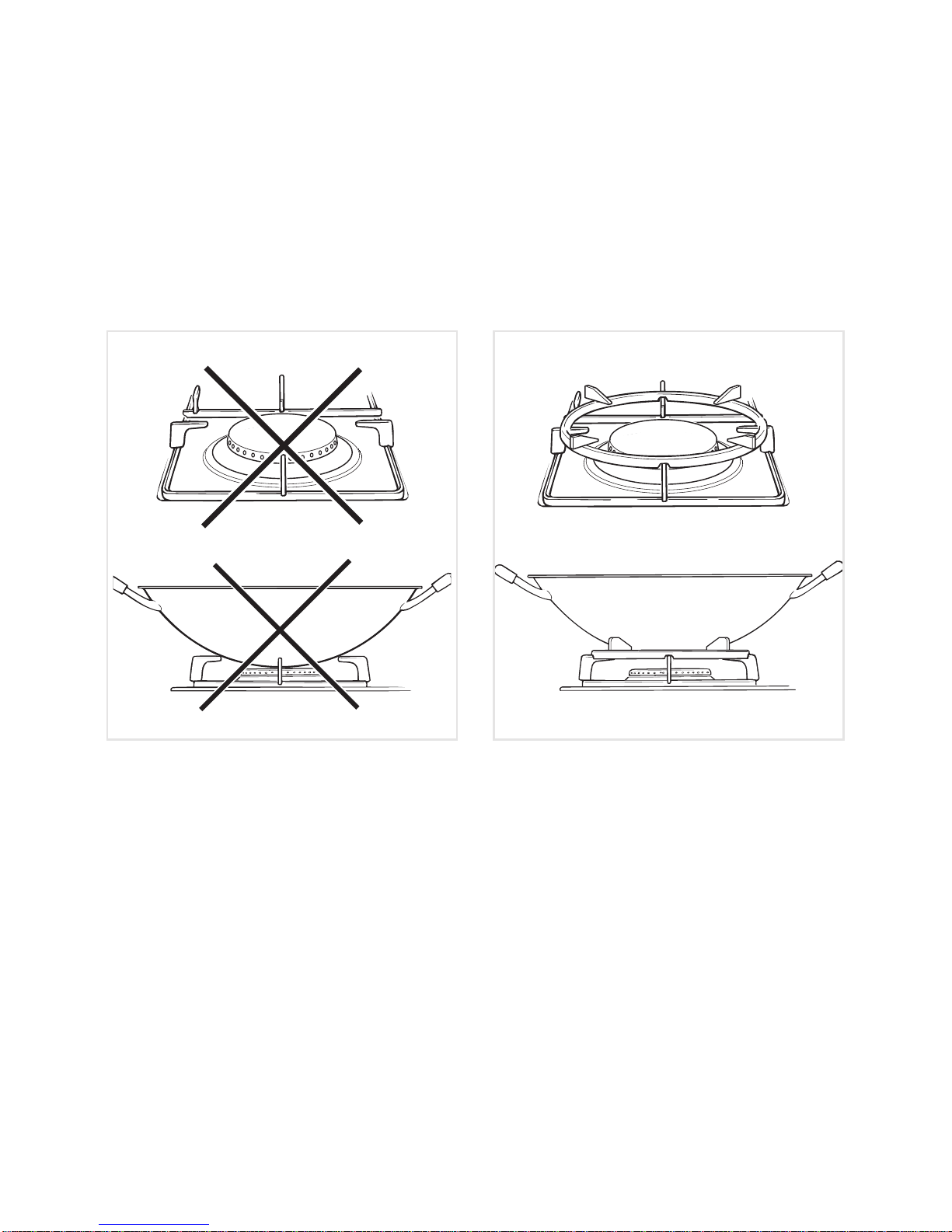

CORRECT USE OF THE RAPID BURNER

The at-bottomed pans are to be placed directly onto the pan-support.

When using a WOK you need to place the supplied stand in the burner to avoid any faulty

operation of the rapid burner (Fig. 3.5a - 3.5b).

IMPORTANT:

The special grille for wok pans (g. 3.5b) MUST BE PLACED ONLY over the pan-rest for

the rapid burner.

WRONG CORRECT

Fig. 3.5a Fig. 3.5b

USE OF THE GAS OVEN

The glass on the oven door reaches

high temperatures during operation.

Keep children away.

The cooker lid must be kept open when

the gas oven is in use.

WARNING:

The door is hot, use the handle.

GENERAL FEATURES

The oven is furnished completely clean; it

is advisable however, upon rst use, to turn

the oven on to the maximum temperature

(position 10) to eliminate possible traces of

grease from the oven burner.

The gas oven is provided with:

• One gas burner (wattage: 3,20 kW),

located at the bottom, providing safety

valve device.

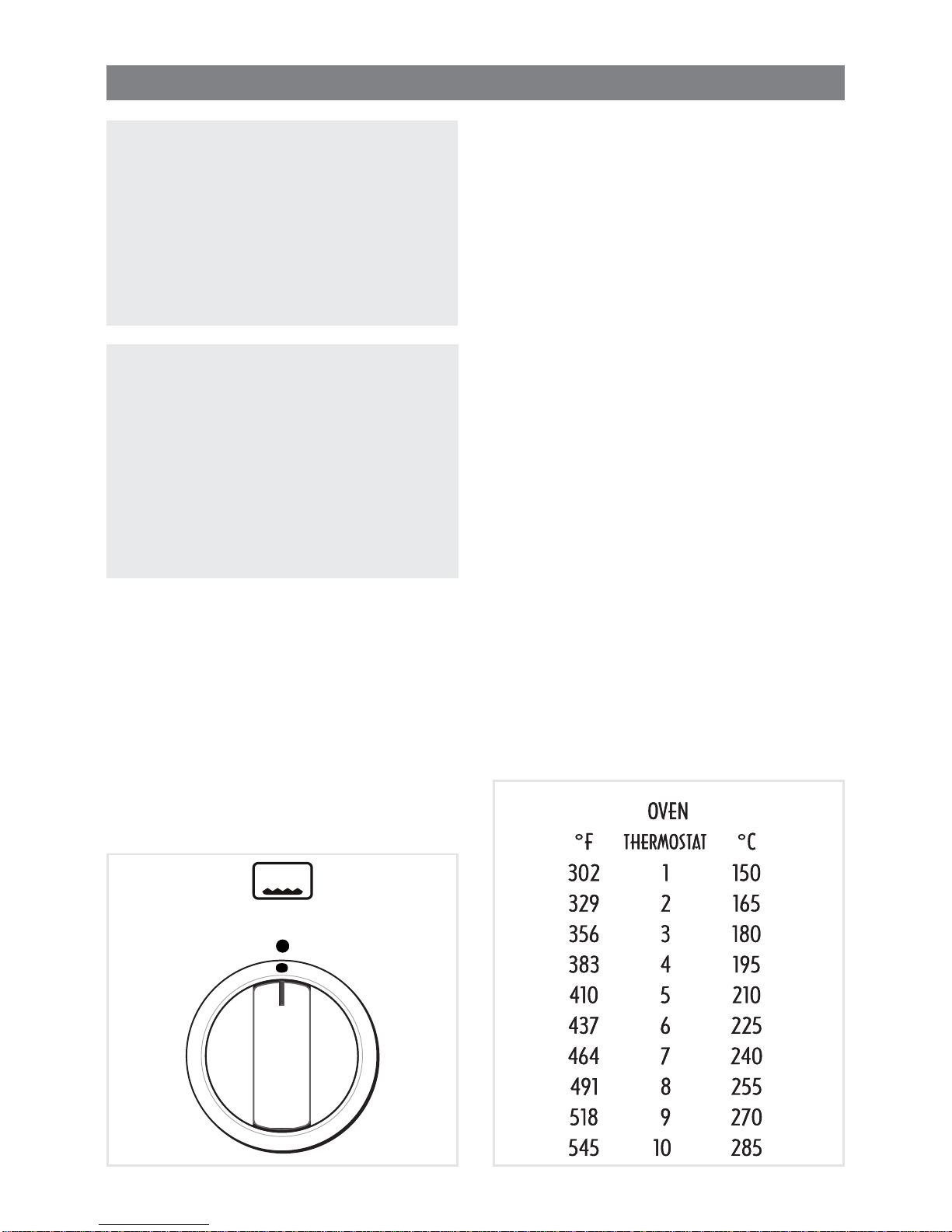

THERMOSTAT

The numbers 1to 10 printed on the knob

(g. 4.1) indicate the increasing oven tem-

perature value (see table 4.2).

To regulate the temperature, make the

chosen number of the knob (g. 4.1) match

with the indicator on the control panel.

The temperature is kept constant on the

regulated value.

The thermostat which regulates the ow of

gas to the oven burner has a safety valve

which automatically shuts off the gas sup-

ply when the ame goes out.

Fig. 4.1

OVEN BURNER

It carries out normal “oven cooking”.

The gas ow to the burner is regulated by

a thermostat which allow to maintain the

oven temperature constant.

The control of the temperature is assured

by a thermostatic probe positioned inside

the oven.

The probe must be always kept in its hou-

sing, in a clean condition, as an incorrect

position or encrustment may cause an al-

teration in the control of the temperature.

OVEN DOOR GUARD

The glass on the oven door reaches high

temperatures during operation.

Forchildsafety,adoorguardcanbetted

to prevent contact with the hot glass.

The door guard (thermoreective door in-

ner glass) is supplied as an accessory at

extra cost, if required.

Contact the After-Sales Service and indi-

cate the model name of your product (see

product data plate).

Table. 4.2

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Estufa de Elba

Elba

Elba EEC 566 WH Instrucciones de instalación y funcionamiento

Elba

Elba EPRC-D9890TWSS Manual de usuario

Elba

Elba EIC-K2026(BK) Manual de usuario

Elba

Elba EPRC-H9880ST Manual de usuario

Elba

Elba 9T VBC 634 Manual técnico

Elba

Elba EC 830 Instrucciones de instalación y funcionamiento

Elba

Elba N55 204 Series Manual técnico

Elba

Elba EXCELLENCE CX 601 G Manual de usuario

Elba

Elba EEC 866 WH Instrucciones de instalación y funcionamiento

Elba

Elba EDIC-K3082ST(BK) Manual de usuario

Elba

Elba N96 EX 780 Instrucciones de instalación y funcionamiento

Elba

Elba N58 205 Series Manual técnico

Elba

Elba EPRC-A6456GE SS Manual de usuario

Elba

Elba S 61 X 631 F Manual técnico

Elba

Elba PXDO 60 Manual técnico

Elba

Elba 9S4EX937N Instrucciones de instalación y funcionamiento

Elba

Elba GAS OVEN SERIES Manual de usuario

Elba

Elba EX 1266 M Manual técnico

Elba

Elba 106 EX 880 Manual técnico

Elba

Elba EIC-K2022 Manual de usuario

Elba

Elba ESP-E6025C(SS) Manual de usuario

Elba

Elba EC 930 Manual de usuario

Elba

Elba DUAL FUEL COOKERS Instrucciones de instalación y funcionamiento

Elba

Elba EGC 836 WH Instrucciones de instalación y funcionamiento

Manuales populares de Estufa de otras marcas

Modena

Modena FC 7645 SGM Manual del propietario

Electrolux

Electrolux Insight EKG6049 Manual de usuario

Stanley

Stanley Donard 60 Manual de usuario

Bartscher

Bartscher 201TC Manual de usuario

Parkinson Cowan

Parkinson Cowan 50 GR/BU Manual de usuario

Siemens

Siemens HK9P00020U Manual de usuario

Creda

Creda S150E Guía

Creda

Creda HB48309 Manual de usuario

Bosch

Bosch HCE743220F Manual de usuario

Tricity Bendix

Tricity Bendix SE545P Manual de usuario

NEFF

NEFF E1461A2/01 Manual de usuario

Zanussi

Zanussi ZCM 700 X Manual de usuario

Smeg

Smeg SNL61MA9 Manual de usuario

RiverGrille

RiverGrille TF2002501-RG Manual de usuario

Vollrath

Vollrath 69504F Manual de usuario

Tricity Bendix

Tricity Bendix CSIE500 Manual de usuario

AEG

AEG Competence 5731 V Manual de usuario

Euromaid

Euromaid ES60 Manual de usuario
