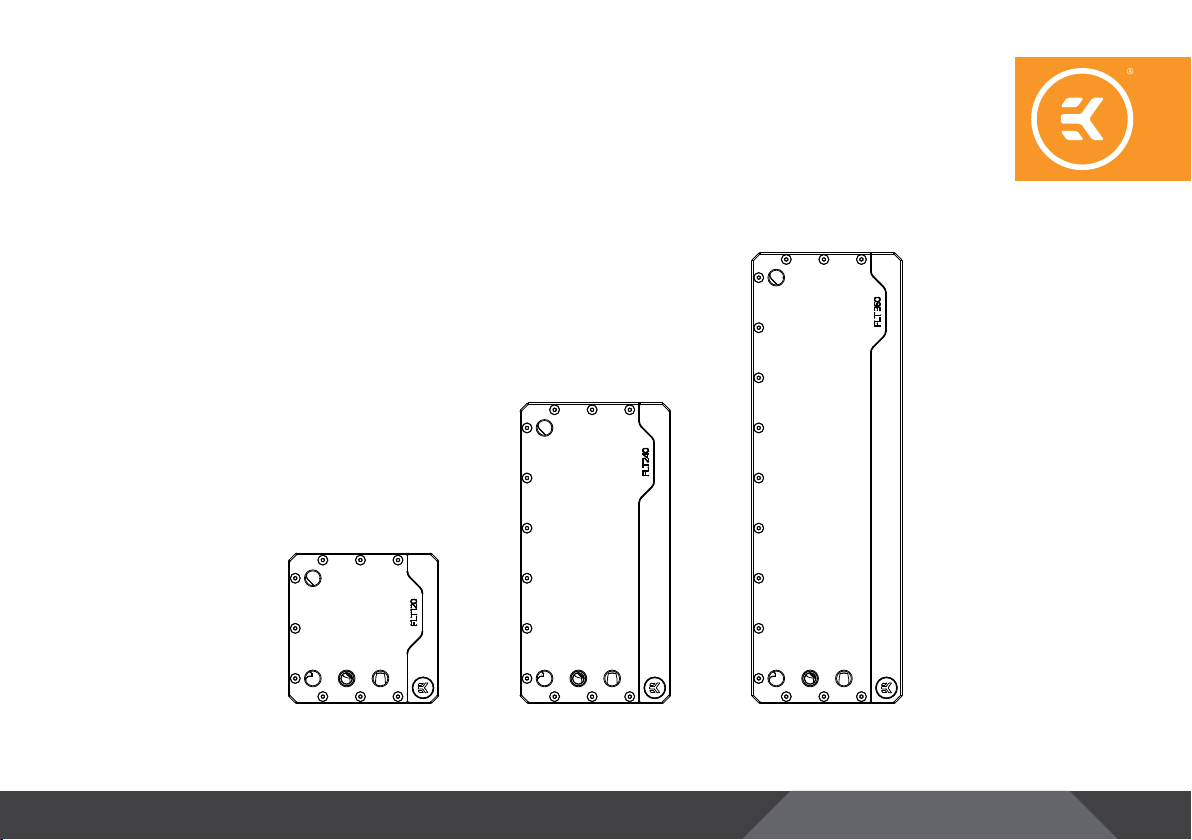

INSTALLATION MANUAL

EKQuantum

Volume / Kinetic FLT

- 2 -

There are many ways to install your EK-Quantum Volume/Kinetic FLT as

it utilizes a standard fan mounting hole pattern with 15mm spacing, the

same as all EK radiators. The mounting holes have standard M4 threads

with maximum engagement of 10mm. Use of longer screws or screws

with incorrect threads such as those intended for fans or radiators may

damage your product!

Before you start using this product please follow these basic

guidelines:

Please carefully read the manual before beginning with the

installation process!

The EK ﬁttings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured by the

rubber o-ring gaskets.

The use of corrosion inhibiting coolants is always recommended

for any liquid cooling system. EKWB recommends any of the

EK-Cryofuel for worry-free usage.

- 3 -

TABLE OF CONTENT

INSTALLING EK-QUANTUM VOLUME / KINETIC FLT DIRECTLY 5

INSTALLING EK-QUANTUM VOLUME / KINETIC FLT WITH SUPPLIED MOUNTS 6

INSTALLING EK-QUANTUM VOLUME / KINETICFLT RESERVOIR IN TO THE CASE 7

ATTACHING THE FITTINGS 9

CONNECTING THE D-RGB LED STRIP 10

TESTING THE LOOP 10

SUPPORT AND SERVICE 11

SOCIAL MEDIA 11

- 4 -

FLT Reservoir can be mount in multiple directions.

Vertically and horizontally position is optional.

Do not mount FLT Reservoir when the pump is in dead position.

- 5 -

Using the included M4 screws you can mount the reservoir directly

to your chassis or any other standard fan mounting location.

INSTALLING EK-QUANTUM VOLUME / KINETIC FLT DIRECTLY

M4 x 10 DIN

7984 Screw

M4 x 10 DIN

7984 Screw

- 6 -

STEP 1

INSTALLING EK-QUANTUM VOLUME / KINETIC FLT WITH SUPPLIED MOUNTS

To enable installation of the reservoir onto fans, radiators or where

clearance for the pump is required EK supplies a pair of FLT mounts

along with M4 nuts, washers and additional screws. They can be

positioned across any pair of mounting holes in several orientations.

STEP 1

Position the mounts as desired on the reverse side of the reservoir.

STEP 2

Screw the mounts in place using supplied M4x8 screws and 2.5mm

allen key.

STEP 2

M4 x 8 DIN 7984 Screw

- 7 -

3a.

Included M4 nuts, washers and M4x10 screws can be used to mount

the ﬂat reservoir to a fan.

INSTALLING EK-QUANTUM VOLUME / KINETICFLT RESERVOIR IN TO THE CASE

120 mm Fan

UNC 6-32 x 30

ISO 7380 Screw

3b.

Using 30mm long screws supplied with your radiator the reservoir

can be mounted onto the radiator and 25mm thick fans together.

M4 x 10 DIN

7984 Screw

M4 Nut

M4 metal Washer

- 8 -

3c.

Alternatively the shorter 5mm long screws from the radiator may be

used to mount only the reservoir.

M4 x 10 DIN

7984 Screw

M4 Nut

3d.

Lastly the supplied M4 nuts, washers and M4x10 screws may be

used to secure the reservoir to a case with the mounts. This is useful

when there is no clearance behind for the pump or to prevent all

airﬂow being blocked

UNC 6-32 x 5

ISO 7380 Screw

Radiator

FLT Mount

M4 metal Washer

- 9 -

EK-Quantum Kinetic FLT has two inlet and two outlet ports, one of each

must be used! All 4 unused ports should be blocked using G1/4 plugs.

ATTACHING THE FITTINGS

EK-Quantum Volume FLT has two ports which can be used as inlet or

outlet, the chosen outlet should connect directly to your pump! The

reservoir should be positioned above the pump to ensure it does not

run without coolant. Both unused ports should be blocked using

G1/4 plugs.

FILL

DRAIN

OUTLET

INTLET

OUTLET

FILL

DRAIN

INTLET / OUTLET

- 10 -

CONNECTING THE D-RGB LED STRIP

Plug the 3-pin connector from Water block’s D-RGB LED light to the

DRGB HEADER on the motherboard. The LED will work if the pin

layout on the header is as follows: +5V, Digital, empty, Ground.

Please ensure that the arrow indicated on the connector is

plugged into the +5V line as indicated on your motherboard.

Failure to do so will damage your motherboard or LED strip.

D-RGB Header

RGB Header

TESTING THE LOOP

To make sure the installation of EK components was successful, we

recommend you perform a leak test for 24 hours.

When your loop is complete and ﬁlled with coolant, connect the

pump to a PSU outside of your system. Do not connect power to

any of the other components. Turn on the PSU and let the pump

run continuously. It is normal for the coolant level to drop during this

process as air collects in the reservoir.

Inspect all parts of the loop, and in the eventuality that coolant leaks,

ﬁx the issue and repeat the testing process. Ensure that all hardware is

dry before the system is powered on in order to prevent any damage.
