NEMA 12 Conversion Kit for

9000X Adjustable Frequency Drive

Installation Manual

New Information

January 2004

NEMA 12 Conversion Kit — Installation Manual

MN04003011E For more information visit:

www.eatonelectrical.com

January 2004

Important Notice – Please Read

The product discussed in this literature is subject to terms and conditions outlined in Eaton

Electrical Inc. selling policies. The sole source governing the rights and remedies of any

purchaser of this equipment is the relevant Eaton Electrical Inc. selling policy.

NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF FITNESS FOR A

PARTICULAR PURPOSE OR MERCHANTABILITY, OR WARRANTIES ARISING FROM COURSE

OF DEALING OR USAGE OF TRADE, ARE MADE REGARDING THE INFORMATION,

RECOMMENDATIONS AND DESCRIPTIONS CONTAINED HEREIN. In no event will Eaton

Electrical Inc. be responsible to the purchaser or user in contract, in tort (including

negligence), strict liability or otherwise for any special, indirect, incidental or consequential

damage or loss whatsoever, including but not limited to damage or loss of use of equipment,

plant or power system, cost of capital, loss of power, additional expenses in the use of

existing power facilities, or claims against the purchaser or user by its customers resulting

from the use of the information, recommendations and descriptions contained herein.

The information contained in this manual is subject to change without notice.

Cover Photo: Cutler-Hammer

9000X Drives

NEMA 12 Conversion Kit — Installation Manual

For more information visit:

www.eatonelectrical.com

MN04003011E

January 2004

Table of Contents

SAFETY

Deﬁnitions and Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

Hazardous High Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

CHAPTER 1 — General

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

CHAPTER 2 — Contents of Kits

OPTN12FR4 (Frame 4) and OPTN12FR5 (Frame 5) . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

OPTN12FR6 (Frame 6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

CHAPTER 3 — Installation

Installation Instructions for Frame 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Installation Instructions for Frame 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Installation Instructions for Frame 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

CHAPTER 4 — Speciﬁcations

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

List of Figures

Figure 2-1: Contents of NEMA Type 12 Kit for

OPTN12FR4 and OPTN12FR5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Figure 2-2: Contents of NEMA Type 12 Kit for

OPTN12FR6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

List of Tables

Table 3-1: Instructions for NEMA Type 12 Kit Installation — Frame 4 . . . . . . . . . 3-1

Table 3-2: Instructions for NEMA Type 12 Kit Installation — Frame 5 . . . . . . . . . 3-4

Table 3-3: Instructions for NEMA Type 12 Kit Installation — Frame 6 . . . . . . . . . 3-7

Table 4-1: NEMA Type 12 Kit — Dimensions and Weight . . . . . . . . . . . . . . . . . . . 4-1

NEMA 12 Conversion Kit — Installation Manual

MN04003011E For more information visit:

www.eatonelectrical.com

iii

January 2004

Safety

Deﬁnitions and Symbols

WARNING

This symbol indicates high voltage. It calls your attention to items

or operations that could be dangerous to you and other persons

operating this equipment. Read the message and follow the

instructions carefully.

This symbol is the “Safety Alert Symbol.” It occurs with either of

two signal words: CAUTION or WARNING, as described below.

WARNING

Indicates a potentially hazardous situation which, if not avoided,

can result in serious injury or death.

CAUTION

Indicates a potentially hazardous situation which, if not avoided,

can result in minor to moderate injury, or serious damage to the

product. The situation described in the CAUTION may, if not

avoided, lead to serious results. Important safety measures are

described in CAUTION (as well as WARNING).

Hazardous High Voltage

WARNING

Motor control equipment and electronic controllers are connected

to hazardous line voltages. When servicing drives and electronic

controllers, there may be exposed components with housings or

protrusions at or above line potential. Extreme care should be taken

to protect against shock.

Stand on an insulating pad and make it a habit to use only one

hand when checking components. Always work with another

person in case an emergency occurs. Disconnect power before

checking controllers or performing maintenance. Be sure

equipment is properly grounded. Wear safety glasses whenever

working on electronic controllers or rotating machinery.

WARNING

After disconnecting the utility, wait until the unit cooling fan stops

and the indicators on the control panel are extinguished (if no

keypad is present, check the indicators in the cover). Wait ﬁve more

minutes before doing any work on the connections. Do not open

the cover before this time has run out.

NEMA 12 Conversion Kit — Installation Manual

For more information visit:

www.eatonelectrical.com

MN04003011E

January 2004

NEMA 12 Conversion Kit — Installation Manual

MN04003011E For more information visit:

www.eatonelectrical.com

1-1

January 2004

Chapter 1 — General

The NEMA Type 12 Kit is used to convert a Cutler-Hammer

9000X drive by Eaton Electrical

from a NEMA Type 1 to a NEMA Type 12 enclosure. A NEMA Type 12 enclosure may be

necessary when the adjustable frequency drive is used in ambient conditions that may

contain moisture or dust.

According to standard IEC 60529 (EN 60 529), the NEMA Type 12 adjustable frequency drives

enclosure provides protection against dust and water sprayed from all directions. Limited

ingress of both is permitted.

Note:

A NEMA Type 12 enclosure does not protect the adjustable frequency drive against

strong jets of water or against the effects of immersion.

NEMA 12 Conversion Kit — Installation Manual

1-2

For more information visit:

www.eatonelectrical.com

MN04003011E

January 2004

NEMA 12 Conversion Kit — Installation Manual

MN04003011E For more information visit:

www.eatonelectrical.com

2-1

January 2004

Chapter 2 — Contents of Kits

OPTN12FR4 (Frame 4) and OPTN12FR5 (Frame 5)

The contents of the NEMA Type 12 Kits for Frames 4 and 5 are shown in

Figure 2-1

Figure 2-1: Contents of NEMA Type 12 Kit for OPTN12FR4 and OPTN12FR5

Components

1. NEMA 12 Enclosure

2. Removable Conduit Plate

3. NEMA 12 Cable Cover with

Auxiliary Fan

4. Screws (M4x10)

5. Grounding Terminals

6. Screws (M4x8)

7. Screws (M4x16)

8. Caution Label

9. Control Cable Entry Clamps

NEMA 12 Conversion Kit — Installation Manual

2-2

For more information visit:

www.eatonelectrical.com

MN04003011E

January 2004

OPTN12FR6 (Frame 6)

The contents of the NEMA Type 12 Kit for Frame 6 is shown in

Figure 2-2

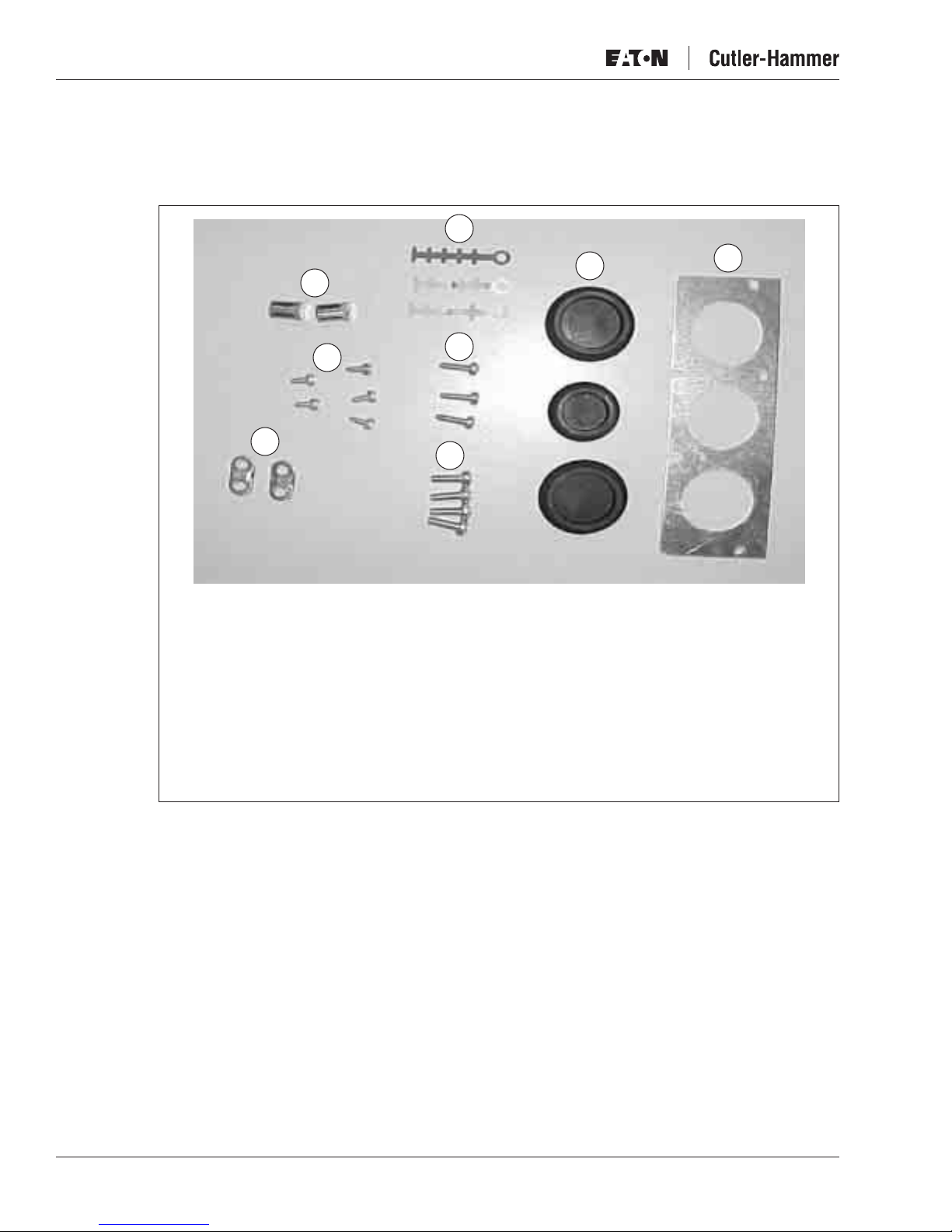

Figure 2-2: Contents of NEMA Type 12 Kit for OPTN12FR6

Components

1. Grounding Terminals

2. Screws, M4x10

3. Grounding Cable Clamps

4. Cable Clamps

5. Screws, M4x16

6. Grounding Screws M5x16

7. Rubber Grommets (sizes vary from class to class)

8. Cable Entry Flange
