TYPICAL FRONT-LOAD DIN MOUNTING METHOD

Please read entire manual before installation.

Before You Start

• Disconnect negative battery terminal. Consult a qualified technician for instructions.

• Avoid installing the unit where it would be subject to high temperatures, such as from

direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

Getting Started

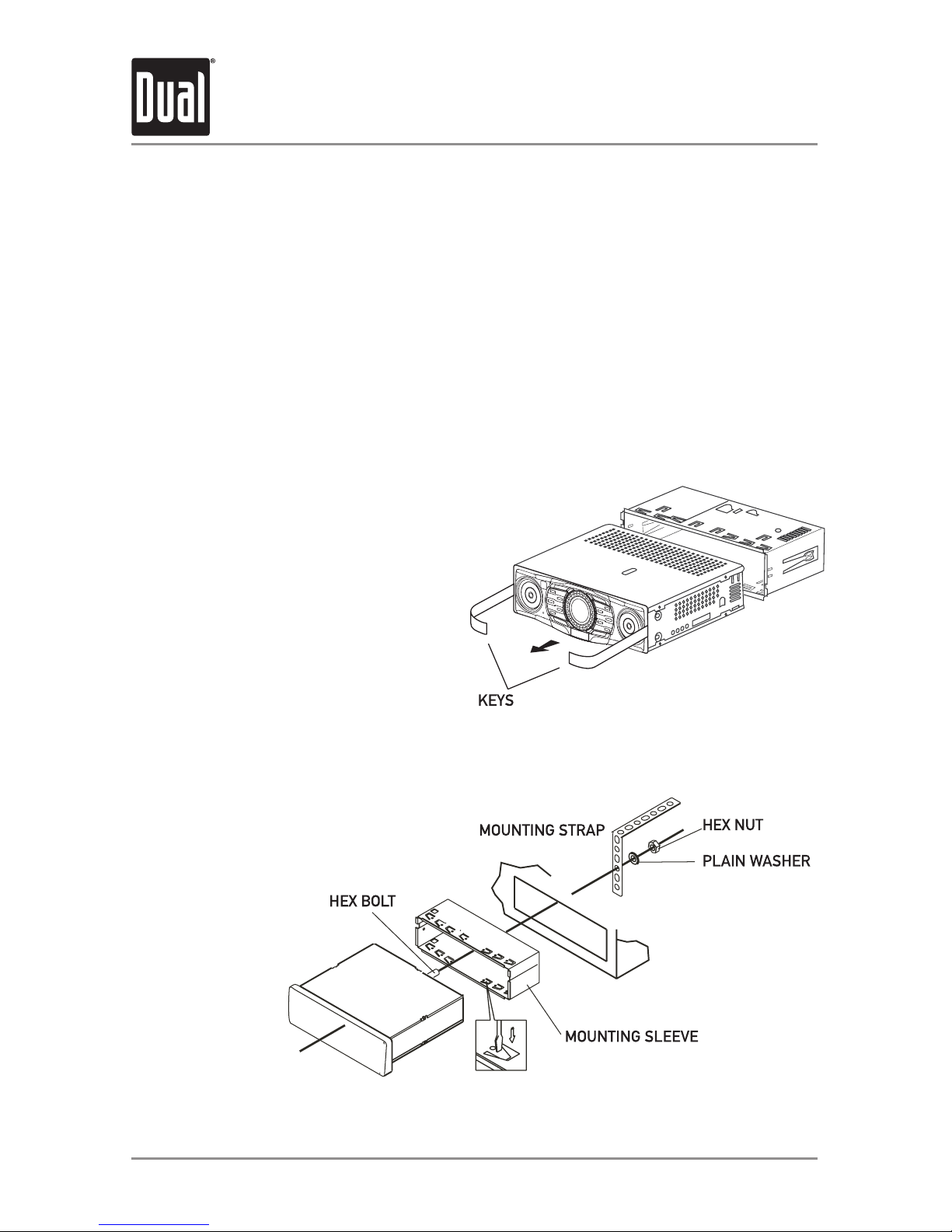

• Remove trim ring from unit,

• Remove 2 transit screws located

on top of the unit.

• Insert the supplied keys into the

slots as shown, and slide the unit

out of the mounting sleeve.

• Install mounting sleeve into

opening, bending tabs to secure.

• Connect wiring harness and

antenna. Consult a qualified

technician if you are unsure.

• Certain vehicles may require an

installation kit and/or wiring

harness adapter (sold separately).

• Test for correct operation and slide

into mounting sleeve to secure.

• Snap trim ring into place.

• Mount the iplug™ adapter to any

smooth clean surface using the

supplied double-sided tape or #2 x

3/8” Phillips head screws.

XDMR7710 INSTALLATION

Preparation

Get user manuals: See SafeManuals.com

FUSE

When replacing the fuse,

make sure new fuse is the

correct type and amperage.

Using an incorrect fuse

could damage the radio.

The XDMR7710 uses one

10 amp ATM fuse located

beside the wiring connector.

XDMR7710 INSTALLATION

Wiring Diagram

Get user manuals: See SafeManuals.com

Mode/Search

Display

Preset #2/Random

Preset #1/Repeat

Open

Volume

Eject

Preset #6/Menu

*Key/Preset #7/Return

Tune/Track Down

Folder Up

AS/PS/Enter/Function

Tune/Track Up

Folder Down

*Key/Preset #8/Tuner Scan

*Key/Preset #9

*Key #0/Preset #10

Band/Play/Pause/Scroll

Infrared Sensor

Power

Preset #5

Preset #4

Preset #3/Intro

Reset

Audio/Setup

Record

24 19

1 2 56

*Function keys 7, 8, 9 and 0 apply to XM Radio and MP3/WMA operation only.

XDMR7710 OPERATION

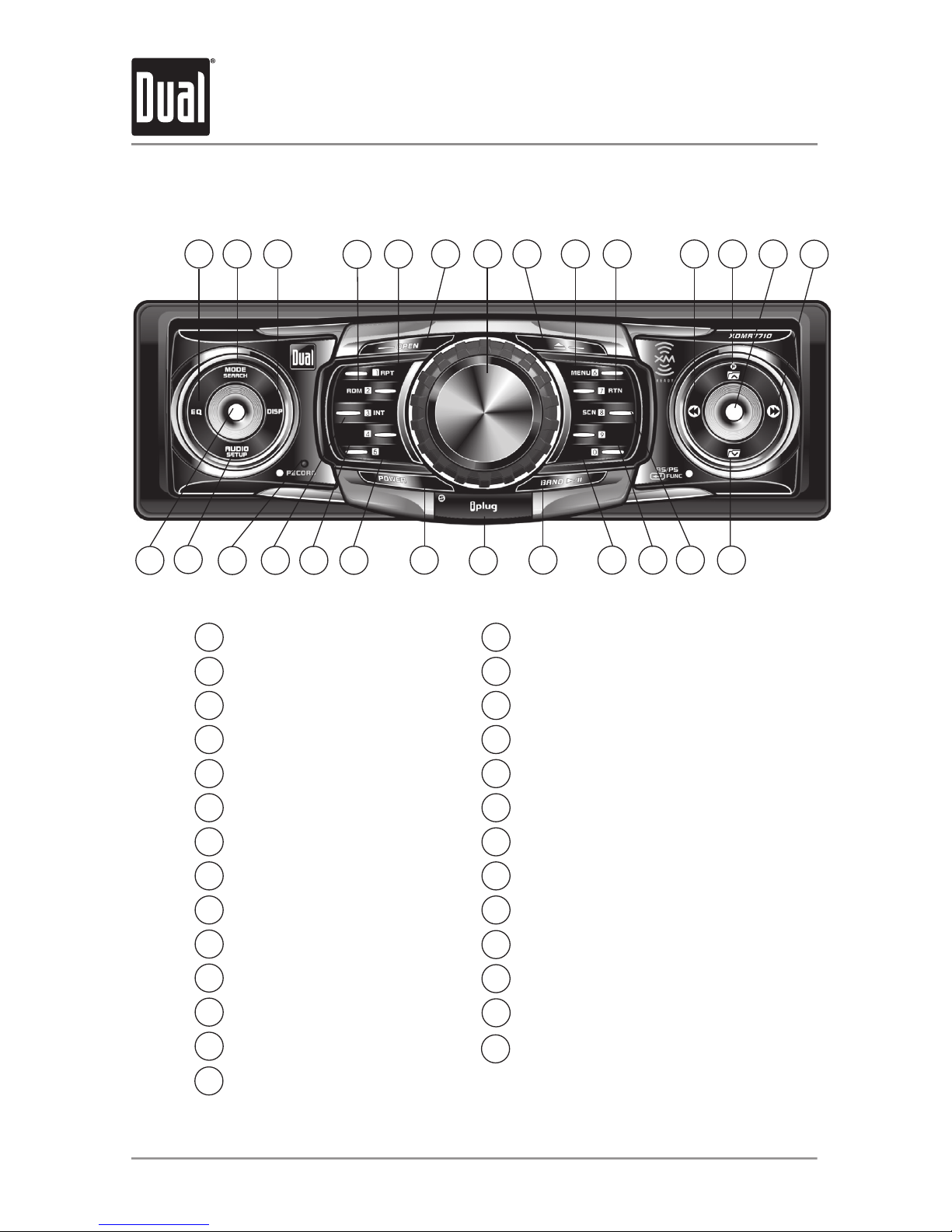

Control Locations - Receiver

1516

8 9 107

23 21

22 18

3 11 12 13

Get user manuals: See SafeManuals.com

XDMR7710 OPERATION

Control Locations - Remote

*Key/Preset #9

*Key/Preset #8/Tuner Scan

*Key/Preset #7/Return

Preset #5

Preset #4

Preset #1/Repeat

Mode/Search

Tune/Track Down

Band/Play/Pause/Scroll

Power

Volume Up

AS/PS/Enter/Function

Audio/Setup

Tune/Track Up

*Key #0/Preset #10

Volume Down

Preset #3/Intro

Preset #2/Random

Preset #6/Menu

Get user manuals: See SafeManuals.com

The front panel is semi-permanently attached during

assembly. Please refer to the separate yellow instructions

(before installation) to make the front panel removable.

With the unit off, press OPEN to allow the front panel to slide

down. Gently squeeze the release tab located on the bottom

center underside and pull front panel down and away from

unit to remove. To install, insert left side first, then push right

side to secure.

Press POWER or any other button (except EJECT or OPEN)

to turn the unit on. Inserting a disc will turn the unit on

automatically. Press POWER to turn the unit off.

Press MODE to select between AM/FM, *XM Radio, CD

player and auxiliary input. Modes of operation are indicated

in the display. *Optional XM Satellite Radio Receiver and

subscription required for XM Radio operation.

Adjust volume using rotary encoder (00-46).

Press and hold POWER for 3 seconds to program currently

selected volume level. "P-VOL" and the current volume level

will momentarily appear in the display.

Press EQ to select between POP, JAZZ, CLASSIC, BEAT,

ROCK and OFF (default) equalization curves. Any adjustment

to the Bass or Treble settings automatically cancels the

current EQ curve (if one is selected).

When in AM/FM, CD or AUX mode:

Press DISP to select between clock and radio frequency

(tuner mode), clock and CD elapsed time/track (CD mode), or

clock and AUX (AUX mode).

When in XM Radio mode:

Press DISP to select between channel name, artist name,

song title or clock.

With the unit on, press and hold DISP until the clock begins to

flash, then release. Press TUNE

to adjust the hours and

TUNE

to adjust the minutes. Press DISP momentarily to

save the selected time.

Front Panel Note:

Front Panel Removal

Power On/Off

Mode

Volume

Programmable

Turn-On Volume

Preset EQ Curves

Display

Set the Clock

XDMR7710 OPERATION

General Operation

Get user manuals: See SafeManuals.com

XDMR7710 OPERATION

General Operation - Setup Menu

Menu Function Options Action

Loudness Curve LOUD OFF Disables the loudness function.

LOUD ON Enables the loudness function. Activating this feature

will enhance the bass and treble frequencies when

listening to music at low volumes.

Clock Display

Priority

FUNC PRI Radio frequency (tuner mode), XM information (XM

mode), CD elapsed time/track or MP3/WMA file

information (CD mode) or AUX (AUX mode) will be

displayed by default. Clock is accessed by pressing

DISP momentarily.

CLK PRI Clock will be displayed by default. Radio frequency

(tuner mode), XM information (XM mode), CD elapsed

time/track or MP3/WMA file information (CD mode) is

accessed by pressing DISP momentarily.

Tuner Frequency

Spacing

FREQ USA Programs the unit to USA tuner spacing.

(200kHz for FM and 10kHz for AM)

FREQ EUR Programs the unit to European tuner spacing.

(50kHz for FM and 9kHz for AM)

Clock Display CLK OFF Programs the unit to not display the clock when the

power is off.

CLK ON Programs the unit to display the clock when the power

is off.

Auxiliary Mode AUX ON Enables access to auxiliary mode.

AUX OFF Disables access to auxiliary mode.

Beep

Confirmation

BEEP OFF Disables the confirmation beep.

BEEP ON Enables the confirmation beep.

Local/Distance

Tuning

LOC OFF Activates Distance tuning.

LOC ON Activates Local tuning for strong station reception only.

12/24-hour Clock

Setup Menu

The clock will display 12-hour AM/PM time in USA frequency

spacing mode (PM 10:00). In European frequency spacing

mode, the clock will display 24-hour time (22:00).

Press and hold SETUP for more than 3 seconds to access

the setup menu. Press SETUP momentarily to select

between the menu functions and rotate the rotary encoder

left/right to adjust or activate the desired function.

Get user manuals: See SafeManuals.com

Press AUDIO momentarily to select between Volume

(default), Bass, Treble, Balance, & Fader.

Press AUDIO until BAS appears then rotate encoder

left/right to adjust ( -6 minimum / +6 maximum).

Press AUDIO until TRE appears then rotate encoder

left/right to adjust ( -6 minimum / +6 maximum).

Press AUDIO until BAL appears then rotate encoder

left/right to adjust (BAL L 12-BAL 00-BAL R 12).

BAL 00 represents equal balance

Press AUDIO until FAD appears then rotate encoder

left/right to adjust (FAD F 12-FAD 00-FAD R 12).

FAD 00 represents equal fader

Individual Bass and Treble settings are retained in memory

for AM, FM, CD, XM, and AUX modes. This allows you to

save the Bass and Treble settings separately for each mode.

Note:

Any adjustment to the Bass or Treble settings automatically

cancels the current EQ curve (if one is selected).

Press RESET upon initial installation or if abnormal

operation occurs. Refer to page 4 for the reset button

location.

This feature is available when used with the EAUSB20

Media Link Adapter (sold separately).

This feature is available when used with the EAUSB20

Media Link Adapter (sold separately).

This feature is available when used with the EAUSB20

Media Link Adapter (sold separately).

Audio

Bass

Treble

Balance

Fader

Source Audio Memory

Reset

Record

Return

XDMR7710 OPERATION

General Operation

BASSVOLUME TREBLE BALANCE FADER

Get user manuals: See SafeManuals.com

Seek Tuning

Manual Tuning

Scan Tuning

Band

Storing and Recalling

Station Presets

Automatically Store

Stations

Preset Scan

Press TUNE

or TUNE

momentarily to seek the

next strong station.

Press TUNE

or TUNE

for more than 2 seconds,

then release. "MANUAL" will momentarily appear in the

display. Press TUNE

or TUNE

momentarily to

move radio frequency up or down one step at a time. Press

and hold to advance quickly. If tuning is not adjusted for 5

seconds, the unit will return to seek tuning mode (default).

"AUTO" will momentarily appear in the display.

Press SCN to preview strong stations on the current band,

pausing for 5 seconds at each. Press SCN again to cancel.

Press BAND to select between FM1, FM2, FM3, AM1 and

AM2 bands.

Up to 18 FM stations and 12 AM stations can be stored. To

store a station, select the desired band and station. Press

and hold the desired preset button (1-6) for more than

2 seconds. When stored, the preset number will appear in

the display. The station can be recalled anytime by pressing

the corresponding preset button.

Note:

Function keys 7, 8, 9 and 0 apply to XM Radio and MP3/WMA

operation only.

Press AS/PS for more than 2 seconds to automatically store

the six strongest stations in the current band. Automatic

Local tuning is activated during the initial band scan.

Press AS/PS for less than 2 seconds to scan presets 1-6 on

the current band, pausing for 5 seconds at each. Press

AS/PS again to cancel.

XDMR7710 OPERATION

AM/FM Tuner Operation

Get user manuals: See SafeManuals.com

XM Radio Activation

Activating Your XM Receiver

(when connected)

Tuning Modes

Basic Channel Selection

Direct Channel Selection

Category Recall

1. Press MODE to select XM Radio.

2. Verify channel 1 (XM Preview Channel) is playing.

3. Select Channel 0. The XM receiver’s eight character Radio

ID number will appear on the XDMR7710 display.

The Radio ID number is also located on the XM receiver

unit (sold separately).

4. Record the number here for future reference:

5. Activate your XM Satellite Radio service.

To subscribe, log onto http://www.xmradio.com/activation

or call 1-800-967-2346.

Note:

You will need to keep your XDMR7710 turned on for at least

one hour after requesting activation to receive the full

channel line-up.

Press BAND to select between XM DIRECT, XM1 and XM2

bands.

Press TUNE

or TUNE

momentarily to select the

next available channel. Press and hold to advance quickly.

Press BAND to select XM DIRECT channel entry band.

“DIRECT” will momentarily appear in the display. Enter

the desired channel using buttons 1-0, then press FUNC for

3 seconds to confirm the selected channel. If the channel is

not available, the current channel will be retained.

Press FUNC once to display the category of the currently

selected channel for 10 seconds. The CATEGORY icon will

appear on the display.

XM Radio Operation

XDMR7710 OPERATION

Get user manuals: See SafeManuals.com

Otros manuales para iPlug XDMR7710

Tabla de contenidos

Otros manuales de Receptor de Dual

Dual

Dual MGH37BT Instrucciones de funcionamiento

Dual

Dual USER MANUAL Instrucciones de funcionamiento

Dual

Dual xdvd136bt Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Dual

Dual XDVD8181 Manual de usuario

Dual

Dual CR 900 RC Manual de usuario

Dual

Dual XDVD179BT Instrucciones de funcionamiento

Dual

Dual DCPA901 Instrucciones de funcionamiento

Dual

Dual XRM59BT Instrucciones de funcionamiento

Dual

Dual XDM17BT Instrucciones de funcionamiento

Dual

Dual DM720 Instrucciones de funcionamiento

Dual

Dual XDVD770BT Instrucciones de funcionamiento

Dual

Dual AXV830 Instrucciones de funcionamiento

Dual

Dual XVM1000Ui Instrucciones de funcionamiento

Dual

Dual XRM59BT Manual de usuario

Dual

Dual XD28BT Manual de usuario

Dual

Dual DXRM58BT Manual de usuario

Dual

Dual MXD339BT Instrucciones de funcionamiento

Dual

Dual XDVD251BT Instrucciones de funcionamiento

Dual

Dual XRM69DBT Instrucciones de funcionamiento

Dual

Dual VX2529 Instrucciones de funcionamiento

Dual

Dual XRM69RGB Manual de usuario

Dual

Dual XDM6800 Instrucciones de funcionamiento

Dual

Dual XDM16BT Manual de usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario

Dish Network

Dish Network Satellite Television Manual de usuario

Dual iPlug XDMR7710 Instrucciones de funcionamiento

Manuales populares de Receptor de otras marcas
