Dual XD1222 Instrucciones de funcionamiento

AM/FM/CD Receiver with Auxiliary Input, USB Charging Port and

Detachable Face

XD1222

Charge Port

INSTALLATION/OWNER'S MANUAL

Preparation

KEYS

HEX BOLT

MOUNTING SLEEVE

PLAIN WASHER

HEX NUT

MOUNTING STRAP

TYPICAL MOUNTING METHOD

XD1222 INSTALLATION

Please read entire manual before installation.

Before You Start

•Disconnectnegativebatteryterminal.Consultaqualifiedtechnicianforinstructions.

•Avoidinstallingtheunitwhereitwouldbesubjecttohightemperatures,suchasfrom

directsunlight,orwhereitwouldbesubjecttodust,dirtorexcessivevibration.

Getting Started

•Remove2transitscrewslocatedontopoftheunit.

•Insertthesuppliedkeysintotheslotsasshown,andslidetheunitoutofthemounting

sleeve.

•Installmountingsleeveintoopening,bendingtabstosecure.

•Connectwiringharnessandantenna.Consultaqualifiedtechnicianifyouareunsure.

•Certainvehiclesmayrequireaninstallationkitand/orwiringharnessadapter(sold

separately).

•Testforcorrectoperationandslideinto

mounting sleeve to secure.

•Snaptrimringintoplace.

Rear Preamp Output

Connect to amplifier RCA input

Antenna Connector

RCA Cable

(sold separately)

AMP

BLUE

BLACK

RED

YELLOW

Remote Turn-On

Connect to amplifier or power

antenna. Insulate wire if not used.

Ground

Connect to vehicle

chassis ground.

Accessory

Connect to ignition

circuit or switched 12 volt source.

Memory

Connect to battery

circuit or constant 12 volt source.

Right Front

Gray/Black (-)

Gray (+)

Left Front

White/Black (-)

White (+)

Right Rear

Violet/Black (-)

Violet (+)

Left Rear

Green/Black (-)

Green (+)

5 AMP

AGC Fuse

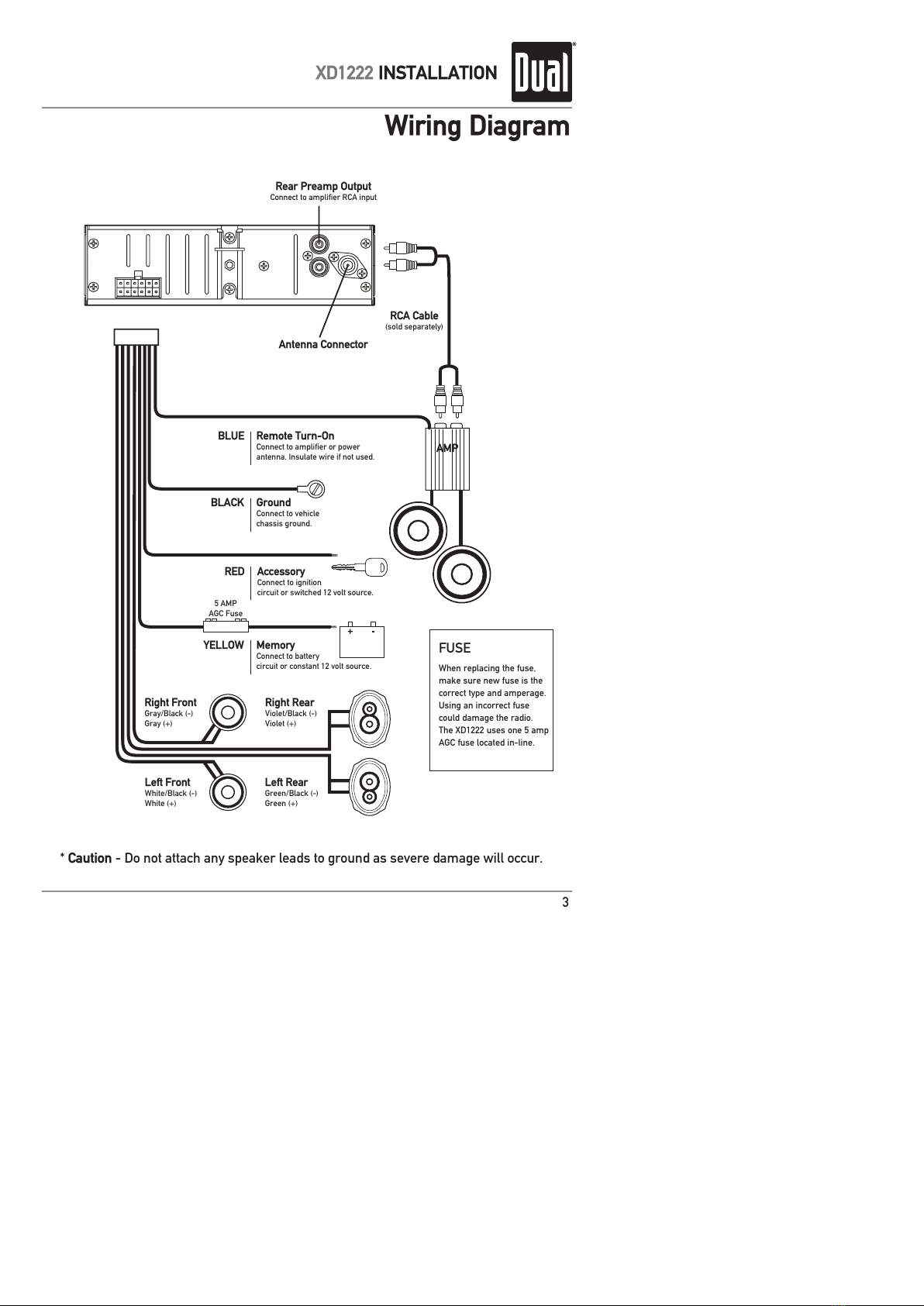

Wiring Diagram

FUSE

When replacing the fuse,

makesurenewfuseisthe

correct type and amperage.

Using an incorrect fuse

could damage the radio.

TheXD1222usesone5amp

AGC fuse located in-line.

* Caution-Donotattachanyspeakerleadstogroundasseveredamagewilloccur.

XD1222 INSTALLATION
