Dual MCD139BT Instrucciones de funcionamiento

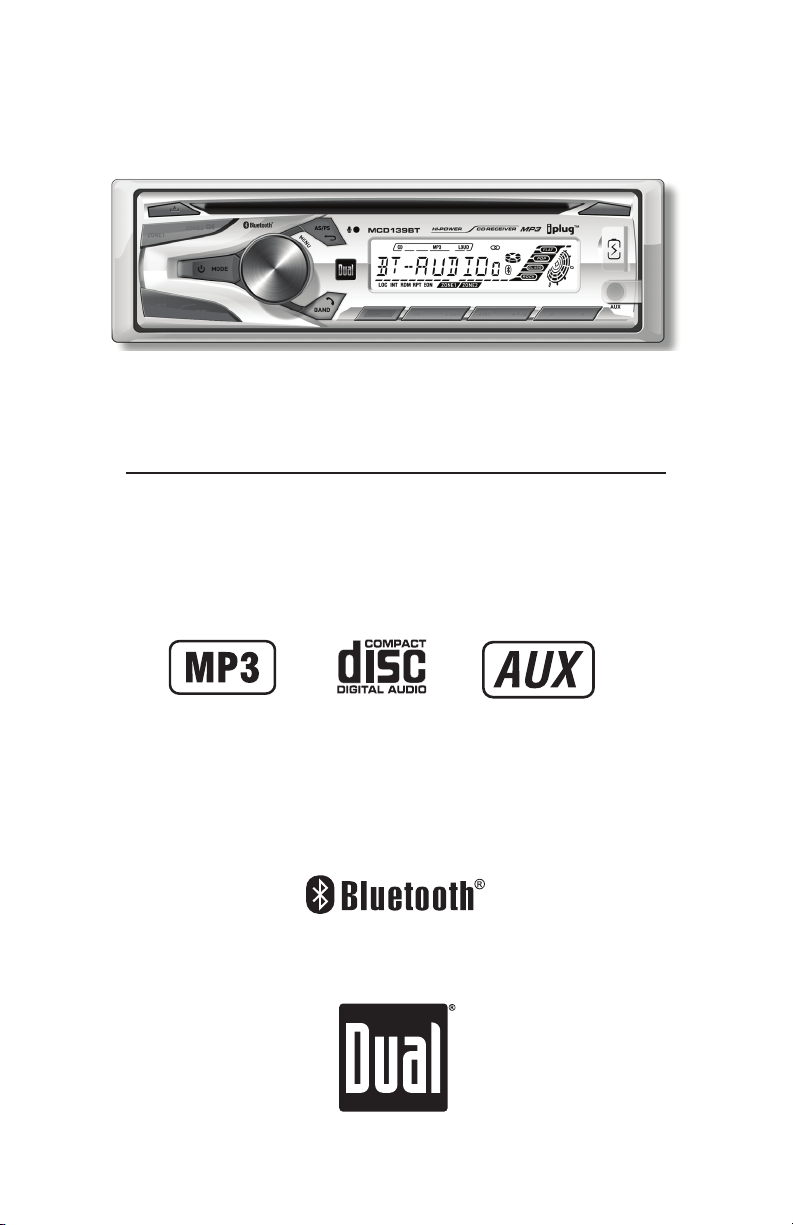

INSTALLATION/OWNER'S MANUAL

AM/FM/CD Receiver

MCD139BT

MCD139BT INSTALLATION

Preparation

Please read entire manual before installation.

Before You Start

• Disconnect negative battery terminal. Consult a qualified technician for instructions.

• Avoid installing the unit where it would be subject to high temperatures, such as from

direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

Getting Started

• Remove trim ring from unit.

• Remove 2 transit screws located on top of the unit.

• Insert the supplied keys into the slots as shown, and slide the unit out of the mounting

sleeve.

• Install mounting sleeve into opening, bending tabs to secure.

• Connect wiring harness and antenna. Consult a qualified technician if you are unsure.

• Certain vehicles may require an installation kit and/or wiring

harness adapter (sold separately).

• Test for correct operation and slide into mounting sleeve to secure.

• Snap trim ring into place.

TYPICAL FRONT-LOAD DIN MOUNTING METHOD

FUSE

When replacing the

fuse, make sure new

fuse is the correct type

and amperage. Using

an incorrect fuse could

damage the radio.

The

10 amp AGC fuse

located beside the wiring

connector.

10 AMP

AGC Fuse

unit uses one

Antenna

Connector

Remote Turn On

Connect to amplifier or power

antenna. Insulate wire if not used.

MCD139BT INSTALLATION

Wiring Diagram

FUSE

10 AMP

AGC Fuse

When replacing the

fuse, make sure new

fuse is the correct type

and amperage. Using

an incorrect fuse could

damage the radio.

The unit uses one

10 amp $7& fuse located

beside the wiring

connector.

Antenna

Connector

Remote Turn On

Connect to amplifier or power

antenna. Insulate wire if not used.

MCD139BT OPERATION

Control Locations

Preset 5 / Folder Down

Preset 4 / Play / Pause

Preset 3 / Intro

Preset 2 / Random

Preset 1 / Repeat

Display

Band / Bluetooth Talk

Reset

Tune / Track Up

Tune / Track Down

Release

Speaker Zone 1

Speaker Zone 2 / Mute

Power / Mode

Volume Knob

AS/PS / Go Back

Eject

USB Charging Port

Auxiliary Input

Preset 6 / Folder Up

1 3 4 7

1 11

2 12

3 13

4 14

5 15

6 16

7 17

8 18

16 15 14 13 12 11 1020 18

MCD139BT OPERATION

Press or any other button (except EJECT) to turn the unit

on. Press to turn the unit off.

Press MODE to select between AM/FM, CD player, Bluetooth,

auxiliary and USB. Modes of operation are shown in the

display.

NOTE: CD and USB modes will not appear unless a CD is

inserted or USB device is connected.

The MCD139BT offers a 3.5 mm auxiliary input port on the

front panel of the unit for connecting an audio device, MP3

player, etc. Press MODE to select auxiliary input mode.

Adjust volume using volume knob (00-4).

Press DISP to show the clock. During playback of MP3/files,

ID3 tag information, elapsed time, track number and file/

folder names will automatically rotate on the display.

Press RESET upon initial installation or if abnormal

operation occurs.

With the unit on, press and hold DISP until the clock begins

to flash, then release. Turn the volume knob to the right to

adjust the hours or to the left to adjust the minutes.

The clock will display 12-hour AM/PM time in USA frequency

spacing mode (PM 10:00). In European frequency spacing

mode, the clock will display 24-hour time (22:00).

Press and hold AUDIO for more than 3 seconds to access the

setup menu. Press AUDIO momentarily to select between

the menu functions and rotate the volume knob left/right to

adjust or activate the desired function.

Power On/Off

Mode

Auxiliary Input

Volume

Display

Reset

Set the Clock

12/24-hour Clock

Setup Menu

General Operation

MCD139BT OPERATION

General Operation - Setup Menu

Menu Function Options Action

Local/Distance

Tuning

LOCAL OFF Activates distance tuning (Tuner mode only).

LOCAL ON Activates local tuning for strong station reception only (Tuner

mode only).

Tuner

Frequency

Spacing

FREQ USA Programs the unit to USA tuner spacing.

(200kHz for FM and 10kHz for AM). (Tuner mode only)

FREQ EURO Programs the unit to European tuner spacing.

(50kHz for FM and 9kHz for AM). (Tuner mode only)

Beep

Confirmation

BEEP OFF Disables the confirmation beep.

BEEP ON Enables the confirmation beep.

Programmable

Turn On Volume PRO-VOL # Programs unit to always turn on at a specific volume (default is

OFF). Any volume level 1-30 can be selected.

Auto Answer

ANSWER

21 Programs unit to automatically answer every incoming phone

call after 2-3 rings.

ANSWER

2)) Programs unit to require the button must be pressed to

answer incoming phone calls (default).

MCD139BT OPERATION

Press AUDIO momentarily to select between Bass, Treble,

Balance and Fader.

BASS TREBLE BALANCE /28'EQ

Press AUDIO until BASS appears then rotate volume knob

left/right to adjust ( -minimum / +maximum).

Press AUDIO until TREBLE appears then rotate volume knob

left/right to adjust ( -minimum / +maximum).

Press AUDIO until BAL appears then rotate volume knob

left/right to adjust (BAL L - BAL R).

BAL EVEN represents equal balance

Press Zone 1 to turn the sound from Zone 1 on or off.

Press Zone 2 to turn the sound from Zone 2 on or off.

Audio

Bass

Treble

Balance

Speaker Zone 1

Speaker Zone 2

General Operation

MCD139BT OPERATION

AM/FM Tuner Operation

Seek Tuning

Manual Tuning

Band

Storing and Recalling

Station Presets

Automatically Store

Stations

Press TUNE

or TUNE

momentarily to seek to the

next strong station.

Press and hold TUNE

or TUNE

until "MANUAL"

appears, then press TUNE

or TUNE

momentarily

to change radio frequency up or down one step at a time.

Press and hold to advance quickly.

Note: Seek and manual tuning functions are reversed if

Seek Priority is set to SEEK 2 in the setup menu (refer to

page 7 for details on setting Seek Priority).

Press BAND to select between FM1, FM2, FM3, AM1 and

AM2 bands.

Up to 18 FM stations and 12 AM stations can be stored. To

store a station, select the desired band and station. Press

and hold the desired preset button (1-6) for more than

2 seconds. When stored, the preset number will appear in

the display. The Vtation can be recalled anytime by pressing

the corresponding preset button.

Press and hold$636for more than 3 seconds to find auto

store in the display. Then press volume knob to

automatically store strong 6 stations in the current band.

MCD139BT OPERATION

Insert CD

Eject CD

Track Select

Fast Forward/Reverse

Pause

Intro

Repeat

Random

CD-R/CD-RW

Compatibility

With the label facing up, insert a standard size CD into the

CD slot. The CD will automatically begin playback.

Press EJECT to eject the CD. The unit will change to

previous mode of operation. If the disc is not removed

within 10 seconds, the unit will reload the disc. The unit

does not have to be turned on to eject CD.

Press TRACK

to skip to the beginning of the next

track. Press TRACK

to return to the beginning of the

current track. Pressing TRACK

again skips to the

beginning of the previous track.

Press and hold TRACK

or TRACK

on the remote

control to fast forward or reverse a track.

Press

to temporarily stop CD playback.

Press

again to resume playback.

3UHVV,17WRDFFHVVWKH,QWURPHQX3UHVV,17WRSOD\WKH

ILUVWVHFRQGVRIHVFKWUDFNSUHVVDJDLQWRFDQFHOWKH,17

IXQFWLRQ

3UHVV537WRDFFHVVWKH5HSHDWPHQX3UHVV537WRWRJJOH

EHWZHHQ5372))537537',5DQG537$//

•5372))&DQFHOVWKH537IXQFWLRQ

•537&RQWLQXRXVO\UHSHDWVVHOHFWHGWUDFN

•537$//3OD\VDOOWUDFNVRQ&'

3UHVV5'0WRDFFHVVWKH5DQGRPPHQX3UHVV5'0WR

WRJJOHEHWZHHQ5'021DQG5'02))

•2))&DQFHOVWKH5'0IXQFWLRQ

•213OD\VDOOWUDFNVLQUDQGRPRUGHU

Some CD-Rs and CD-RWs may be incompatible with this

unit, depending on media type and recording method. In

addition, the following CDs may be incompatible with this

unit:

CDs exposed to extreme temperatures or direct sunlight

for extended periods of time, CDs recorded in which a

recording session failed or a re-recording was attempted

and, or encrypted or copy-protected CDs which do not

conform to the audio CD-DA red book recording standard.

CD Player Operation

MCD139BT OPERATION

CD Player Operation - MP3 Files

Playing an MP3 CD

Displaying Information

Title Icon

Artist Icon

Folder Icon

File Icon

Character Support

When an MP3 encoded disc is first inserted,

“DISC READ" will appear in the display. Depending on the

number of files and folders, this may take several seconds.

Press DISP to select between song title, artist, file name,

folder name, track number, and clock/elapsed time.

“NO ARTIST” or "NO TITLE" will be displayed if the MP3 file

contains no ID3 tag information.

“ROOT” will be displayed if the directory name of a root

folder is not labeled.

This icon will illuminate when the song title is displayed.

This icon will illuminate when the artist name is displayed.

This icon will illuminate when the folder name is displayed.

This icon will illuminate when the file name is displayed.

Maximum character display information

• Track name – 32 character maximum

• Directory name – 32 character maximum

• *Song title – 32 character maximum

• *Artist name – 32 character maximum

*Song title and Artist Name will only be displayed if included

with the MP3 file.

When referring to MP3 playback, the following terms

are synonymous:

• File name and track name

• Folder name and directory name

Tabla de contenidos

Otros manuales de Receptor de coche de Dual

Dual

Dual AXXERA XDMA7800 Instrucciones de funcionamiento

Dual

Dual XDMA460 Manual de usuario

Dual

Dual XDM6810 Instrucciones de funcionamiento

Dual

Dual MXCP44 Instrucciones de funcionamiento

Dual

Dual XDMA6438 Instrucciones de funcionamiento

Dual

Dual XDVD210 Manual de usuario

Dual

Dual AXXERA XDMA7100 Instrucciones de funcionamiento

Dual

Dual XDM260 Manual de usuario

Dual

Dual DSA1035 Manual de usuario

Dual

Dual DC525Bi Instrucciones de funcionamiento

Dual

Dual XD7500 Instrucciones de funcionamiento

Dual

Dual XMR6900 Instrucciones de funcionamiento

Dual

Dual DV605 Instrucciones de funcionamiento

Dual

Dual DCBT304U Instrucciones de funcionamiento

Dual

Dual XDMA690 Instrucciones de funcionamiento

Dual

Dual XDVD1265BT Manual de usuario

Dual

Dual XDVD8183 Instrucciones de funcionamiento

Dual

Dual XD230M Instrucciones de funcionamiento

Dual

Dual XDMA6855 Instrucciones de funcionamiento

Dual

Dual XML8100 Instrucciones de funcionamiento

Dual

Dual XDVDN8190 Instrucciones de funcionamiento

Dual

Dual DV714BH Instrucciones de funcionamiento

Dual

Dual XDMA760BT Instrucciones de funcionamiento

Dual

Dual AXXERA X2DMA500 Instrucciones de funcionamiento

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Pioneer

Pioneer DEH-P645R Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

Pioneer

Pioneer DVH-P500UB Manual de usuario

JVC

JVC KD-AHD69 Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario
