Dremel 3D20 Idea Builder Manual de usuario

Read the Dremel 3D20 manual and

these instructions. Failure to comply

with the warnings and instructions may result in fire,

equipment damage, property damage, or personal

injury.

Always unplug Dremel 3D20 from its power before per-

forming any service procedures. Failure to do so may

re-sult in personal injury and equipment damage.

se only Dremel approved materials and components.

Use of object materials, or 3D objects other than Dremel

approved object materials and genuine Dremel

components may void warranty.

Repairs on the Dremel 3D20 may require the use of special

tools (pulling devices and bearing press). Authorized repair

centers have trained repair technicians and equipment

necessary to perform these repairs.

For the location of the repair center near you, look on

our web site at www.Dremel3D.com and follow the link

for ‘Support’.

Nozzle Replacement

SERVICE INSTR CTIONS

• 2.5 mm Allen key

Step 1: Remove the top cover

Do not touch the extruder tip or heated build platform during Dremel 3D20 operation or until it

has cooled down to at least 60oC (140oF). Contact with the extruder tip or build platform during or

after operation before tip and build platform has cooled may result in personal injury.

Tools Required: Step 2: Unload filament from the extruder.

Step 3: Power off then unplug the power

cord from the Dremel 3D Idea Builder.

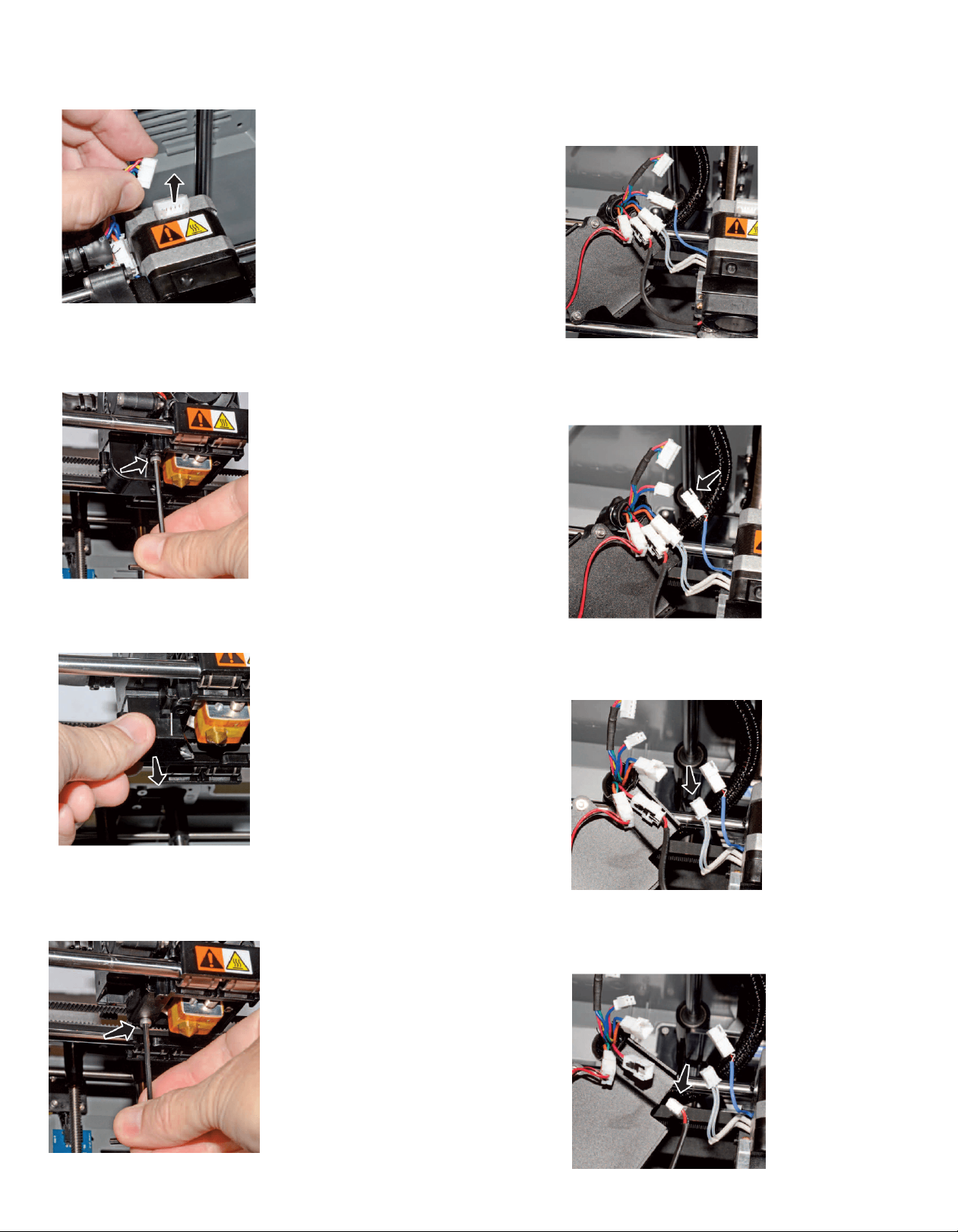

Step 4: Unplug the motor cable from

the stepper motor.

Step 5: Unscrew the fan baffle screw

from the left front side of the extruder

assembly.

Step 6: Remove the fan baffle from the

turbo fan.

Step 8: Move the turbo fan bracket

and turbo fan away from the

extruder assembly. This will expose

the wire connections.

Step 9: Disconnect the

thermocouple wire connector. (Red

and blue to red and white wires).

Step 7: Unscrew the turbo fan mounting

bracket screw from the left back side of

the extruder assembly.

Step 10: Disconnect the heat

cartridge wire connector. (Orange

and blue wire to 2 white wires).

Step11: Disconnect the fan wire

connector. This connector is

marked with black ink. (Red and

black to red and black wires).

Step 12: All wires should be

disconnected. Move the turbo fan

and bracket out of the way.

Step 13: Unscrew the extruder

mounting screws from underneath

the extruder assembly. There are 2

screws, one located on the right

side and one located on the left

side.

Step 14: Remove the extruder

assembly.

Step 15: Replace the new extruder

assembly onto the extruder

carriage.

Step 16: Insert and tighten both

screws, left and right, to secure

extruder assembly to the extruder

carriage.

Step 17: Reconnect the fan wire

connector. This connector is

marked with black ink. (Red and

black to red and black wires).

Step 18: Reconnect the heat

cartridge wire connector.

(Orange and blue wire to 2 white

wires).

Step 19: Reconnect the

thermocouple wire connector.

(Red and blue to red and white

wires).

Step 20: With all wires connected, neatly

place the connectors into the open area of

the turbo fan bracket. Make sure wires lay

flat underneath the stepper motor.

Step 21: Move the turbo fan bracket next to

the extruder capturing the wire connectors

between the bracket and the extruder

assembly.

Step 22: Insert and tighten the back left

screw for mounting the turbo fan bracket.

Step 23: Insert the fan baffle into the turbo fan.

Step 24: Insert and tighten the fan baffle screw

on the front left side of the extruder assembly.

Step 25: Reconnect the motor cable.

Step 26: Reassembly complete.

Step 27: Plug in and turn on the Idea Builder.
