Dometic PERFECTVIEW CAM60ADR Manual de usuario

CAM60ADR

Rear View Video Camera

Installation and Operating Manual . . . . . . 9

Rückfahrvideokamera

Montage- und Bedienungsanleitung . . . 20

Caméra vidéo de recul

Instructions de montage

et de service . . . . . . . . . . . . . . . . . . . . . . . 31

Cámara de vídeo de marcha atrás

Instrucciones de montaje y de uso . . . . . 42

Câmara de marcha-atrás

Instruções de montagem e manual de

instruções . . . . . . . . . . . . . . . . . . . . . . . . . 53

Videocamera per la retromarcia

Istruzioni di montaggio e d’uso . . . . . . . . 64

Achteruitrijvideocamera

Montagehandleiding en

gebruiksaanwijzing. . . . . . . . . . . . . . . . . . 75

Bakvideokamera

Monterings- og betjeningsvejledning. . . 86

Backningsvideokamera

Monterings- och bruksanvisning . . . . . . . 97

Ryggevideokamera

Monterings- og bruksanvisning . . . . . . . 108

Peruutusvideokamera

Asennus- ja käyttöohje. . . . . . . . . . . . . . 120

Видеокамера заднего вида

Инструкция по монтажу

и эксплуатации. . . . . . . . . . . . . . . . . . . . .131

Kamera cofania

Instrukcja montażu i obsługi . . . . . . . . . 142

Cúvacia kamera

Návod na montáž a uvedenie

do prevádzky . . . . . . . . . . . . . . . . . . . . . 153

Couvací kamera

Návod k montáži a obsluze . . . . . . . . . . 164

Tol a t ó kam e ra

Szerelési és használati útmutató . . . . . . 176

DRIVING SUPPORT

PERFECTVIEW

CAM60ADR-IO-16s.book Seite 1 Donnerstag, 7. Juli 2016 1:21 13

CAM60ADR-IO-16s.book Seite 2 Donnerstag, 7. Juli 2016 1:21 13

CAM60ADR

1 2 3

10 11 12

CAM60ADR-IO-16s.book Seite 3 Donnerstag, 7. Juli 2016 1:21 13

CAM60ADR

CAM60ADR-IO-16s.book Seite 4 Donnerstag, 7. Juli 2016 1:21 13

CAM60ADR

Ø 16 mm

CAM60ADR-IO-16s.book Seite 5 Donnerstag, 7. Juli 2016 1:21 13

CAM60ADR

90°

CAM60ADR-IO-16s.book Seite 6 Donnerstag, 7. Juli 2016 1:21 13

CAM60ADR

~50°

CAM60ADR-IO-16s.book Seite 7 Donnerstag, 7. Juli 2016 1:21 13

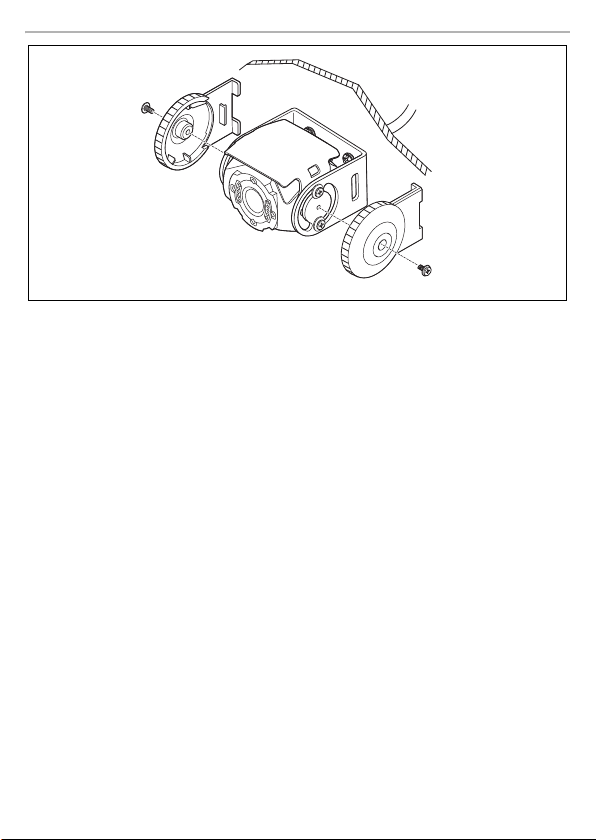

CAM60ADR

CAM60ADR-IO-16s.book Seite 8 Donnerstag, 7. Juli 2016 1:21 13

CAM60ADR Explanation of symbols

Please read this instruction manual carefully before installation and first use, and store

it in a safe place. If you pass on the product to another person, hand over this instruc-

tion manual along with it.

Contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2 Safety and installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

7 Information on the electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

8 Mounting the camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

9 Cleaning and caring for the camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

10 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

12 Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

1 Explanation of symbols

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function

of the product.

NOTE

Supplementary information for operating the product.

CAM60ADR-IO-16s.book Seite 9 Donnerstag, 7. Juli 2016 1:21 13

Safety and installation instructions CAM60ADR

2 Safety and installation instructions

The manufacturer accepts no liability for damage in the following cases:

•Faulty assembly or connection

•Damage to the product resulting from mechanical influences and excess voltage

•Alterations to the product without express permission from the manufacturer

•Use for purposes other than those described in the operating manual

Please observe the prescribed safety instructions and stipulations from the vehicle

manufacturer and service workshops.

!WARNING!

Inadequate supply cable connections could result in short circuits, which could have as

a consequence that:

•Cable fires occur

•The airbag is triggered

•Electronic control devices are damaged

•Electric functions fail (indicators, brake light, horn, ignition, lights)

ANOTICE!

To prevent the risk of short circuits, always disconnect the negative terminal of the vehi-

cle's electrical system before working on it.

If the vehicle has an additional battery, its negative terminal should also be discon-

nected.

Please observe the following instructions:

•When working on the following cables, only use insulated cable lugs, plugs and flat push-on

receptacles:

– 30 (direct supply from positive battery terminal)

–15(connectedpositiveterminal, behind the battery)

– 31 (return line from the battery, earth)

– L (indicator lights left)

– R (indicator lights right)

Do not use terminal strips.

•Use a crimping tool to connect the cables.

•When connecting to cable 31 (earth), screw the cable

– to the vehicle's earth bolt with a cable lug and a gear disc or

– to the sheet-metal bodywork with a cable lug and a self-tapping screw.

Ensure that there is a good earth connection.

CAM60ADR-IO-16s.book Seite 10 Donnerstag, 7. Juli 2016 1:21 13
