Digitus DS-45333 Manual de usuario

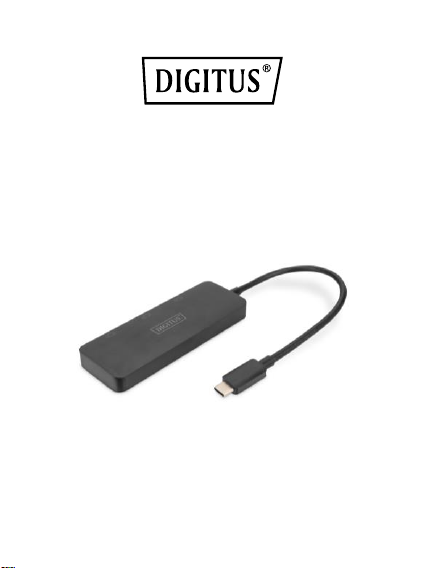

3-PORT MST VIDEO HUB

(USB-C™-> 3x HDMI)

Quick Installation Guide

DS-45333

1. Introduction

The DIGITUS® MST Hub uses Multi Stream

Transport (DisplayPort™ 1.2 function), which

allows multiple AV signals to be transported over

a single cable. This enables the use of multiple

monitors that are connected via the MST Hub

configuration. The MST Hub can distribute

different video streams to the three connected

screens. In general, it supports three

reproduction modes: Mirror (1 signal mirrored

on 3 displays), extend (3 signals on 3 displays),

distribute (1 signal distributed across 3 displays).

2. Features

Supports DP 1.4 (Alt mode) with maximum

8.1 Gbps per channel, max. 32.4 Gbps on

4 channels

Supports Windows OS (11, 10)

Resolutions 3 external monitors – MST

mode: max. 1x 4K/60Hz + 2x 4K/30Hz

Resolutions 2 external monitors – MST

mode: max. 2x 4K/60Hz

Power supply via a USB-C™ connection –

BUS powered

No driver or software required –

Configuration via the display settings in

Windows OS

Supports 3 display modes: Mirror (1 signal

mirrored on 3 displays), extend (3 signals

on 3 displays), distribute (1 signal

distributed across 3 displays)

HDCP 2.2 / 1.4

Supports HDR (High Dynamic Range)

Supports MST (Multi Stream Transport) &

SST – Single Stream Transport

3. Package content

1x MST Video Hub (USB-C™ -> 3x HDMI)

1x QIG

4. Specifications

1. 1x USB-C™ input

2. 3x HDMI output

3. Housing: ABS

4. Operating temperature: 0-45°C

5. Standby power consumption: approx. 1W

6. Dimensions: L 26.3 x W 3.6 x H 1.15 cm

7. Weight: 55 g

8. Colour: Black

Note

1. To achieve the resolutions stated above,

the host PC should support DP 1.4 (Alt

mode). If your PC only supports DP 1.2, the

corresponding resolutions are reduced due

to the bandwidth restriction

2. The resolution combinations stated above

are a theoretical reference, the actual

resolutions depend on the connected host

PC as well as the display

3. To use the full scope of features, make

sure that your device (graphics card) uses

DP 1.4.

4. If you use a DisplayPort 1.1 graphics card,

the MST Hub acts as a splitter and mirrors

your video source on all displays

5. Functionality can be restricted depending

on the specifications of your device and

operating system

6. MST Hubs cannot increase the number of

screens supported by a graphics card. Every

graphics card has a limited number of

screens that it can support. Please check

your specifications in advance.

7. Requires at least a host system with

DP 1.2/HBR2/MST or higher

(recommended)

8. Supports AMD, Nvidia and Intel graphics

cards

5. Connection Diagram

Hereby Assmann Electronic GmbH declares that

the Declaration of Conformity is part of the

shipping content. If the Declaration of

Conformity is missing, you can request it by

post under the below mentioned manufacturer

address.

www.assmann.com

ASSMANN Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
