Digital Watchdog DWC-PTZ39XFM Manual de usuario

Super Speed Dome

PTZ39X with In-Ceiling Mount

Version 1.00

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

User’s Manual

PTZ39XFM

Safety Information

This symbol indicates that dangerous voltage

consisting a risk of electric shock is present within

this unit.

Warning Precaution

This exclamation point symbol is intended to alert the

user to the presence of important operating and

maintenance (servicing) instructions in the literature

accompanying the appliance.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (BACK). THERE ARE NO USER

SERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION:

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

To prevent damage which may result in ﬁre or electric shock hazard, do not expose this appliance to rain or

moisture.

Be sure to use only the standard adapter that is speciﬁed in the speciﬁcation sheet. Using any other adapter could

cause ﬁre, electrical shock, or damage to the product.

Incorrectly connecting the power supply or replacing battery may cause explosion, ﬁre, electric shock, or damage

to the product.

Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat generation

or ﬁre.

Securely plug the power cord into the power receptacle. Insecure connection may cause ﬁre.

When installing the camera, fasten it securely and ﬁrmly. A falling camera may cause personal injury.

Do not place conductive objects (e.g. screw drivers, coins, metal objects) or containers ﬁlled with water on top

of the camera. Doing so may cause personal injury due to ﬁre, electric shock, or falling objects.

Do not install the unit in humid, dusty, or sooty locations. Doing so may cause ﬁre or electric shock.

If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect

the power sorce and contact the service center. Continued use in such a condition may cause ﬁre or electric

shock.

If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this

product in any way.

When cleaning, do not spray water directly onto parts of the product. Doing so may cause ﬁre or electric shock.

WARNING

Safety Information

Operating

tBefore using, make sure power supply and others are properly connected.

tWhile operating, if any abnormal condition or malfunction is observed, stop using the camera immediately and

then contact your Special dealer.

Handling

tDo not disassemble or tamper with parts inside the camera.

tDo not drop or subject the camera to shock and vibration as this can damage the camera.

tCare must be taken when you clean the clear dome cover. Scratch and dust will ruin the quality of the camera.

Installation and Storage

tDo not install the camera in areas of extreme temperature, which exceed the allowable range.

tAvoid installing in humid or dusty places.

tAvoid installing in places where radiation is present.

tAvoid installing in places where there are strong magnetic elds and electric signals.

tAvoid installing in places where the camera would be subject to strong vibrations.

tNever expose the camera to rain or water.

PRECAUTION

[

1. Read these instructions.

2. Keep these instructions for future reference.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this camera near water.

6. Clean only with a dry cloth. Unplug the camera from the wall outlet before cleaning.

7. Do not block any ventilation openings to ensure reliable operation of the product ad to protect it from

over-heating. Install in accordance with the manufacturer’s instructions.

8. Do not install the camera near any heat sources such as radiators, heat registers, or other apparatus that

produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade

or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an

electrician for a replacement.

10. Protect the power cord from being walked on or pinched particularly at or near plugs, convenience receptacles,

and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specied by the

manufacturer or sold with the apparatus. Unplug this camera when

a cart is used. Use caution when moving the cart that contains the

camera to avoid injuries that can result from the camera falling over.

13. Unplug the camera during lightning storms or when it is not being used for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged

in any way, such as power supply cord or plug is damaged, liquid has been spilled on the camera, objects have

fallen into the camera, the camera has been exposed to rain or moisture, the camera does not operate normally,

or the camera has dropped.

Safety Instructions

Contents

Product & Accessories

Part Name

1. Introduction

DIP Switch Setup

Installation

Cabling

2. Installation

Check Points Before Operation

Functions

OSD DIsplay of Main Screen

General Rules of Menu Operation

ROOT MENU > SYSTEM INFORMATION

DISPLAY SETUP > CAMERA ID

DISPLAY SETUP > PRIVACY ZONE

MOTION SETUP

FUNCTION SETUP > PRESET SETUP

FUNCTION SETUP > SCAN SETUP

FUNCTION SETUP > PATTERN SETUP

FUNCTION SETUP > GROUP SETUP

FUNCTION SETUP > SCHEDULE SETUP

CAMERA SETUP > WB SETUP

CAMERA SETUP > AE SETUP

CAMERA SETUP > SPECIAL

SYSTEM SETUP

SYSTEM INITIALIZE

3. OSD

Dimension

Specification PTZ39XFM

4. Specifications

]

Product & Accessories

Introduction -

CD with

User’s Manual

Product Accessories

Quick Start Guide

Dome Cover

In-Ceiling Housing

with PTZ Mechanism

Safety Wire X2

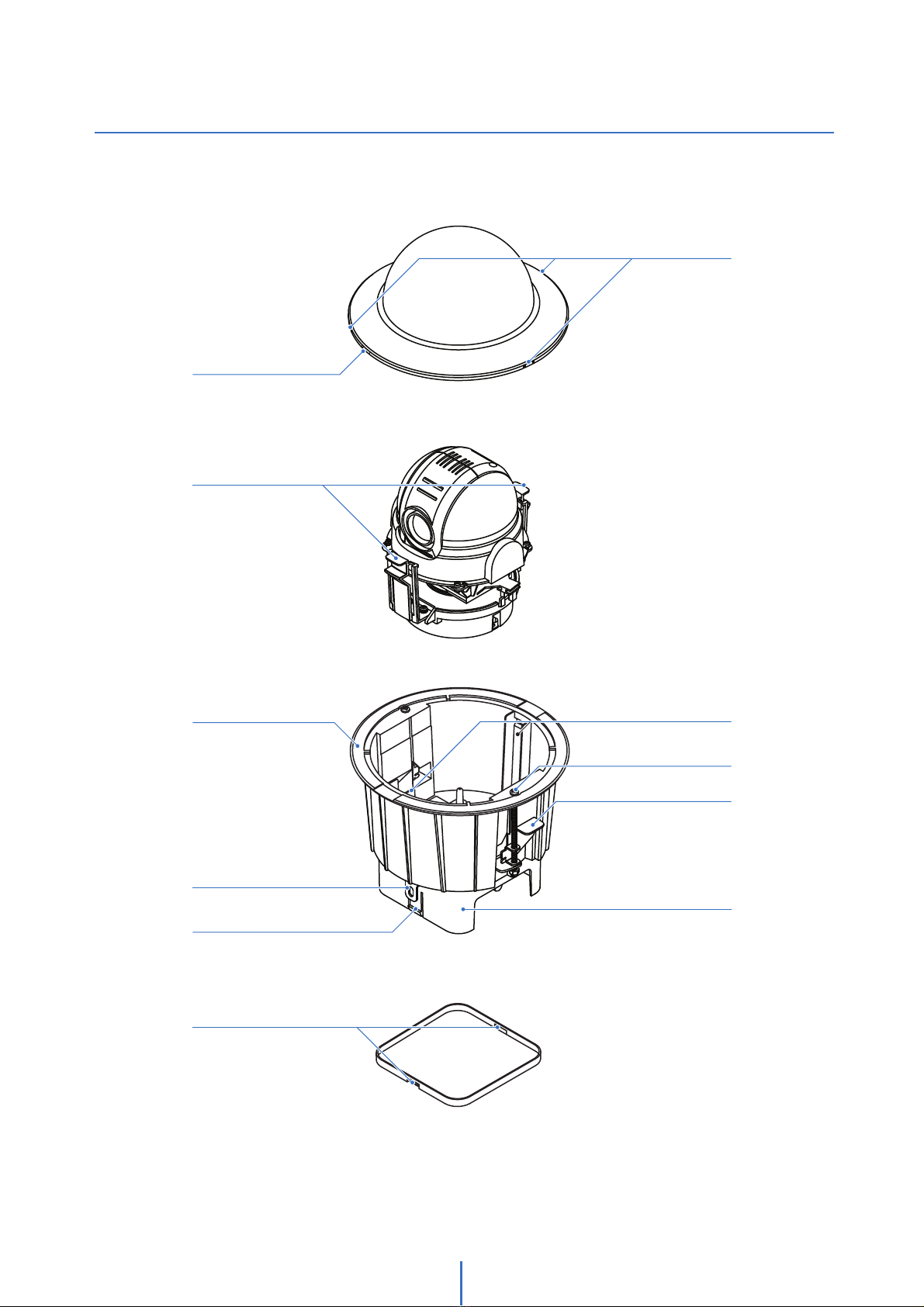

Part Name

Introduction -

Dome Cover Hooks

Dome Cover

Dome Cover Side Hole

PTZ Mechanism

PTZ Mechanism Hook

In-Ceiling Housing

PTZ Mechanism Hook Guide

Mounting Clip

In-Ceiling Housing Border

Mounting Clip Bolt

Housing Safety Wire Hanger

Junction Box

Junction Box Hook

Junction Box Cover

Junction Box Cover Side Hole

DIP Switch Setup

Installation -

Before installing the camera, you should

set the DIP switch to configure the

camera ID (Communication Protocol).

Inner Box

1. Communication Protocol Setup

Congure the appropriate protocol with DIP switch using the

DIP switch combination.

- If you set the protocol as AUTO protocol, camera

will

automatically recognize the type of protocol being used;

however, this will not recognize the AD protocol.

If you want to control the camera using the DVR or system

keyboard,

the protocol must be identical to the camera

protocol. Otherwise, you will not bwe able to control the

camera.

- If you change the camera protocol by adjusting the DIP

switch, the change will be eective after you reboot the

camera.

Protocol Setup Baud Rate Setup RS-485

Termination Resistor

21 345678

1AUTO - Factory Default

8J 21345678

PELCO-D

8J 21345678

PELCO-P

SAMSUNG

21345678

PANASONIC

21345678

GE (Kalatel)

21345678

AD (American Dynamics)

8J 21345678

DIP Switch Setup

Installation -

2. Communication Baud Rate Setup

Select the appropriate baud rate with DIP switch combination.

4. Camera ID Setup

ID number of camera is set using binary number.

The example is shown below.

Inner Box

8J 21345678

2400 BPS - Factory Default

8J 21345678

4800 BPS

8J 21345678

9600 BPS

8J 21345678

19200 BPS

38400 BPS

8J 21345678

3. RS-485 Termination Resistor

- Pin 8 is used to control RS-485 termination.

- Normally, it must be set to OFF state.

- When you have trouble with long daisy chain style

connection, turn ON this termination switch for the last camera.

21 345678

Pin 1234 56 78

1 2 4 8 16 32 64 128ID Value

ex) ID=5

ex) ID=10

OFF

- If you want to control the camera with another device, you

must match the Camera ID with CAM ID, setting on DVR or

the

keyboard controller.

- ID number of the camera is set using binary number.

- The range of ID is 0~255.

- Factory default of camera ID is 1.

- Camera ID will be effective without rebooting the camera.

Installation

Installation -

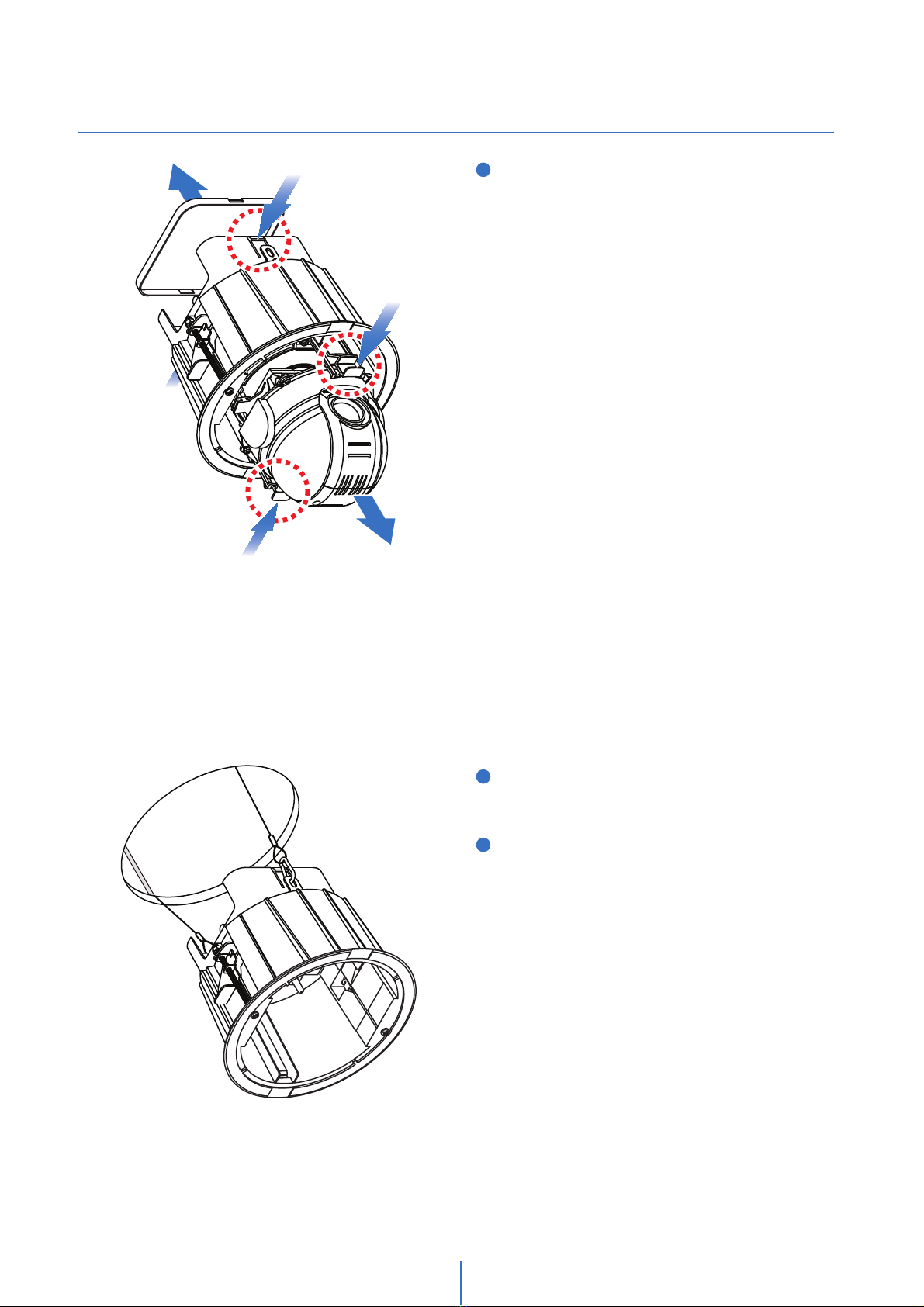

DETACH PTZ MECHANISM AND JUNCTION BOX COVER

By pressing down and holding up the hooks located on

both sides of the PTZ Mechanism, detach PTZ Mechanism

from the housing. Then, detach the junction box cover by

pressing down the hooks on both sides of the junction

box.

DRILL THE HOLE ON THE CEILING

To install the in-ceiling housing in the ceiling, first drill a

190mm diamter hole on the ceiling.

HOOK THE SAFETY WIRES

Connect one of the rings for the safety wire with the housing

safety wire hanger to prevent the junction box cover from

falling down. Then, connect the other ring with the hanger

bolt of the ceiling.
