Digital Watchdog DWC-B1362TIR650 Manual de usuario

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

PIPE CAMERA

Double Arm Bracket

DWC-B1362TIR650

DWC-B1363D

DWC-B1363TIR

DWC-B1365T

DWC-B1367WD

DWC-B1367WTIR

DWC-B1367WTIR650

DWC-B2382TIR

11042011

PRECAUTIONS

FCC COMPLIANCE

WARNING : Changes or modifications are not expressly approved by the manufacturer.

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface.

The material of the mounting surface must be strong enough to support the camera.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC rules. These limits are designed to Provide reasonable protection against harmful

interference. when the equipment is operated in a residential environment. This equipment generates, uses,

and radiates radio frequency energy; and if it is not installed and used in accordance with the instruction

manual, it may cause harmful interference to radio communications.

TROUBLESHOOTING

No VIDEO

Out-of-Focus VIDEO

Before sending your camera for repair, check the following or contact our technical specialist.

Check the coaxial cable and make sure it is connected securely.

Check the lens’ iris adjustment at the menu setup of the camera.

Check the power supply and make sure the camera has the proper voltage and current.

Check the clear dome cover and the lens for dirt or fingerprints. Use a soft cloth and gently clean.

Check the lens manual focal and zoom adjustment. Field test monitor is recommended.

PART & DESCRIPTIONS*

DWC-B1362TIR650, B1363TIR, B1367WTIR, B1367WTIR650

DWC-B1363D, B1365T, B1367WD

910

1Front Case

2Zoom, Focus Housing

3Sunshield

4Lens

5Rear Case

6Control Board

7Con Cap

8Double Arm Bracket

9BNC Jack

Assembly Screw

Fixing Screw

Set Screw

10 Power Input Connector

DC 12V / AC24V Voltage

RS 485

OPTION

B1367WD

B1367WTIR

B1367WTIR650

No IR

DWC-B2382TIR

1Front Case

2Sunshield

3Lens

4Rear Case

5Control Board

6Con Cap

7Double Arm Bracket

8BNC Jack

Power Input Connector

Assembly Screw

Fixing Screw

RS 485 (EK:D+, WH:D-)

DC 12V / AC24V Voltage

Set Screw

11 12

DIMENSIONS IN MILLIMETERS*

DWC-B1362TIR650, B1363TIR, B1367WTIR, B1367WTIR650

DWC-B1363D, B1365T, B1367WD

No IR

DWC-B2382TIR

INSTALLATION*

Included with DW Pipe Camera

1. User Manual

2. Mounting Template

3. Four(4) Screw and Four(4) Dry Wall Anchors

4. 2nd Video Jack

5. Tool

6. L-Wrench

7. IR Remote Controller

3 4 5

6 7 DWC-B2382TIR

NOTE : Screws required electrical junction boxes are not supplied. These

screws are readily acailable at well-stocked electrical supply store.

MOUNTING ON ELECTRICAL JUNCTION BOX*

NPT 3/4” Pipe

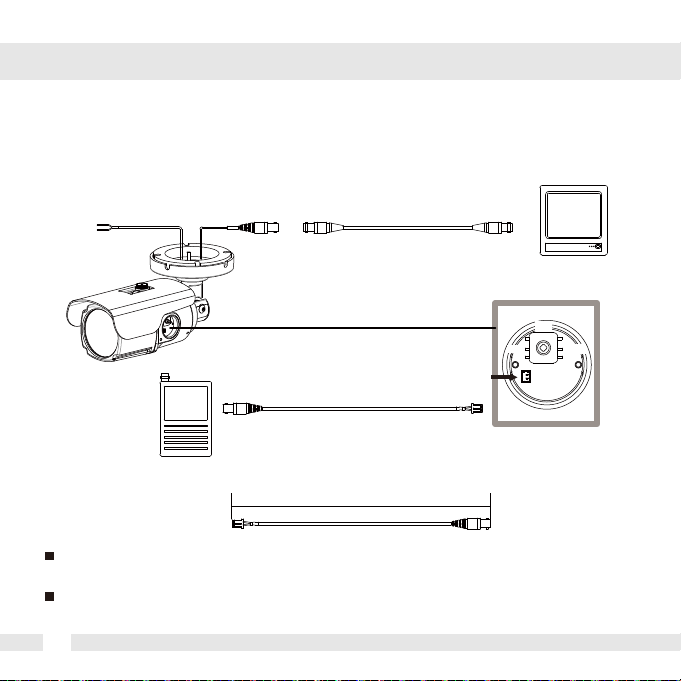

CONNECTING TO MONITORS*

Follow the diagram below to make proper connections to the CRT Monitor or the Monitor.

12VDC/24VAC

Monitor

30cm

CCTV Monitor

2nd Video Output

RightLeft

Down

Power connection - 12VDC/24VAC Dual Voltage(Auto polarity detection and protection)

All camera are equipped with a service monitor output on the camera module.
