Quick Start Guide Quick Start Guide

WHAT’S IN THE BOX

Hex Allen

wrench 1Mounting

template 1

Test video

cable 1

Moisture

absorber

and

absorber

guide

1

Sunshield

cover and

adjusting

screws

1Quick setup

guide 1

Screws

and plastic

anchors

(4pcs)

1 Set

1. The mounting surface must withstand ﬁve times the camera weight.

2. Do not let the cables get caught in improper places or the electric line cover can be damaged. This may cause a short or ﬁre.

3. Install the moisture packet in the base of the camera’s lens.

a. Remove the moisture absorber from the packaging.

b. Cut the card and folder along the dotted line.

c. Place the moisture absorber behind the camera’s lens module. See the drawing for more information.

4. Using the mounting template sheet or the camera itself, mark and drill

the necessary holes in the wall or ceiling.

Pass the wires through the mount bracket and make all necessary connections. Connect the BNC cable and power cables to the camera.

STEP 1 – PREPARING TO MOUNT THE CAMERA

STEP 2 – CABLING THE CAMERA TO EXTERNAL DEVICES

Power requirements Power consumption

DC12V DC12V (LED o): 3W (250mA)

DC12V (LED on): 4.2W (352mA)

Tel: +1 (866) 446-3595 / (813) 888-9555

Technical Support Hours:

9:00 AM – 8:00 PM EST, Monday through Friday

digital-watchdog.com

DWC-B6853WTIR

Torx Wrench DC Plug Cable Test Video Cable

ManualTemplate Sheet Screw & Moisture absorber &

Absorber Guide

Sunshield cover &

Torx Wrench DC Plug Cable Test Video Cable

ManualTemplate Sheet Screw & Moisture absorber &

Absorber Guide

Sunshield cover &

Torx Wrench DC Plug Cable Test Video Cable

ManualTemplate Sheet Screw & Moisture absorber &

Absorber Guide

Sunshield cover &

Torx Wrench DC Plug Cable Test Video Cable

ManualTemplate Sheet Screw & Moisture absorber &

Absorber Guide

Sunshield cover &

Torx Wrench DC Plug Cable Test Video Cable

ManualTemplate Sheet Screw & Moisture absorber &

Absorber Guide

Sunshield cover &

Torx Wrench DC Plug Cable Test Video Cable

ManualTemplate Sheet Screw & Moisture absorber &

Absorber Guide

Sunshield cover &

Torx Wrench DC Plug Cable Test Video Cable

ManualTemplate Sheet Screw & Moisture absorber &

Absorber Guide

Sunshield cover &

Please cut the card type absorber along

a dotted line, overlap and attach them

according to the direction of the arrow.

Please cut the card type absorber along

a dotted line, overlap and attach them

according to the direction of the arrow.

Attention: This document is intended to serve as a quick reference for the

initial setup. It is recommended that the user read the entire instruction

manual for complete and proper installation and usage.

NOTE: Download all your support materials and tools in one place.

1. Go to: http://www.digital-watchdog.com/resources

2. Search your product by entering the part number in

the ‘Search by Product’ search bar. Results for

applicable part numbers will populate automatically

based on the part number you enter.

3. Click ‘Search’. All supported materials, including manuals

and quick start guide (QSGs) will appear in the results.

Quick Start Guide

1. The camera supports HD-Analog, HD-CVI and HD-TVI signals as

well as CVBS up to 960H. To switch between the signals:

a. Enter the camera’s OSD menu. You can access it locally from

using the camera’s joystick in the body of the camera, or from a

recorder supporting UTC communication.

Go to SETUP > OUTPUT.

b. Set the camera’s resolution from the following options:

- 4K/2160p @15fps.

- 5MP/1440 @30fps.

- 2.1MP/1080p @30fps.

c. Set the camera’s analog signal output from the following options:

- HD-A - HD-Analog

- HD-T - HD-TVI

- HD-C - HD-CVI

- CVBS - legacy analog signal

d. Change CONFIRM to ON to save the changes.

e. Go to the EXIT menu and select SAVE&EXIT to save all changes.

The camera signal automatically.

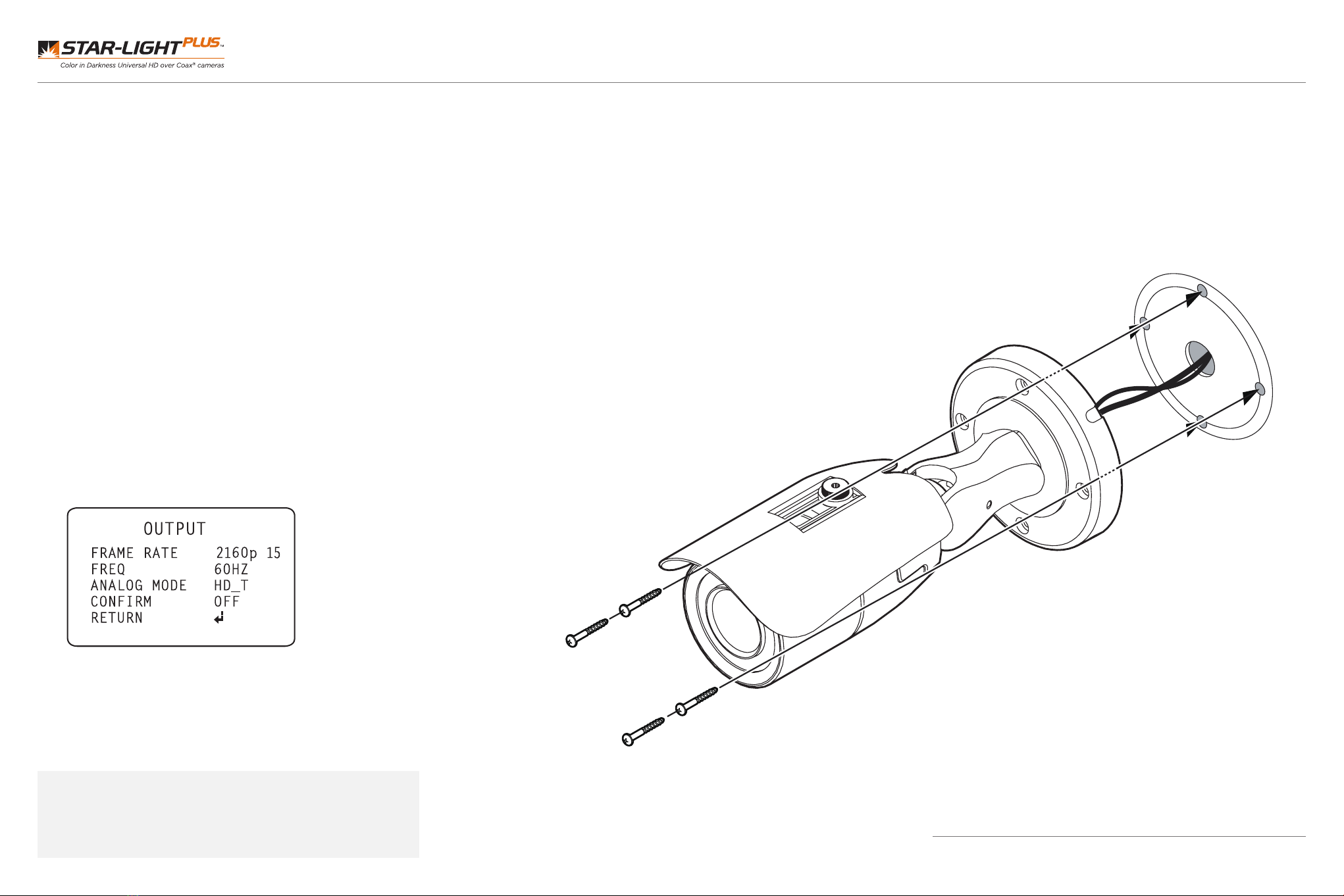

1. Once all cables have been connected, use the screws included with the

camera to properly mount and secure the camera to the mounting surface.

2. To adjust the camera’s tilt, loosen the screws at the base of the camera’s

bracket. The camera’s max angles are:

Pan: 0°~ 360°

Tilt: 0°~ 90°

STEP 4 – INSTALLING THE CAMERASTEP 3 – CHANGING THE SIGNAL IN

THE CAMERA

Copyright © Digital Watchdog. All rights reserved.

Speciﬁcations and pricing are subject to change without notice.Rev: 11/19

NOTE: To use your Star-Light Plus™ 4K cameras at a lower

resolution, you must use a VMAX® A1 4K DVR to access the

camera’s menu due to the cameras being set to 4K as the

default. A DVR that does not support 4K resolution may

recognize the camera, but will not deliver a picture.
