Digi-tech CROSSROADS Manual de usuario

Photo courtesy of Starfile

Warning

For your protection, please read the following:

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Do not use this apparatus near water.

5. Clean only with dry cloth.

6. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

7. Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

8. Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

9. Unplug this apparatus during lightning storms or when

unused for long periods of time.

10. No user serviceable parts inside. Refer all servicing to

qualified service personnel. Servicing is required when

the apparatus has been damaged in any way, such as

power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does

not operate normally, or has been dropped.

11.WARNING:To reduce the risk of fire or electric shock,

do not expose this apparatus to rain or moisture.

12. Refer to labels on the unit, including bottom cover, or

other markings and pertinent information.

DECLARATION OF CONFORMITY

Manufacturer’s Name: DigiTech®

Manufacturer’s Address: 8760 S. Sandy Parkway

Sandy, Utah 84070, U.S.A.

declares that the product:

Product name: Crossroads™

Product option: all (requires Class II power

adapter that conforms to the

requirements of EN60065,

EN60742, or equivalent.)

conforms to the following Product Specifications:

Safety: IEC 60065 (1998)

EMC: EN 55013 (1990)

EN 55020 (1991)

Supplementary Information:

The product herewith complies with the requirements of the Low

Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC

as amended by Directive 93/68/EEC.

Vice-President of Engineering - MI

8760 S. Sandy Parkway

Sandy, Utah 84070, U.S.A.

Date: November 22, 2004

European Contact: Your local DigiTech Sales and Service

Office or

Harman Music Group

8760 South Sandy Parkway

Sandy,Utah, 84070 U.S.A.

Ph: (801) 566-8800

Fax: (801) 568-7583

Congratulations and special thanks from DigiTech®for choosing

the Eric Clapton Crossroads™ Artist Series Pedal.

DigiTech’s philosophy for developing products begins with the desire

to provide every guitarist with the best-sounding, most creative tools

possible.To this end, our revolutionary Production Modeling™was

designed to help reproduce the studio and live sounds and effects of an

artist as heard on their recordings.This includes modeling the speaker

cabinets, microphones with their placements, pre/post effects, and the

recording engineer’s magic all in one pedal.

The Crossroads Artist Series Pedal was conceived in conjunction

with Eric Clapton and his long-time guitar tech Lee Dickson. Crossroads

models seven Clapton signature tones. From songs like “Badge” with its

swirling rotary speaker modulation, to “Layla” (Unplugged) with its

intimate acoustic tone, and of course,“Sunshine of Your Love” which

features Eric’s signature “woman tone”, Crossroads spans 30 years of

Clapton culture and tone.

Included Items

The DigiTech® Eric Clapton Crossroads™ Artist Series Pedal includes the

following items:

• DigiTech Eric Clapton Crossroads Artist Series Pedal

• Artist Series Pedal Gig Bag

• Eric Clapton Crossroads Artist Series Guitar Pick

• PS200R Power Supply

• This Owner’s Manual

• Battery Notice

• DigiTech Warranty Card

• DigiTech Brochure

Please make sure that all of these items have been included before you

get started.

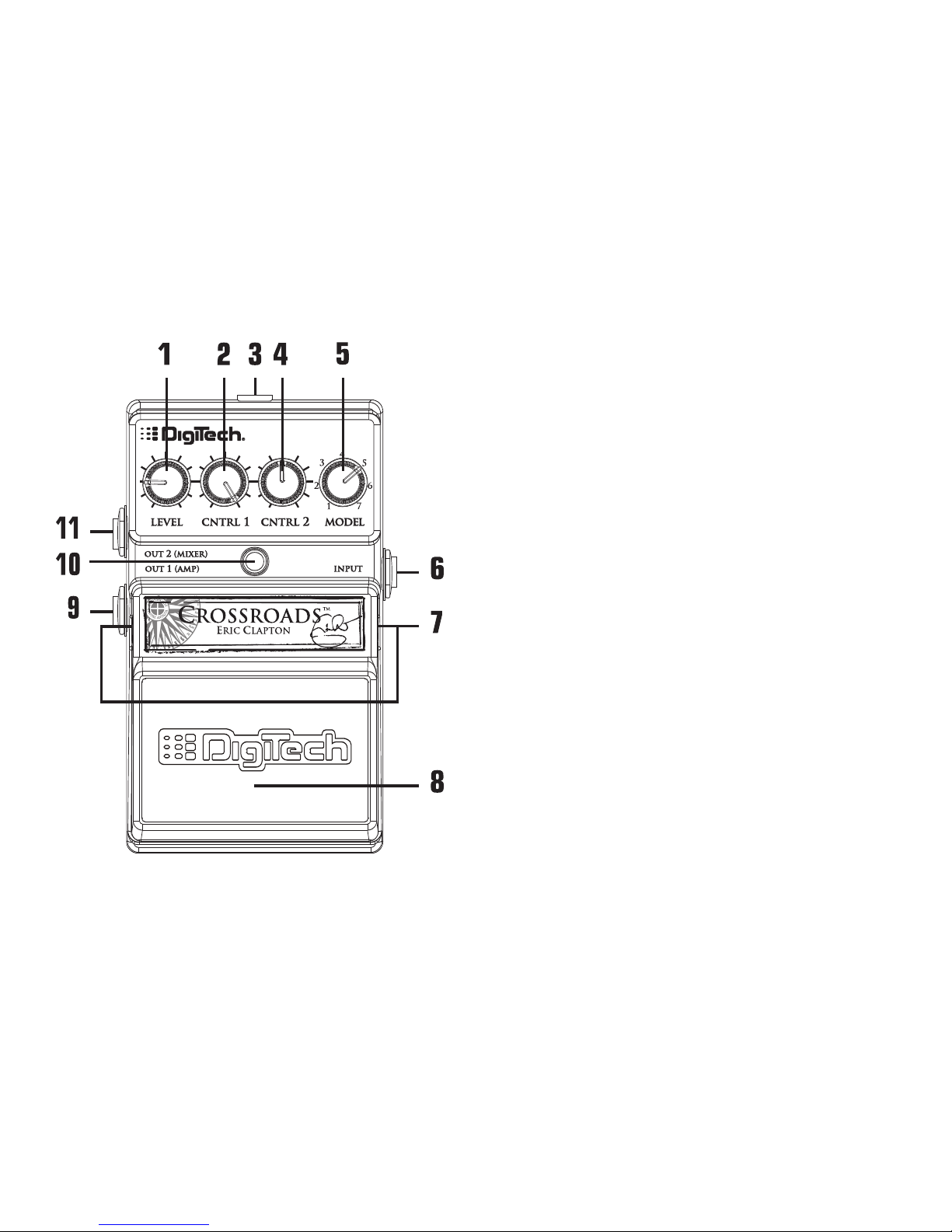

1. LEVEL

Controls the output level of the effect.

Turn this knob clockwise to increase the

output level, and counter-clockwise to

decrease the output level.

2. CNTRL 1 (Control 1)

Controls different functions depending on

which MODEL is selected. See the Knob

Function Descriptions section on the

following pages for a more detailed

explanation of the CNTRL 1 knob’s

functions.

3. AC Adapter Jack

Connect only the included DigiTech®

PS200R (9V DC) power supply to this

jack.

4. CNTRL 2 (Control 2)

Controls different functions depending on

which MODEL is selected. See the Knob

Function Descriptions section on the

following pages for a more detailed

explanation of the CNTRL 2 knob’s

functions.

5. MODEL

This knob selects one of the seven

different signature Eric Clapton tones.

1.“Sunshine of Your Love”

2.“Crossroads”

3.“Badge”

4.“Layla”

5.“Lay Down Sally”

6.“Layla” Unplugged

7.“Reptile”

Please refer to the Knob Function

Descriptions section on the following

pages for a more detailed explanation

of each MODEL.

6. INPUT

Connect your instrument to this jack.

Connecting a guitar cable to this jack

supplies battery power even though the

Indicator LED may not be lit. To

prolong battery life, disconnect all cables

when not in use.

7. Pedal Release Pins

These two pins are spring-loaded hinges that

hold the pedal in place. Push these pins in

to release the pedal from the pedal chassis

exposing the battery compartment.

(See the Battery Replacement Diagram

at the end of this Owner’s Manual)

8. Pedal

Press the pedal to turn the effect on and off.

9. OUT 1 (AMP)

Connect this output jack to your guitar

amplifier.

10. Indicator LED

This LED indicates when the effect is

turned on. If the LED becomes dim or

does not light when using battery power

(with the cables connected), the battery

needs to be replaced.

11. OUT 2 (MIXER)

This output has been specifically designed

for use with a full range audio system. It is

designed to be plugged directly into a mixer

or recording device for optimal performance.

Knob Function Descriptions

MODEL 1.“Sunshine ofYour Love”, Cream – Disraeli Gears (1967)

Perhaps one of Eric’s best known songs from the Cream

years is “Sunshine of Your Love”. Eric achieved his now

infamous “woman tone” on “Sunshine” in a rather

unconventional manner. He began with running his amplifiers

as hot and loud as possible.He then rolled back the tone

control on his SG and engaged his wah-wah to a fixed

position. The midrange/treble boost from the wah

compensated for the lack of tone from the SG. MODEL 1

models this effect using the CNTRL 1 and CNTRL 2 knobs

to adjust the amount of distortion gain and tone respectively.

MODEL 2.

“Crossroads”, Cream – Wheels of Fire, Live at the Fillmore (1968)

A pivotal moment in Eric’s career is the track “Crossroads”

from Cream’s live 1968 recording Wheels of Fire, Live at the

Fillmore. “Crossroads” was penned by Robert Johnson, Eric’s

most important guitar influence. Its electrified delta blues

form evolved from Eric’s days with the Bluesbreakers to the

power rock blues version heard on this performance. This

song features Eric’s famous soloing work that is still talked

about today. CNTRL 1 adjusts the amount of distortion

gain. CNTRL 2 adjusts the overall tone.

MODEL 3.“Badge”, Cream

–

Goodbye (1969)

For the song “Badge”, Eric used a rotary organ speaker

cabinet to get the swirling guitar effect heard in the breaks

between the verse and chorus. This sound was achieved by

overdriving the amplifier and by strategically placing two

microphones around the rotating speakers. These mic signals

were then panned in a stereo field. For this MODEL,

connect both the OUT 1 (AMP) and OUT 2 (MIXER)

outputs into two different amps or two channels of a mixer

panned hard left and hard right to hear the rotary speaker

modulation effect at its best. CNTRL 1 adjusts the amount

of overdrive gain for the guitar signal while CNTRL 2

adjusts the speed of the modulated sound.

MODEL 4.“Layla”, Derek and the Dominoes – Layla and Other

Assorted Love Songs (1970)

Eric’s most recognized guitar riff and song is “Layla”.

Recorded under the band moniker of Derek and the

Dominos,“Layla” features Eric on “Brownie”, his Fender®

Strat™guitar which he played through a tweed Fender®

Champ™amplifier. CNTRL 1 adjusts the amount of

distortion gain. CNTRL 2 adjusts the overall tone.

MODEL 5.“Lay Down Sally”, Eric Clapton – Slowhand (1977)

“Lay Down Sally” is a country style shuffle featuring Eric and

George Terry in a counterpoint guitar duet. CNTRL 1

adjusts the amount of distortion gain. CNTRL 2 adjusts

the overall tone.
