Behringer PB600 Manual de usuario

behringer.com

Stompbox Accessories

PEDAL BOARD

PB600

Pedal Board with 9 V DC Power Supply

and Patch Cables

* Depends on the power consumption

of the eects pedals, etc.

Ultra-compact and lightweight

pedal board for transporting up

to 6 eects pedals, including

patch cables

Generous 1.7 A power adapter

included for powering more

than 12 devices*—includes

1 x 6 daisy-chain cabling

Ultra-rigid plastic design withstands

even heavy impact

High-quality components and

exceptionally rugged construction

ensure long life

Conceived and designed by

BEHRINGER Germany

When eects are an integral part of your

rig, their power adapters and patch cables

can often be the most vulnerable part, and

the most likely to sabotage your set if

they're not pampered. Rather than tossing

your pedals, power adapters and all

other cabling into a duel bag after a gig,

keep them safe—and ready to rock at a

moment’s notice—with the PB600.

It's all about connections

This awesome pedal board makes

hooking up six 2.5" x 4.5" pedals as easy

as hooking up just one (of course, if

you're using pedals that aren’t 2.5" x 4.5",

the snug foam padding can be cut to

accommodate pedals of varying shapes).

The PB600 includes ¼" patch cables, so you

can leave your pedals connected to one

another, ready to pass signal even when

you’re transporting them. It also comes

with 1 x 6 daisy chain cabling so that when

you plug in the 1.7 A power adapter, all

your pedals receive power. Meanwhile,

all cabling remains safe and free of strain.

Failure is almost guaranteed when you’re

dealing with a rat’s nest of loose cabling,

but with the PB600, your eects chain is

always safe and organized.

Connect your guitar, bass or keyboard

to the single ¼" input in the upper right

corner of the board. A pair of ¼" FROM

EFFECTS jacks in the upper left corner

allow you to connect stereo eects, and

two ¼" OUTPUT TO AMP jacks send a left

and right stereo signal to up to two amps.

Continued on next page

Page 2 of 3

VD400 CS400

HB01

EQ700DR600 BO300 CS400

HB01

PH9 TO800 EQ700

VT100FX

412H-BK

BUGERA 333XL

ACX900

VT30FX

AM100

UM300

VT100FXH

412H-BK

Hookup Diagram

PEDAL BOARD

PB600

When it’s time to load out, just unplug

the power supply, disconnect your guitar

and amp, put the lid back on the PB600

and slide the locking latches back into

place. The heavy-impact plastic casing will

protect your pedals from the very worst

dings, scrapes and scratches the road

throws your way.

Page 3 of 3

for any loss which may be suﬀered by any person who relies either wholly or in part upon any description, photograph or statement contained herein. 985-10000-00382 behringer.com

For service, support or more information contact the BEHRINGER location nearest you:

Europe Tel.: +49 2154 9206 4149, Fax: +49 2154 9206 4199

USA/Canada Tel.: 1 425 672 0816, Fax: +1 425 673 7647

Singapore Tel.: +65 5845 1800, Fax: +65 6214 0275

Australia Tel.: +61 3 9877 7170, Fax: +61 3 9877 7870

Japan Tel.: +81 3 5281 1180, Fax: +81 3 5281 1181

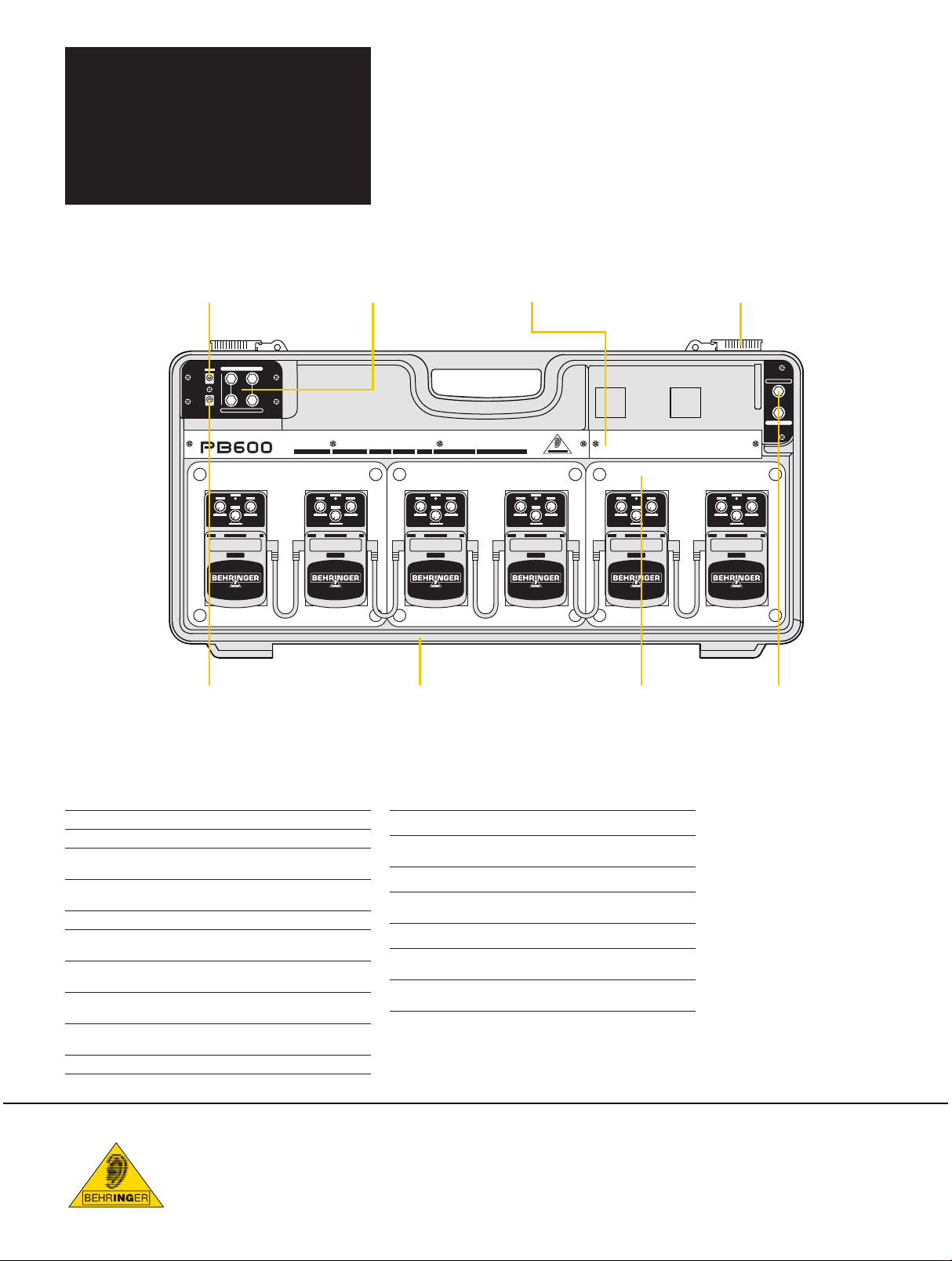

DC OUT

connector

powers all eects

via daisy chain

1.7 A power

adaptor

connector

DC cabling

duct

Heavy-duty

plastic

casing

Sliding locks

hold lid rmly

in place when

pedal board is

not in use

¼" TS INPUT connector

receives signal from

instrument.

¼" TS TO EFFECTS

connector sends signal

to eects pedals

Foam padding

holds eect

pedals in place

FROM EFFECTS

connectors receive

stereo signal from

pedals. OUTPUT TO AMP

connectors send signal

to two amps

SPECIFICATIONS

Power Supply 9 V, 1.7 A switching adaptor(included)

Connectors ¼" TS, unbalanced

USA/Canada 120 V~, 60 Hz

GPE182-090170-1 (HSB-UL)

Europe/Australia 230 V~, 50 Hz

GPE182-090170-2 (HSB-EU)

U.K. GPE182-090170-3 (HSB-UK)

Korea 220 V~, 60 Hz

GPE182-090170-4 (HSB-SAA)

China 220 V~, 50 Hz

GPE182-090170-5 (HSB-CCC)

Japan 100 V~, 50/60 Hz

GPE182-090170-6 (HSB-JP)

Power connector 2 mm DC jack, center negative

(with daisy-chain cable included)

Power consumption 2 mA

PHYSICAL

PB1000

Dimensions 504.3 x 663.6 x 115 mm

(HxWxD) 19 / x 2 6 ⁄ x 4 ½"

PB600

Dimensions 13 x 26 ⁄ x 4 ½"

(HxWxD) 329 x 663.6 x 115 mm

PB1000

Weight approx. 11.8 lbs / 5.3 kg

including PSU & daisy chain

PB600 approx. 8.4 lbs / 3.8 kg

including PSU & daisy chain

BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these eorts,

modications may be made from time to time to existing products without prior notice. Specications and

appearance may dier from those listed or illustrated.

PEDAL BOARD

PB600
