Dell™ PowerEdge™ C6100

Getting Started

With Your System

Regulatory Model XS23-TY3

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use

of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data

if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

____________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission

of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and PowerEdge, are trademarks of Dell Inc.;

Intel and Xeon are registered trademarks of Intel Corporation in the U.S. and other countries; Red Hat

and Red Hat Enterprise Linux are registered trademarks of Red Hat, Inc. in the United States

and other countries; SUSE is a registered trademark of Novell, Inc., in the United States and other

countries; VMware is a registered trademark of VMware, Inc. in the United States and/or other

jurisdictions; Citrix and XenServer are trademarks of Citrix Systems, Inc. and/or more of its

subsidiaries, and may be registered in the United States Patent and Trademark Office and in

other countries.

Other trademarks and trade names may be used in this document to refer to either the entities

claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in

trademarks and trade names other than its own.

Regulatory Model XS23-TY3

February 2010 P/N 74MXM Rev. A00

Getting Started With Your System 3

CAUTION: Restricted Access Location

This server is intended for installation only in restricted access locations

as defined in Cl. 1.2.7.3 of IEC 60950-1: 2001 where both these

conditions apply:

• Access can only be gained by

service persons

or by

users

who have been

instructed about the reasons for the restrictions applied to the location

and about any precautions that shall be taken.

• Access is through the use of a

tool

or lock and key, or other means of

security, and is controlled by the authority responsible for the location.

Installation and Configuration

WARNING: Before performing the following procedure, review and follow

the safety instructions that came with the system.

Unpacking the System

Unpack your system and identify each item.

Installing the Tooled Rail Solution

WARNING: Whenever you need to lift the system, get others to assist you.

To avoid injury, do not attempt to lift the system by yourself.

WARNING: The system is not fixed to the rack or mounted on the rails.

To avoid personal injury or damage to the system, you must adequately support

the system during installation and removal.

WARNING: To avoid a potential electrical shock hazard, a third wire safety

grounding conductor is necessary for the rack installation. The rack equipment

must provide sufficient airflow to the system to maintain proper cooling.

4Getting Started With Your System

Install the screw with the washer into the selected hole of the rail to set

the travel stop position.

WARNING: The travel stop position is intended for repositioning your grip

for system removal. It is not intended for service.

If the extension brackets (optional) prevent the installation of rails in the

rack, remove the extension bracket screws to remove the extension bracket.

Getting Started With Your System 5

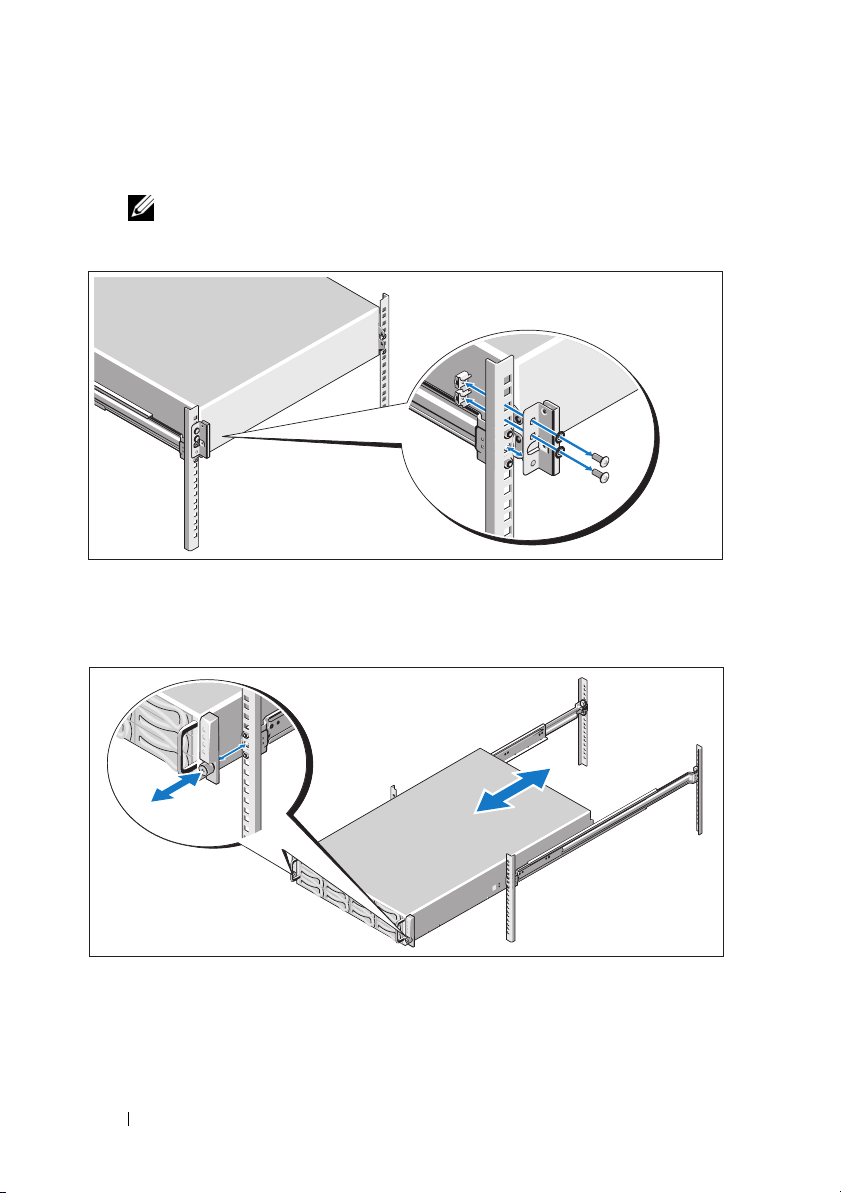

Secure the rails to the front of the rack using two screws and to the back of

the rack using four screws.

Slide the system into the rack.

If present, remove the two chassis stabilizer shipping brackets (optional)

from the rack.

NOTE: To transport systems already installed in the rack, ensure that

the two chassis stabilizer shipping brackets (optional) are in place.

6Getting Started With Your System

Tighten the thumbscrews to secure the ears of the system to the front of

the rack.

Installing the Tool-Less Rail Solution

WARNING: Whenever you need to lift the system, get others to assist you.

To avoid injury, do not attempt to lift the system by yourself.

WARNING: The system is not fixed to the rack or mounted on the rails.

To avoid personal injury or damage to the system, you must adequately support

the system during installation and removal.

WARNING: To avoid a potential electrical shock hazard, a third wire safety

grounding conductor is necessary for the rack installation. The rack equipment

must provide sufficient airflow to the system to maintain proper cooling.

CAUTION: When installing rails in a square-hole rack it is important to ensure

that the square peg slides through the square holes.

Getting Started With Your System 7

Align the end pieces of the rails on the vertical rack flanges to seat the

pegs in the bottom hole of the first U and the top hole of the second U.

Engage the back end of the rail until the latch locks in place.

NOTE: The rails can be used in both square-hole and round-hole racks.

Repeat step 1 to position and seat the front end piece on the vertical

flange.

NOTE: To remove the rails, pull on the latch release button on the end piece

midpoint and unseat each rail.

Slide the system into the rack.

8Getting Started With Your System

If present, remove the chassis stabilizer shipping bracket (optional)

from the rack.

NOTE: To transport systems already installed in the rack, ensure that

the chassis stabilizer shipping bracket (optional) is in place.

Tighten the thumbscrews to secure the ears of system to the front

of the rack.
