Datamax Mark II E-4205e Manual de usuario

92-2526-01 Rev.A



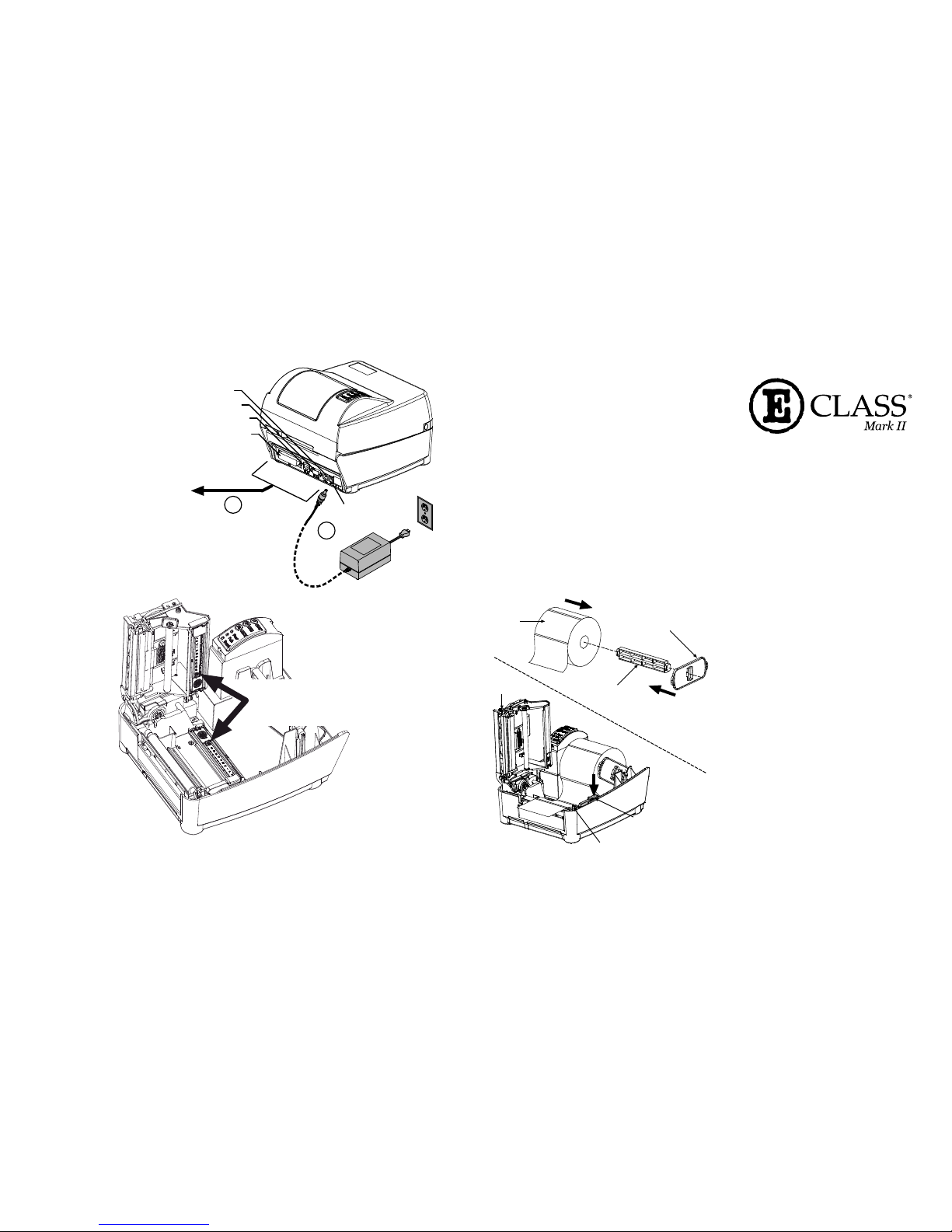

Connect Power and

Communications

Serial

Parallel

USB

To Host

LAN (optional)

Power

Connection



Adjust Media

Sensor

(perform only if

equipped with the

optional AMS

feature)

While ensuring the Reference

Letter matches, position the top

and bottom halves of the Media

Sensor over the gap, notch,

or mark in the media.



Load Media

Roll

Media

Printhead

Latch

Printhead

Carrier Media

Hub

Media Hub Flange

(smooth side toward media)

Optional Peeler Latch

Quick Start Guide

For the latest in products, news,

and support visit our web page at

www.datamax-oneil.com



Load Ribbon

(perform only if

equipped with the

optional

Thermal Transfer

feature)

a) Push the Printhead Latch down

and raise the Printhead Carrier

Assembly.

Printhead

Latch

Printhead

Carrier

b) Remove and load the Hubs:

Ribbon

Empty Core

Slide a Ribbon onto a Hub and

an Empty Core onto a Hub

Push in and lift

to remove the Hubs

c) Replace the Hubs so that the

ribbon flows as shown below:

Note: Ensure the inked side of

the ribbon faces the media

and NOT the printhead.

d) Route the ribbon through the printer, as shown below:

Wrap the end of the ribbon

around the Empty Core

and secure it in place



Printer/User

Interface

Normal Mode

F1 Pauses/Un-pauses the printer.

Cancels thecurrent batch of labels.

Press the Pause button to print the next

batch of labels (if any) in the print buffer.

(Normal power-up)

To calibrate media: Press and hold the until one

complete label has been output then release.

Feeds one label and clears fault conditions.



Printing

Configuration

and Test Labels

With the printer ‘On’ and loaded with 4 inch wide media (and ribbon, if needed):

To print the Configuration Label:

Press the F2 + F3 buttons simultaneously.

To print the Print Test Label:

Press the F1 + F2 buttons simultaneously.

To print the Ethernet/Network Report Label:

Press the F1 + F2 + F3 buttons simultaneously.

Follow and perform the suggested maintenance as detailed in the Operator’s

Manual.

For detailed information on the topics referred to in this guide consult the

Operator’s Manual; for detailed information on custom programming see the

Class Series II Programmer’s Manual (included on the Accessories CD-Rom).

Contacting Datamax-O’Neil…

Corporate Headquarters (407) 578-8007

Technical Support (407) 523-5540

Website: www.datamax-oneil.com
