Installation Guide

DEVIreg™ Smart

Intelligent Electronic Timer Thermostat or Timer

Switch with Wi-Fi connectivity and App control

DEVIreg™ Smart

Installation Guide2

1 Introduction

DEVIreg™ Smart is an electronic programmable timer

thermostat used for controlling electrical oor heating

elements. The thermostat is designed for xed installation

only and can be used for both direct heating of the entire

room and for comfort heating of the oor. Among others,

the thermostat has the following features:

• A touchscreen display with light.

• An easy-to-follow menu-driven programming and

operation (requires an app).

1 Introduction . . . . . . . . . . . . . . . . . . . . . . 2

2 Technical Specications . . . . . . . . . . . . . . . 4

3 Safety Instructions . . . . . . . . . . . . . . . . . . 6

4 Mounting Instructions . . . . . . . . . . . . . . . . 8

5 Display Symbols . . . . . . . . . . . . . . . . . . . 13

6 Configuring . . . . . . . . . . . . . . . . . . . . . . 19

7 Settings . . . . . . . . . . . . . . . . . . . . . . . . 20

8 Warranty. . . . . . . . . . . . . . . . . . . . . . . . 23

9 Radio Equipment Directive . . . . . . . . . . . . 24

10 Disposal Instruction . . . . . . . . . . . . . . . . 25

Table of Contents

DEVIreg™ Smart

3Installation Guide

• An installation wizard with room/oor type-specic

setup (requires an app).

• Support for multiple frame systems.

• Compatible with several 3rd party NTC sensors.

• Thermostat settings can be specied before instal-

lation and imported to the thermostat using a web-

generated code (For DEVIreg™ Touch), or copied

from a thermostat in a similar installation. This

includes DEVIreg™ Touch thermostats.

• Smart access via app to thermostat settings after

installation, for easy access, setup or remote trou-

bleshooting. Thermostat/timer will continuously be

updated with newest version of software.

• DEVIreg™ Smart can be used as a switch for On/O

systems

Regarding Connectivity:

• 10 smart devices (like Smartphone or Tablet) can be

connected to 1 thermostat/switch.

• 2 smart devices can be in contact with the thermo-

stat/switch at the same time.

DEVIREG™ SMART REQUIRES WORKING Wi-Fi

TO FUNCTION .

DEVIreg™ Smart

Installation Guide4

More information on this product can also be found at:

devismart.com

2 Technical Specications

Operation voltage 220–240 V~, 50/60 Hz

Standby power

consumption

Max. 0,40 W

Relay:

Resistive load

Inductive load

Max. 16 A / 3680 W @ 230 V

Max. 1 A cos φ= 0,3

Sensing units* NTC 6,8 kOhm at 25°C

NTC 10 kOhm at 25°C

NTC 12 kOhm at 25°C

NTC 15 kOhm at 25°C (Default)

NTC 33 kOhm at 25°C

NTC 47 kOhm at 25°C

Sensing values*:

(Default NTC 15 K)

0 °C

20 °C

50 °C

42 kOhm

18 kOhm

6 kOhm

Control* PWM (Pulse Wide Modulation)

Ambient temperature 0°C to 30°C

Frost protection

temperature*

5°C to 9°C (default 5°C)

DEVIreg™ Smart

5Installation Guide

Temperature range* Room temperature: 5°C to 35°C.

Floor temperature: 5°C to 45°C.

Max. oor: 20°C to 35°C (if unrecover-

able seal is broken then up to 45°C).

Min. oor: 10°C to 35°C, only with

combination of room and oor sensor.

Sensor failure monitoring* The thermostat has a built-in

monitoring circuit, which will switch

o the heating if the sensor is

disconnected or short-circuited.

Timer functions 2 periods per day for DEVIweb™.

5 periods per day for DEVIsmart App.

All clock/date/schedule settings are

updated from the cloud.

Set-point resolution of timer is

30minutes.

Cable specication max. 1x4 mm2

Ball pressure test tem-

perature

75°C

Pollution degree 2 (domestic use)

Controller type 1C

Software class A

Storage temperature -20°C to +65°C

IP class 21

Protection class Class II -

DEVIreg™ Smart

Installation Guide6

Dimensions 85 x 85 x 20-24 mm

(in-wall depth: 22 mm)

Weight 127 g

* not relevant for switch function

Electrical safety and Electro-Magnetic Compatibility

for this product is covered by the compliance with the

EN/IECStandard“Automatic electrical controls for house-

hold and similar use”:

• EN/IEC 60730-1 (general)

• EN/IEC 60730-2-7 (timer)

• EN/IEC 60730-2-9 (thermostat)

3 Safety Instructions

Make sure the mains supply to the thermostat/switch is

turned o before installation.

Important: When the thermostat is used to control a

oor heating element in connection with a wooden oor

or similar material, always use a oor sensor and never set

the maximum oor temperature to more than 35°C.

Please also note the following:

• The installation of the thermostat

/switch

must be done

by an authorized and qualied installer according to

local regulations.

DEVIreg™ Smart

7Installation Guide

• The thermostat

/switch

must be connected to a power

supply via an all-pole disconnection switch.

• Always connect the thermostat

/switch

to continuous

power supply.

• Do not expose the thermostat

/switch

to moisture,

water, dust, and excessive heat.

• This thermostat

/switch

can be used by children aged

from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of expe-

rience and knowledge, if they have been given supervi-

sion or instruction concerning use of the appliance in

a safe way and understand the hazards involved, by a

person responsible for their safety.

• DEVIreg™ Smart can modied to work as a timer on/

o switch by downloading new software with new

functionality.

• Children should be supervised to ensure that they do

not play with the thermostat

/switch

• Switch is designed for permanent operation.

• Not for uorescent lamps and lament lamps.

• Cleaning and user maintenance shall not be made by

children without supervision.

• Updating to timer switch function may take up to

1hour. Same time should be expected if function is to

be rolled back to thermostat functionality.

DEVIreg™ Smart

Installation Guide8

4 Mounting Instructions

Please observe the following placement guidelines:

Place the thermostat at a suitable height on the wall

(typically 80–170 cm). Switch can be placed on free

area on the wall.

The thermostat/switch should not be placed in wet

rooms. Thermostat/switch must be placed outside

zone 2. Place it in an adjacent room and use oor

sensor only. Always place the thermostat/switch

according to local regulation on IP classes.

Do not place the thermostat on the inner side of a

poorly insulated exterior wall.

Always install the thermostat at least 50 cm from

windows and doors, due to draft, when using regulation

in: oor and room mode or room alone mode.

Do not place the thermostat in a way that it will be

exposed to direct sunlight.

DEVIreg™ Smart

9Installation Guide

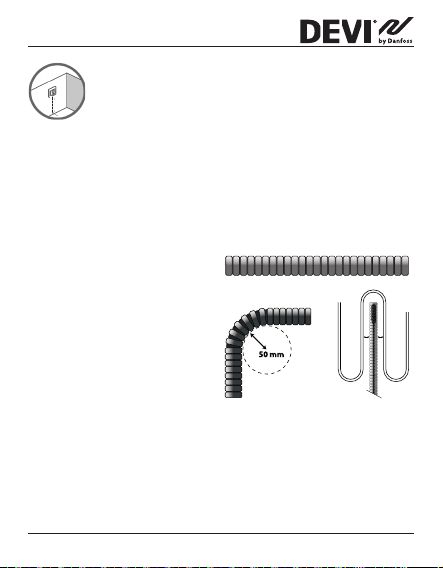

Note for thermostat: A oor sensor is recommend-

ed in all oor heating applications and mandatory

to thin mats and under wooden oors to reduce the

risk of over-heating the oor.

• Place the oor sensor in a protecting plastic conduit

in the oor construction in an appropriate place,

where the oor is not exposed to sunlight or draft

from door openings.

≥

• Equally distant and

>2 cm from the

heating cables on

both sides.

• The conduit should

be ush with the

oor surface, coun-

tersink the conduit

if necessary and

possible.

• Route the conduit to the connection box.

• The bending radius of the conduit must be min 50 mm.

DEVIreg™ Smart

Installation Guide10

Follow the steps below to mount the thermostat/switch:

1. Unpack thermostat/switch.

2.1. Connect the thermostat according to the connection

diagram.

IP21

T30

Mains

220-240V~

50-60 Hz

Maximum

Load 16 (1) A

Sensor

NTC

Danfoss A/S

Nordborgvej 81

6430 Nordborg

Denmark

NLL

Standby maximum 0.4 Watt

The screen of the heating

cable must be connected to

the earth conductor of the

power supply cable by using

a separate connector.

Note: Always install the oor sensor in a conduit in

the oor.

IP21

T30

Mains

220-240V~

50-60 Hz

Maximum

Load 16 (1) A

NTC

Danfoss A/S

Nordborgvej 81

6430 Nordborg

Denmark

NLL

Standby maximum 0.4 Watt

2.2. Connect the switch ac-

cording to the connection

diagram.

3. Fasten the thermostat/switch rmly to a ush

mounted wall box or an exterior wall box by driving
