Danfoss TP7000M Manual de usuario
TP7000 + RF
GB
F
D
ES
DK
NL
LT
PL
I
Installation Instructions
User Instructions
Instructions d’installation
Instructions d’utilisateur
Installationsanweisungen
Inbetriebnahme-Instruktion
Instrucciones de instalación
Instrucciones del usuario
Instruktions vejledning
Brugervejleding
7 day programmable room thermostat
Installatie handleiding
Instructiesevoor Gebruik
Ïäçãßåò åãêáôÜóôáóçò
Ïäçãßåò ÷ñÞóçò
Instrukcja instalacji
Instrukcja Użytkownika
Montavimo instrukcijos
Informacija Vartotojui
Istruzioni per l’uso
Istruzioni per l’utente
GR
2
INDEX
Installation Instructions 3-6
User Instructions 7-12
Instructions d’installation 13-16
Instructions d’utilisateur 17-22
Installationsanweisungen 23-26
Inbetriebnahme-Instruktion 27-32
Instrucciones de instalación 33-36
Instrucciones del usuario 37-42
Instruktions vejledning 43-46
Brugervejleding 47-52
Installatie handleiding 53-56
Instructiesevoor Gebruik 57-62
Ïäçãßåò åãêáôÜóôáóçò 63-66
Ïäçãßåò ÷ñÞóçò 67-72
Instrukcja instalacji 73-76
Instrukcja Użytkownika 77-82
Montavimo instrukcijos 83-86
Informacija Vartotojui 87-92
Instruzioni per l’uso 93-96
Instruzioni per l’utente 97-102
F
D
ES
DK
NL
GR
PL
LT
I
3
Installation
Instructions GB
Important note RF products: Ensure that there are no large metal objects, such
as boiler cases or other large appliances, in line of sight between the transmitter
and receiver as these will prevent communication between thermostat and receiver.
Specification
GB - Installation Instructions
Thermostat Features TP7000-RF TP7000 TP7000M
Power supply 2 x AA/MN1500/LR6 alkaline
batteries 230v, 50 Hz
Memory backup Capacitor during battery change
for 1 minute
Rechargable
cell, 24 hrs (*1)
Switching action of output relay N/A 1 x SPDT, Type 1B
Switch rating of relay contact,
voltage and current N/A 3(1) A, 230 volts
Transmitter frequency (RF only) 433.92 MHz N/A
Transmitter range (RF only) 30 meters max. N/A
Rated Impulse Voltage N/A 2.5Kv
Dimensions (mm) 138 wide x 88 high x 28 deep
Ball Pressure Test 75°C
Temperature Range 5-30°C
Design Standard EN 60730-2-7 (EN300220 for RF)
Control Pollution Situation Degree 2
Time accuracy ± 1 min.
Temperature accuracy ±1°C
*1: Unit must powered up for 6 days to charge cell before full back-up is available
Please Note:
This product should only be installed by a
qualified electrician or competent heating
installer and should be in accordance with the
current edition of the IEEE wiring regulations.
4
All models
Sw15/2 day programming 7 day programming
Sw2Optimum start contoller enabled Optimum start contoller disabled
Sw3Chrono-proportional control On/Off control
TP7000, M & RF models with 3/6 cycles per hour option
Sw4Chrono-proportional, 6 cycles / hour Chrono-proportional, 3 cycles / hou
r
Installation
DIL Switch Settings
GB - Installation Instructions
First remove the wallplate from the back of the unit
From the top left hand corner of the wallplate, there
must be clearances of at least 140mm to the right,
15mm to the left, 30mm above and 100mm below in
order to mount the plug-in module.
Before mounting the unit ensure the 4 DIL switches
on the rear of the unit have been moved to the
required settings (see below). Factory preset is 7-day,
with Optimum Start and Chrono-proportional control OFF.
NOTE
Use Chrono 3 for high thermal inertia systems, e.g. floor standing cast iron boilers
Use Chrono 6 for low thermal inertia systems, e.g. low water content boilers and
combi boilers
5
TP7000 Wiring (not RF models)
7-day - each day can be programmed with different times and
temperatures.
5/2 day - one set of times & temperatures for weekdays, and
another set for weekends.
Optimum start control - function which switches the heating on
earlier than the Event 1 programmed time to ensure the required
temperature is achieved by the set time.
Chrono-proportional control - energy saving feature which
fires the boiler at regular intervals to maintain a set temperature,
achieving a constant ambient environment for the user.
L N
M models only
Setting Optimum Start Control
-4˚C
-3˚C
-2˚C
-1˚C
A
B
C
120
min. 90
min. 60
min. 30
min. Event 1
time (0)
D
Set Sw2 to OSC ON (see
DIL settings page 4)
Select OPTIMISER CURVE
in programming mode
A - Event 1 Set Point
B- Deviation from Set Point
C- Switch On Time prior to
Event
D- Optimiser Curve Setting
For a full explanation of all advanced features please visit
our website www.danfoss-randall.co.uk or call 01234 364621
to obtain a copy of our Advanced Features Guide.
GB - Installation Instructions
1234567
ELECTRONICS
REMOTE
SENSOR
'A' models
only
COM ON OFF
6
Commissioning (RF versions only)
To tune the RX receiver to the frequency of the thermostat
signal, follow steps 1-5 below
LEARN
1. TP7000-RF
Press the recessed RESET button,
using a non-metallic object, to reset
the unit.
2. Press & hold the recessed LEARN button for 3 seconds,
using a non-metallic object.
NOTE: Thermostat now transmits continuously for 5 mins
3. RX1
Press and hold buttons PROG and CH1
for 3 seconds until green light flashes once
4. RX2 (if applicable)
Stat 1 - perform steps 1-3
Stat 2 - wait 5 mins, perform steps1-2 and then press
PROG and CH2 on RX2
RX3 (if applicable)
Stat 1 - perform steps 1 – 3
Stat 2 - wait 5 mins, perform steps 1-2 and then press
PROG and CH2 on RX3
Stat 3 - wait 5 mins, perform steps 1-2 and then press
PROG and CH3 on RX3
5. TP7000-RF
Press or to return the unit to
normal operation.
RESET
GB - Installation Instructions
Receiver Wiring (RF models only)
RX1 & 2 (3055 12/01)
COM
RX3 (3056 12/01)
RX1 & RX2 RX3
NB. For mains voltage operated systems link terminal 2 to mains live supply
7
GB - User Instructions
User
Instructions
GB
Your programmable room thermostat
The TP7000 allows you to programme up to 6 different time
and temperature settings for each day of the week, providing
complete flexibility. It provides several energy saving features
and features several useful user overrides, including a 99
day holiday mode.
Preset Programmes
Your TP7000 comes ready programmed with a set of operating
times and temperatures which often suit most people.
If you want, you can change any of these settings by following
the instructions on pages 9-10. First follow the steps on page 8
to set your display preferences and the correct time and date.
Before you start
Open the flap on the front of your
programmer. Using a non-metallic
object, press the recessed RESET
button, until you hear a click and the
display goes blank.
Weekdays (Mon-Fri) Weekend (Sat-Sun)
Event Time Temp °C Event Time Temp °C
1 06:30 20 1 07:30 20
2 08:30 15 2 09:30 20
3 11:30 20 3 11:30 20
4 13:30 15 4 13:30 20
5 16:30 21 5 16:30 21
6 22:30 15 6 22:30 15
RESET
8

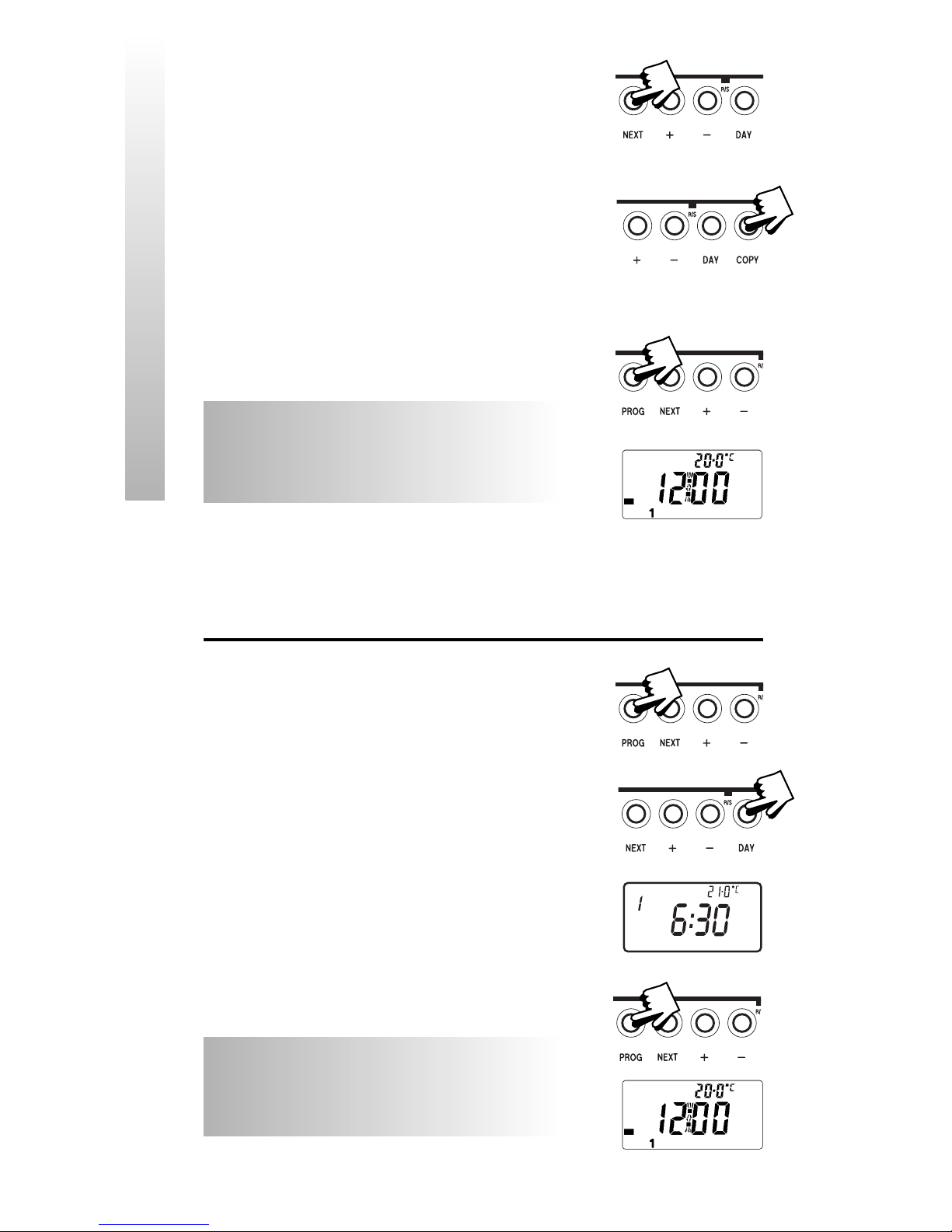

Display preferences
Temperature display (°C or °F)
Press and hold DAY & COPY (for 2-3
seconds) until display changes.
Clock display (12 or 24 hr)
Press and hold NEXT & DAY (for 2-3
seconds) until display changes
(AM or PM will appear in 12 hr mode)
Setting the Clock & Day
Press PROG to begin programming
DAY - Press DAY until correct day is
shown (1=Monday, 2=Tuesday etc)
TIME - Press + and - to change time
(press and hold to change in 10 min
increments)
This display will ONLY appear if the OSC
function has been enabled by your installer.
Use the + or - buttons to select the
OSC period. The choices are 0:30 (30
mins), 1:00 (1 hr), 1:30 and 2:00.
The recommended setting is 0:30. If set
to 0:00 the function is disabled.
To
change
DAY
To change TIME
GB - User Instructions
Setting the OSC Period, if enabled (see pg.5)
Accepting the preset programmes
If you are happy to use the preset programmes on page 7,
you don’t need to do anything else. To accept these settings
just close the front cover and after 2 minutes the pre-settings
will automatically be accepted.
9
GB - User Instructions
The unit is now in RUN mode (colon
flashes in display) and the heating
will operate according to the preset
programmes.
a) Press PROG until Event 1
flashes, then press DAY to move from
current day to Day 1.
b) Amend the time and temperature
as follows:
i) Use + and – buttons to
alter time (press and hold to
change in 10 min increments).
ii) Use and buttons to alter
temperature in 0.5°C (1°F) steps.
iii) Press NEXT to advance to
next Event
iv) Repeat steps i,ii & iii above for
Events 2, 3, 4, 5 & 6
Programming in 7-day mode
(separate programmes for each day of the week)
1
Before you change the preset programmes
Your installer will have set your unit to operate in either 7-day
mode or 5/2 day mode. To tell which mode your unit is set
press PROG until Event 1 flashes in the display.
This unit is in 7-day mode and you can
programme different settings for each day of the
week (see page 9-10).
This unit is in 5/2 day mode and you can enter
one of set of programmes for weekdays and
another set for weekends (see page 10).
1
1 2 3 4 5
10
c) When all 6 events are correct,
press DAY to programme events
for Day 2.
(If you wish to repeat the
previous day’s programme,
simply press COPY)
d) Repeat steps b & c above to
programme (or COPY)
events for Days 3, 4, 5, 6 & 7
Returning to RUN Mode –
press PROG until colon flashes
in display
Press PROG until Event 1
flashes, then press DAY until
display shows Day 1-5.
Follow steps b & c on page
9-10 to programme times &
temperatures for weekdays
Press DAY to programme
events for weekend (Day 6-7) or
press COPY to repeat weekday
programme
Returning to RUN Mode –
press PROG until colon flashes
in display
Programming in 5/2 day mode
(one set of programmes for weekdays, another set for weekends)
1 2 3 4 5
GB - User Instructions
Este manual sirve para los siguientes modelos
2
Tabla de contenidos
Otros manuales de Termostato de Danfoss
Danfoss
Danfoss CP10C Manual de usuario
Danfoss
Danfoss RET2000 B Manual de usuario
Danfoss
Danfoss ECL Comfort 310, A376 Manual de usuario
Danfoss
Danfoss ECL Comfort 210 Manual de usuario
Danfoss
Danfoss KP Series Manual de usuario
Danfoss
Danfoss RT 101 Manual de usuario
Danfoss
Danfoss ECtemp 530 Manual de usuario
Danfoss
Danfoss Icon Master Manual de usuario
Danfoss
Danfoss 088L5130 Manual de usuario
Danfoss
Danfoss ECL Comfort 210 Manual de usuario
Danfoss
Danfoss HC75-1 Manual de funcionamiento
Danfoss
Danfoss 102E7 Instrucciones de montaje
Danfoss
Danfoss RET2000B-RF Manual de usuario
Danfoss
Danfoss RT 14E Manual de usuario
Danfoss
Danfoss BasicPlus2 WT-D Manual de usuario
Danfoss
Danfoss 088L5133 Manual de usuario
Danfoss
Danfoss TP7000 Series Manual de usuario
Danfoss
Danfoss TP5000 si range Guía
Danfoss
Danfoss RET1000 B Manual de usuario
Danfoss
Danfoss MBC 8000 Manual de usuario
Manuales populares de Termostato de otras marcas
EWELLY
EWELLY EW-181 Manual de usuario
Prolon
Prolon T1100 Instrucciones de instalación
Computherm
Computherm Q20 Manual de usuario
Heatmiser
Heatmiser neoStat Manual de usuario
Aube Technologies
Aube Technologies TH111GFCI-NP 240 VCA Manual de usuario
Mars
Mars HEAT CONTROLLER IR Wireless Thermostat Manual de usuario
