Dahua Technology IPC-HUM4431S-L4 Manual de usuario

Pinhole Network Camera

Quick Start Guide

V1.0.

1ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

Quick Start Guide

Foreword

General

This manual introduces the functions and operations of the camera.

Safety Instructions

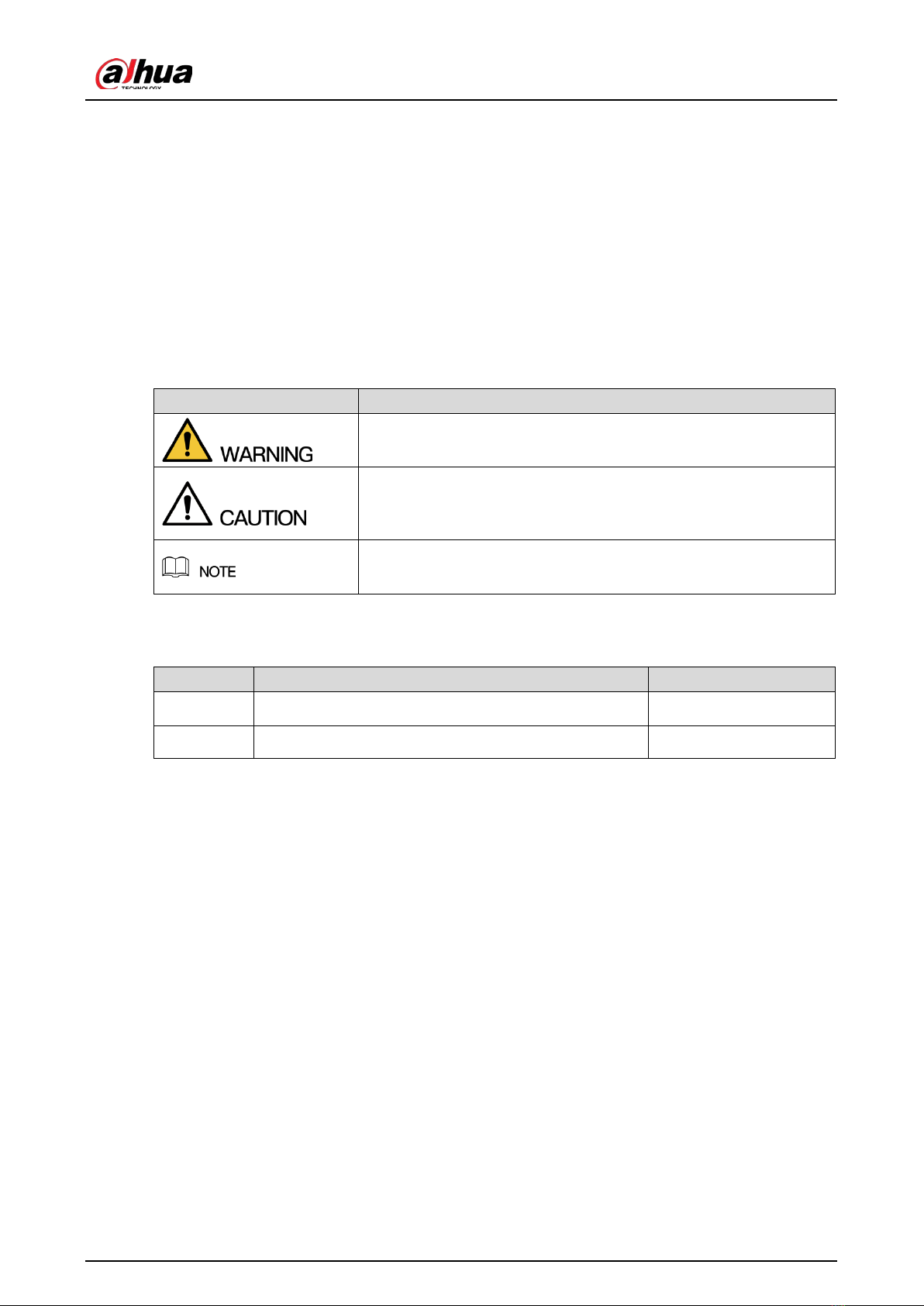

The following categorized signal words with defined meaning might appear in the manual.

Signal Words Meaning

Indicates a medium or low potential hazard which, if not avoided,

could result in slight or moderate injury.

Indicates a potential risk which, if not avoided, may result in

property damage, data loss, lower performance, or unpredictable

result.

Provides additional information as the emphasis and supplement to

the text.

Revision History

Version Revision Content Release Time

V1.0.1 Updated "Important Safeguards and Warnings." April 2021

V1.0.0 First release. November 2019

About the Manual

The manual is for reference only. If there is inconsistency between the manual and the actual

product, the actual product shall prevail.

We are not liable for any loss caused by the operations that do not comply with the manual.

The manual would be updated according to the latest laws and regulations of related regions.

For detailed information, see the paper manual, CD-ROM, QR code or our official website. If

there is inconsistency between paper manual and the electronic version, the electronic version

shall prevail.

All the designs and software are subject to change without prior written notice. The product

updates might cause some differences between the actual product and the manual. Please

contact the customer service for the latest program and supplementary documentation.

There still might be deviation in technical data, functions and operations description, or errors

in print. If there is any doubt or dispute, please refer to our final explanation.

Upgrade the reader software or try other mainstream reader software if the manual (in PDF

format) cannot be opened.

All trademarks, registered trademarks and the company names in the manual are the properties

of their respective owners.

Quick Start Guide

Please visit our website, contact the supplier or customer service if there is any problem

occurred when using the device.

If there is any uncertainty or controversy, please refer to our final explanation.

Quick Start Guide

III

Important Safeguards and Warnings

Electrical Safety

All installation and operation shall conform to your local electrical safety codes.

The power source shall conform to the Safety Extra Low Voltage (SELV) standard, and supply power

with rated voltage which conforms to Limited Power Source requirement according to IEC60950-1.

Note that the power supply requirement is subject to the device label.

Make sure that the power supply is correct before operating the device.

A readily accessible disconnecting device shall be incorporated in the building installation wiring.

Prevent the power cable from being trampled or pressed, especially the plug, power socket and the

junction extruded from the device.

Environment

Do not aim the device at strong light to focus, such as lamp light and sun light; otherwise it might

cause over brightness or light marks, which are not the device malfunction, and affect the longevity

of Complementary Metal-Oxide Semiconductor (CMOS).

Do not place the device in a damp, dusty extremely hot or cold environment, or the locations with

strong electromagnetic radiation or unstable lighting.

Keep the device away from any liquid to avoid damage to the internal components.

Keep the indoor device away from rain or damp to avoid fire or lightning.

Keep sound ventilation to avoid heat accumulation.

Transport, use and store the device within the range of allowed humidity and temperature.

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

Pack the device with standard factory packaging or the equivalent material when transporting the

device.

Install the device in the location where only the professional staff with relevant knowledge of safety

guards and warnings can access. The accidental injury might happen to the non-professionals who

enter the installation area when the device is operating normally.

Operation and Daily Maintenance

Do not touch the heat dissipation component of the device to avoid scald.

Carefully follow the instructions in the manual when performing any disassembly operation about

the device; otherwise, it might cause water leakage or poor image quality due to unprofessional

disassembly. Please make sure that the gasket ring is flat and properly installed in the groove before

installing the cover. Please contact after-sale service for desiccant replacement if there is condensed

fog on the lens after unpacking or when the desiccant turns green (Not all models are included with

the desiccant).

It is recommended to use the device together with lightning arrester to improve lightning protection

effect.

Quick Start Guide

It is recommended to ground the device to enhance reliability.

Do not touch the image sensor (CMOS) directly. Dust and dirt could be removed with air blower, or

you can wipe the lens gently with soft cloth that is moistened with alcohol.

You can clean the device body with soft dry cloth, and for stubborn stains, use the cloth with mild

detergent. To avoid possible damage on device body coating which could cause performance

decrease, do not use volatile solvent such as alcohol, benzene, diluent and so on to clean the device

body, nor can strong, abrasive detergent be used.

Dome cover is an optical component. Do not touch or wipe the cover with your hands directly

during installation or operation. For removing dust, grease or fingerprints, wipe gently with

moistened oil-free cotton with diethyl or moisten soft cloth. You can also remove dust with an air

blower.

Strengthen the protection of network, device data and personal information by adopting measures

which include but not limited to using strong password, modifying password regularly, upgrading

firmware to the latest version, and isolating computer network. For some device with old firmware

versions, the ONVIF password will not be modified automatically along with the modification of the

system password, and you need to upgrade the firmware or manually update the ONVIF password.

Use standard components or accessories provided by manufacturer and make sure that the device is

installed and maintained by professional engineers.

The surface of the image sensor should not be exposed to laser beam radiation in an environment

where a laser beam device is used.

Do not provide two or more power supply sources for the device unless otherwise specified. A failure

to follow this instruction might cause damage to the device.

Quick Start Guide

Table of Contents

Foreword............................................................................................................................................................ I

Important Safeguards and Warnings............................................................................................................. III

1 Cable............................................................................................................................................................... 1

2 Network Configuration ................................................................................................................................. 2

Initializing Device....................................................................................................................................................................... 22.1

Modifying Device IP Address................................................................................................................................................. 32.2

Logging in to Web Interface................................................................................................................................................... 42.3

3 Installation..................................................................................................................................................... 6

Packing List................................................................................................................................................................................... 63.1

Dimensions................................................................................................................................................................................... 63.2

Installing Device ......................................................................................................................................................................... 73.3

3.3.1 Installation Method...................................................................................................................................................... 7

3.3.2 Attaching Device........................................................................................................................................................... 7

3.3.3 Installing Waterproof Connector (Optional)....................................................................................................... 8

3.3.4 Adjusting Lens Angle .................................................................................................................................................. 8

Quick Start Guide

1Cable

Cable type might vary with different devices, and the actual product shall prevail.

Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit

and water damage. For the detailed operation, see the FAQ Manual.

Cable listFigure 1-1

For more information about cable ports, see Table 1-1.

Table 1-1 Cable information

No. Port Name Description

1 12V DC power

input

Inputs 12V DC power. Be sure to supply power as instructed in the

manual.

Device abnormity or damage could occur

if power is not supplied

correctly.

2 Ethernet Connects to network with network cable.

3 Audio input RCA port. Connects to sound pickup device to receive audio signal.

4 Audio out RCA port. Connects to speaker to output audio signal.

Quick Start Guide

2Network Configuration

Device initialization and IP address setting can be finished with the "ConfigTool" or on web interface.

For more information, see the Web Operation Manual.

Device initialization is available on select models, and it is required for the first use or after the

device is reset.

Device initialization is available only when the IP addresses of the device (192.168.1.108 by

default) and the PC stay in the same network segment.

Plan useable network segment properly to connect the device to the network.

The following figures and interfaces are for reference only, and the actual product shall prevail.

Initializing Device2.1

Double-click "ConfigTool.exe" to open the tool.Step 1

Click .Step 2

The Modify IP interface is displayed. See Figure 2-1.

Modify IPFigure 2-1

Click Search setting.Step 3

The Setting interface is displayed.

Enter the start IP address and end IP address of the network segment in which you want toStep 4

search devices, and then click OK.

All the devices found in the network segment are listed.

Select one or several devices whose Status shows Uninitialized, and then click Initialize.Step 5

Quick Start Guide

The Device initialization interface is displayed.

Select the devices that need initialization, and then click Initialize.Step 6

The password setting interface is displayed. See Figure 2-2.

Password settingFigure 2-2

Set and confirm the password of the devices, then enter a valid email address, and then clickStep 7

Next.

The final setting interface is displayed.

Password can be modified or reset in System Settings.

Select the options according to your needs, and then click OK.Step 8

The Initialization interface is displayed after initialization is completed. Click the success

icon ( ) or the failure icon ( ) for the details.

Click Finish.Step 9

The device status in the Modify IP interface (Figure 2-1) turns to Initialized.

Modifying Device IP Address2.2

You can modify IP address of one or multiple devices in one time. This section is based on

modifying IP addresses in batches.

Modifying IP addresses in batches is available only when the corresponding devices have the

same login password.

Do Step 1 to Step 4 in "2.1 Initializing Device" to search devices in your network segment.Step 1

After clicking Search setting, enter the username and password, and make sure they are the

same as what you set during initialization, otherwise there will be wrong password notice.

Select the devices whose IP addresses need to be modified, and then click Modify IP.Step 2

Quick Start Guide

The Modify IP Address interface is displayed. See Figure 2-3.

Modify IP AddressFigure 2-3

Select Static mode, and then enter start IP, subnet mask, and gateway.Step 3

IP addresses of multiple devices will be set to the same if you select the Same IP check

box.

If DHCP server is available in the network, devices will automatically obtain IP

addresses from DHCP server when you select DHCP.

Click OK.Step 4

Logging in to Web Interface2.3

Open IE browser, enter the IP address of the device in the address bar, and then press Enter.Step 1

If the setup wizard is displayed, finish the settings as instructed.

Enter the user name and password in the login box, and then click Login.Step 2

For the first login, click Click Here to Download Plugin, and then install the plugin asStep 3

instructed.

The main interface is displayed when the installation is finished. See Figure 2-4.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Dahua Technology

Dahua Technology

Dahua Technology IPC-HDW5449H-ASE-D2-0280B Manual de usuario

Dahua Technology

Dahua Technology IPC-HUM8531M-V-LED-0360B Manual de usuario

Dahua Technology

Dahua Technology D-SD6C3432XB-HNR-AGQ-PV Manual de usuario

Dahua Technology

Dahua Technology 8A840WANF Manual de usuario

Dahua Technology

Dahua Technology IPC-HDW2241T-S-0280B Manual de usuario

Dahua Technology

Dahua Technology IPC-HDW3549H-ZAS-PV-27135 Manual de usuario

Dahua Technology

Dahua Technology IPC-HFW1320S-W Manual de usuario

Dahua Technology

Dahua Technology 22204TNI Manual de usuario

Dahua Technology

Dahua Technology Pro IPC-HDW5241TM-AS Manual de usuario

Dahua Technology

Dahua Technology 59230UNI Manual de usuario

Dahua Technology

Dahua Technology IPC-HFW81230E-Z Manual de usuario

Dahua Technology

Dahua Technology N52BF5Z Manual de usuario

Dahua Technology

Dahua Technology HDW2831TM-AS-S2 Manual de usuario

Dahua Technology

Dahua Technology D-TPC-BF1241-B3F4-DW-S2 Manual de usuario

Dahua Technology

Dahua Technology DH-IPC-PFW83242-A180-S2 Manual de usuario

Dahua Technology

Dahua Technology IPC-HFW2831T-ZS-S2 Manual de usuario

Dahua Technology

Dahua Technology IPC-HFW5431E-Z Manual de usuario

Dahua Technology

Dahua Technology D-IPC-HDBW1430DEP-SW-0280B Manual de usuario

Dahua Technology

Dahua Technology 49925TNI Manual de usuario

Dahua Technology

Dahua Technology 52C230UNI Manual de usuario

Dahua Technology

Dahua Technology IPC-HUM4231S-L4-0280B-S3 Manual de usuario

Dahua Technology

Dahua Technology IPC-HFW5449T1-ASE-D2-0360B Manual de usuario

Dahua Technology

Dahua Technology N28BL7Z Manual de usuario

Dahua Technology

Dahua Technology N68BR4 Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
