2D-Link DUB-2240 Quick Install Guide
D-Link DUB-2240 Wireless USB 4-Port Hub
USB Cable
Power Adapter (5V/3A)
Firmware, Drivers, and Utilities CD
Quick Installation Guide
Package Contents
Note: Using a power supply with a different voltage than the one included with
the DUB-2240 will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
Your DUB-2240 should contain all the items listed below. Before you
begin the installation of the device, please check to make sure that
the following items are included in your package.
System Requirements
Windows®VistaTM or XP (with Service Pack 2)
20MB Hard Disk Space
USB 1.1 Port
Computer with Built-in Certified Wireless USB
Capability or Certified Wireless USB Adapter
(DUB-1210 Recommended)
3 D-Link DUB-2240 Quick Install Guide
Hardware Overview
Antenna
Power Receptor
The 4-port USB hub hardware features:
Reset Button
Mini USB port
4D-Link DUB-2240 Quick Install Guide
Before connecting your DUB-2240 Wireless USB 4-Port Hub, insert
the provided CD into the CD drive on your PC. The InstallShield
Wizard will start automatically and detect what operating system you
are running on the PC.
Note: For long PIN association, the PIN is located on the label on
the bottom of the USB hub. Follow manufacturer’s instructions for
installation.
After the InstallShield Wizard detects what operating system is running
on your PC, the Welcome screen will appear.
As instructed, do not plug the USB adapter or hub into the PC at this
time. Only the DUB-2240 hub should be powered on.
Click Next
Installation
5 D-Link DUB-2240 Quick Install Guide
To accept the ter ms of the
License Agreement, select “I
accept the terms in the license
agreement” as shown.
Select the user you are installing
the software application for.
Choose “Anyone who uses this
computer” to allow all users.
Click Next
Click Next
Click Next to continue
Select a destination folder where
the software will be installed.
By default the software will
install in the C:\Program Files\
D-Link\Wireless USB\folder.
Select Change to install in a
different folder.
6D-Link DUB-2240 Quick Install Guide
When the wizard is ready to
install the software, you will be
prompted to begin the installation.
Click Back to make changes to
the previous steps or Cancel to
exit the wizard without installing
the software.
Click Install
With the installation nearly
complete, the wizard will instruct
you to connect the USB hub
to the computer to begin the
association process and install
the hub.
Click Next
The wizard will notify you when
the software has been installed
sucessfully and the devices are
ready to use.
This completes the software setup.
7 D-Link DUB-2240 Quick Install Guide
Click Finish
Once you are associated with the USB hub and the hub
is disconnected from the computer, you may plug your
USB devices into the wireless hub.
Note: For the best reception and performance, position
the adapter vertically.
8D-Link DUB-2240 Quick Install Guide
Using the Control Center

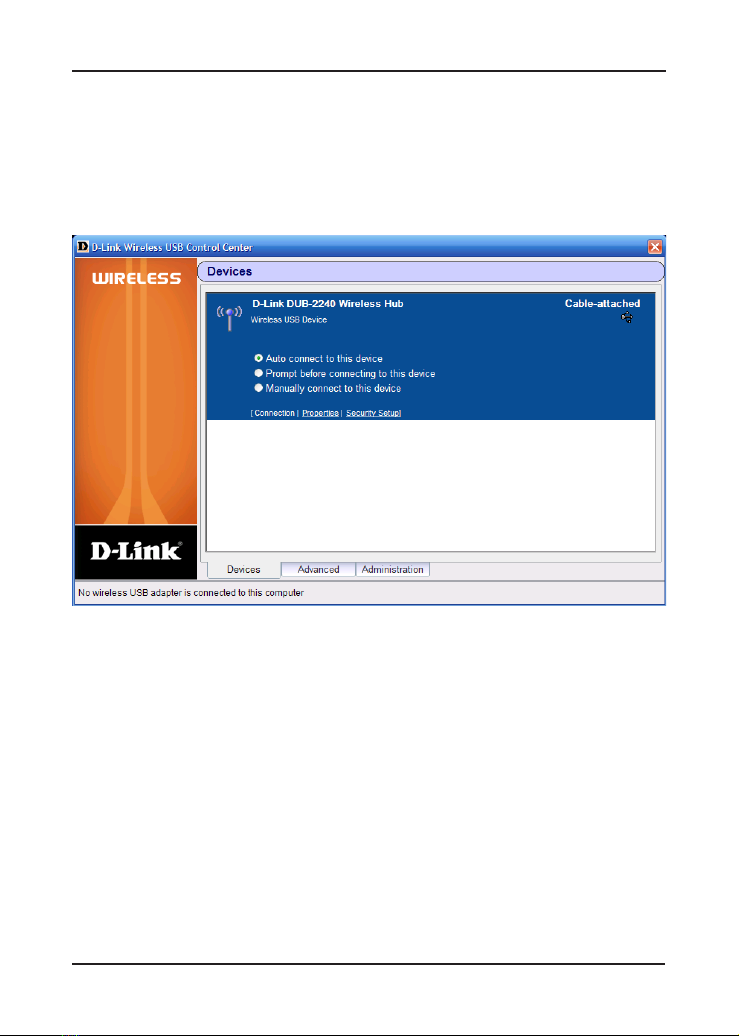

The Devices screen displays the status of the connection between
the wireless USB adapter and hub.
Devices
From the Devices screen, you can check the connection status of the
wireless USB hub, the properties, and setup security for the wireless
connection.
9 D-Link DUB-2240 Quick Install Guide
Connection
The Connection Status option allows you to disconnect from the
wireless USB hub.You may also select when the USB hub will connect
to the USB adapter.
Select one of the following:
• Auto connect to this device - The USB adapter will connect to
the hub upon startup. This is the default option.
• Prompt before connecting to this device - You will receive an
alert asking if you would like to connect to the USB hub.
• Manually connect to this device - You must open the software
and click Connect to connect to the USB hub.
10D-Link DUB-2240 Quick Install Guide
Properties
You can change the name of the wireless hub. This is helpful if you
are attached to multiple hubs. In the box, type in a new name and
click Apply.
