HDMI Over IP-PRO DSX

PRO DSX - HDMI Over IP

Network Switch Configuration

For DLINK DGS 1210-28p

Revision: 1.1

Octava Inc.-7078 Peachtree Ind. Blvd Suite 300

Norcross, Ga. 30071

Tel 770.825.0388

www.octavainc.com

All prices and specifications

are subject to change without notice.

All trademarks are the sole property of their respective companies.

Customizable Matrix Control App ( available for iOS, and Android Devices)

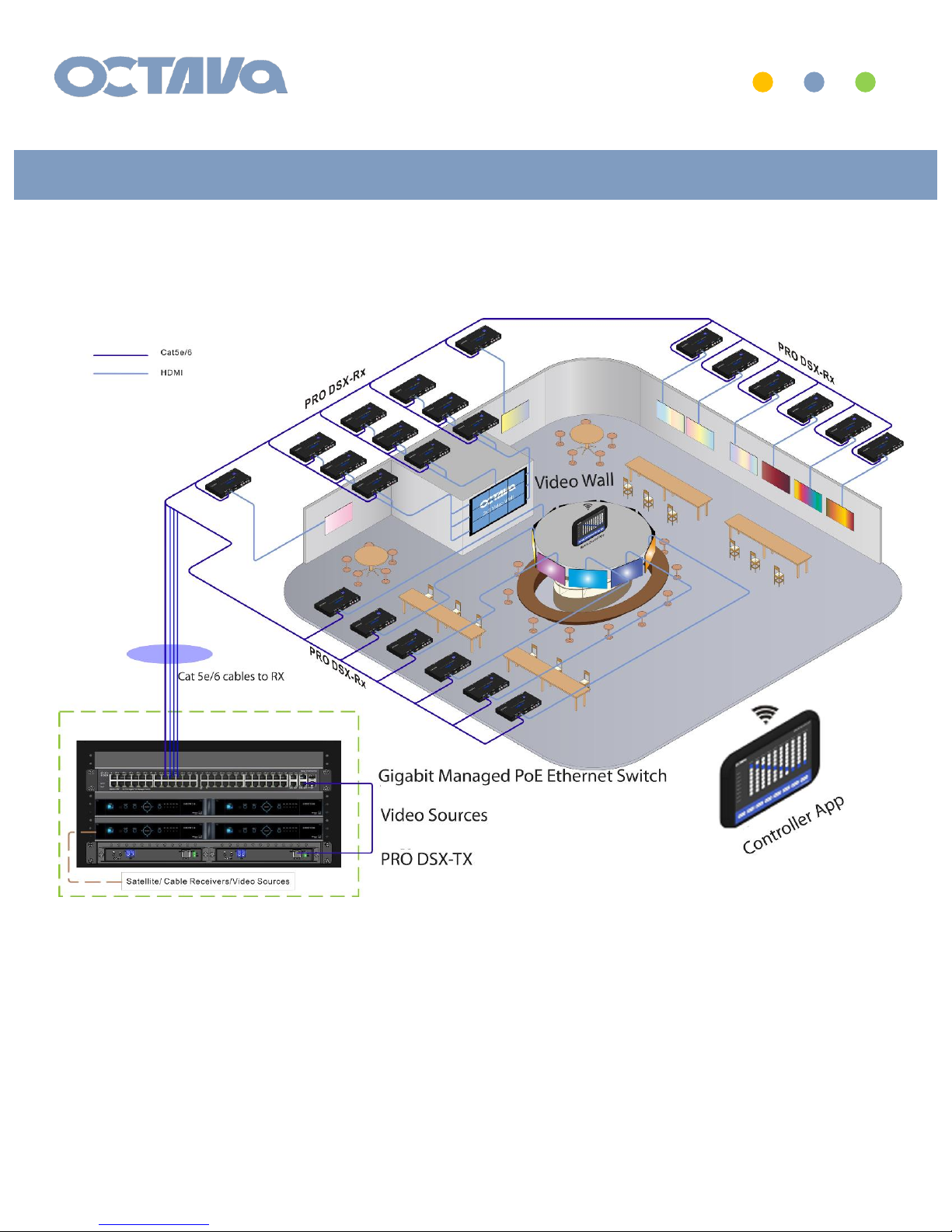

System Application Diagram

Introduction:

Scope: This guide provides a reference for configuring your network switch to work with the

Octava PRO DSX HDMI Over IP Matrix System.

This configuration guide is based on the DLINK DGS1210-28P

In this guide we will configure the network switch so some of the advanced features are

enabled:

Jumbo frame : jumbo frames are Ethernet frames with more than 1500 bytes of payload.

Multicast Video: Multicast as compared to Unicast is a more efficient method of delivering

video to multiple clients. Multicasting requires only 1 “channel/group” to be transmitted

regardless of number of clients that will subscribe to the “channel/group”. Unicast would

require 1 stream for each client , thus would increase the bandwidth requirement by N(

number of clients).

IGMP ( internet group management protocol): IGMP Querying/Snooping, optimizes

network loading by ensuring that Multicast traffic is only forwarded to ports that are

members of that Multicast group.

1. Connect a LAN cable directly from you PC to the network switch.

2. Set your computer network settings to :

IP Address: 10.0.0.2

Subnet : 255.0.0.0

Gateway: 10.0.0.1

3. Open a browser and enter the IP address of the DLINK: 10.90.90.90

4. Select Standard mode and Exit

5. Select VLAN

6. Select 802.1Q VLAN

7. Select all ports and set as Untagged

8 . Select L2 Functions. Set JUMBO Frame = Enable

9 . Go to Multicast and set as follows:

Set IGMP Snooping = Enable

Host Time Out = 260

Robustness Variable = 2

Query Interval= 125

Router Timeout = 125

Last Member Query Interval = 1

Max Response Time = 10

10. Goto / Multicast / IGMP Snooping

State = Enabled

Querier State = Enabled

Fast Leave = Enabled

11. Set port 28 as Static Router Port . Leave other ports unselected

12. Goto Multicast / Multicast Filtering Mode

Set Filtering mode = Forward Unregistered Groups

13. Save

14. Reboot Device
