Before You Begin

This Quick Installation Guide gives step-by-step instructions for setting up the D-Link

DES-1526 PoE Web-Smart Switch. The model you have purchased may appear slightly

different from those shown in the illustrations. For more detailed information about the

switch, its components, making network connections and technical speciﬁ cations, please

refer to the User’s Manual on master CD included with your switch.

Check Your Package Contents

DES-1526

DES-1526 26-Port Web Smart Switch with

24 10/100M 802.3af PoE Ports & 2 Combo

10/100/1000Mbps/Mini GBIC Ports

CD-ROM with Manual/QIG and Utility

Rubber Foot Pads

Power Cord

Rackmount Kit

respective holders. Software and speciﬁ cations subject to change without notice.

26-Port Web Smart Switch with 24

10/100M 802.3af PoE Ports & 2 Combo

10/100/1000Mbps/Mini GBIC Ports

Rack Mounting

Setup DES-1526 Web Smart Switch

Combine the Switch with the provided screws.

The Switch can be mounted in an EIA standard-size, 19-inch rack, which can be

placed in a wiring closet with other equipment. Attach the mounting brackets at the

Switch’s front panel (one on each side), and secure them with the provided screws.

The setup of the Switch can be performed using the following steps:

A. Install DES-1526 in a fairly cool and dry place. See Technical Speciﬁcations

for the acceptable temperature and humidity operating ranges.

B. Install the Switch in a site free from strong electromagnetic ﬁeld generators

(such as motors), vibration, dust, and direct exposure to sunlight

C. Leave at least 10cm (4 in.) of space at the front and rear of the Switch for

ventilation.

D. Install the Switch on a sturdy, level surface that can support its weight, or in

an EIA standard-size equipment rack. For information on rack installation, see

the next section, titled Rack Mounting.

E. When installing the Switch on a level surface, attach the rubber feet to the

bottom of each device. The rubber feet cushion the Switch and protect the

Switch case from scratching.

Installed on a Desktop

Then, use screws provided with the equipment rack to mount each switch in the rack.

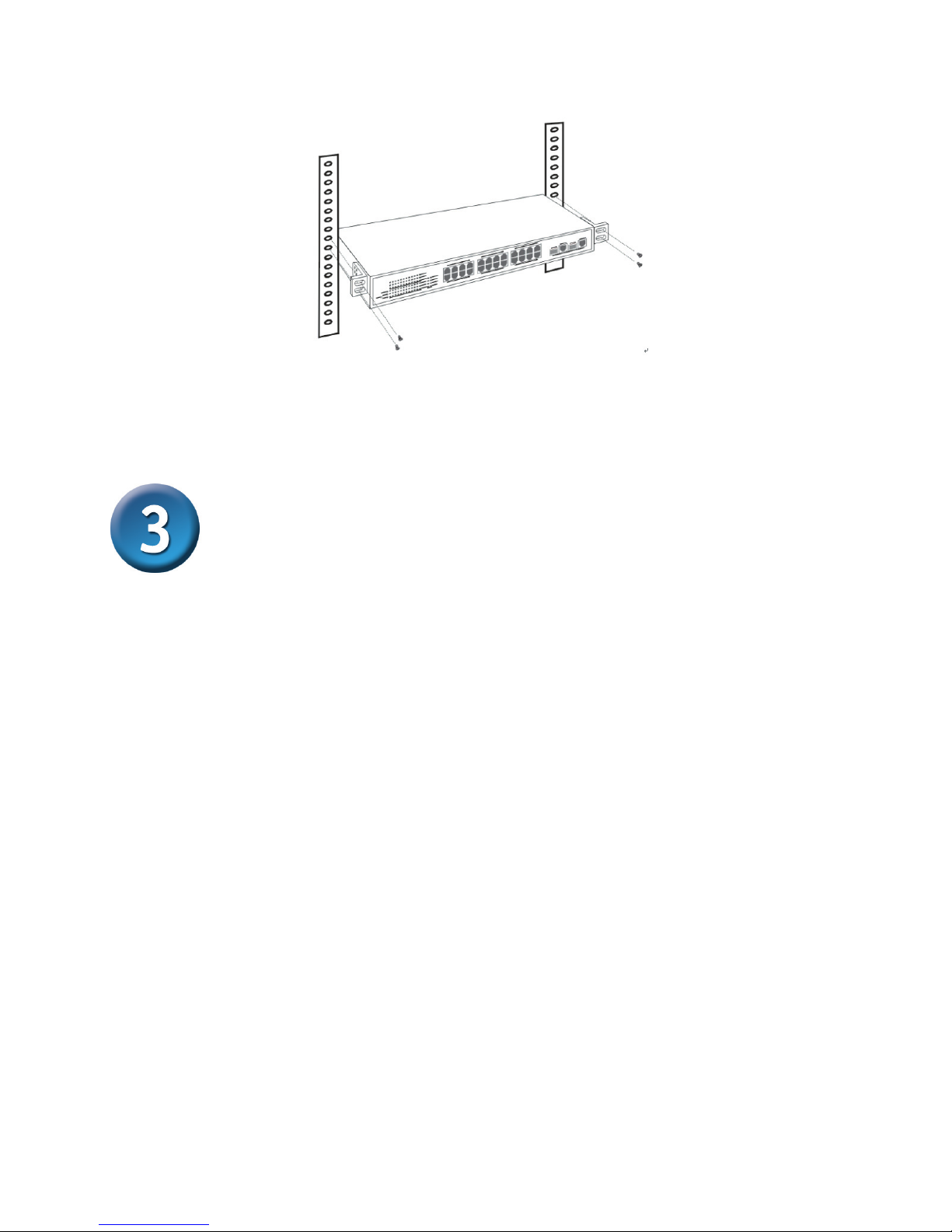

Mount the Switch in the rack.

Connect The DES-1526 Web Smart

Switch To Your Network

Connecting Network Cables

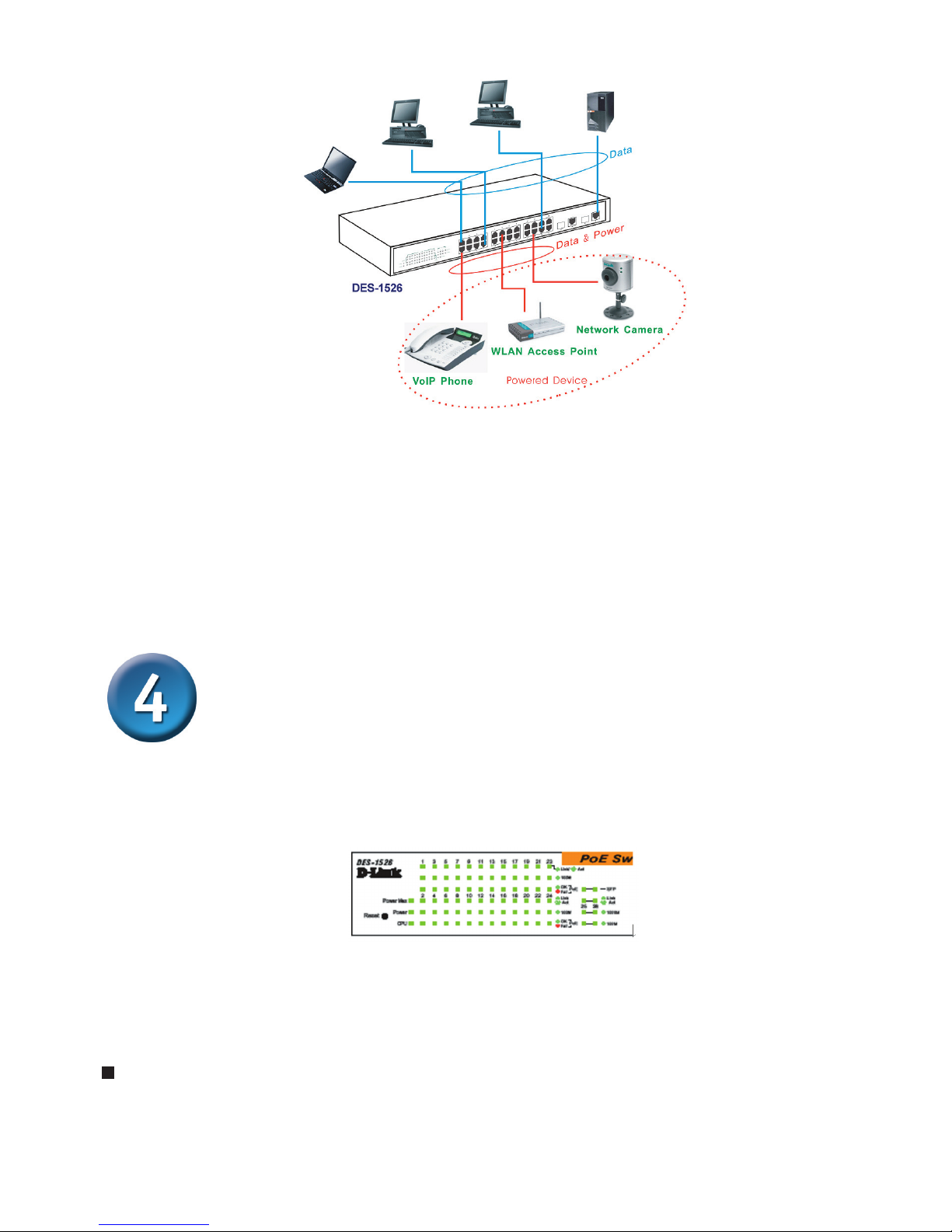

The Switch supports 24 10/100BASE-TX Fast Ethernet PoE enabled ports and

2 1000BASE-T/mini-GBIC combo ports. These 24 PoE ports will be automatically

activated when a compatible terminal is identiﬁed. The Switch will supply power through

the PoE port to the connected PD.

For Legacy devices that are not yet compatible, the PoE port will not offer the power

to these devices. This feature allows users to freely and safely mix legacy and Power

over Ethernet compatible devices on their network.

The Switch supports 10Mbps Ethernet or 100Mbps Fast Ethernet and it runs both in

half- and full- duplex mode using two pairs of Category 5 cables.

The Switch also supports 2 1000BASE-T/mini-GBIC combo Gigabit Ethernet ports. When

using the RJ-45 ports, it runs in Auto-negotiation mode with 10/100Mbps that runs in

both half- and full-duplex mode and 1000Mbps that runs in full-duplex mode using four

pair Category 5. When using the mini-GBIC ports, it runs in optional 1000BASE-SX/LX

ﬁber connectivity with mini-GBIC transceiver module. The Combo Gigabit Ethernet

port will run only one of the mini-GBIC ports or RJ-45 ports The mini-GBIC port priority

is higher than the RJ-45 port, therefore if both the mini-GBIC port and RJ-45 port are

connected, then only the mini-GBIC will activate.

These RJ-45 ports are Auto-MDI type ports. The Switch can auto transform to MDI-II or

MDI-X type, so you can just make an easy connection without worrying if you are using

a standard or crossover RJ-45 cable.

AC Power

The Switch uses the AC power supply 100-240V AC, 50-60 Hz. The power switch is

located at the rear of the unit adjacent to the AC power connector and the system fan.

The Switch’s power supply will adjust to the local power source automatically andmay be

turned on without having any or all LAN segment cables connected.

LED Indicators

The front panel LEDs provide instant status feedback, and helps monitor and

troubleshoot when needed.

LED indicators of the Switch

Connecting Network Cables

System LEDs

POWER:

On : When the Power LED lights on, the Switch is receiving power.

Off : When the Power turns off or the power cord has improper connection.

POWER:

On : When the system power resource remain <=15.4W (the system power consumption

>= 155W), the LED will be on, the system will not provide power to the additional

POE PD inserted.

Off : When the system has enough power more then 15.4W (the system power

consumption <155W).

CPU: Management Indicator

Blinking : When the CPU is working, the CPU LED is blinking.

On/Off : The CPU is not working.

Fast Ethernet PoE Port Status LEDs (Port 1 ~ 24)

Link/ACT: Link/Activity

On : When the Link/ACT LED lights on, the respective port is successfully con-

nected to an Ethernet network.

Blinking: When the Link/ACT LED is blinking, the port is transmitting or receiving data

on the Ethernet network.

Off : There is no link.

100Mbps:

On : When the 100Mbps LED lights on, the respective port is connected to a 100Mbps

Fast Ethernet network.

Off : When the respective port is connected to a 10Mbps Ethernet network.

PoE Status:

Green : When the PoE powered device (PD) is connected and the port supplies power

normally.

Red : When the PoE port have the following failure happens:

PoE power circuit shortage.

Power over current: over the power current of PD’s classiﬁcation.

Out of PoE voltage of 44 ~ 57 VDC output.

Cost fail.

Off : No PoE powered device (PD) connected or unplugged the PoE output port.

Gigabit Ethernet Port Status LEDs

Link/ACT: Link/Activity

On : When the Link/ACT LED lights on, the respective port is successfully con-

nected to an Ethernet network.

Blinking: When the Link/ACT LED is blinking, the port is transmitting or receiving data

on the Ethernet network.

Off : There is no link.

1000Mbps:

On : When the 1000Mbps LED lights on, the respective port is connected to a 1000Mbps

Gigabit Ethernet network.

Off : When the respective port is connected to a 10Mbps Ethernet or 100Mbps Fast

Ethernet network.

100Mbps

On : When the 100Mbps LED lights on, the respective port is connected to a 100Mbps

Fast Ethernet network.

Off : When the respective port is connected to a 10Mbps Ethernet or 1000Mbps Gigabit

Ethernet network.

mini-GBIC (Use Combo ports or SFP)

On : When the mini-GBIC module is installed and connected to a network, the mini-GBIC

LED lights on.

Off : No mini-GBIC module installed.

Installing the Web Management Utility

The following instructions guide you through the installation of the Web Management

utility.

1. Insert the Utility CD in the CD-ROM Drive.

2. From the Start menu on the Windows desktop, choose Run.

3. In the Run dialog box, type D:\Web Management Utility\setup.exe (D:\ depends

where your CD-ROM drive is located) and click OK.

4. Follow the on-screen instructions to install the utility.

5. Upon completion, go to Program Files -> web_management_utility and

execute the Web Management utility. (Figure 1.)

Figure 1. Web Management Utility

The Web Management Utility is divided into four parts, Discovery List, Monitor List,

Device Setting, and Toolbar function, for detailed instructions, please refer to User’s

Manual.

Conﬁguring the Switch

The DES-1526 has a Web GUI interface for smart switch conﬁguration. The Switch can

be conﬁgured through the Web browser. A network administrator can manage, control,

and monitor the Switch from the local LAN. This section indicates how to conﬁgure the

Switch to enable its smart functions.

Use Internet Explorer 5.0 or above Web browser.

Before you conﬁgure this device, note that when the Web Smart Switch is conﬁgured

through an Ethernet connection, make sure the manager PC must be set on same the IP

network. For example, when the default IP address of the Web Smart Switch is 192.168.0.1,

then the manager PC should be set at 192.168.0.x (where x is a number between 2 and

254), and the default subnet mask is 255.255.255.0.

Open the Web browser program and Enter IP address http://192.168.0.1

(the factory-default IP address setting) to the address location.(Figure 2.)

Or through the Web Management Utility, you do not need to remember the IP Address,

select the device shown in the Monitor List of the Web Management Utility to settle the

device on the Web browser.

When the following dialog page appears, enter the default password “admin” and press

Figure 2.

Figure 3.

After entering the password, the main page appears, and the screen will display the

device status.(Figure 4.)

Setup Menu

When the main page appears, the Setup menu is on the left side of the screen(Figure

5.). Click on the setup item that you want to conﬁgure. There are eleven options: Port

Settings, VLAN Settings, Trunk Settings, Mirror Settings, SNMP Settings, PoE

Settings, Device Status, Statistics, System Settings, Trap Settings, Password Set-

tings, Backup Settings, and Reset Settings as shown in the Main Menu screen.

Figure 5. Setup menu

Figure 4.

Notes

Technical Support

You can ﬁnd software updates and user documentation on the D-Link website.

D-Link provides free technical support for customers within the United States and

within Canada for the duration of the warranty period on this product.

U.S. and Canadian customers can contact D-Link technical support through our

website, or by phone.

Tech Support for customers within the United States:

D-Link Technical Support over the Telephone:

(877) 453-5465

24 hours a day, seven days a week

D-Link Technical Support over the Internet:

http://support.dlink.com

email:[email protected]

Tech Support for customers within Canada:

D-Link Technical Support over the Telephone:

(800) 361-5265

Monday to Friday 7:30am to 12:00am EST

D-Link Technical Support over the Internet:

http://support.dlink.ca

email:[email protected]

Tech Support for customers within

the United Kingdom & Ireland:

D-Link UK & Ireland Technical Support over the Telephone:

+44 (0)845 612 0003 (United Kingdom)

+353 (0)12 421 061 (Ireland)

Monday to Friday 8:00 am to 10:00 pm

D-Link Technical Support over the Internet:

http://www.dlink.co.uk
