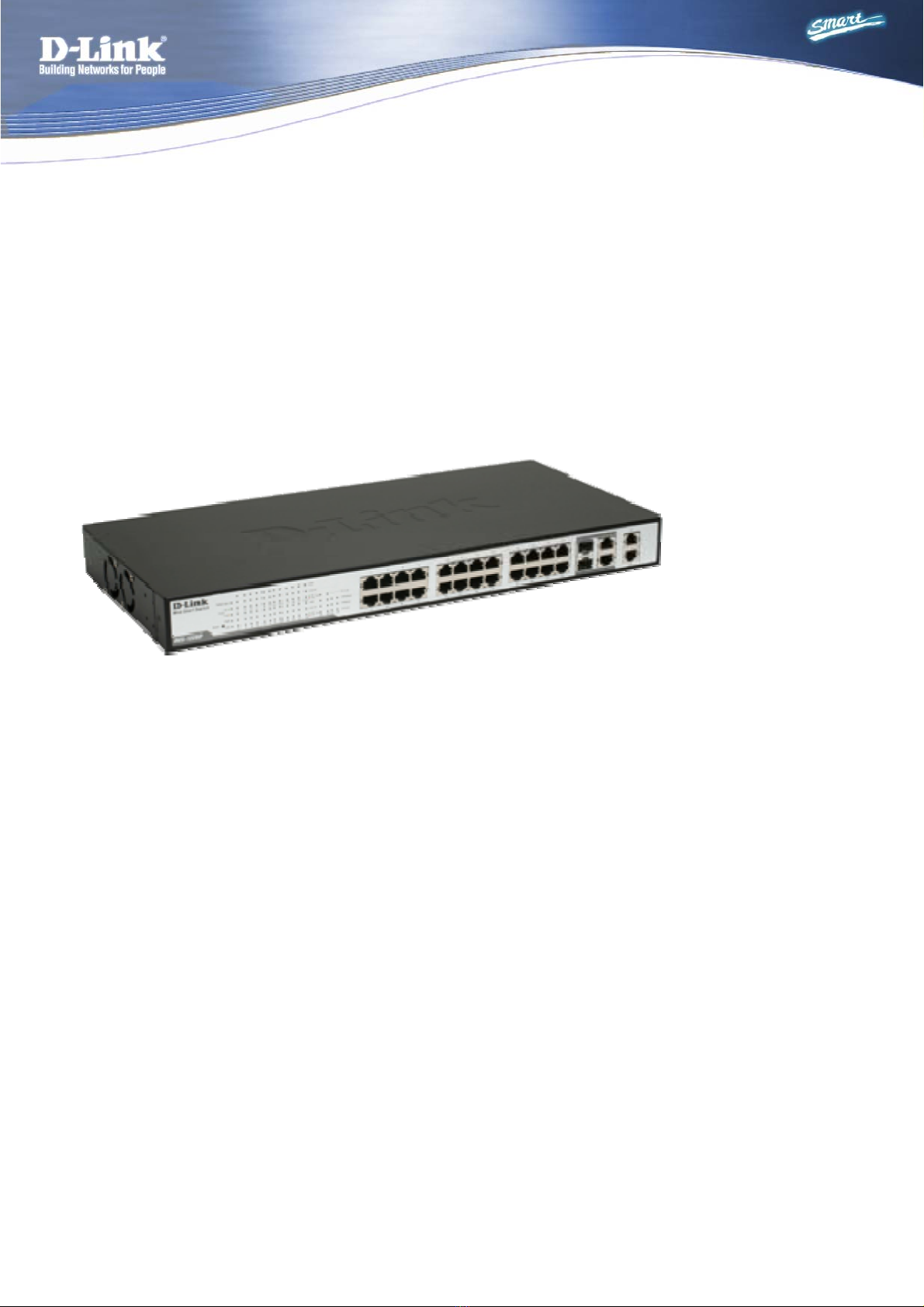

D-Link DES-1228P - Web Smart Switch Manual de usuario

DES-1228P

24-Port 10/100Mbps PoE Web Smart Switch

with 4-Port 10/100/1000Base-T

and 2-Port Combo SFP

User Manual

V1.20

TABLE OF CONTENTS

About This Guide.................................................................................1

Purpose ............................................................................................1

Terms/Usage....................................................................................1

Introduction..........................................................................................2

Gigabit Ethernet Technology...........................................................2

Fast Ethernet Technology ................................................................3

Switching Technology .....................................................................4

Power over Ethernet (PoE) ..............................................................4

Features............................................................................................5

Technical Specifications..................................................................6

Unpacking and Installation ................................................................11

Unpacking......................................................................................11

Installation .....................................................................................11

Rack Mounting...........................................................................12

Connecting Network Cables ......................................................13

AC Power...................................................................................14

Identifying External Components......................................................15

Front Panel.....................................................................................15

Rear Panel......................................................................................17

Understanding LED Indicators ......................................................17

Power and System LEDs ...............................................................18

Configuration.....................................................................................22

Supported web browsers................................................................22

Installing the SmartConsole Utility................................................22

SmartConsole Utility Features.......................................................23

Menu Toolbar.............................................................................23

Discovery List............................................................................25

Monitor List...............................................................................26

Device Setting............................................................................28

Web-based Utility..........................................................................30

Tool Menu..................................................................................32

Setup Menu....................................................................................33

System > System Setting ...........................................................34

System > Trap Setting................................................................35

System > Port Setting.................................................................37

System > SNMP Setting ............................................................38

System > Password Access Control...........................................40

Configuration > 802.1Q VLAN.................................................40

Configuration > Trunking..........................................................43

Configuration > IGMP Snooping...............................................43

Configuration > 802.1D Spanning Tree.....................................47

Configuration > Port Mirroring..................................................49

Configuration > LLDP...............................................................50

Power over Ethernet (PoE) > PoE Port Setting..........................50

Power over Ethernet (PoE) > PoE System Setting.....................52

QoS > 802.1p Default Priority...................................................52

Security > Safeguard Engine......................................................53

Security > Broadcast Storm Control..........................................54

Security > 802.1X Setting..........................................................54

Security > Mac Address Table > Static Mac .............................56

Security > Mac Address Table > Dynamic Forwarding Table ..57

Monitoring > Statistics...............................................................58

ABOUT THIS GUIDE

Thank you and congratulations on your purchase of the DES-1228P

24-Port 10/100Mbps Fast Ethernet + 4 10/100/1000Base-T Ports and

2 Combo SFP PoE Web-Smart Switch. This device integrates

1000Mbps Gigabit Ethernet, 100Mbps Fast Ethernet and 10Mbps

Ethernet network capabilities in a highly flexible package. Since Ports

1~24 of this Switch are Power over Ethernet (PoE) ports, it will

automatically detect the presence of IEEE 802.3af compliant devices

and will provide power through these PoE ports. The Switch provides

up to 15.4Watts per port and can be connected to WLAN access

points, IP phones, video cameras, and other PD devices. The Switch

will automatically detect the network appliance's requirements, and

the Switch will supply the required power current to each appliance.

Purpose

This guide will show you how to install and use the configuration

functions of the DES-1228P Web-Smart Switch step-by-step.

Terms/Usage

In this guide, the term “Switch” (first letter capitalized) refers to the

DES-1228P Smart Switch, and “switch” (first letter lower case) refers

to other Ethernet switches. Some technologies refer to terms “switch”,

“bridge” and “switching hubs” interchangeably, and both are

commonly accepted for Ethernet switches.

INTRODUCTION

This chapter will describe the features of the DES-1228P and provide

some background information about Ethernet/Fast Ethernet/Gigabit

Ethernet switching technology.

Gigabit Ethernet Technology

Gigabit Ethernet is an extension of IEEE 802.3 Ethernet utilizing the

same packet structure, format, and support for CSMA/CD protocol,

full duplex, and management objects, but with a tenfold increase in

theoretical throughput of over 100-Mbps Fast Ethernet and a

hundredfold increase over 10-Mbps Ethernet. Since it is compatible

with all 10-Mbps and 100-Mbps Ethernet environments, Gigabit

Ethernet provides a straightforward upgrade without wasting existing

investments in hardware, software, or trained personnel.

The increased speed and extra bandwidth offered by Gigabit Ethernet

is essential to help solving network bottlenecks that frequently

develop as more advanced computer users and newer applications

continue to demand greater network resources. Upgrading key

components, such as backbone connections and servers to Gigabit

Ethernet technology can greatly improve network response times as

well as significantly speed up the traffic between subnets.

Gigabit Ethernet enables fast optical fiber connections to support

video conferencing, complex imaging, and similar data-intensive

applications. Likewise, since data transfers occur 10 times faster than

Fast Ethernet, servers outfitted with Gigabit Ethernet NIC’s are able to

perform 10 times the number of operations in the same amount of time.

In addition, the phenomenal bandwidth delivered by Gigabit Ethernet

is the most cost-effective method to take advantage of today and

tomorrow’s rapidly improving switching and routing internetworking

technologies. And with expected advances in the coming years in

silicon technology and digital signal processing that will enable

Gigabit Ethernet to eventually operate over unshielded twisted-pair

(UTP) cabling, outfitting your network with a powerful 1000-Mbps-

capable backbone/server connection which will create a flexible

foundation for the next generation of network technology products.

Fast Ethernet Technology

The growing importance of LANs and the increasing complexity of

desktop computing applications are fueling the need for high

performance networks. A number of high-speed LAN technologies

have been proposed to provide greater bandwidth and improve

client/server response times. Among them, 100BASE-T (Fast

Ethernet) provides a non-disruptive, smooth evolution from the

current 10BASE-T technology. The non-disruptive and smooth

evolution nature, and the dominating potential market base, virtually

guarantees cost-effective and high performance Fast Ethernet

solutions.

100Mbps Fast Ethernet is a standard specified by the IEEE 802.3

LAN committee. It is an extension of the 10Mbps Ethernet standard

with the ability to transmit and receive data at 100Mbps, while

maintaining the CSMA/CD Ethernet protocol. Since the 100Mbps

Fast Ethernet is compatible with all other 10Mbps Ethernet

environments, it provides a straightforward upgrade and utilizes

existing investments in hardware, software, and personnel training.

Switching Technology

Another approach to push beyond the limits of Ethernet technology is

the development of switching technology. A switch bridges Ethernet

packets at the MAC address level of the Ethernet protocol transmitting

among connected Ethernet or Fast Ethernet LAN segments.

Switching is a cost-effective way of increasing the total network

capacity available to users on a local area network. A switch increases

capacity and decreases network loading by dividing a local area

network into different segments, which won’t compete with each other

for network transmission capacity.

The switch acts as a high-speed selective bridge between the

individual segments. The switch, without interfering with any other

segments, automatically forwards traffic that needs to go from one

segment to another. By doing this the total network capacity is

multiplied, while still maintaining the same network cabling and

adapter cards.

Power over Ethernet (PoE)

Power over Ethernet (PoE) integrates power and data onto one single

cabling infrastructure, eliminating the need to have AC power

available at all locations.

Power and Data are integrated onto the same cable. Supporting

category 5/5e up to 100 Meters, PoE will provide power to PoE

compatible devices, such as IP telephones, wireless LAN access

points, and IP security cameras.

PoE is already widely adopted in the market, saving up to 50% of

overall installation costs by eliminating the need to install separate

electrical wiring and power outlets.

Features

♦Address Table: Supports up to 8K MAC address per device

♦Supports a packet buffer of up to 128K Bytes

♦1-24 10/100M ports support up to 15.4W power which complies

the IEEE802.3af Power over Ethernet standard.

♦IGMP Snooping support

♦IEEE802.1D Spanning Tree

♦Support static Port Trunk

♦IEEE802.3x flow control in full duplex mode

♦Port Mirroring support

♦IEEE802.1Q VLAN

♦IEEE802.1p Priority Queues

♦IEEE802.1x Port-based Access Control

♦Supports Broadcast Storm Control

♦Supports Static MAC setting

♦D-Link Safeguard Engine support

♦Supports Simple Network Management Protocol(SNMP)

♦MIB support for: RFC1213 MIB II, Private MIB

♦Supports DHCP client

♦Supports Port setting for Speed, Duplex Mode

♦Easy configuration via Web Browser　

♦Easy setting via SmartConsole Utility

♦Firmware backup and upload via Web GUI

♦System reboot via Web GUI

♦Provides parallel LED display for port status such as link/act,

speed, etc.

♦Reset configuration (hardware and Web GUI)

Technical Specifications

Key Components / Performance

Switching Capacity 12.8Gbps

Max. Forwarding Rate 10M: 14,880 pps

100M: 148,809 pps

1G: 1,488,095 pps

Forwarding Mode Store and Forward

Packet Buffer memory 128K Bytes

SDRAM for CPU 8M Bytes

Flash Memory Prom 2M Bytes

Port Functions

LAN - 24 x 10/100BaseT ports

- Compliant with the following standards:

IEEE 802.3 compliance

Otros manuales para DES-1228P - Web Smart Switch

Tabla de contenidos

Otros manuales de Cambiar de D-Link

D-Link

D-Link DXS-3250 - xStack Switch - Stackable Manual de usuario

D-Link

D-Link DGS-3630-52TC Manual de usuario

D-Link

D-Link DGS-3200-16 - Switch - Stackable Manual de usuario

D-Link

D-Link DXS-3600 Series Manual de usuario

D-Link

D-Link DGS-1100-26MP Manual de usuario

D-Link

D-Link DGS-105 - Switch Manual de usuario

D-Link

D-Link xStack DGS-3600 Series Manual de usuario

D-Link

D-Link DES-1016D - Switch Manual de usuario

D-Link

D-Link DES-3208 Manual de usuario

D-Link

D-Link DES-3225G Series Manual de usuario

D-Link

D-Link DKVM-2KU Manual de usuario

D-Link

D-Link Nuclias DNH-100 Manual de usuario

D-Link

D-Link DGS-1005D - Switch Manual de usuario

D-Link

D-Link DXS-3250E - xStack Switch Manual de usuario

D-Link

D-Link DES-3010PA - Switch Manual de usuario

D-Link

D-Link DGS-3000-28L Manual de usuario

D-Link

D-Link DGS-1216T - Switch Manual de usuario

D-Link

D-Link DES-3010GA - Switch Manual de usuario

D-Link

D-Link xStack DGS-3612G series Manual de usuario

D-Link

D-Link DES-1026G/E1A Manual de usuario

D-Link

D-Link DKVM-4U Manual de usuario

D-Link

D-Link DGS-3120-24PC-SI Manual

D-Link

D-Link DXS-5000-54S Manual de usuario

D-Link

D-Link DKVM-IP16LCD Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manual de usuario
