DCH-G020

mydlink™ Connected Home Hub

User’s Manual

Version 01.1

Feb. 4th, 2015

DCH-G020 D-Link Corporation

Data Sheet Page 2 2/11/2015

1. PRODUCT DESCRIPTION

The DCH-G020 is a Connected Home Z-Wave Gateway used to control a

variety of Z-wave home sensors for the application of home automation.

It is able to talk to variety of Z-Wave sensors and communicate with other D-

Link connected Home devices.

DCH-G020 is a Security Enabled Z-Wave Plus product.

2. APPEARANCE

Front Panel

 LED: Status indicator

Rear Panel

 USB port (Type A): reserved for future support .

 LAN port x2

DCH-G020 D-Link Corporation

Data Sheet Page 3 2/11/2015

 Wireless button: device pair/ un-pair

 Power jack: 5V/2A

Bottom Panel

 Reset button

3. APPLICATIONS

4. INSTALLATION & CONFIGURATION

Step 1 Make sure your mobile device connected to the same network as DCH-G020

Step 2 Follow the Quick Install Card to scan the QR code to download the App.

Step 3 Install App and run it.

Step 4 Register an account for mydlink home service and login the App.

DCH-G020 D-Link Corporation

Data Sheet Page 4 2/11/2015

Step 5 Add a new device and select Gateway DCH-G020.

A. Select Add new device to add a new device.

B. Scan device QR code or skip the QR code to manual select the device.

DCH-G020 D-Link Corporation

Data Sheet Page 5 2/11/2015

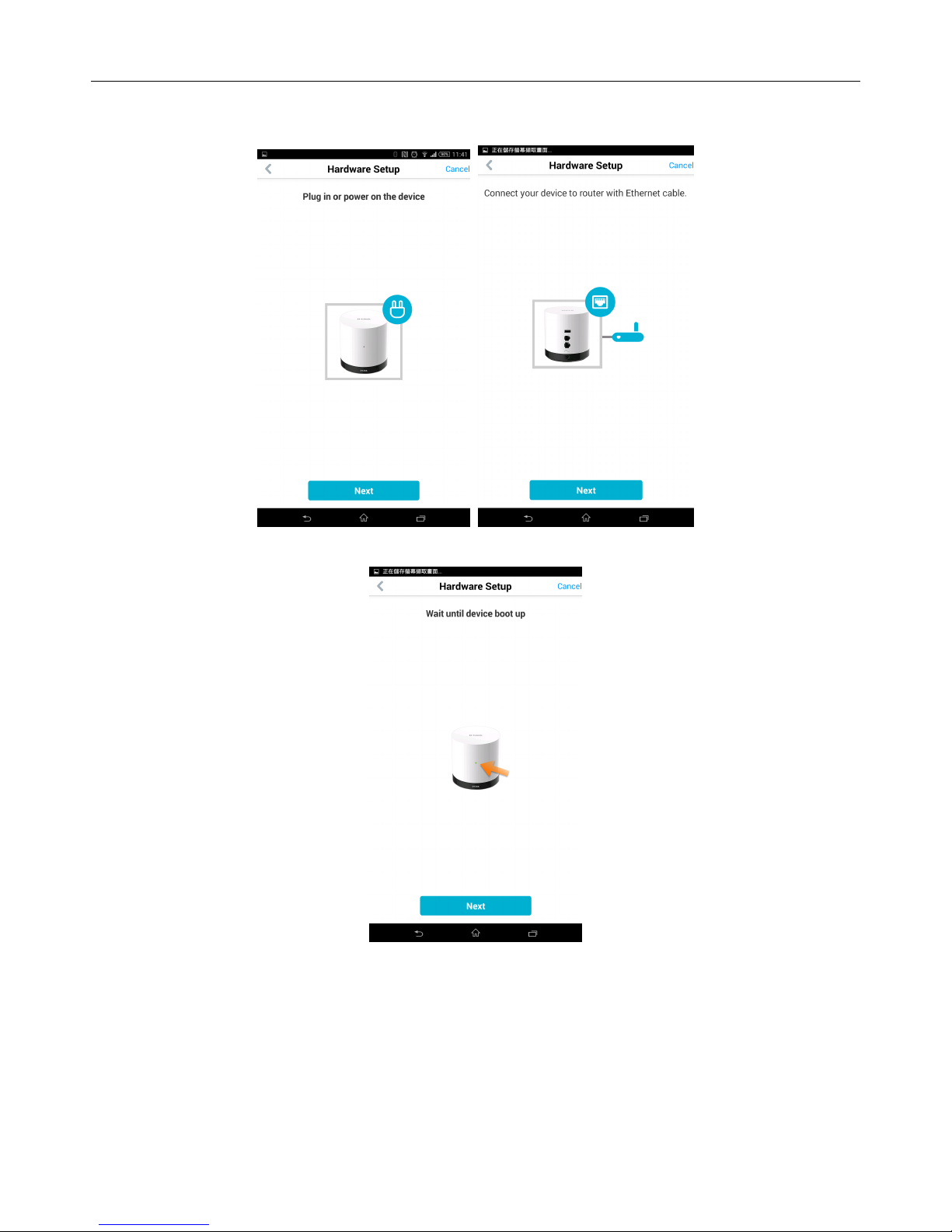

Step 6 Follow the instructions to setup the DCH-G020

DCH-G020 D-Link Corporation

Data Sheet Page 6 2/11/2015

Step 7 Find the DCH-G020 and click to select it.

Step 8 Enter the Pin Code of your DCH-G020.

DCH-G020 D-Link Corporation

Data Sheet Page 7 2/11/2015

Step 9 Give a name of your DCH-G020.

Step 10 See a DCH-G020 on the device list, then you can continue to add Z-wave

sensors or other D-Link Connected Home devices.

DCH-G020 D-Link Corporation

Data Sheet Page 8 2/11/2015

Click the device to see more information of the device.

Make a Policy for Devices

DCH-G020 D-Link Corporation

Data Sheet Page 9 2/11/2015

Make a Group for Devices

You can click the Notification to see the triggered information, click Schedule to

configure the device working schedule, and click Sign out to log out the device.

DCH-G020 D-Link Corporation

Data Sheet Page 10 2/11/2015

Advance Configuration

Before enter the advance configuration, you need to open an Internet browser on

the PC and type http://dch-g020x to login the web page

Key-in PIN code to login

 Manually Firmware Update

After successful log-in, you will enter the firmware update page.

FW upgrade: Select the FW file first, and then press the “Upgrade Firmware”

button.

You can also press the Set Factory Default button to reset the device to factory

default value (reset Z-Wave to default in the meantime).
